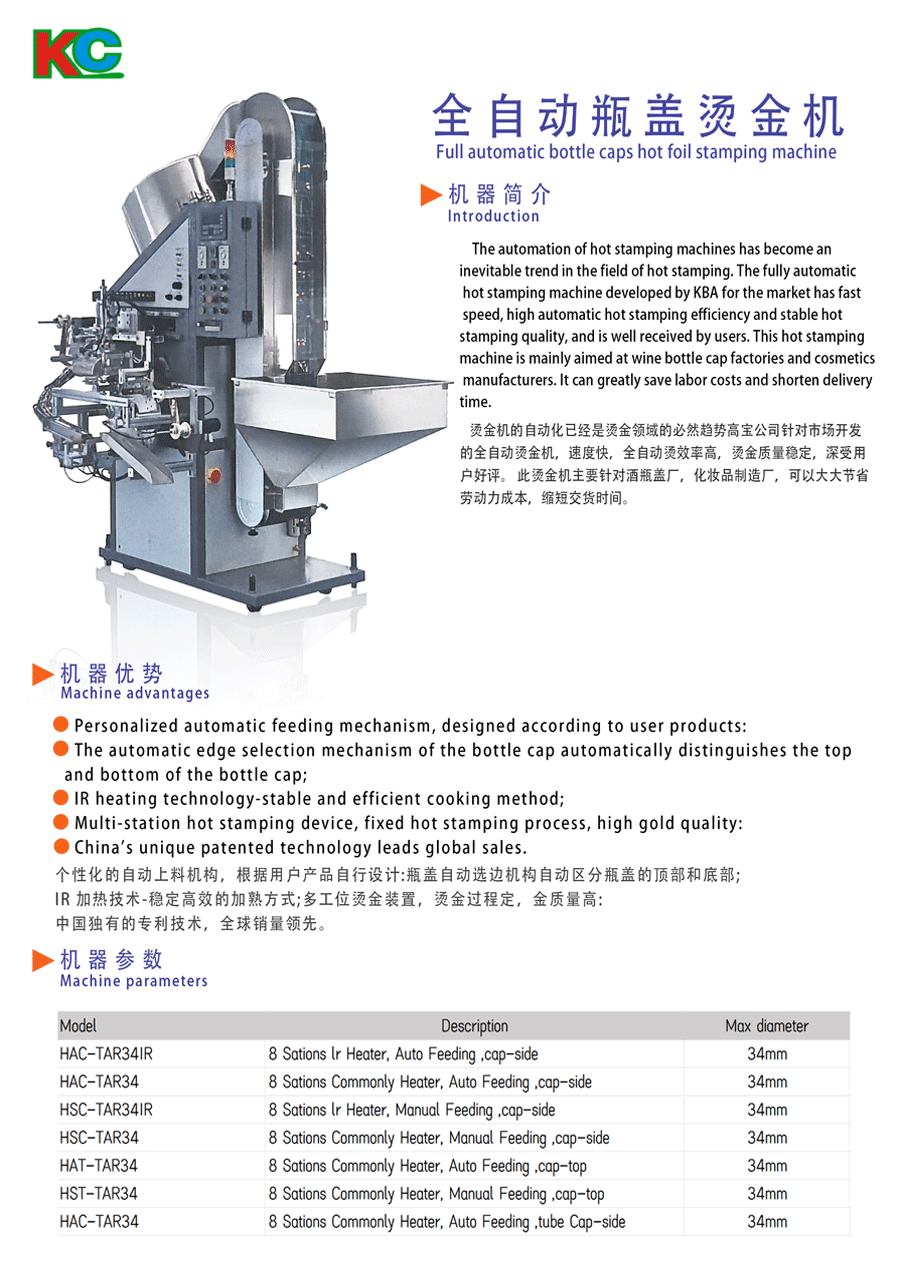

Full automatic hot stamping machine for bottle cap top //Usage and characters
Printed Samples
The Automatic Bottle Cap Top Hot Foil Stamping Machine is a specialized automated solution designed for high-efficiency foil stamping on the top surfaces of plastic bottle caps, cosmetic caps, and other compatible closures. It is suitable for bottle caps with smooth top surfaces and can also process certain cosmetic caps with diameters below 40 mm. The machine features a compact and robust structural design with side feeding, allowing caps to be continuously conveyed into the stamping station through an automatic transmission system. An automatic cap orientation detection mechanism identifies the top and bottom of each cap and ensures the correct surface is positioned for stamping, reducing manual handling, labor requirements, and setup errors. The stable horizontal conveying mechanism, combined with frequency-controlled motor drive, provides smooth material transport and consistent stamping pressure for reliable foil transfer quality. The PLC control system enables precise adjustment and management of key operating parameters through a user-friendly HMI, while the integrated setup and debugging functions simplify machine commissioning and parameter adjustment. With its automatic feeding, cap orientation, precise positioning, and stable hot foil stamping process, this Automatic Hot Foil Stamping Machine for Bottle Caps provides an efficient and consistent solution for top-side decoration of plastic bottle caps, cosmetic packaging closures, and other high-volume packaging components.
Hot foil stamping on the top surface of bottle caps is essentially a flatbed hot foil stamping process, typically using a flat platen mechanism in which the stamping head moves vertically. Compared with curved-surface stamping, this configuration has a relatively simple motion structure and is well suited to the flat top surfaces of plastic bottle caps and cosmetic closures. An Automatic Bottle Cap Top Hot Foil Stamping Machine uses a precision flatbed stamping mechanism to ensure stable contact between the cap top and the heated stamping die during the stamping cycle. The automatic conveying and positioning system accurately transports each cap into the stamping station and maintains the correct orientation throughout the process. Since the stamping area on most bottle caps is relatively small, the machine generally does not require excessive stamping pressure, while precise control of temperature, pressure, and dwell time helps achieve clear and uniform foil transfer. A growing trend in automatic bottle cap hot foil stamping technology is the integration of top and side stamping within a single production system. These advanced machines typically use a rotary turntable worktable equipped with two independent hot foil stamping units—one dedicated to the top surface and the other to the side surface of the cap. This configuration enables multi-surface decoration within a single automated cycle, reducing manual handling and improving production efficiency. It is particularly suitable for high-volume packaging applications where bottle caps require both top-side logos or graphics and side decorative lines or patterns, providing a flexible solution for plastic packaging, cosmetic packaging, beverage packaging, and other container closure applications.

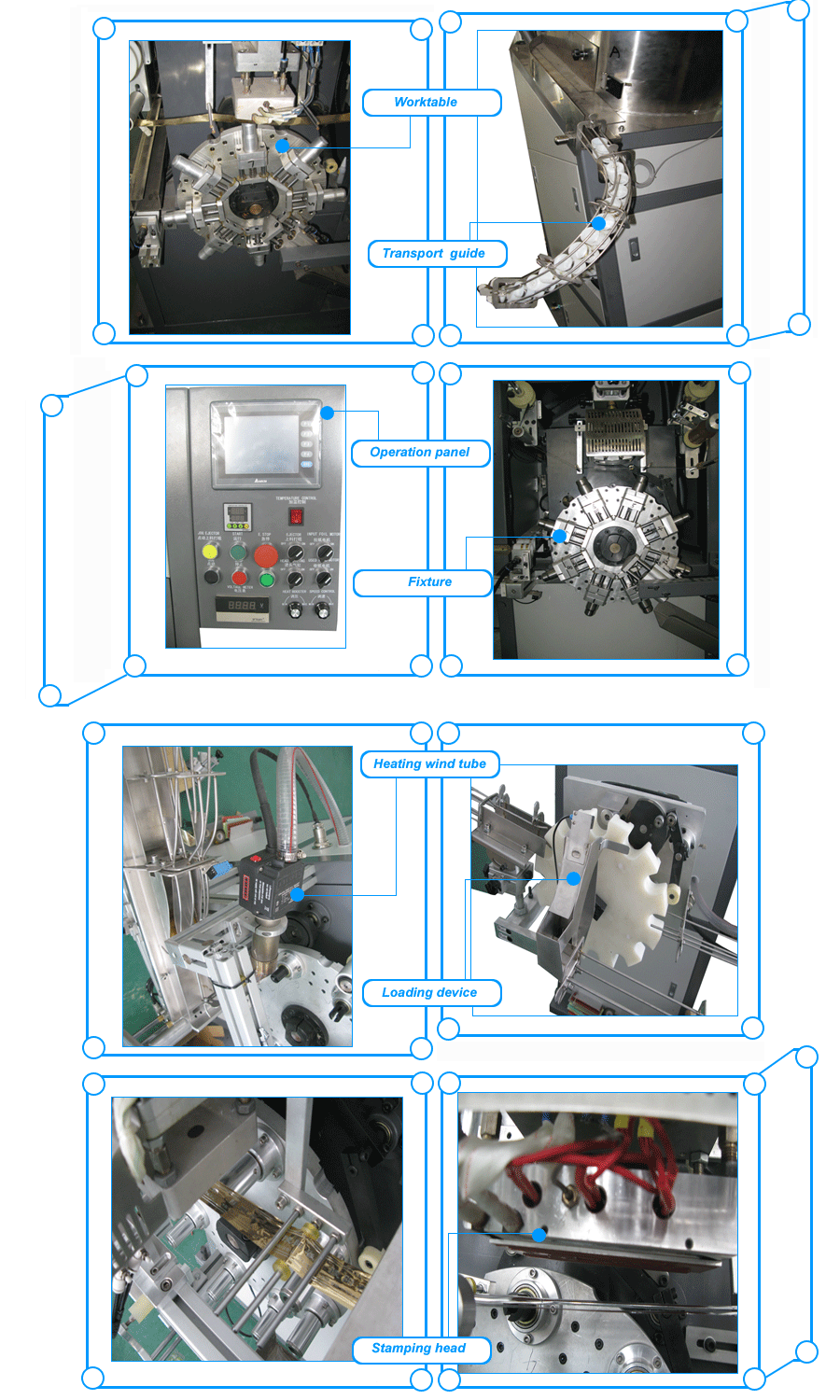

Machine details
Most containers need to be sealed with caps or lids to protect their contents and maintain product quality during storage and transportation. As a result, bottle cap hot foil stamping has become an important decorative finishing process in the packaging industry. Hot foil stamping on bottle caps can generally be divided into top stamping and side stamping. Although the overall machine structure is similar, the two processes use different stamping mechanisms. Top stamping typically adopts a flatbed stamping structure, with the hot stamping head moving vertically to transfer foil onto the top surface of the cap. Side stamping, in contrast, requires the rotary movement of the fixture combined with the horizontal movement of the hot stamping head to apply foil accurately to the curved side surface of the cap. An automatic bottle cap hot foil stamping machine typically consists of an automatic track feeding system, pre-pressing or pre-treatment system, precision positioning system, worktable, hot foil stamping unit, and automatic unloading system. Since bottles and bottle caps are widely used in daily consumer products and are typically manufactured in large quantities, high production speed, stable operation, and consistent stamping quality are essential requirements for automatic hot foil stamping equipment. These machines are widely used in plastic packaging, pharmaceutical packaging, cosmetics, stationery, wine and beverage packaging, household cleaning products, and other industries.
Technical parameters
- Total consume Wattage: 260W;
- Stamping temperature Rnange:20∼300℃;
- Compress air Pressure﹕5-8Bbar;
- Products Diameter:﹕(φ15~Φ35mm)×(20~60mm)
- Max stamping Speed:2000-3000pcs/h
|
- Outer dimension: 2300×2160×1200mm;
- Net weight(kg) : 720;
- Motor wattage: 1500W;
- Power supply: 220V;
- Heater wattage: 800W IR.
- Works supply: 110V-220V Power supply;5-7Bar Compress air;
|
Full automatic hot stamping machine for bottle cap top //Advantage
- Vertical cylinder-driven pressure mechanism provides strong and stable stamping force, ensuring reliable foil transfer and consistent stamping results;
- Multi-directional stamping head adjustment allows front-to-back, left-to-right, and up-and-down positioning for quick, precise, and convenient setup;
- 8-position rotary feeding mechanism reduces indexing and preparation time while improving overall stamping efficiency and production speed;
- Adjustable stamping pressure, temperature, and dwell time provide flexible process control for different bottle cap materials and foil stamping requirements;
- Automatic foil feeding, waste foil collection, and foil adjustment system ensure smooth foil transport and stable operation throughout the stamping process;
- Adjustable stamping head height allows the machine to accommodate different bottle cap sizes and stamping positions;
- Hopper storage and automatic track feeding system provide continuous and orderly bottle cap feeding to the stamping station;
- Automatic cap orientation detection system identifies the top and bottom of each cap and ensures correct positioning before hot foil stamping;
- Fully automatic hot foil stamping process integrates feeding, orientation, positioning, stamping, and product handling for continuous production;
- Advanced modular PLC control system with touchscreen HMI provides an intuitive operating interface and convenient parameter setting, while SMC pneumatic components ensure stable and reliable machine movement;
- Heavy-duty square-column frame structure provides high rigidity, structural stability, and long-term durability for industrial production;
- High-precision imported displacement sensors provide accurate position detection and control, improving stamping registration and overall foil transfer quality;
- High-quality precision linear bearings provide smooth and stable movement with low friction and wear, helping extend the service life of the mechanical system;
- IR heating system provides rapid and efficient heating with stable temperature control, helping maintain consistent hot foil stamping quality;
- Rotary worktable with an automatic air-blowing positioning system provides stable support and accurate positioning for side hot foil stamping of bottle caps, making it suitable for round, oval, and other specially shaped caps.
Catalogue
Why do wine bottle caps need hot foil stamping?
Wine bottle caps, especially those for white wine, require hot stamping on the sides or top to enhance the product's visual quality and brand recognition. Semi-automatic hot stamping machine, fully automatic hot stamping machine, and fully automatic heat transfer machine are commonly used for hot stamping bottle caps.
- Enhanced Texture: Hot stamping creates a metallic luster on the bottle cap's surface, creating a refined and high-end look. This aligns with the perceived quality and gift-like qualities of wine, especially mid- to high-end white and red wines, attracting consumers' attention.
- Strengthen Brand: Wine bottle caps are a key part of brand presentation. Hot stamping patterns and text (such as brand logos and product names) create high contrast and a three-dimensional effect, resisting wear and fading. Hot stamping clearly conveys brand information over time, helping consumers quickly identify the brand and enhancing brand recall.
- Improved anti-counterfeiting and durability: Some hot stamping processes (such as hot stamping special textures and combining hot stamping foil materials) have certain technical barriers and can help improve product anti-counterfeiting and reduce counterfeiting. At the same time, the hot stamping layer can protect the bottle cap surface to a certain extent, resisting minor friction or environmental impact, and extending the appearance and service life.
