Product details

Introduction

Plastic hollow containers are widely used in pharmaceutical, cosmetic, beverage, detergent, lubricant, household chemical, and industrial packaging industries. These containers are typically manufactured through blow molding processes using materials such as PP, PE, PET, PC, and other plastic polymers, requiring high-quality surface decoration solutions for branding, product identification, and visual enhancement. With the increasing demand for higher production efficiency, stable printing quality, and reduced labor costs, more manufacturers are adopting automatic bottle screen printing machines and automatic inline screen printing machines for large-scale container decoration. Featuring a continuous conveyor-based structure, multiple printing units are arranged in sequence to complete feeding, surface treatment, multi-color printing, and UV curing processes. Due to this integrated linear configuration, the system is widely recognized in the industry as a screen printing production line or automatic screen printing line. As one of the earliest developed fully automatic container printing technologies, the automatic inline screen printing machine has maintained a strong market position due to its mature design, standardized structure, reliable performance, and high production efficiency. Today, it remains one of the most advanced and widely adopted solutions for high-volume plastic bottle printing, hollow container decoration, and automatic packaging printing applications, helping manufacturers achieve consistent quality, faster production speeds, and improved overall productivity.

PP liquid bottles automatic UV screen printing machine

Printed Samples

PP/PC/PET/ABS/TPR/PVC bottles cups tubes screen printing

Parameter

Round-object Max printing stroke: 300mm;
Oval-object Max Printing stroke: 120mm;
Round-object Max Printing speed: 4000pc/h;
Oval-object Max Printing speed: 4500pc/h;
Work piece size(Round): Diameter:25-100mm;Length:60-300mm;
Work piece size( Oval): Width:25-260mm, Length:60-300mm;
Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour);
UV Lamp wattage: 4KW/pc;
UV Exhaust fan wattage: 0.2KW;
Exhaust rate: 11.6 m3/min;

Motor Wattage: 0.75KW;
Reduction gearbox : 1:7.5;
Feeding motor wattage : 0.75KW;
Fixture motor wattage : 0.5KW;
Vacuum Pressure : 500 mm/Ag;
Flame gas: Liquefied Petroleum gas( LPG);Air : 6 Bar;
Air rate of flow : 1500Lit/M.
Works supply:
Power: 3 phase 380V,45A/(1-3C),100A/(4-5C); 5-7Bar
Compress air ;Liquefied petroleum Gas, Natural gas

Advantage

Designed for circular and oval containers, this versatile fully automatic bottle screen printing machine features a compact structure, easy setup, convenient maintenance, and stable operation, making it suitable for high-efficiency printing on various plastic packaging products.
The feeding conveyor system is driven by a synchronous motor with stepless speed adjustment, allowing precise control of bottle conveying speed. The adjustable conveyor width enables flexible handling of different container sizes and shapes.
Equipped with a dual vacuum suction loading system, bottles are automatically transferred to the screen printing conveyor line. The integrated automatic bottle orientation detection system ensures that containers are aligned in the correct direction before printing, improving positioning accuracy and production consistency.
The built-in flame treatment system effectively enhances ink adhesion on PP, PE, and other low-surface-energy plastic materials. The flame intensity and pressure can be flexibly adjusted according to different container materials and printing requirements.
The automatic positioning system ensures accurate bottle alignment for multi-color printing applications, achieving high registration precision up to 0.08mm and delivering clear, consistent, and high-quality printing results.
By replacing customized fixtures, the machine can easily adapt to different bottle shapes, including oval containers, allowing one system to handle multiple product models and improve production flexibility.
The screen frame and squeegee assembly feature three-dimensional precision adjustment and angle adjustment, ensuring accurate control of printing position, pressure, and stroke to meet various decoration requirements.
The machine combines a mechanical transmission system with pneumatic control technology and adopts a Japanese frequency inverter for precise process management, ensuring smooth operation, energy efficiency, and long-term reliability.
Equipped with an intuitive touchscreen control system, operators can easily set printing parameters, monitor machine status, and perform quick adjustments for efficient production management.
The integrated online UV curing system uses high-quality UV curing components to provide fast drying speed, excellent ink curing performance, and improved printing efficiency. The maximum printing speed can reach 3,600 pcs/hour.
Advanced electronic sensors provide intelligent functions including no-bottle detection, low-pressure monitoring, automatic fault alarms, and safety protection, ensuring stable and reliable continuous operation.
The electrical components and control system adopt high-quality components from Germany and Japan, ensuring precise control, stable performance, and consistent printing quality throughout long-term industrial production.

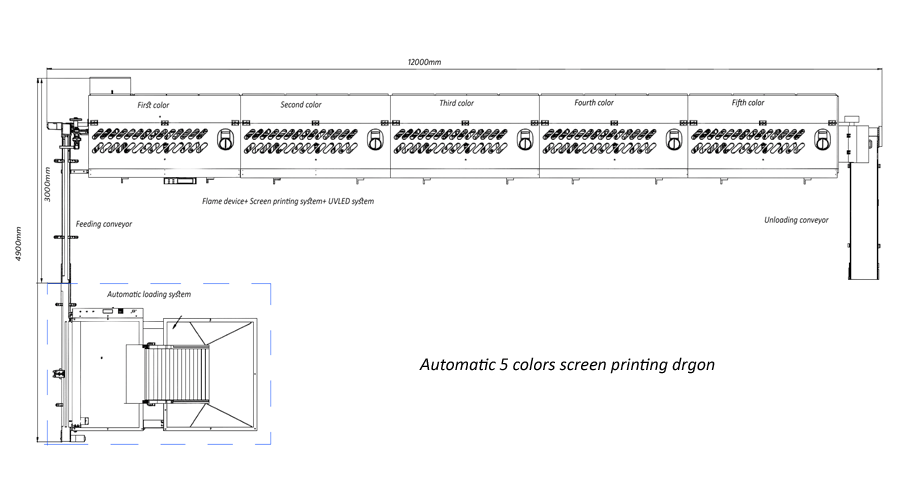

Machine Structure

1) Feeding conveyor belt: It is a conveyor belt. The operator can place the product to be printed on the conveyor belt. The conveyor belt can automatically transfer the plastic bottle to the feeding position, and the feeding nozzle of the machine will suck the bottle To the transfer table of the screen printing machine. Some users will request to customize the automatic feeding chute, and the bottles can be put into the feeding chute, and the bottles will be automatically arranged into the feeding conveyor belt.
2) Pre-press device: The pre-press device includes orientation adjustment of plastic bottles and product surface treatment, such as flame treatment, plasma treatment, coating of PP oxidant, etc.
3) Printing system: The printing system of the automatic screen printing machine is similar to the printing device of the semi-automatic screen printing machine, but it has more functions. In order to improve the printing efficiency and precision, more and more movements of the screen printing device are controlled by servo motors, pneumatic components More and more international famous brands are used for electronic and electronic components, and the main parts of the machine are also processed with high-strength steel instead of aluminum profiles. The wear resistance and service life of steel materials are much better than aluminum profiles.
4) UV drying system and UVLED drying system: For continuous high-speed screen printing, an important option to ensure that the screen is not blocked is to use UV ink, which will basically not dry to the screen surface and affect printing unless it is irradiated by ultraviolet rays.
5) Unloading system: If you do not arrange the printed products, you only need one unloading conveyor belt, but if you need to arrange the printed products, the machine will be equipped with a manipulator and placed regularly on the conveyor belt.
Now more and more users choose automatic multi-color container screen printing machine, which actually integrates three processes of flame treatment, silk screen printing and curing, which not only greatly reduces the labor intensity of the operator, but also greatly improves the printing quality of the product. Factories that are accustomed to semi-automatic screen printing machines have also begun to upgrade and purchase brand new screen printing machines to expand production capacity.

Automatic screen printing machine overview

How to choose fully automatic screen printing machine dragons

The price of fully automatic screen printing machine for plastic bottles is relatively expensive, especially for multi-color screen printing machine. The price is more expensive. Users should consider many aspects when choosing the machine:

Printing capacity//Product adaptability. Today's multi-color screen printing machine generally adapts to various shapes of plastic bottles: round, square, oval, etc. The machine can meet the printing needs of bottles of different sizes, and samples can be provided for suppliers to confirm.
Performance and quality//Operation stability: The machine transmission design should be reasonable, using well-known brand electrical components, and equipped with mature control systems, such as PLC control system and touch screen operation. The manufacturing accuracy of the machine is related to the printing quality. Does the machine accessories have the same drawings, does it have CNC processing capabilities, does it use high-quality raw materials, and does the test sample meet the needs?
Production efficiency//With the intensification of market competition, there are higher and higher requirements for the printing speed of the machine. In order to facilitate high speed, fast delivery can be achieved, and unit costs can be effectively reduced. The high printing speed of the machine is also a test of the rationality of the design and manufacturing accuracy of the fully automatic screen printing machine. High speed is actually a test of the degree of automation of the machine. A screen printer with a high degree of automation will also require a vibrating plate loading system and an automated unloading system. It also has high requirements for the manufacturing tolerance of machine accessories and the matching degree of moving parts.
Operation//The operation interface should be simple and easy to use. Operators can operate it proficiently after simple training. At the same time, the equipment should have convenient plate changing and debugging functions, and can quickly change screen plates with different patterns and adjust printing parameters. In this way, there is the shortest connection time when completing one batch of orders and changing to the next batch of orders.
