S-301UVLED full servo rotating bottles screen printing machine

4 year ago

47 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Samples of CNC rotary automatic screen printing machine

This automatic bottle screen printing machine is specially designed for high-quality screen printing on plastic bottles, glass bottles, and various irregular-shaped containers. Combining CCD vision positioning technology, CNC precision processing, and full servo drive control, the machine delivers outstanding printing accuracy, high production efficiency, and reliable automation for modern packaging manufacturers. After bottles are manually loaded onto the feeding conveyor, the intelligent feeding manipulator automatically transfers each bottle into the printing fixture. During this process, the high-resolution CCD camera accurately detects the bottle position and orientation, including the bottom and body features, and works together with the servo positioning system to achieve precise alignment before printing. This advanced CCD automatic positioning system ensures excellent registration accuracy and consistent print quality, even for complex patterns, fine logos, and multi-color designs. Equipped with two independent screen printing stations, the machine can complete two-color printing simultaneously, significantly improving production efficiency while maintaining stable printing performance. The automatic unloading robot transfers the finished products smoothly to the discharge conveyor, creating a complete automated printing workflow with minimal manual intervention. Designed for high-speed industrial production, this high-speed automatic screen printing machine can achieve printing speeds of more than 55 bottles per minute for round bottles and over 45 bottles per minute for square bottles. With precise servo motion control, intelligent operation, and reliable quality inspection, the machine provides high product yield and consistent printing results for large-scale manufacturing.The machine frame is constructed from high-strength welded steel components, ensuring excellent rigidity and long-term stability. The precision rotary table adopts a circular design, while key mechanical components are manufactured through CNC precision machining to guarantee smooth operation and accurate positioning. A transparent plexiglass safety enclosure provides enhanced operator protection and meets European safety requirements. The control system, servo motors, electrical components, and pneumatic components are sourced from internationally recognized suppliers in Germany, Japan, and France, ensuring high reliability, precision control, and stable machine performance. The intelligent control interface allows operators to easily adjust printing parameters and production settings for different products.

This CNC automatic screen printing machine is suitable for multi-color printing on a wide range of container shapes, including:

Round bottles
Square bottles
Square bottles with curved surfaces
Oval bottles
Rhombus-shaped bottles
Special-shaped containers

Widely used in industries such as cosmetics packaging, personal care products, beverages, electronics, household products, and premium packaging, this CCD vision positioning automatic screen printing machine provides an ideal solution for manufacturers seeking high precision, high speed, and fully automated bottle printing production.

Description of CNC rotary automatic screen printing machine

Item		STANDARD ITEMS	Q
1	Workbench	1.5M rotating workbench with high accurate splitter	1
2	Print system	High accurate screen printing system /Servo screen plate system	3
		Servo rotating positioning system /CCD positioning system	3
		PLC Control system	1
3	UV LED system	UV curing system	3

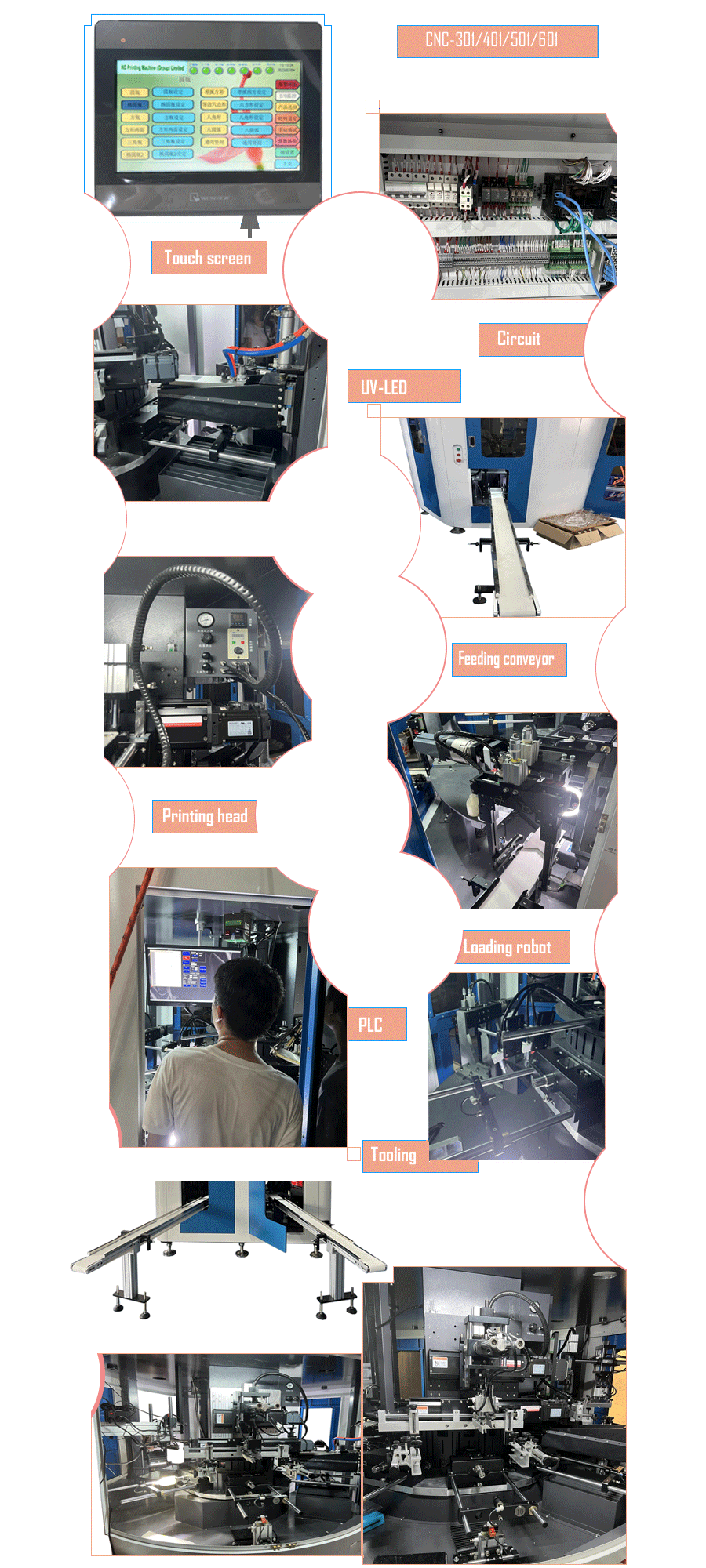

Machine structure of CNC rotary automatic screen printing machine

Intelligent high speed screen printing machine

The high-precision CNC multi-functional rotary screen printing machine provides a complete automated printing solution. It features:

Automatic feeding and robotic manipulator for precise placement.
CCD positioning system for accurate print alignment.
Servo screen printing and rotary table for high-quality, multi-station printing.
Plasma or flame treatment to enhance surface adhesion.
UVLED curing system for fast, energy-efficient ink drying.
Automatic unloading system for seamless workflow.

With its intelligent CNC interface and versatile functionality, this machine is ideal for cosmetics, electronics, plastic products, gifts, and industrial signage, enabling efficient, high-speed, and reliable screen printing.

Parameter of CNC rotary automatic screen printing machine

1	Print system	Max print diameter: 100mm / Max print length: 300mm
		Overprint accurate: 0.05-0.1mm ;Max print speed: 3000pcs/H
		Air : 5-7 bar PLC Control system
		Materials: plastics, glass, ceramic, Print color number: 3 colors
2	UV system/Power supply	UV Wattage: 4KW /3P380V

Machine Configuration of CNC rotary Automatic screen printing machine

Items	Description	Brand	Note
1	Pneumatic components	SMC , AIRTAC	Japan,Taiwan
2	PLC	Beckhoff	Germany
3	Light sensor	Omron/KEYENCE/SICK	Japan
4	Electrical components	Schneider/Omron	Germany/Japan
5	Splitter	GOIZPER	Spanish
6	Servo system	INOVANCE	China

Contact Now
