Hot foil stamping on ribbon and webbing is widely used to add metallic logos, text, and decorative patterns, helping enhance the visual appearance and branding of textile products. Although direct hot stamping can be applied to some ribbon materials, the porous and mesh-like surface of woven ribbons may reduce foil adhesion and lead to incomplete transfer or foil flaking. For applications requiring consistent decorative quality, an indirect hot foil stamping process is generally more suitable. The indirect process first uses a Ribbon Screen Printing Machine to apply a specialized hot stamping adhesive to the designated areas of the ribbon, followed by IR infrared drying to prepare the adhesive layer. The pre-treated ribbon then enters a Roller Hot Foil Stamping Machine, where heat and pressure are applied to transfer the metallic foil onto the printed adhesive areas. This process can be configured as a semi-automatic production system consisting of a ribbon screen printing machine, IR drying tunnel, and roller hot foil stamping machine, or integrated into a fully automatic continuous production line. The Automatic Webbing Screen Printing and Hot Foil Stamping Production Line integrates the screen printing unit, IR drying tunnel, and hot foil stamping unit into a continuous roll-to-roll ribbon and webbing printing process. The ribbon is automatically fed, screen printed with hot stamping adhesive, dried by infrared heating, and then transferred to the hot foil stamping section for continuous foil application before winding. This integrated configuration reduces manual material handling between processes, maintains consistent substrate feeding and processing conditions, and is suitable for continuous production of decorative ribbons, webbing, textile tapes, garment accessories, packaging ribbons, and other narrow-width flexible materials.
Hot foil stamping on ribbon and webbing commonly uses an indirect hot stamping process consisting of screen printing adhesive, IR drying, and hot foil stamping. The main reason is that ribbon and webbing are flexible textile materials with woven fibers, surface irregularities, and small gaps. During direct hot stamping, the foil may not make sufficient and uniform contact with the substrate, which can result in incomplete transfer, poor adhesion, or foil flaking.
Unlike paper or rigid plastic sheets, which generally have relatively smooth surfaces, ribbons and webbing are formed by interwoven warp and weft yarns. Their surfaces therefore contain noticeable texture, uneven areas, and small gaps.
Woven ribbon → uneven surface → insufficient foil contact → uneven pressure → incomplete foil transfer
As a result, simply increasing the pressure of the hot stamping machine does not always provide consistent foil adhesion across the entire design area.
With indirect hot foil stamping, a specialized hot stamping adhesive or heat-activated adhesive is first screen printed onto the designated areas of the ribbon. The adhesive creates a relatively continuous bonding layer between the woven substrate and the foil.
The basic process is: Ribbon → Screen-Printed Hot Stamping Adhesive → IR Drying → Hot Foil → Heat + Pressure → Foil Transfer Instead of relying directly on the textile fibers for foil adhesion, the foil bonds to the adhesive layer, which helps improve transfer completeness and adhesion.

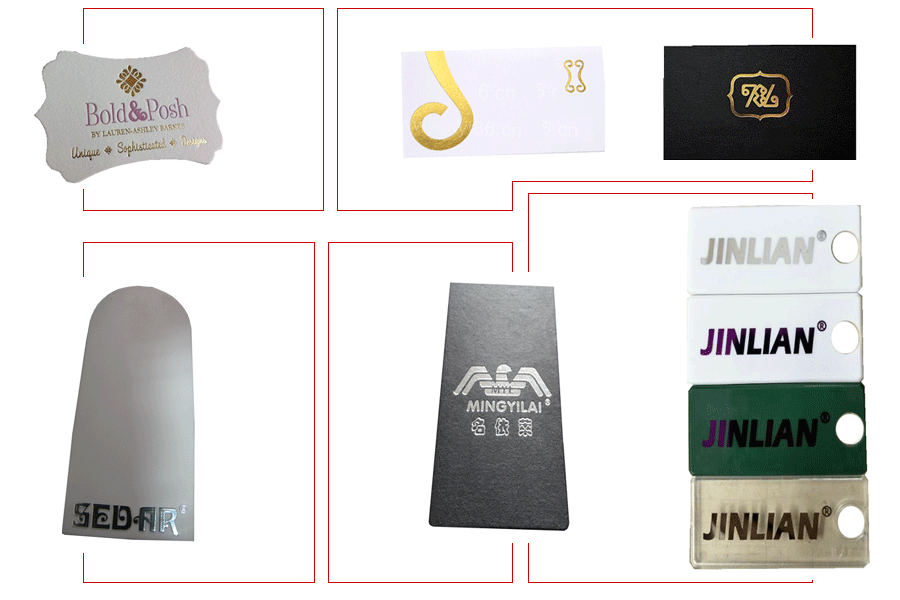

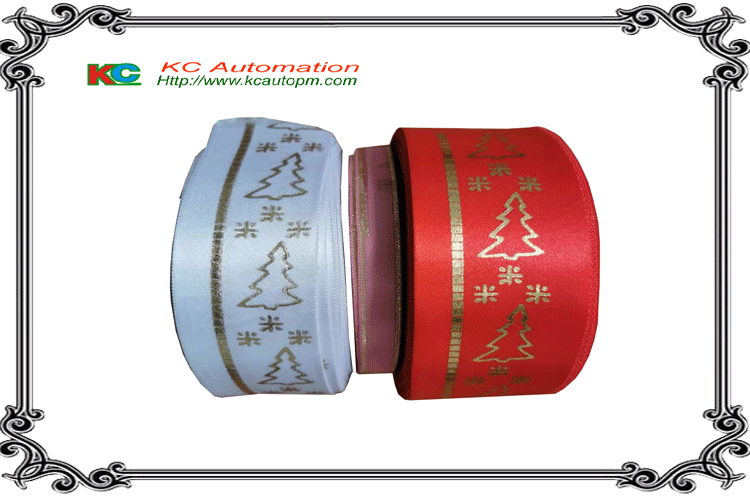

Hot foil stamping on ribbons is generally used for localized decoration rather than full-surface coverage. Common applications include:
Brand logos/Text and lettering/Trademarks/Decorative patterns/Repeating graphics/Promotional designs
Screen printing allows the adhesive to be applied precisely to the required areas through a screen stencil. It is therefore particularly suitable for continuous roll-to-roll ribbon and webbing production, especially when combined with automatic feeding, servo positioning, and infrared drying.
When direct hot stamping is used on textured ribbon, higher pressure and temperature may be required to achieve sufficient contact between the foil and the substrate.
However, excessive pressure or heat can affect flexible textile materials and may cause:
Surface impressions/Fiber deformation/Changes in material thickness/Distorted graphic edges/Surface damage
By applying a dedicated adhesive through screen printing, the process improves the bonding conditions between the foil and the ribbon, reducing the need to rely solely on high stamping pressure to compensate for surface irregularities.
After screen printing the hot stamping adhesive, the ribbon passes through an IR infrared drying system to prepare the adhesive layer for the subsequent foil stamping process. If the adhesive has not been sufficiently dried, it may cause uneven foil transfer or unclear graphic edges during stamping. Proper IR drying helps establish a more stable adhesive layer and provides consistent conditions for the subsequent roller hot foil stamping process.
The typical production sequence is: Automatic Feeding → Ribbon Screen Printing → IR Drying → Roller Hot Foil Stamping → Automatic Winding
Ribbon and webbing are commonly supplied in continuous rolls, making them suitable for continuous processing. By integrating: Automatic Unwinding + Screen Printing + IR Drying + Roller Hot Foil Stamping + Automatic Winding the complete process can be configured as a Roll-to-Roll Webbing Screen Printing and Hot Foil Stamping Production Line. Compared with transferring the ribbon manually between separate machines, an integrated production line reduces intermediate material handling and repositioning, helping improve production continuity and process consistency.
