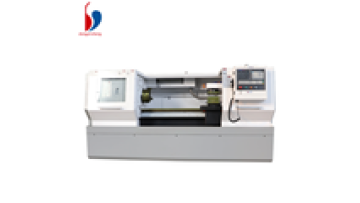

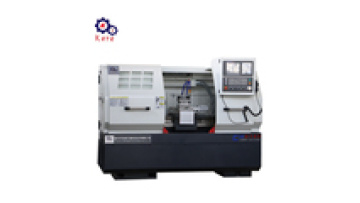

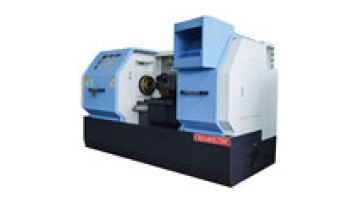

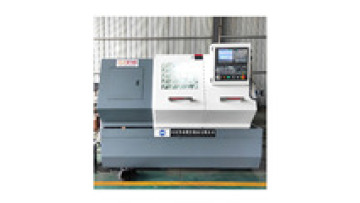

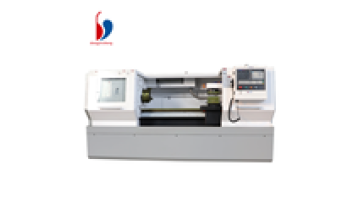

CK6140 CNC Horizontal Metal Lathe Him Machine
Product Description
Ck series cnc lathe machine is and low-cost, sensible kind system equipment with appropriate high-quality.The device has a very huge use that is appropriate for inner and outdoor turning, tapering, round arc, thread, dull, reaming of axis and disk workpiece. it also can reap non-spherical curve machining. spindle adopts excessive precision rolling bearings, immoderate precision rotary plate detail to undertake high precision ball screw transmission, accurate dynamic performance, precision positioning.the device device guide with put on-resistant solid iron and after the audio quenching, the hardness of the hrc45 above, can make sure the long-term balance of processing accuracy.
Product main technical Specifications:
| ITEM | Specifications | UNITS | CK6136 | CK6140 | CK6150 |
| Capacity | Max.Swing over bed | mm | Φ360 | Φ400 | Φ500 |
| Max.swing over cross slide | mm | Φ200 | Φ220 | Φ280 | |
| Maximum length of workpiece | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | |
| Spindle | Spindle hole | mm | 52mm | 52mm(82mm) | 52mm(82mm) |
| Spindle nose |
|
ISO-C6 | ISO-C6(C8) | ISO-C6(C8) | |
| Spindle tap |
|
MT6 | MT6 | MT6 | |
| Spindle speeds(Number) | rpm | Low:100-500 | Low:100-500 | Low:100-500 | |
| High:500-180 | High:500-180 | High:500-180 | |||
| Optional:90-1800 | Optional:90-1800 | Optional:90-1800 | |||
| Feed | Z-axis stroke | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
| X-axis stroke | mm | 330 | 330 | 330 | |
| rapid moving speed(m/min) | m/min | 3/6 | 3/6 | 3/6 | |
| X/Z min input(mm) | mm | 0.001 | 0.001 | 0.001 | |
| Tailstock | Dia. Of tailstock sleeve |
|
75 | 75 | 75 |
| mm | |||||
| Taper of tailstock sleeve |
|
MT5 | MT5 | MT5 | |
| Travel of tailstock sleeve | Mm | 140 | 140 | 140 | |
| Carriage | Tool number |
|
4 | 4(6) | 4(6) |
| Tool body size | mm | 20*20 | 20*20 | 25*25 | |
| Knife tool change time | s | 2 | 2 | 2 | |
| Position accuracy | Repeat positioning accuracy | mm | 0.01 | 0.01 | 0.01 |
| Power | Main motor power | K.W | 4 | 5.5/7.5 | 5.5/7.5 |
| Machine size (L*W*H) | Overall dismensions for 750mm | Mm | 2200*1500*1600 | 2200*1500*1600 | 2200*1500*1600 |
| Overall dismensions for 1000mm | Mm | 2450*1500*1600 | 2450*1500*1600 | 2450*1500*1600 | |
| Overall dismensions for 1500mm | Mm | 2950*1500*1600 | 2950*1500*1600 | 2950*1500*1600 | |
| Overall dismensions for 2000mm | Mm | 3450*1500*1600 | 3450*1500*1600 | 3450*1500*1600 | |
| Weight | Weight for 750mm | kg | 1600 | 1800 | 1900 |
| Weight for 1000mm | Kg | 1700 | 1900 | 2000 | |
| Weight for 1500mm | Kg | 1900 | 2100 | 2200 | |
| Weight for 2000mm | kg | 2100 | 2300 | 2400 |
| No. | ITEM | Number | Standard configuration |
| 1 | Numerical control system | 1/set | Optional system (gd980, Taiwan, FANUC, Siemens) etc. |
| 2 | Chuck | 1/set | Three jaw chuck K11 250 (optional K11 320) |
| 3 | Tailstock | 1/set | Manual tail base |
| 4 | X -ball screw | 1/set | PRC |
| 5 | Z -ball screw | 1/set | PRC |
| 6 | Electric turret | 1/set | LD4B-A(6150) |
| 7 | X,Z-Lead screw bearing | 1/set | PRC |
| 8 | X,Z- Coupling | 1/set | PRC |
| 9 | Spindle bearing | 1/set | PRC |
| 10 | Fuselage Casting | 1/set | High quality resin sand casting |
| 11 | Spindle assembly | 1/set | Assembly spindle |
| 12 | Spindle clamping |
|
Manual chuck |
| 13 | Paint | 1/set | Color can be configured according to customer requirements, not special requirements according to our standard color configuration |
| 14 | Lubrication | 1/set | Joint venture (electric lubricating oil pump, lubricating oil circuit is installed) |
1. Frequency Spindle
2. 250mm 3-jaw Manual Chuck
3. 4-station turret
4. Manual Tailstock
5. Full-splash Guard
6. Stepless speed change
1. Hydraulic Solid Chuck
2. Hydraulic Hollow Chuck
3. Hydraulic tailstock
4. 6-station turret
5. Center Rest and follow rest
6. 4-Jaw chuck
GSK; FANUC; Siemens; KND
The main feature :
1) Machine are made of high intensional cast iron with good aseismatic and high rigidity
2)Spindle of heavy-cutting structure to achieve high rigidity and high precision
3)With electrical turret,it can achieve high positioning ,fast speed for toolchange and high performance
4)With feeding motor and leadscrwe for type of direct connection,it can assure the machining precision and positioning accuracy
5)Tailstock can be adopted by hydraulic driving to make sleee travel bigger and easy operation
6)Complete closed cover can protect the iron scraps splashing out.
