H-TC350MC Bucket heat transfer machine //

Usage and characters

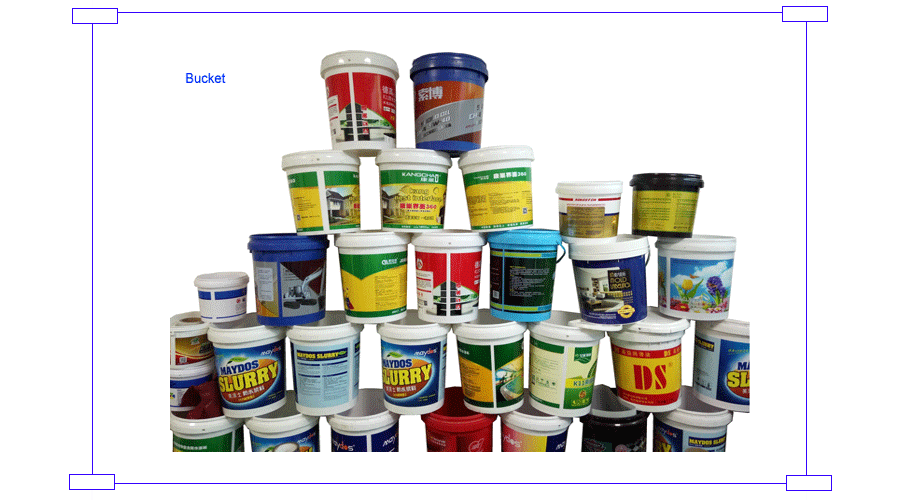

This is a fully servo-driven heat transfer machine for paint buckets, equipped with a patented heat transfer film feeding program. During the contact process between the heat transfer film and the plastic bucket, it accurately calculates the taper of the plastic bucket and the feeding speed of the heat transfer film, and performs dimensional compensation to achieve a precise fit between the heat transfer film and the plastic bucket. Generally, plastic buckets have a certain taper; during rotation, the larger end diameter rotates a longer distance, while the smaller end diameter rotates a shorter distance. The pattern on the heat transfer film will be printed as a fan-shaped pattern according to the taper of the plastic bucket. The automatic feeding of the heat transfer film and the transfer of this fan-shaped pattern onto the plastic bucket are the key features of this heat transfer machine.

Products suitable for cylindrical products, thermal transfer process;
Everyday household items, household appliances, toys, plastic gifts, etc. essential thermal transfer machines.
Hydraulic structure design, the transfer process more stable, the pressure more evenly;
Heat transfer machine can be used thermal transfer film, hot stamping foil can also be used by the necessary transformation, heat transfer machine can be installed copperplate roller to achieve the stamping process;
The trip around the table to dynamically adjust for different length transfer products;
Roller width 350mm;
For some of diameter greater than 230mm, 350mm height roughly around a large plastic bucket, the more difficult transfer. However, compared to silk screen decoration, transfer still has a very distinct advantage, but this time reduce the cost of transfer;
You can use the paint bucket to transfer automatically roll of thermal transfer machine, you can also use the manual release paper thermal transfer machine. As the transfer is completed once, compared with a screen printing to a print, process is relatively simple.

H-TC350MC Bucket automatic heat transfer Machine //Parameter

Length of Rubber Roller: 350mm;
Max pressure:2000 Kg;
Up-and down distance: 80 mm;
Heat wattage: 3000 W;
Foil feed: Motor Drive;
Temperature range: 0 - 400oC;
Net Weight :586 Kg;
Outer dimension:1500 x 730 x 2000 mm;
Max stamping diameter: 260mm.
Works supply : 3 Phase 380V Power supply.
Package dimension:1.12×0.710×1.63m
Gross weight: 239KG;
CBM:1.296176
H.S.Code : 8443198000
Certificate : CE

Details-Advantage

According to the user to provide a plastic bucket, professional custom fixtures;
The silicone roll in contact with the plastic bucket linear stamping to ensure accurate transfer;
Plastic bucket fixture capable of three-dimensional position and angle adjustment, maintain and silicone roll contact evenly;

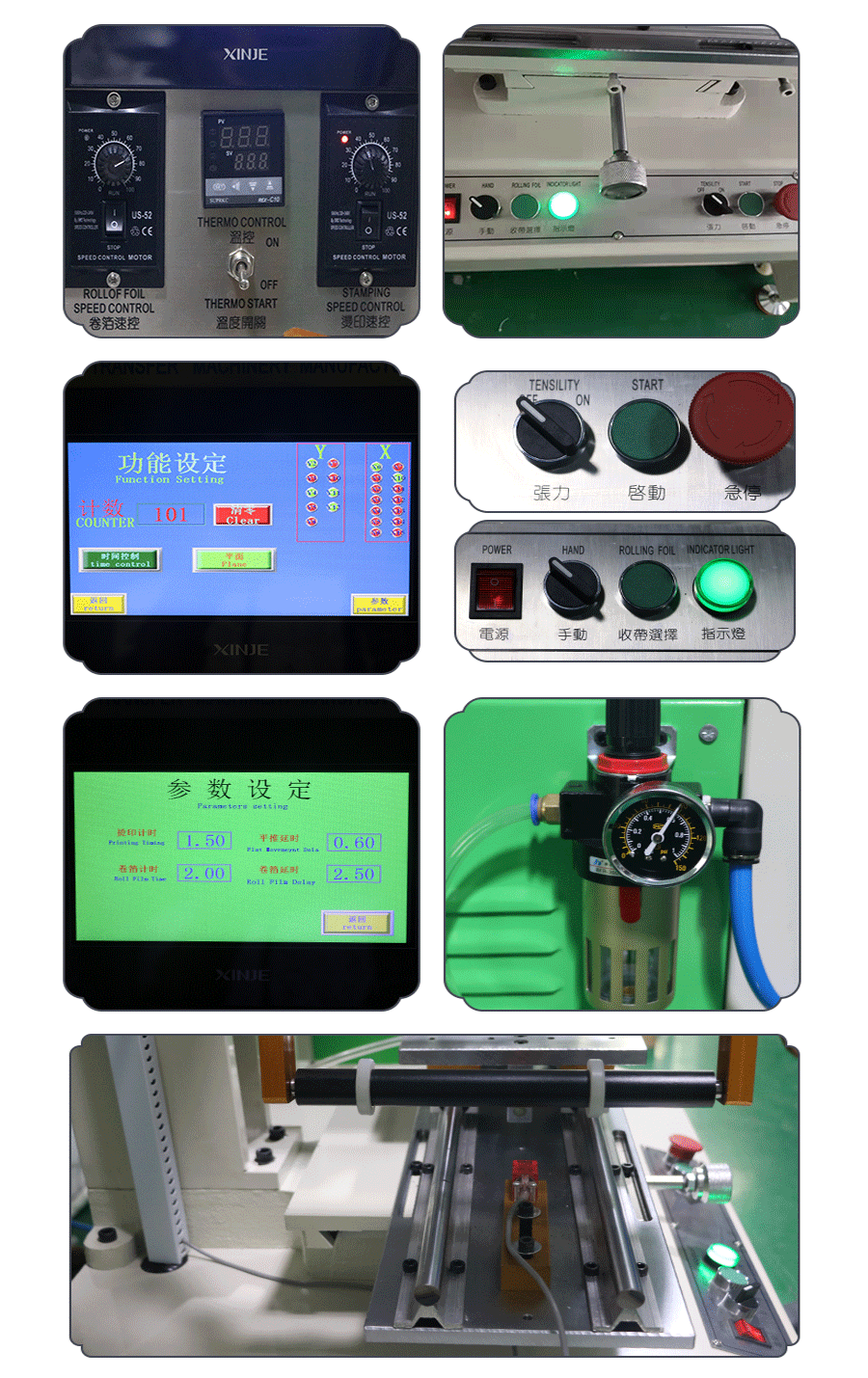

Famous brand PLC touch screen, mechanical action program can be edited;
Large vertical pressure cylinder pressure design, strong pressure;
Stamping pressure, temperature, speed and time can be set by the PLC digital, easy digital management;
Precision feed sector and collection of paper track design, thermal transfer film drive servo clothes, plastic bucket in accordance with sector rotation taper be transported;
The photoelectric switch pitch control, precise positioning, the error is within 0.1mm;
Famous imported pneumatic components and solenoid valve for precise, stable and durable;
Reel motors with automatic tension adjustment function, ensure the stability of the thermal transfer stretch film;
Custom fan pattern transfer film, thermal transfer film is not deformed, the transfer pattern exquisite;
The high-precision rotary speed precision control, make sure that the thermal transfer film transport and plastic drums rotate simultaneously, implement the interface without deviation.
