Usage of automatic hot stamping machine for container seals

Printing is the art of copying, that is, it copies the original manuscript completely and authentically. The standard for measuring printing quality is whether it can fully present the original manuscript. However, there are also many printed products that need to show constantly changing numbers and letters to reflect the uniqueness of the product. For those products that rely on tracing, tracking, and querying product batches, achieving regular changes in numbers or letters is also the choice of many users.

At present, the printing method that is easier to achieve regular changes in numbers or letters is hot stamping. The number head that can change numbers and letters is installed on the hot stamping head, and a toggle device is added to make the numbers or letters of the number head continuously increase or decrease. One knife marks the uniqueness of the product.

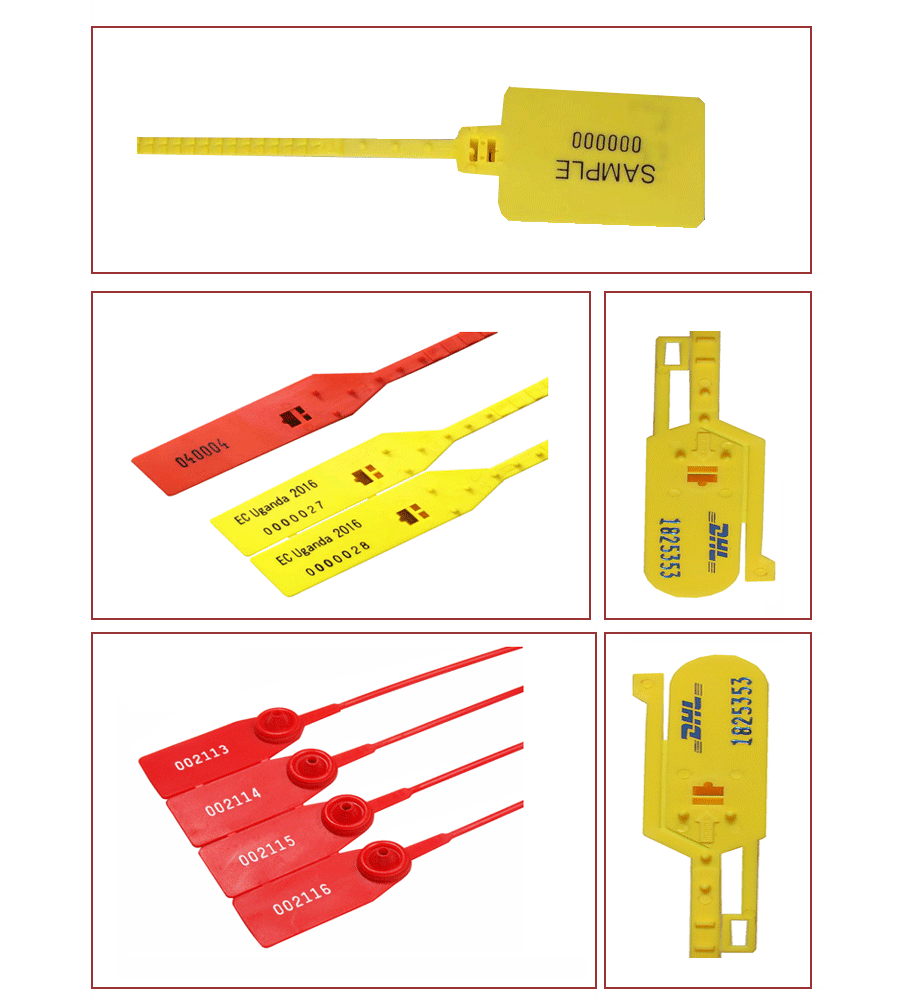

This hot stamping machine is widely used in the hot stamping of container seals-in the logistics system, in order to track the movement of container goods and to query the transportation status of container goods during the transportation process, the container will be uniquely marked with seals after sealing. The number on the seal is unique, and it is easy to achieve real-time tracking after encountering customer complaints.

If you are engaged in the business of container seals and involve hot stamping business, you can consult our fully automatic seal number hot stamping machine, maybe we will become your partner!

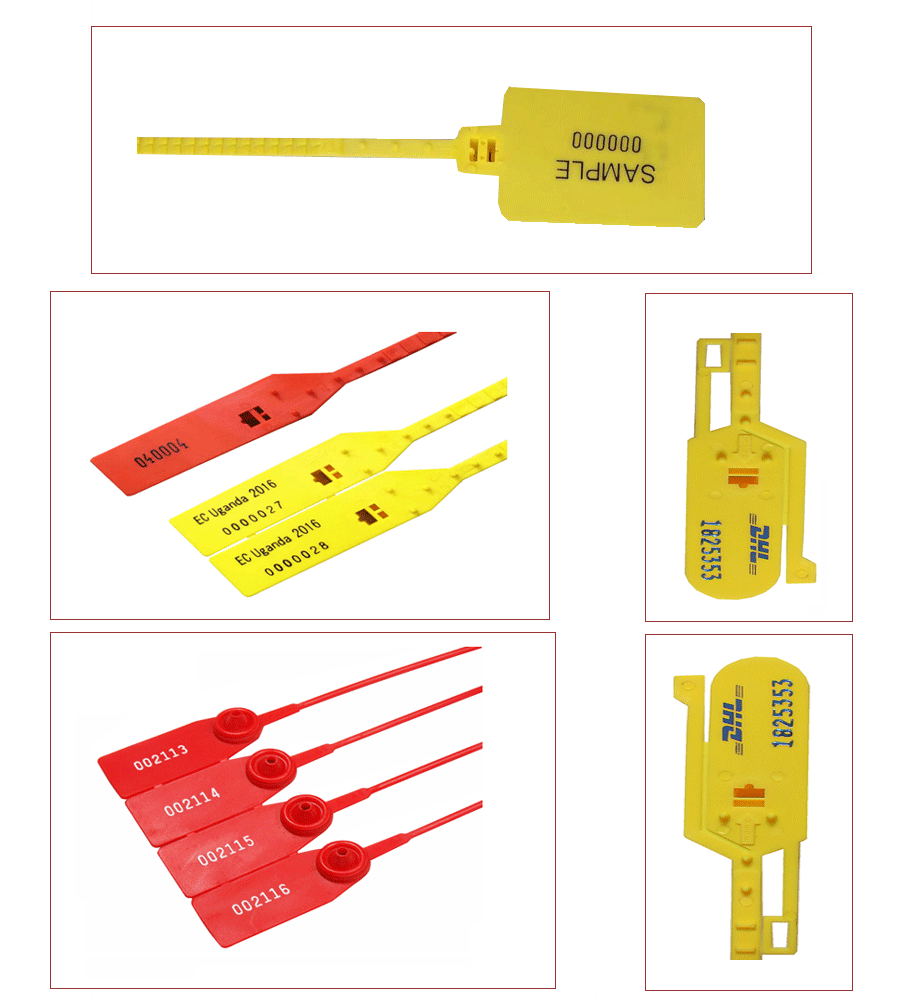

115

1) Hot stamping content and layout:
The more common is digital, 0.1.2.3.4.5.6.7.8.9. English letters: A.B.C.D.E.F.G.H.I.G.K.L.M.N.O.P.Q.R.S.T.U.V.W.X.Y.Z. sometimes users also need to provide LOGO design documents. Digital usually to iron a become a, also some will one day become a. Reflected in Numbering machine, some need to be automatic change, some need to manually Numbers.
2) The font size, general with 5 to no. 3 in the majority. The main consideration in product surface hot stamping out clear font.
3) The font types, in the world there is a wide variety of letters type, but use most or Arial, times New Roman, System.

To hot stamp the continuous non-repeatable number arrangement or text arrangement on the product, it is necessary to install a number machine that changes according to certain rules on the hot stamping head of the hot stamping machine. The number machine is composed of 10 Arabic numerals and 26 letters, and the size and font of the numbers and letters can be customized according to customer requirements. More users use the company's logo and numbering machine together. Usually, the logo will not change. For some processing plants, it may be more suitable for different users to separate the logo and the numbering machine for bronzing. H2-TC1010NSA and H2-TC2020NSA are fully automatic shuttle two-color number hot stamping machines specially developed for such users. One head can hot stamp changing numbers, and the other head can hot stamp unchanged graphics and text. The worktable adopts servo shuttle. In the system, when the product completes the hot stamping of a color number, it will move to another hot stamping position according to the settings to stamp the same image and text. The two-color hot stamping machine can actually complete the two-color hot stamping.
In the current market, there are not many products that require two-color bronzing, so multi-color bronzing machines are not common. If you encounter multi-color bronzing, usually two bronzing machines or more single bronzing machines are used for one color and one color. Hot, this efficiency is relatively low. The use of shuttle-type multi-color bronzing machine will greatly improve work efficiency.

Data of automatic hot stamping machine for container seals number

H2-TC2020NSA Automatically Numbering hot stamping machine
Stamping Head drive	Pneumatic-drive, Two heads
Foil collecting method	Motor-drive , Collecting time adjustable
Temperature controlling	Heating tube heat up，Automatically temperature controlling, temperature free setting
Size of stamping plate and table	Customized plate size/ 320×400mm.
Press adjustment way	Up-down of working table
Working table	Shuttle style driven by servo motor
Usage
Install Numbering Head on the hot stamping machine, You will get continue variation number one the objects to be bronzed; You can use not only number type but also with your company logo； Widely used in the Package, Container strip seal

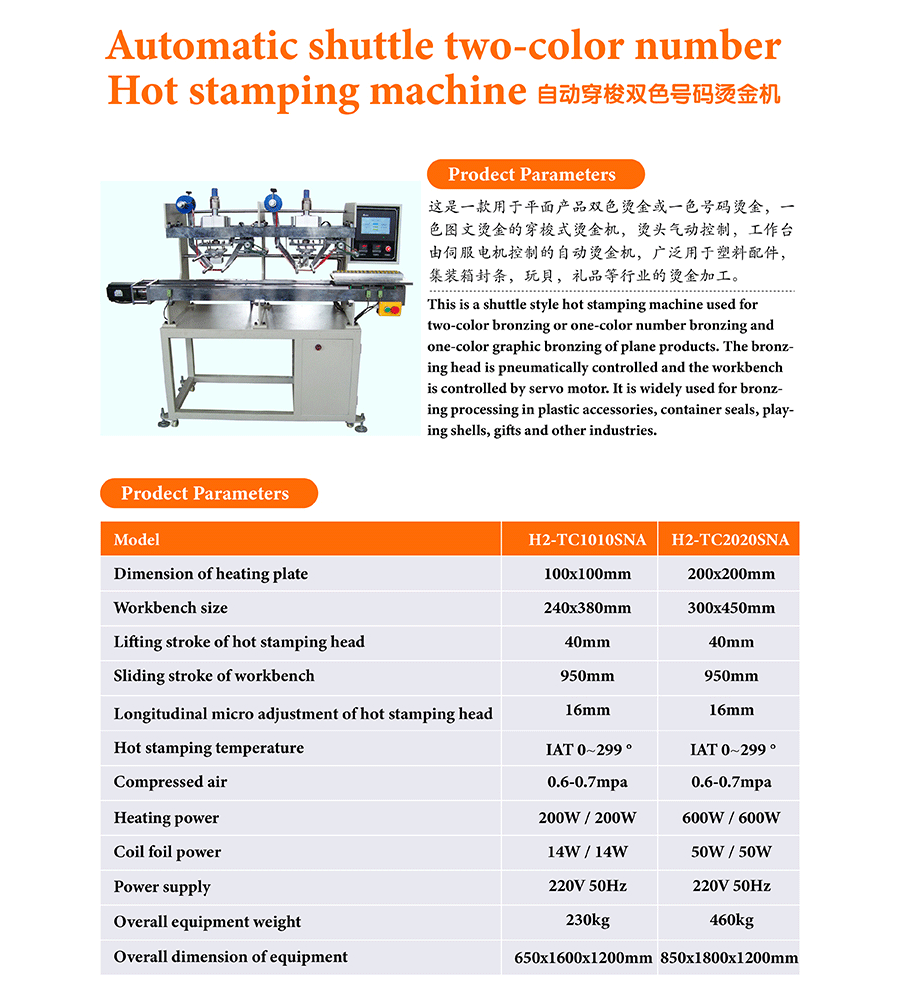

Technical parameter
H2-TC1010SNA 1. Hot plate area:100× 100 mm 2. Working table area:240 ×380mm 3. Max printing pressure:500 Kg 4. Up and down distance:45mm 5. Heat wattage:400W 6. Foil in feed: Motor Drive 50W 7. Temperature adjustment:0-300oC . 8.Stamping head micro adjust:16mm 9. Slide stroke : 950mm		H2-TC2020SNA 1. Hot plate area:200× 200 mm 2. Working table area:240 ×380mm 3. Max printing pressure:500 Kg 4. Up and down distance:45mm 5. Heat wattage:800W 6. Foil in feed: Motor Drive 50W 7. Temperature adjustment:0-300oC . 8.Stamping head micro adjust:16mm 9. Slide stroke : 950mm

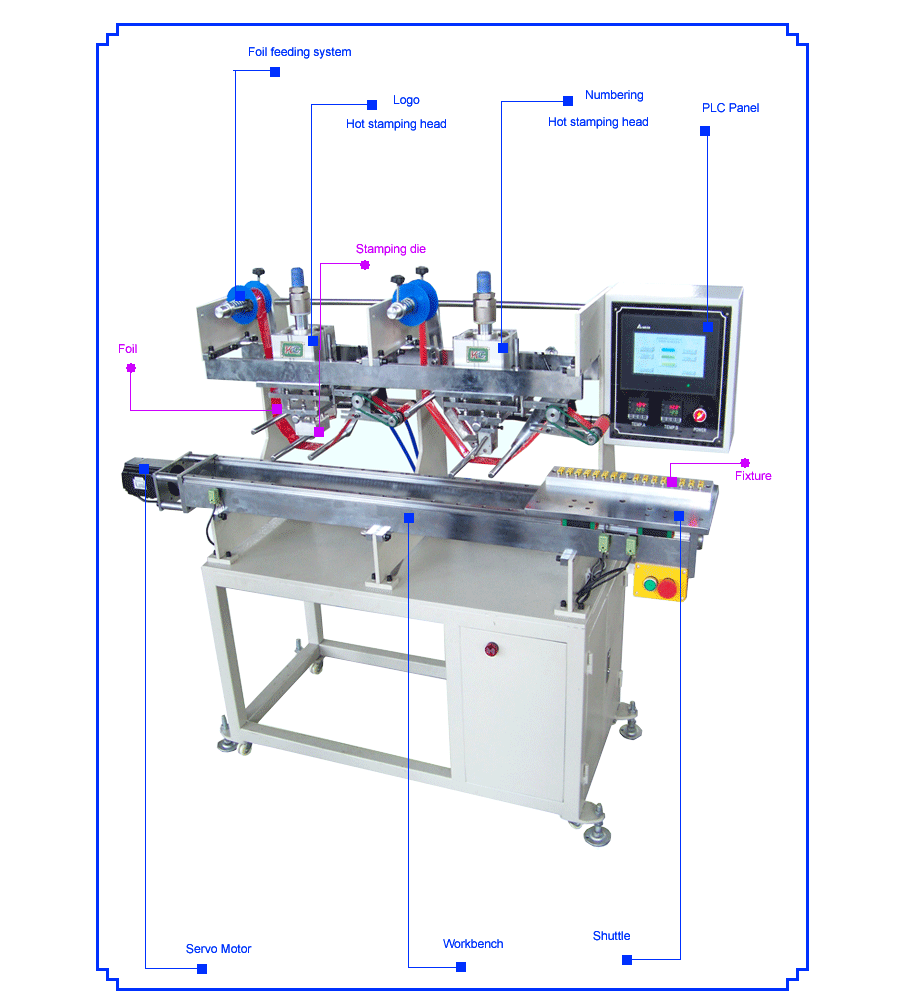

Structure-Advantage of automatic numbering hot stamping machine

The worktable is driven by servo shuttle, and the shuttle position can be set freely;
The worktable guide adopts precision linear guide rail, and the shuttle precision is high;
Automatic temperature control system, the temperature can be set freely;
Hot stamping time can be flexibly adjusted;
The hot stamping paper is automatically fed and received, and the delivery time can be adjusted;
Heating tube heating system, long life, easy to replace;
Double bronzing head setting, which can be used for two-color bronzing and number bronzing;
Each bronzing head can be fine-tuned precisely to ensure the correct position of the bronzing and the overprinting accuracy of the bronzing;
The hot stamping head is pneumatically controlled, and the hot stamping pressure can be adjusted flexibly;
PLC and touch screen operation to realize man-machine interface.
