Machine overview

The Modular Automatic Vertical Rotary Hot Foil Stamping Machine is a high-efficiency packaging decoration solution designed for automated hot foil stamping of cosmetic bottle caps, wine bottle caps, and other small cylindrical or specially shaped packaging components. As a smart automatic rotary hot foil stamping machine, it combines modular mechanical design, automatic feeding, precision rotary indexing, intelligent PLC control, and adjustable hot stamping parameters to provide stable and repeatable production performance. The machine supports flexible feeding configurations, including vibration bowl feeding and conveyor feeding, enabling continuous automatic loading while reducing manual handling and labor costs. A high-precision indexing system ensures accurate positioning of each workpiece, while the adjustable stamping head height and pressure allow precise control of the foil transfer process for clear, complete, and consistent patterns. The integrated PLC control system and touchscreen HMI provide intuitive operation and accurate management of production parameters, helping reduce operating errors and improve process stability. Modular machine construction allows key functional units to be configured according to different product shapes, production requirements, and finishing processes, making the equipment easier to adapt and upgrade. Safety features such as material-shortage detection, low-air-pressure alarms, automatic shutdown, and optional full machine guarding provide reliable protection for operators and equipment. With its combination of modularity, automation, intelligent control, and precision stamping, this automatic vertical rotary hot foil stamping machine is widely applicable to the cosmetics industry, wine and beverage packaging industry, and medical packaging industry, providing an efficient and scalable solution for high-quality packaging decoration.

Samples of automatic rotary hot foil stamping machine

Details

Structural composition:

Feeding mechanism

• Vibration plate feeding: through vibration, the bottle caps are arranged in order and transported to the designated position. It is often used for feeding small bottle caps, such as some cosmetic bottle caps.

• Conveyor belt feeding: The conveyor belt is used to convey the bottle cap to the hot stamping position, which can realize continuous feeding and is suitable for various specifications of bottle caps, such as wine bottle caps.

Conveying mechanism

• Divider conveying: It can accurately control the conveying angle and position of the bottle cap to ensure the accuracy of the hot stamping pattern, and is widely used in various types of bottle cap hot stamping machines.

• Conveyor belt conveying: Cooperate with the feeding conveyor belt to make the bottle cap move smoothly during the hot stamping process to ensure the hot stamping quality.

Hot foil stamping head and hot stamping components

• Hot foil stamping head: Usually a heating element is used to transfer the metal coating on the hot stamping foil to the bottle cap to form a hot stamping pattern. Hot stamping heads of different shapes and sizes can meet the hot stamping needs of different shapes and sizes such as wine bottle caps and cosmetic bottle caps.

• Pressure regulating device: The pressure between the hot stamping head and the bottle cap can be adjusted to ensure the clarity and firmness of the hot stamping pattern.

• Temperature control system: Accurately control the temperature of the hot stamping head to ensure the consistency of the hot stamping effect.

Clamping and positioning mechanism

• Mechanical clamping: The bottle cap is clamped and fixed by mechanical devices such as clamps and cylinders to prevent the bottle cap from moving during the hot stamping process.

• Pneumatic clamping: The clamping device is driven by air pressure, and the clamping force is uniform. It is suitable for clamping and positioning of bottle caps of different specifications, which can effectively improve production efficiency.

Unloading mechanism

• Automatic unloading: After the hot stamping is completed, the bottle cap is automatically discharged through the unloading device such as the push rod and conveyor belt to achieve continuous production.

• Collection device: Equipped with corresponding collection devices, such as material boxes and conveyor belts, to collect and organize the bottle caps after unloading.

Control system

• PLC control: As the core control unit, it realizes the precise control and coordinated operation of various mechanisms of the hot stamping machine, and improves production efficiency and product quality.

• Touch screen operation interface: It is convenient for operators to set parameters, monitor the production process and diagnose faults.The Digital Hot Foil Printing Machine is an advanced printing equipment that combines digital printing technology and hot stamping technology. It uses a digital control system to precisely control the heating element, transferring the gold, silver, or other colored metal coating on the metal foil to the substrate, forming patterns or text with metallic luster and texture. This printing method not only improves printing efficiency, but also greatly enriches the visual effects and decorative properties of printed materials.

Machine introduction

No.	Items	Number
1	100mm stainless steel conveyor ( Customized on customer products)	1
2	Feeding robot	1
3	8 stations rotating workbench	1
4	Automatic foil feeding and collecting device	1
5	High accurate Splitter	1
6	World brand electronic control components	1
7	PLC Operation system	1

Machine parameters:

- - - Hot foil stamping speed: 30-45PCS/min
    - Hot foil stamping size: (Ø8mm~Ø22mm)xH(10mm~100mm)
    - Compressed air: 0.5~0.7Mpa
    - Power supply: 380V/50Hz
    - Total power: 6KW
    - Volume:
    - Net weight: 800KG

Machine Configuration

- - - Inovance servo motor + Taiwan TBI screw drive ironing head;
    - Non-hot feeding and anti-fooling sensor device for positioning;
    - Japanese OMRON touch screen and Japanese Panasonic PLC control system;
    - (brands can also be made according to customer requirements)
    - Main motor and gearbox are made in Italy TRANSTECNO;
    - The turntable and fixture are all high-precision grinding;
    - Adopt Japan SMC and Taiwan AirTAC solenoid valve and cylinder;
    - Imported Texaco precision splitter;
    - Prevent the phenomenon of abrasion during the working process of the product;

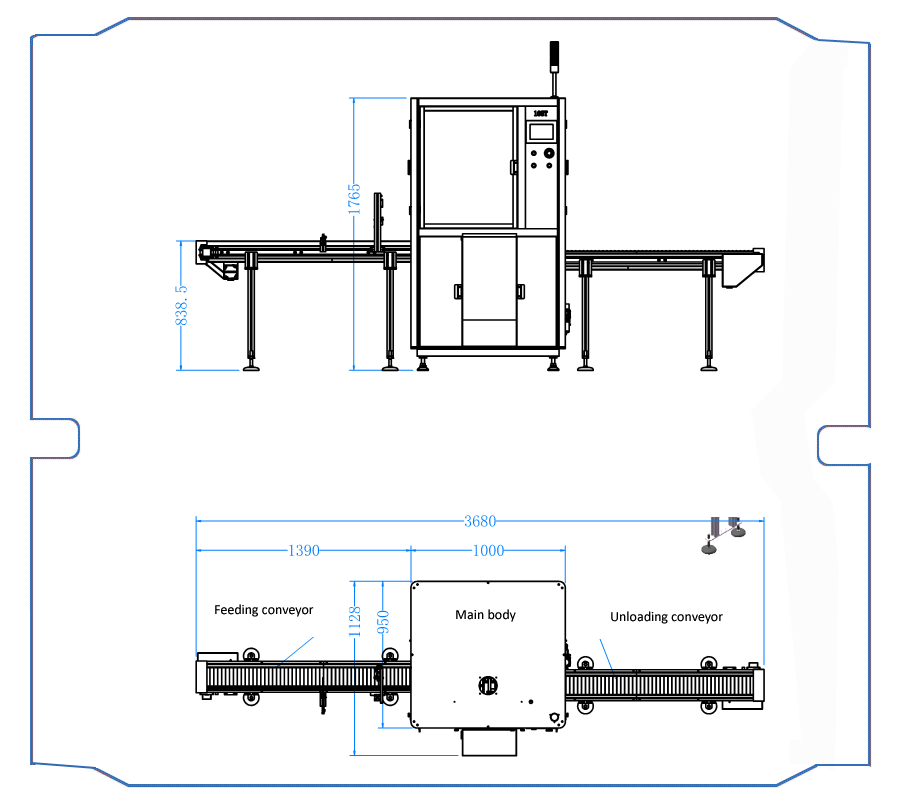

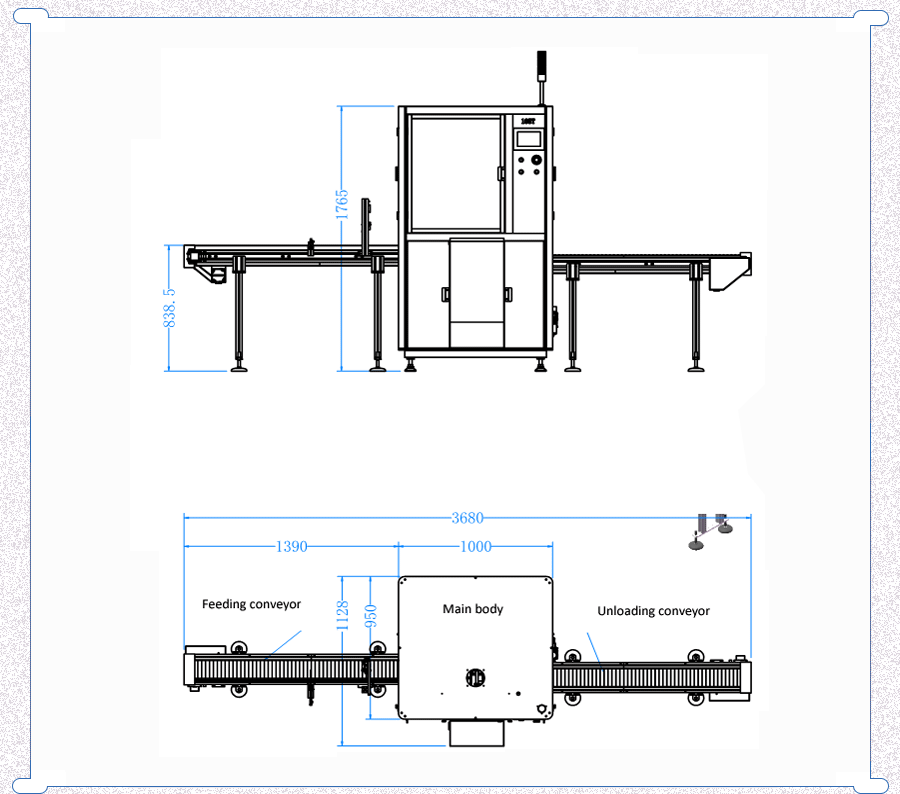

Install size
