The vertical turntable conveyor workbench is the core structure of fully automatic printing machines. It plays a key role in fully automatic screen printing, hot stamping, and thermal transfer machines. Combined with a fully automatic screen printer, the vertical turntable automatic screen printing machine has become one of the most mature, standardized, and widely used types of automatic printing machines, with extensive applications in cosmetics, stationery, medical, and chemical industries.

The lipstick tube vertical rotation automatic screen printing machine is specially designed for surface printing on lipstick tubes. By integrating customized fixtures, screens, and feeding/unloading mechanisms, it achieves high-speed, precise printing.

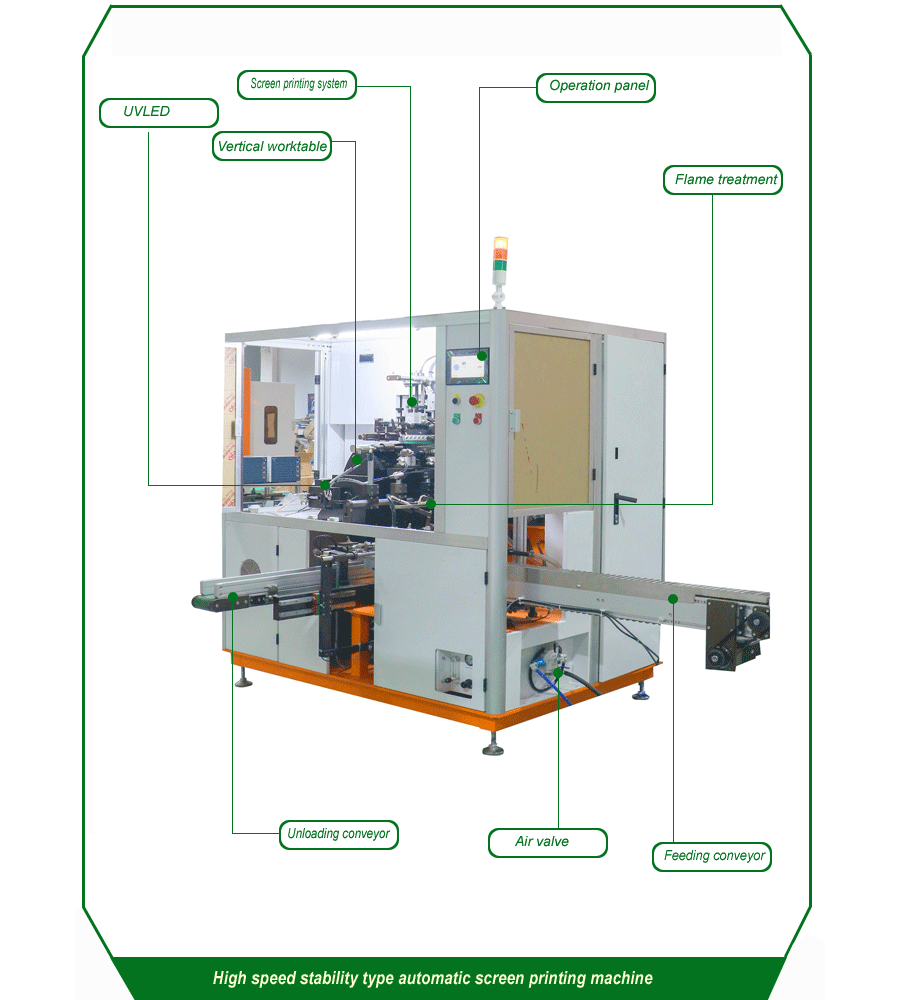

A standard vertical rotation automatic screen printing machine includes:

Feeding conveyor belt and manipulator
Pre-press processing device
Servo-controlled screen printing unit
Vertical turntable workbench
UV or UVLED curing system
Unloading manipulator and conveyor

All operations are controlled via a PLC human-machine interface, allowing professional, data-driven, and customizable printing parameters. Optional automatic feeding vibration plates can arrange lipstick tubes from disorderly input to orderly loading, followed by flame or plasma treatment, precise positioning, high-accuracy screen printing, UV/UVLED curing, and unloading—all in a fully automated process.

Structure of Full automatic hot stamping machine with vertical turntable

Working principle

The automatic hot stamping machine for cylindrical or nearly cylindrical products usually adopts a vertical turntable structure. The whole machine is based on a turntable that rotates counterclockwise. It integrates automatic loading, surface treatment, automatic hot stamping, precision temperature control, automatic unloading and other devices to achieve fully automatic hot stamping of products from transmission, arrangement, loading, positioning, hot stamping, and unloading. It is widely used in hot stamping of various packaging boxes, bottles, etc., such as cosmetic boxes, wine bottle caps, and plastic packaging caps. Increase the added value of products.

• Turntable system: A high-precision divider is used to ensure the accuracy and stability of the turntable rotation, and to achieve accurate transfer of items between different workstations.

• Hot stamping system: includes hot stamping plate, heating device and pressure device. The heating device can quickly heat up and accurately control the temperature, and the pressure device can provide stable pressure to ensure the quality of hot stamping.

• Loading and unloading system: The loading system transports the items to the turntable fixture in an orderly manner through a vibrating plate, conveyor belt, etc.; the unloading system removes the items that have been stamped from the turntable and transports them out.

• Control system: PLC programmable controller and touch screen are usually used, which can flexibly set parameters such as stamping temperature, pressure, speed, turntable speed, etc.

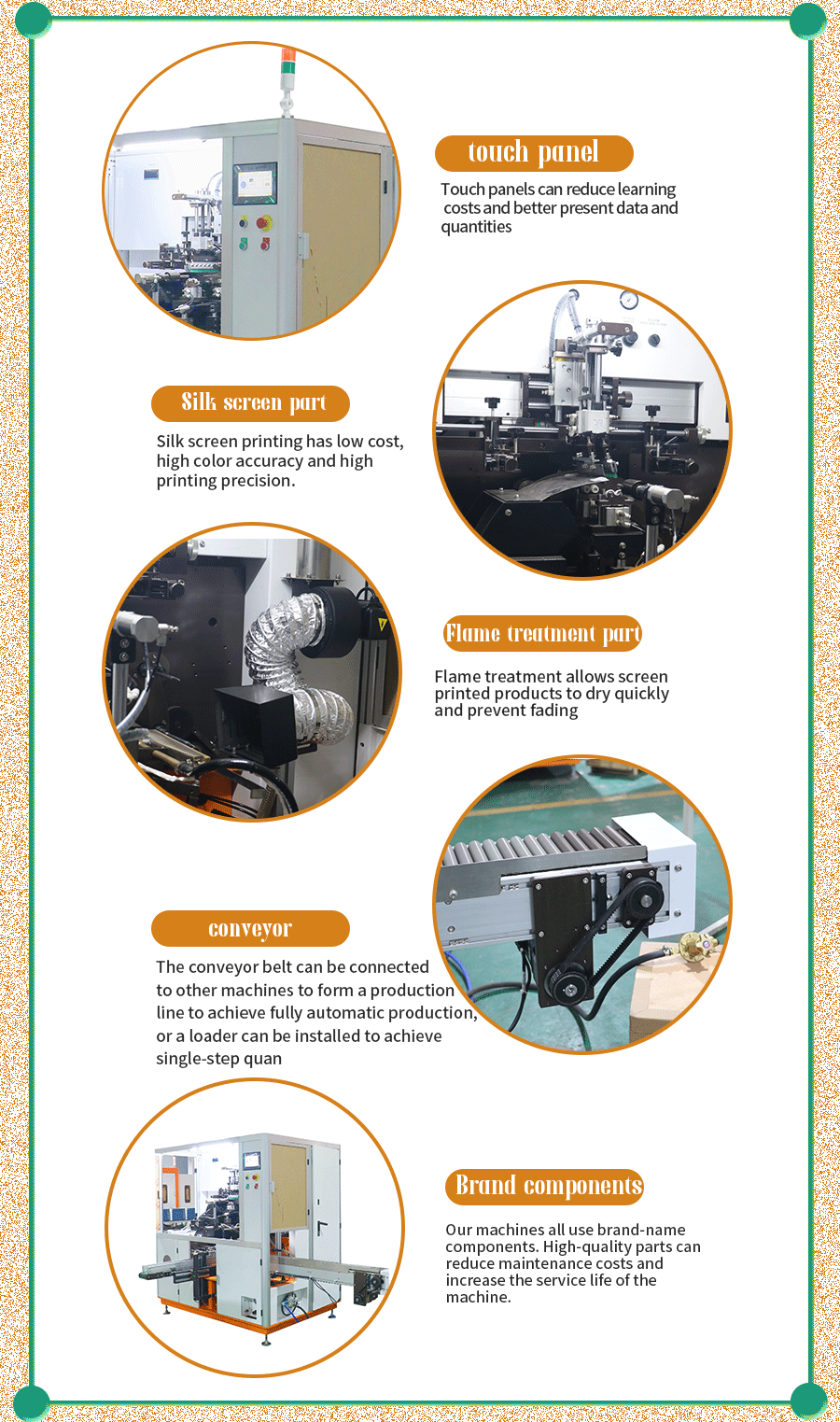

Details-Advantage

• Efficient production: The turntable rotates continuously, and the items complete multiple processes during the rotation process, which reduces waiting time and improves production efficiency.

• Precise positioning: High-precision dividers and advanced positioning devices enable the items to be accurately positioned during the stamping process, and the position of the stamping pattern is accurate and clear.

• Space saving: The vertical turntable has a compact structure design, which occupies a small area compared to traditional flat stamping machines, and can effectively save production space.

• Reduce costs: High degree of automation, reduced manual operation, and reduced labor costs; at the same time, precise stamping control can reduce the waste of stamping materials.
