Product details

Servo Shuttle UVLED Screen Printing Machine for Buckets

Paint buckets and lubricating oil buckets are typically manufactured using polypropylene (PP) injection molding, with diameters reaching up to 380 mm. For surface decoration, the most commonly used printing methods are screen printing and thermal transfer printing.

Screen printing is known for its thick ink layer and strong visual impact, making it suitable for simple designs with fewer than three colors. Thermal transfer printing, on the other hand, offers rich color expression and is ideal for multi-color gradients and photo-realistic images, and is generally preferred for designs with more than three colors.

For multi-color screen printing, fully automatic screen printing lines with long “screen tunnel” structures are often used in large factories. However, these systems occupy large space, have complex structures, and require high investment costs. For small and medium-sized manufacturers, a servo shuttle-type multi-color UVLED screen printing machine provides a more balanced solution in terms of cost and efficiency.

This machine is equipped with a servo-driven shuttle worktable, where fixtures carry plastic buckets and move between different printing stations. It can be integrated with flame treatment, multi-color screen printing, and UVLED curing processes to achieve a complete production workflow. The servo positioning system ensures stable operation with an overprint accuracy of within 0.5 mm.

It is particularly suitable for small and medium-sized enterprises engaged in the printing of lubricating oil drums, paint buckets, and similar industrial packaging containers, offering a reliable and efficient solution for multi-color UV screen printing production.

Technicals parameters

2-3-4-5 colors Automatic Screen Printer for paint bucket //Structure
Working table	3-station shuttle -type working table Servo motor + Precision liner guides
Shuttle stroke	500mm
Ink Drying system	2000W UVLED
2-3-4-5 colors automatic screen printer for paint barrel //Parameter
Max. plate size: 400×1050mm/Min plate size: 300*550mm. Max Printing area: 240mm Worktable stroke: 700mm; Max. printing speed: 300pcs/h; Printable colours:3; Stroke of cylinder up-down: 100mm; UVLED wattage: 2000W; Machine total wattage: 4.5KW; overprint accurate: 0.5mm
Works supply	220VPower supply; 5-7Bar Compress air;
Package list	Package dimension:3.150×1.340×1.910m; Gross weight: 460kg; CBM: 6.36215
H.S.Code	8443198000
Certicate	CE
2-3-4 colors Automatic Screen Printing Machine for PP paint barrel //Advantage
Function	Touch screen program controlling operating technique ; Servo shuttle type worktable Automatic servo positioing system+ Servo fixture rotary+ servo fixture front/back servo screen plate right/left UVLED dying system Three colors screen printing device Famous pneumatic components

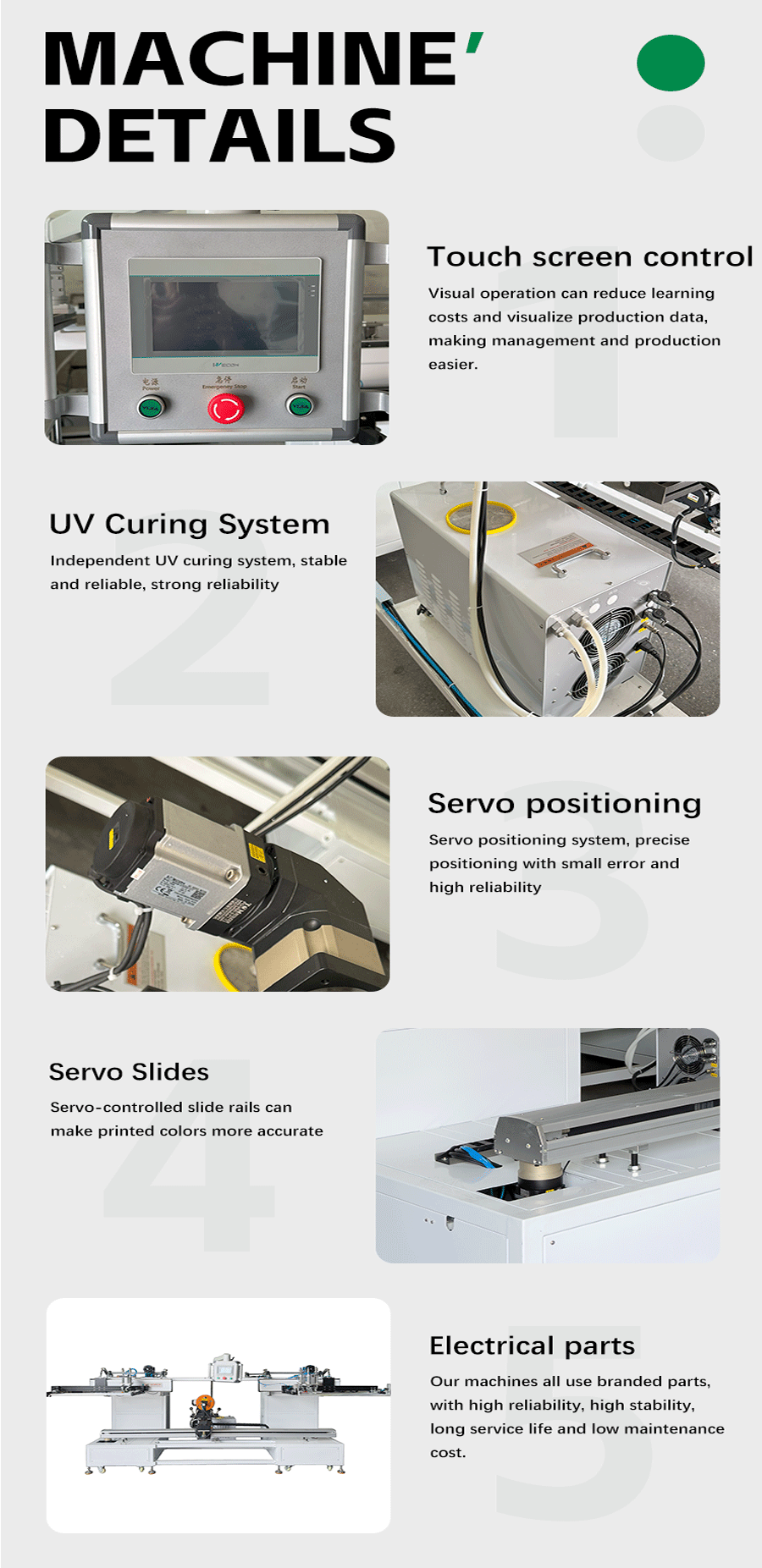

Machine details

Shuttle-Type Plastic Barrel UVLED Screen Printing Machine

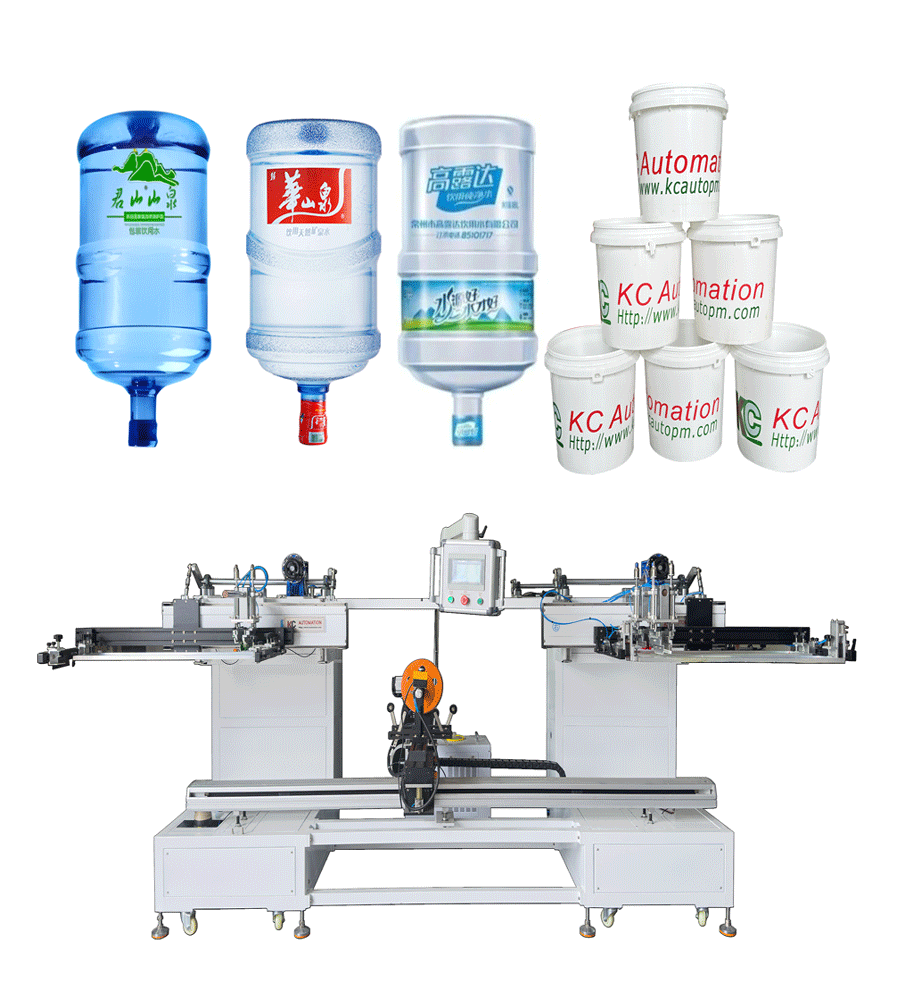

The shuttle-type plastic barrel UVLED screen printing machine is an automatic multi-color screen printing system designed for plastic barrels with diameters over 300 mm, such as lubricating oil drums, paint buckets, and mineral water barrels. Compared with traditional linear fully automatic barrel printing lines, it features a simpler structure, easier operation, and higher cost-efficiency, making it especially suitable for small and medium-sized production facilities.

Servo Shuttle Worktable System

The machine is equipped with a servo-driven shuttle worktable, where the plastic barrel and fixture move between different screen printing stations and UV curing stations. Driven by a servo motor and precision screw system, it ensures high positioning accuracy and stable movement during multi-color printing cycles.

Specialized Barrel Fixture System

Designed for wide-mouth plastic barrels, the fixture uses a dual-disc bottom support and mouth clamping structure to ensure stable positioning. The barrel is driven to rotate continuously during printing, ensuring uniform ink transfer. Even when the shuttle system moves between stations, the barrel maintains synchronized rotation for precise multi-color registration.

Flame Treatment System

For polypropylene (PP) barrels, flame treatment is applied to improve ink adhesion. The flame unit is installed at the front section of the printing line. During treatment, the barrel rotates at a constant speed to ensure uniform surface oxidation. For materials such as polycarbonate (PC), flame treatment may not be required.

Servo Screen Printing System

The system typically consists of 2–3 servo-controlled screen printing heads arranged in sequence. Each printing unit is driven by a servo motor to ensure high registration accuracy. The structure is similar to a curved surface screen printing system, ensuring precise ink transfer onto cylindrical barrel surfaces during adjustment and production.

UVLED Curing System

Between color printing processes, each ink layer must be properly cured before the next printing cycle begins. The UVLED curing system ensures fast drying of the first color layer, preventing ink mixing or smudging during multi-color overprinting. It provides high-gloss surface quality with low thermal impact and is an environmentally friendly curing method.

Touch Screen Control System

The machine is equipped with a PLC-based touchscreen operation panel, enabling precise parameter adjustment and real-time monitoring. Operators can easily control printing speed, rotation, curing time, and positioning accuracy through an intuitive human-machine interface, ensuring stable and repeatable production performance.
