Product Description
It is generally installed in front of the refrigerated/adsorption dryer to pre-separate the air and water to make the dryer have a better drying effect.
② Installed at the front end of the precision filter to protect the filter, protect the filter material from the influence of humid air, and provide filtration accuracy and effect.
③There is no built-in filter element in the gas-water separator, so the pressure difference can be ignored.
Technical Specification
1.51
Model
Pipe Size
Flow rates

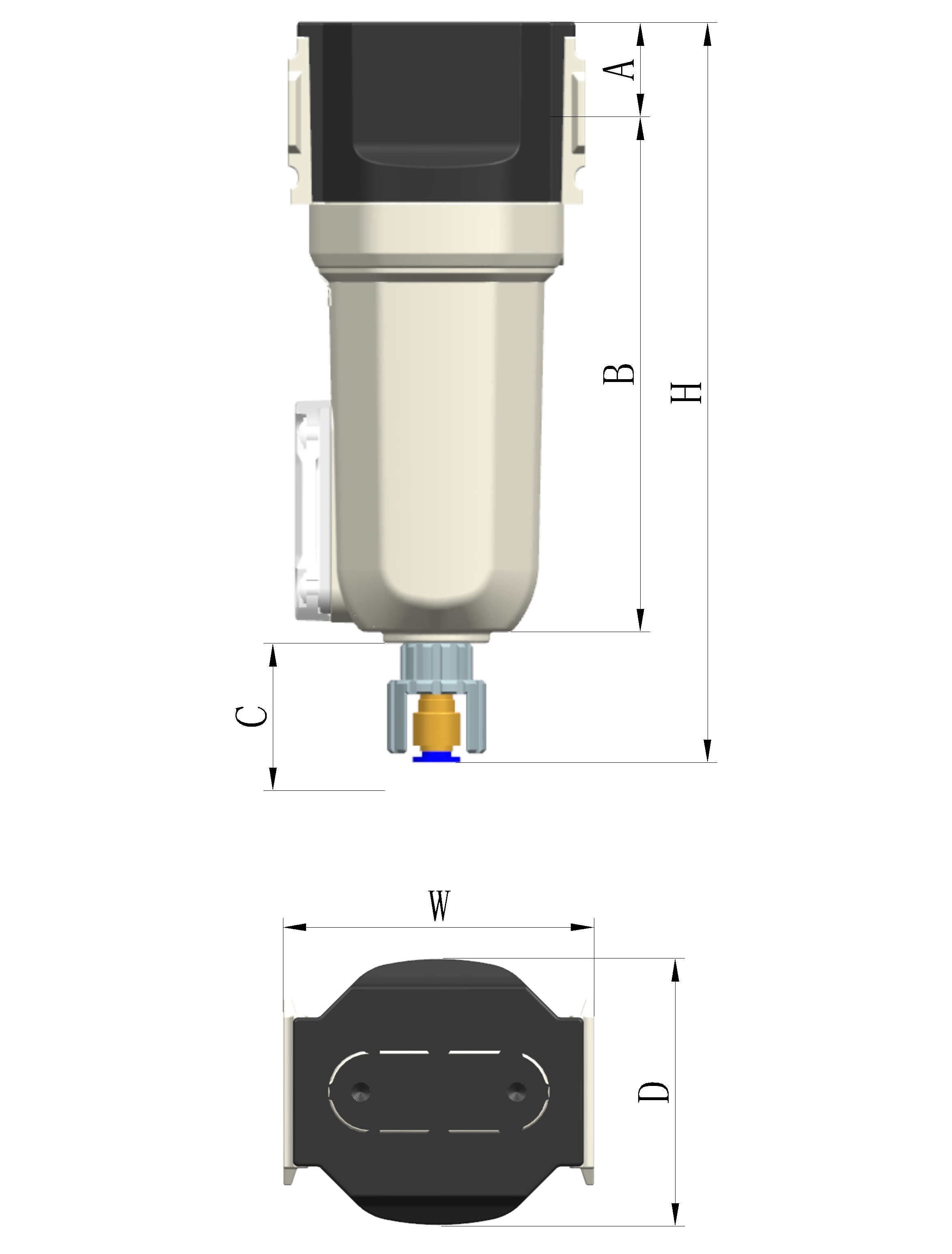

Dimension(mm)
L/S
m³/min
cfm
W(Weight)
H(High)
A
B
C (clearance for housing)
TWS009
RC1/4"
15.0
0.9
31.8
81
197
24.6
173.9
50.5
TWS010
RC3/8"
25.1
1.5
53.0
81
197
24.6
173.9
50.5
TWS011
RC1/2"
46.8
2.8
98.8
108
249
30.1
220.6
53.3
TWS012
RC3/4"
66.8
4.0
141.2
108
249
30.1
220.6
53.3
TWS014
RC3/4"
86.8
5.2
183.6
108
289
30.1
260.6
53.3
TWS016
RC1"
130.3
7.8
275.3
133
332
40.7
291
59.6
TWS018
RC1-1/2"
175.4
10.5
370.7
133
332
40.7
359.8
59.6
TWS020
RC2"
300.0
18.0
636.0
170
617
52.92
662.97
59.6
Technical requirements
Maximum operating pressure: 10barg Operating temperature: from 1.5℃ to 80°C
Pressure
Barg
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Psig
15
29
44
59
73
87
100
116
131
145
160
174
189
203
219
232
Correction factor
0.38
0.53
0.65
0.76
0.85
0.93
1.00
1.07
1.13
1.19
1.23
1.31
1.36
1.41
1.46
