CNC301 servo screen printing machine

4 year ago

22 0

 10 year year

Product details

Overview

The CNC flat rotary multi-functional screen printing machine is an advanced fully automatic screen printing solution specially developed for high-precision printing on plastic bottles, glass bottles, and various flat or slightly curved workpieces. Integrating CCD vision positioning technology, CNC precision machining technology, and full servo drive control technology, this machine delivers exceptional printing accuracy, production efficiency, and intelligent automation for modern packaging manufacturers. Equipped with an automatic infeed conveyor, high-precision CCD vision positioning system, and intelligent feeding manipulator, the machine enables automatic loading and accurate product positioning. After bottles are placed on the conveyor, the robotic gripper transfers each bottle to the printing fixture. The CCD camera automatically captures the bottom and body position of the bottle, analyzes the product orientation, and cooperates with the servo positioning system to achieve precise alignment before printing. This advanced vision-guided technology effectively eliminates positioning errors and ensures excellent registration accuracy for complex patterns, logos, and multi-color designs. The machine adopts a high-precision CNC-controlled rotary table system with a stable multi-station structure, ensuring smooth indexing and consistent printing performance. The main mechanical components are processed by CNC precision equipment, guaranteeing high rigidity, durability, and long-term operational stability. The customized fixtures securely hold different bottle shapes, including round bottles, square bottles, oval bottles, square bottles with arcs, rhombus-shaped bottles, and other special-shaped containers. Powered by a full servo screen printing system and servo rotary positioning system, the machine provides precise motion control, fast response, low noise operation, and excellent repeatability. It supports high-precision single-color and multi-color screen printing with outstanding overprinting accuracy. The dual printing stations can complete two-color printing simultaneously, greatly improving production efficiency. For high-volume applications, the machine can achieve printing speeds of more than 55 pieces per minute for round bottles and over 45 pieces per minute for square bottles, meeting the requirements of large-scale automated production. To ensure superior ink adhesion on various materials, the machine can be equipped with flame or plasma surface treatment systems for plastic, glass, and other substrates. After printing, the integrated UVLED curing system quickly cures the ink with high energy efficiency and environmentally friendly operation, improving production speed while maintaining excellent print quality. The automatic unloading manipulator and conveyor system complete the fully automated production process, reducing manual operation and improving production consistency. With an intelligent CNC control interface, operators can easily adjust printing parameters, motion sequences, and production settings according to different product requirements. The machine frame is constructed with high-strength welded steel components, providing excellent stability and durability. The circular rotary design, CNC-processed precision components, and transparent protective safety doors ensure safe and convenient operation while complying with international safety standards. The control system, servo motors, electrical components, and pneumatic components are sourced from internationally recognized brands from Germany, Japan, and France, ensuring reliable performance, precision control, and long service life. This automatic screen printing machine for plastic bottles and glass bottles is widely used in industries including cosmetics packaging, personal care products, beverages, electronics, household products, gifts, and industrial signage. With the combination of CCD automatic positioning, CNC precision control, and full servo rotary technology, it provides an ideal solution for manufacturers seeking high-speed, intelligent, and high-precision bottle screen printing automation.

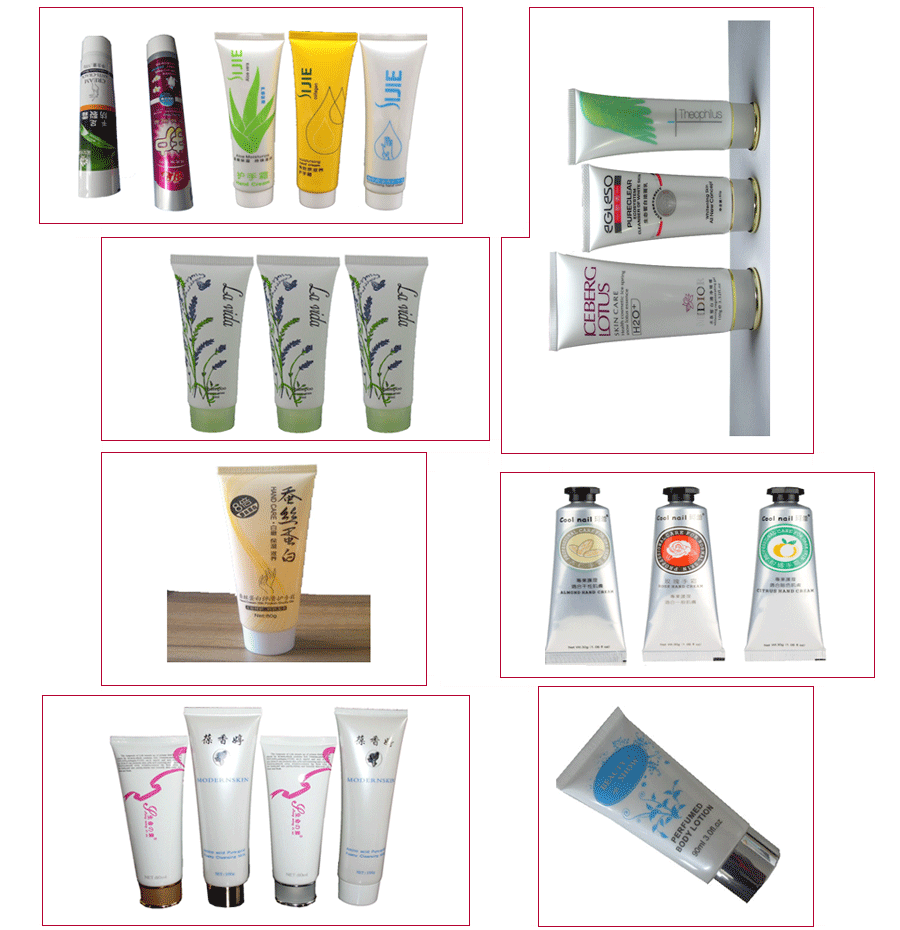

Printed soft-tube of automatic CNC screen printing machine

Machine Configuration

Items	Description	Brand	Note
1	Pneumatic components	SMC , AIRTAC	Japan, Taiwan
2	PLC	Beckhoff	Germany
3	Light sensor	Omron/KEYENCE/SICK	Japan
4	Electrical components	Schneider/Omron	Germany/Japan
5	Splitter	GOIZPER	Spanish
6	Servo system	INOVANCE	China

Parameter

Items	Description	Parameters
1	Feeding system	Speed : 0-10M/
2	Pre-treatment	Fire width: 250mm
3	Workbench	Rotating plate diameter : 1.5M
4	Print system	Max print diameter: 100mm
		Max print length: 300mm
		Screen plate up-down adjustment : 150mm
		Overprint accurate: 0.05-0.1mm
		Air : 5-7 bar
		Materials: plastics, glass, ceramic,.
		PLC Control system
5	UV curing unit	UV Wattage: 4KW
7	Power supply	3 P380V

Machine structure

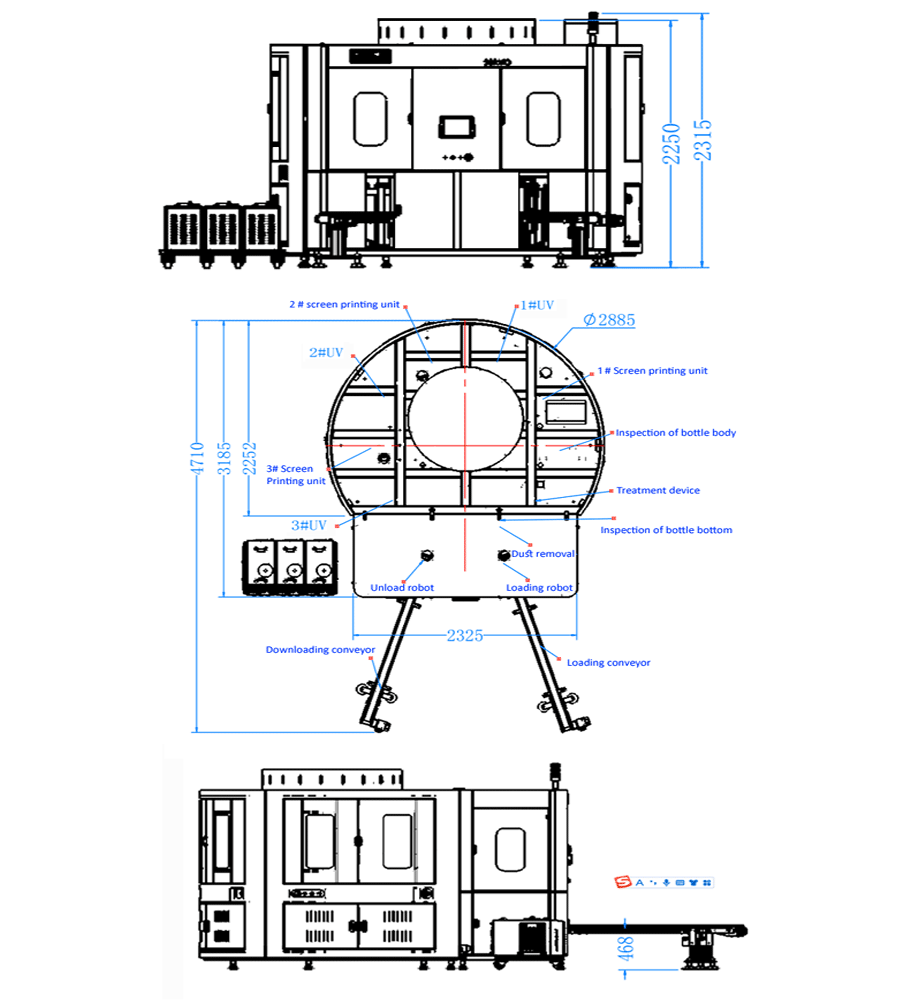

Structure of CNC automatic screen printing machine

Details description

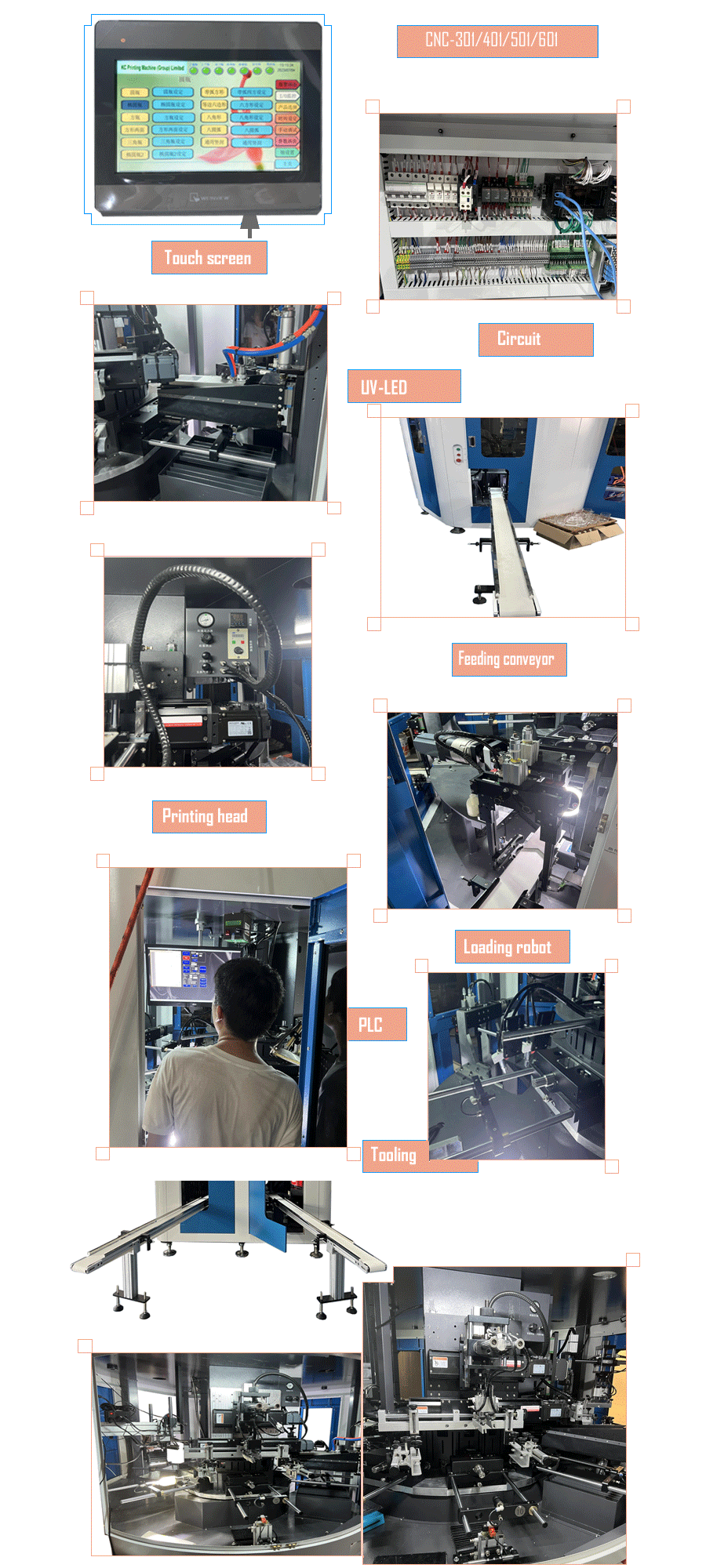

Details of automatic CNC screen printing mahcine

The multi-functional intelligent high-precision rotary screen printing machine integrates advanced automation and intelligent control systems, combining multiple key modules to achieve high-precision, high-efficiency rotary screen printing. Its main structural components include:

Automatic Feeding System: Transfers workpieces steadily onto the production line via conveyor, while the feeding manipulator ensures precise gripping and placement.
CCD Positioning System: Utilizes high-speed vision detection to automatically identify and accurately position workpieces, ensuring precise print alignment.
Feeding Manipulator: A three-axis servo manipulator with flexible fixtures accurately places workpieces onto the high-precision rotary table or printing station, avoiding collisions or misalignment.
Plasma or Flame Treatment System: Activates the surface of plastics, glass, and other materials to enhance ink adhesion and improve print durability.
Servo Screen Printing System: Servo-controlled squeegee and screen movement ensure uniform ink thickness and clear print patterns.
High-Precision Rotary Table: Multi-station rotary table with high-precision servo drive and positioning sensors guarantees stable rotation and precise positioning for continuous multi-step printing.
UVLED Curing System: Quickly and evenly cures ink, with low heat to prevent deformation of sensitive workpieces.
Automatic Unloading System: Upon completion, the manipulator orderly places the workpieces onto the outfeed conveyor, completing a fully automated production process.

This structural design emphasizes intelligence, automation, multi-functionality, and high precision, making it widely applicable to cosmetics, plastics, electronics, gifts, and industrial signage, providing efficient and stable high-volume production.
