PS-6080PV motor screen printing machine

4 year ago

32 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Large format screen printer for poster Usage

There are two types of large-sized flat screen printing machines, which stencil printing machine or mesh printing machine pneumatic screen printing machines and electric screen printing machines. Due to the instability of pneumatic screen printing machines, the market share of electric screen printing machines is constantly expanding. The so-called electric screen printing machine means that the up and down movement of the screen and the left and right movements of the scraper are controlled by the motor instead of the cylinder. Relatively speaking, the electric control screen printing machine is powerful and can maintain a relatively stable pressure throughout the printing process. . In order to further improve the accuracy, these two actions are increasingly controlled by servo motors. Servo motor control is more convenient to operate and adjust, and has higher precision, but the price is also more expensive.

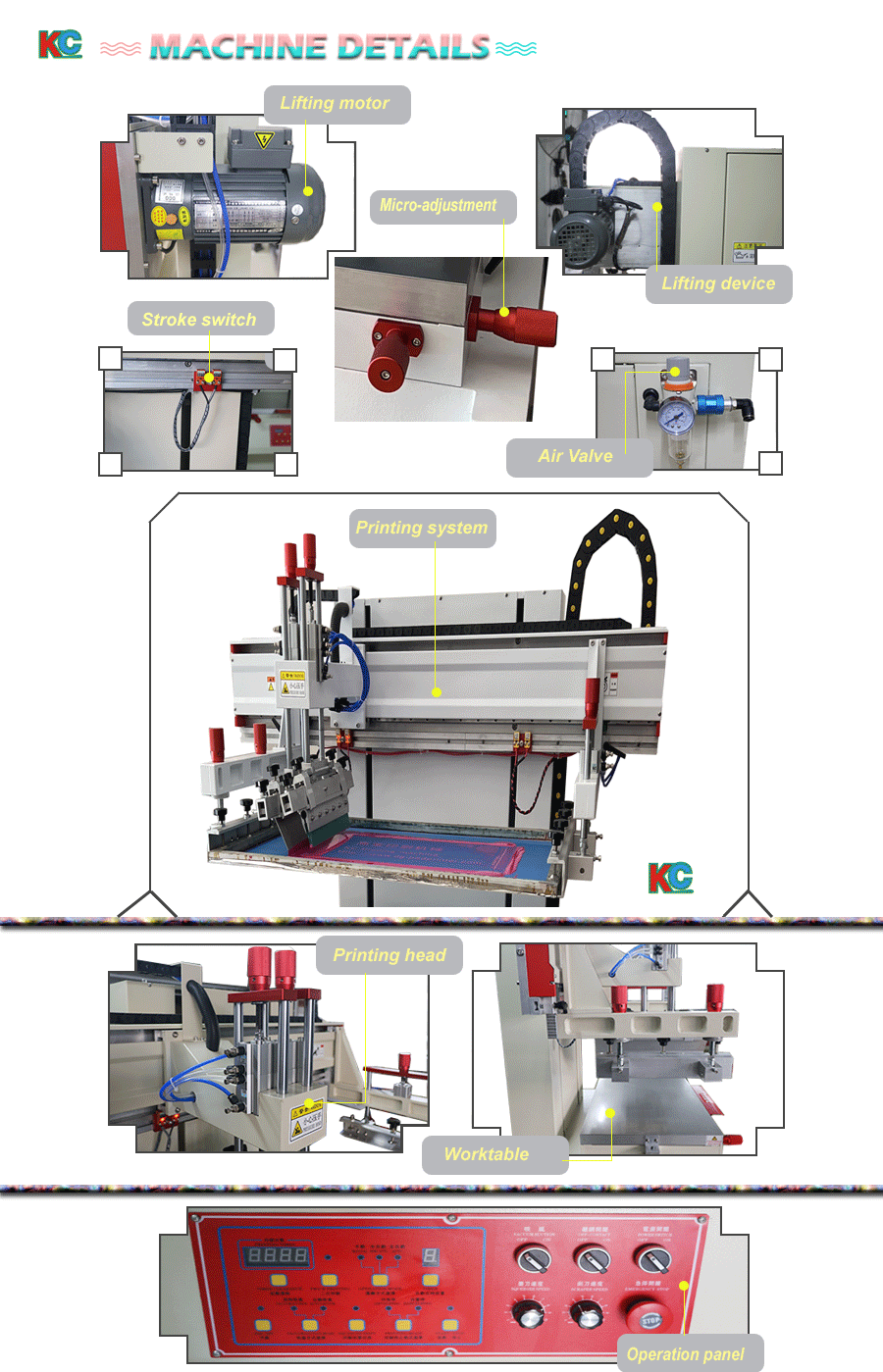

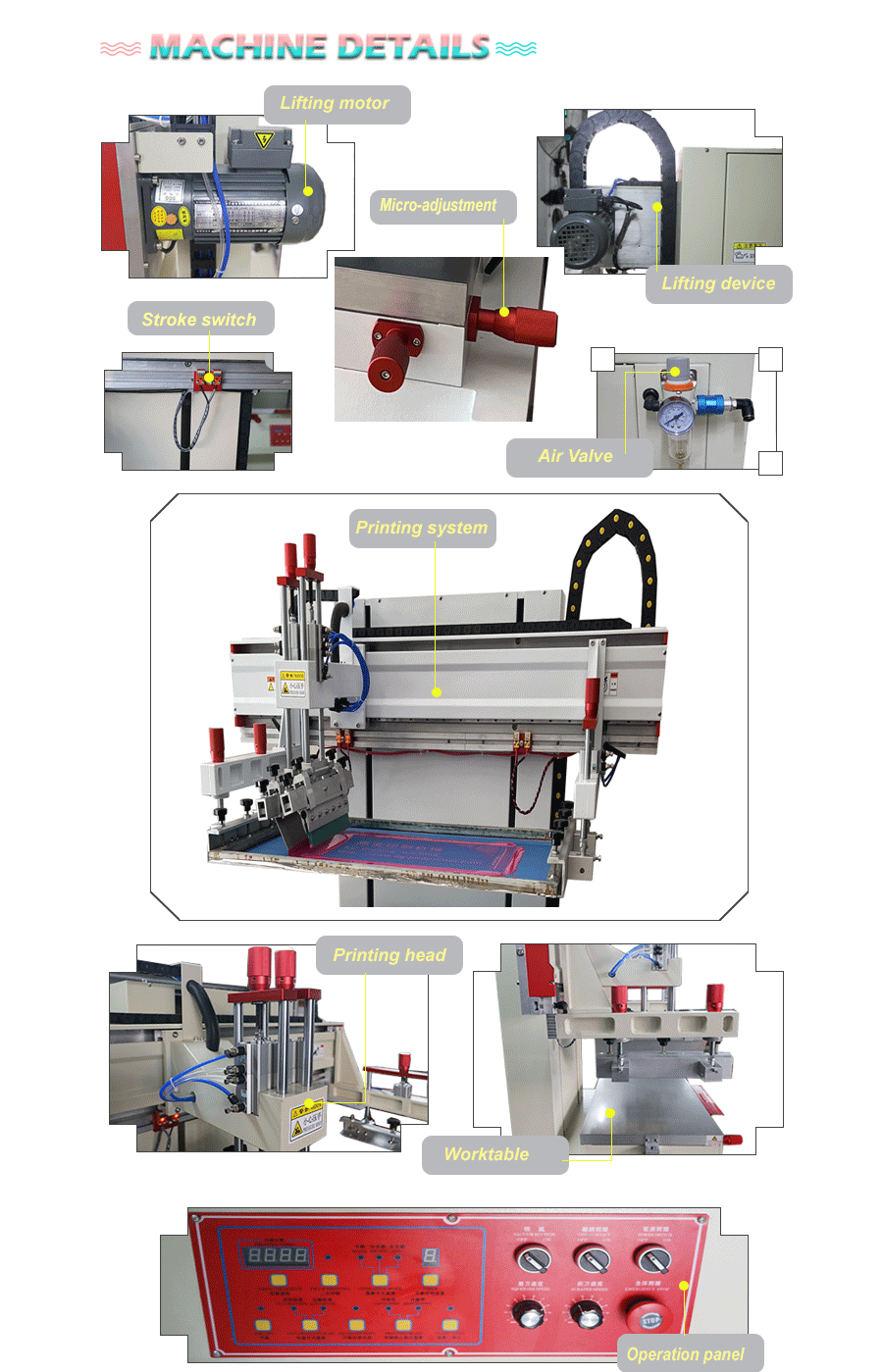

Machine details-Advantage of motor screen printing machine

High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
Screen form Clamping device free to adjust to fit different sizes of screen;
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
Microcomputer program control operations;
4-Digit auto counter; to facilitate the measurement of production efficiency.

Catalog of motor plain screen printing machines

It is a flat screen printer with a suction function and is suitable for printing in thin products such as paper, PVC film, plastic film, textile, etc., which are easy to walk in the printing process. Printing the largest area: 800 * 1200 mm;

Structural design using screen up and down sports, more conducive to product removal and placement;
Stable horizontal cylinder design, blowing ink pressure uniform, back to the ink formation, printing quality is good;
Can be semi-automatic operation, the user interface is good;
Machine debugging process set up a single function operation, set up to complete the full operation;
Widely used in paper packaging, mirror printing, glass printing, machine panels, stickers printing, combined with a variety of processes, can achieve UV scrub, UV onions, UV local varnish and coating process. Also widely used in water mark transfer paper, thermal transfer paper printing.
Screen printing machine and the screen plate are used up and down the use of high-precision hardened guide shaft structure, high parallelism, operating error can be controlled within 0.05mm, is a high-precision flat screen printing machine commonly used in the form of institutions;
Widely used in high-precision screen printing tasks such as: circuit boards, dot printing, membrane switch, ink layer thickness requirements of the printing area.

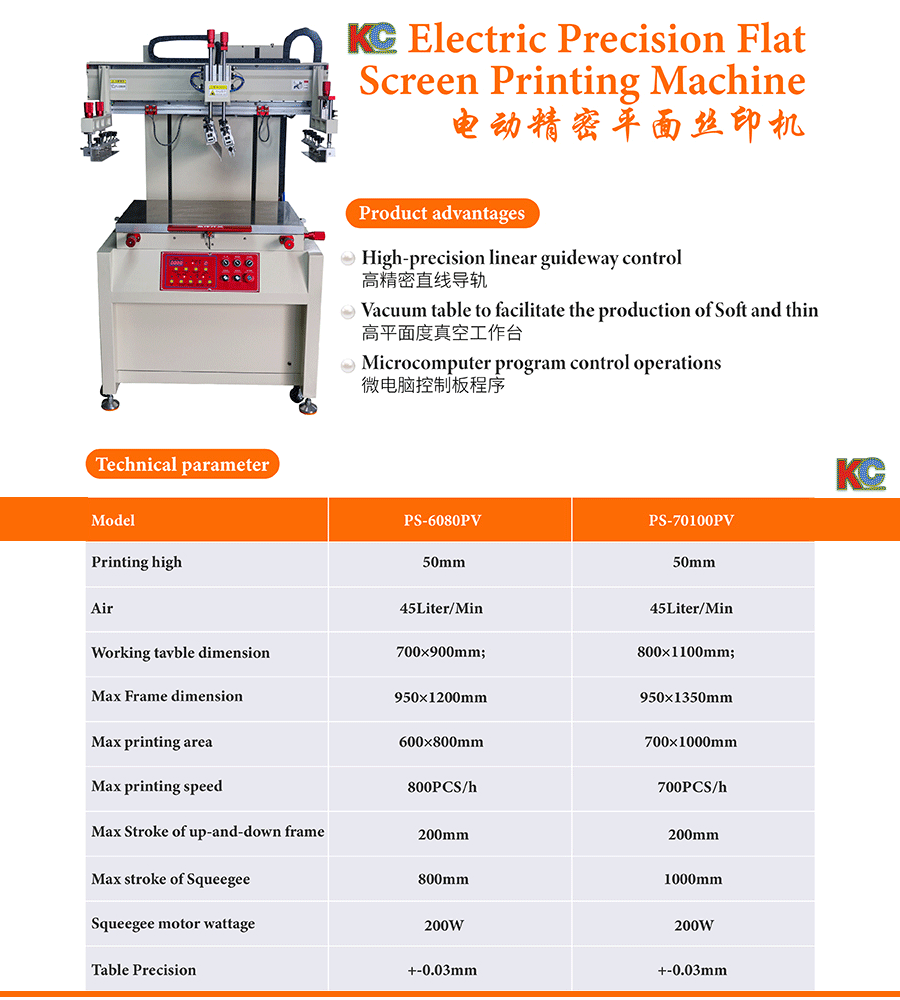

Technical Parameters of motor screen printers

Item	PS-6080PV	PS-70100PV	PS-80120PV	PS-90140PV
Printing height(mm)	50	50	50	50
Air(liter/min)	55	55	55	55
Worktable dimension(mm)	700×900	800×1100	900×1300	1000×1500
Max. frame size(mm)	850×1050	950×1250	1050×1450	1150×1650
Max. printing area(mm)	600×800	700×1000	800×1200	900×1400
Max. printing speed(pcs/h)	800	700	700	600
Max Stroke of up-and-down frame(mm)	200	200	200	200
Max stroke of Squeegee(mm)	800	1000	1200	1400
Squeegee motor wattage(w)	200	200	200	200
Table Precision(mm)	+-0.03	+-0.03	+-0.03	+-0.03
Package dimension(m)	1.51×1.26×1.83	1.51×1.36×1.83	1.46×1.69×1.82	2.07×1.79×1.82
G.W.(kg)	541	570	600	630
Works supply	110 V-220 V Power supply; 5-7 Bar compress air

Oblique arm screen printer and vertical lifting screen printer

Oblique arm screen printer and vertical lifting screen printer are the most widely used types of flat screen printers. Their functions and uses have many similarities. Therefore, the most common question asked by users is how to choose?

1) The thickness of the printing of the standard oblique arm screen printer is generally below 20mm. If you want to print thicker products, you must add a gasket between the printing platform and the oblique arm. The thickness of the printing of the oblique arm screen printer will increase as much as the increase, and the connecting rod that controls the movement of the screen frame needs to be adjusted. However, the vertical lifting screen printer only needs to adjust the lifting handle.

2) The lifting mode of the screen frame of the oblique arm screen printer is affected by the rotation cycle of the cam. Its action is continuous, so the speed is relatively fast. Therefore, in terms of paper packaging and UV screen printing technology, the market share of the oblique arm screen printer is slightly higher. However, in the glass industry, due to the requirements for the transmission system and printing accuracy, the market share of the vertical screen printer is higher than that of the oblique arm screen printer.

How to choose a vertical screen printer with a large surface?

Printing capacity

Determine the size of the screen printer workbench according to the size of the product, and determine the printing size of the screen printer according to the size of the printing area. In addition to considering the printing size, the printing accuracy should also be considered. Is the screen printer pneumatically controlled or electrically controlled? Does it need servo motor control to improve printing accuracy? What is the printing speed? Usually, a screen printer can print 1,000 times per hour. How can the printing speed be increased? Determine the adaptability of the screen printer according to the nature of the printed product. Paper and film require a screen printer with a vacuum table, printing paper bags require a screen printer with a conveyor belt, and printing glass requires a workbench supported by rollers. Printed circuit boards may require a screen printer with positioning holes.

Equipment performance

Is the screen lifting of the screen printer controlled by a guide shaft or a linear guide? Is the movement of the scraper controlled by a linear guide or a guide shaft? What brand is used? How is the stroke of the screen and the stroke of the scraper adjusted? Is the adjustment convenient?

Does the screen printer drive and control system use a microcomputer or a touch screen? What brand of control system is used? How is the after-sales service? If the accessories are damaged, what are the warranty terms? Can the screen printer be upgraded according to demand? Can a robot unloading system be added? Can it be connected to the back-end tunnel drying furnace or UV drying furnace?
