PS-6090PE motor circuit screen printing machine

PS-6090PE motor circuit screen printing machine

4 year ago

91 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Electric circuit silk screen printing machine

The semi-automatic flat screen printing machine usually has three actions, the upper and lower of the screen, the left and right of the scraper and the ink return knife, and the up and down of the scraper and the ink return knife. The actions of the scraper and the ink return knife are just opposite, and it is simpler and more reliable to use pneumatic control. The up and down motion of the screen and the left and right motion of the scraper ink return knife can be controlled either pneumatically or by motor. We call the screen printing machine that uses pneumatic control for these two actions as a pneumatic screen printing machine, and the way that these two actions are controlled by a motor is called an electric screen printing machine. The precision of the electric screen printing machine is higher than that of the pneumatic screen printing machine.
In addition to the difference in control power, in order to further improve the accuracy of the screen printing machine, linear guides are also used for the guide shafts on the upper and lower sides of the screen and the left and right of the scraper, which further reduces the running error. The other is the use of a touch screen operation panel, which is the dataization of the operation and adjustment of each action, which is convenient to reasonably adjust the parameters used in the silk screen printing of different products.

100

This screen Printer is big enough for circuit board.

Strong automatic vortex - type vacuum pump, close adsorption, to ensure multi - color chromatography precision.
Unique design of the off-grid device to ensure that the printing pressure balance and stability, to prevent large-scale products printing sticky version and race network.

This series plain screen printer uses motor-driven system. Vacuum worktable could fix some thin plain products.

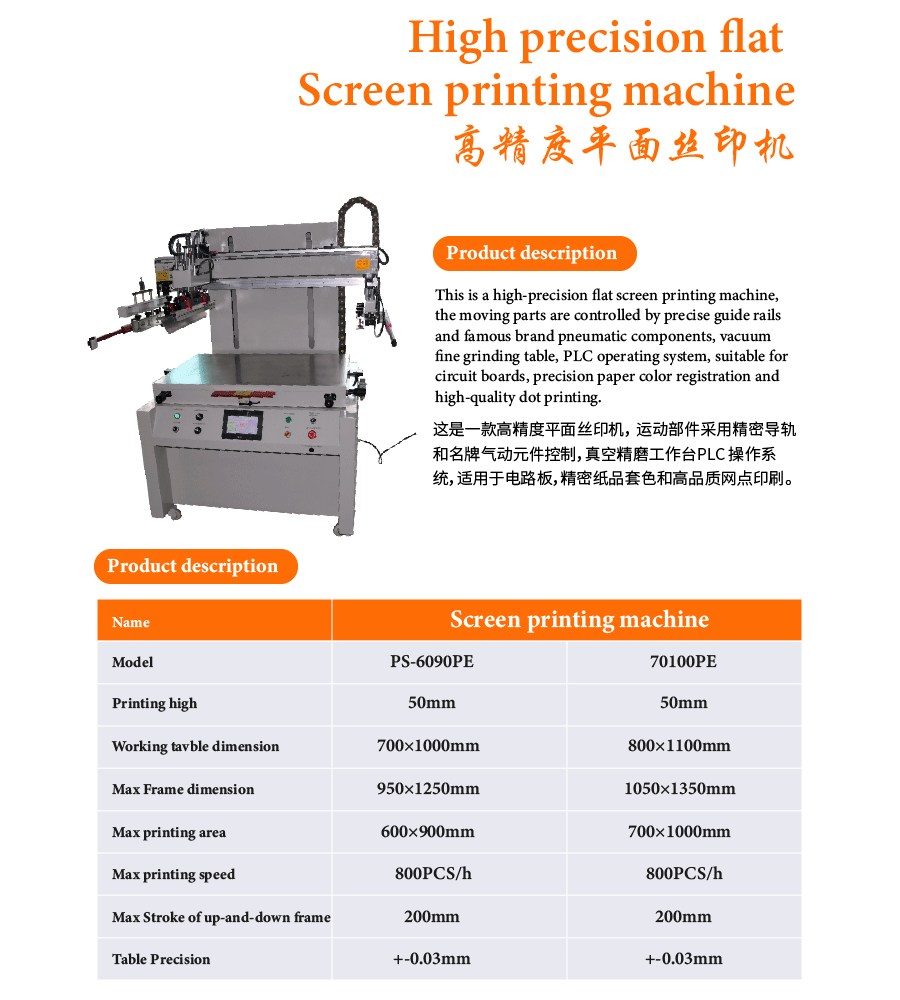

Technical Parameters

Item	PS-6090PE	PS-70100PE	PS-80120PE	PS-90140PE
Printing height(mm)	50	50	50	50
Air(liter/min)	55	55	55	55
Worktable dimension(mm)	700×900	800×1100	900×1300	1000×1500
Max. frame size(mm)	850×1050	950×1250	1050×1450	1150×1650
Max. printing area(mm)	600×800	700×1000	800×1200	900×1400
Max. printing speed(pcs/h)	800	700	700	600
Max Stroke of up-and-down frame(mm)	200	200	200	200
Max stroke of Squeegee(mm)	800	1000	1200	1400
Squeegee motor wattage(w)	200	200	200	200
Table Precision(mm)	+-0.03	+-0.03	+-0.03	+-0.03
Package dimension(m)	1.51×1.26×1.83	1.51×1.36×1.83	1.46×1.69×1.82	2.07×1.79×1.82
G.W.(kg)	541	570	600	630
Works supply	110 V-220 V Power supply; 5-7 Bar compress air

Advantage

High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
Screen form Clamping device free to adjust to fit different sizes of screen;
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
Microcomputer program control operations;
4-Digit auto counter; to facilitate the measurement of production efficiency.

Structure

Catalogue

102

A precision flatbed screen printer primarily consists of four modules: the platform system, the positioning and adjustment system, the transmission and printing system, and the operating system.

1. Platform System:

Working Surface: The worktable has a flatness of ≤0.02mm/m² and is typically made of aluminum alloy or finely ground steel. It features vacuum suction, with an adjustable suction force of 0-0.08MPa.

2. Positioning and Adjustment System

Positioning is typically performed using a fixture, positioning pins, or positioning holes. Some high-end models utilize CCD cameras for positioning.

X/Y-axis Fine Adjustment: The worktable features a built-in manual or motorized fine-adjustment slide with an accuracy of 0.01mm, allowing for fine-tuning of the substrate position to meet multi-color overprinting requirements. Overprint accuracy is typically ≤±0.03mm.

Angle Adjustment: The worktable supports ±5° fine adjustment to correct for substrate or screen angle deviations.

3. Drive and Printing System:

Screen frame lift: Driven by a servo motor and precision lead screw, with linear guides for guidance.

Scraper blade movement: Driven by a servo motor and precision lead screw, with linear guides for guidance.

Ink scraper and ink return blade: Most are pneumatically controlled, but some high-end models use servo motors and feature a display. The main printing frame is constructed of high-rigidity materials such as cast aluminum and welded square steel to reduce vibration and deformation during operation.

4. Operating System:

Controller: Industrial-grade PLC or dedicated motion controller, supporting parameter storage such as pressure, speed, and stroke, facilitating switching between different processes.

Operation Interface: Touchscreen (7-15 inches) allows for visual parameter setting and operating status monitoring, with some models supporting fault alarms (e.g., abnormal pressure, motor failure).

Safety Control: Equipped with an emergency stop button and safety light barrier to prevent hands from entering hazardous areas during operation.
