Usage and characters

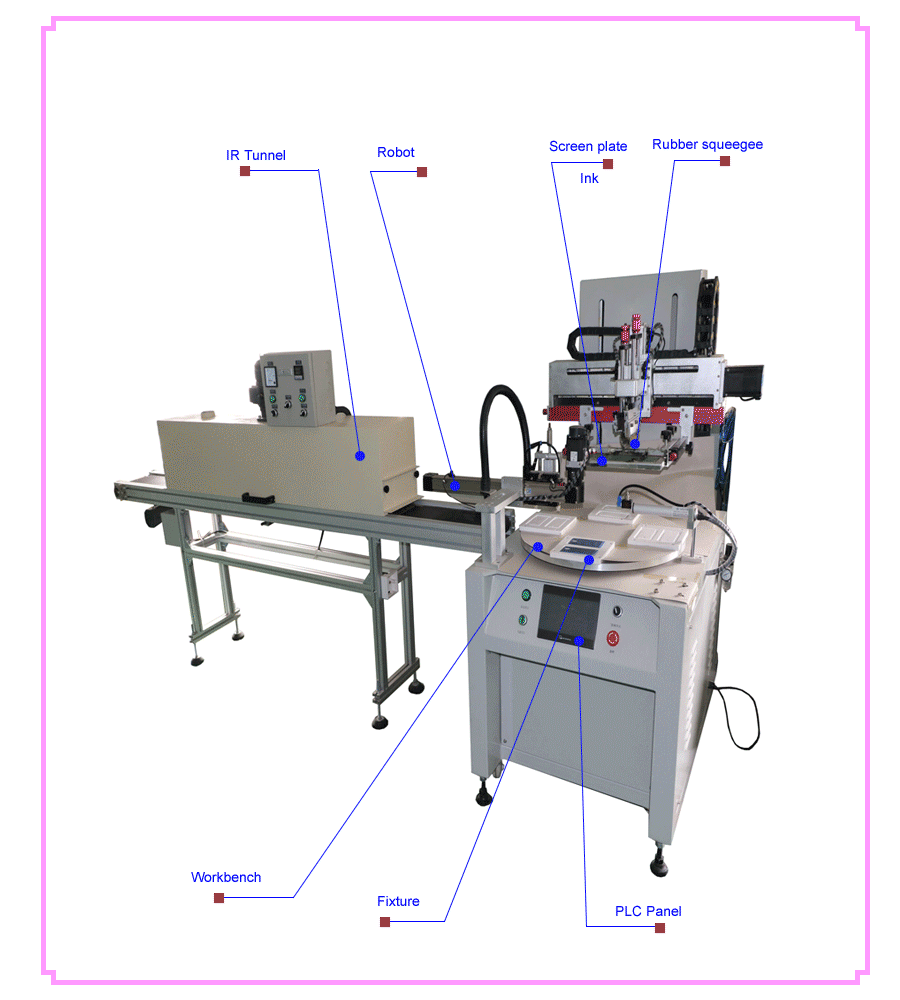

This is a screen printing production line consisting of a rotary screen printing machine and an IR tunnel oven, suitable for monochrome screen printing of solvent-based inks, and for high-precision printing of various plastic products.After printing, a robotic arm picks up the product and places it on the conveyor belt of the IR tunnel oven for drying. This greatly reduces the labor intensity of the operator, significantly increases the drying speed of the printing ink, and significantly shortens the delivery time, thereby reducing the hidden production costs of the product.

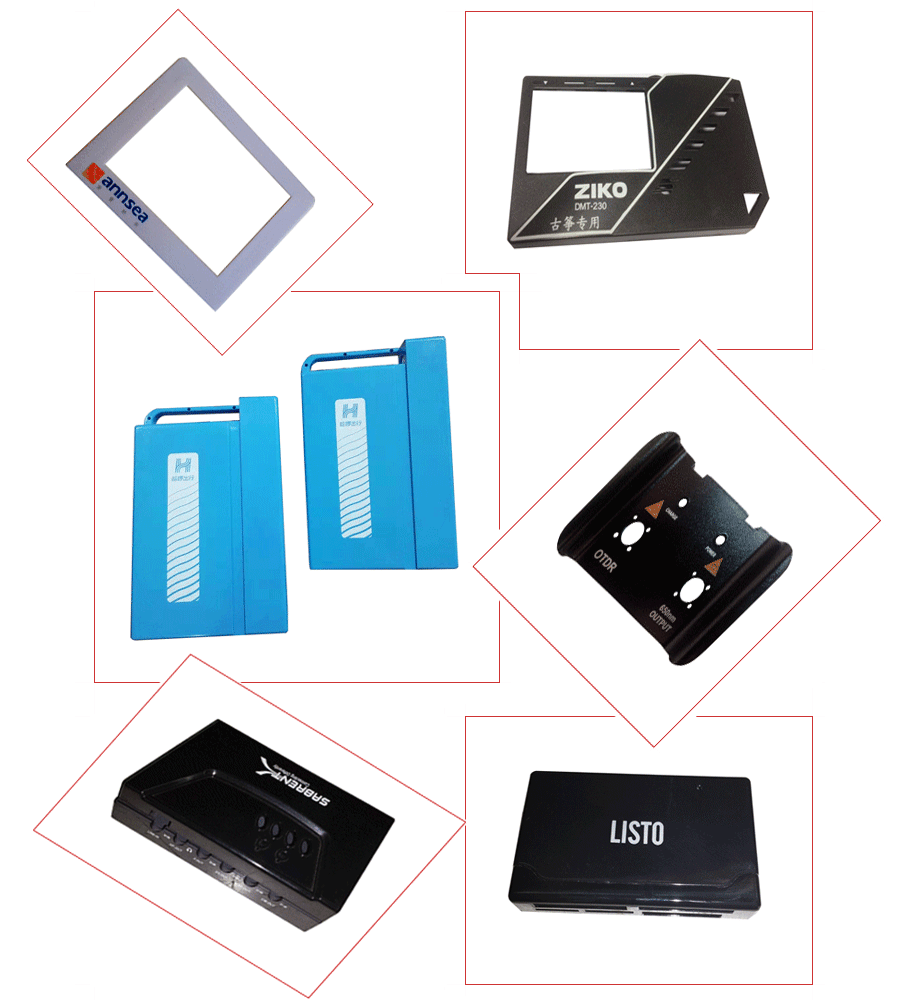

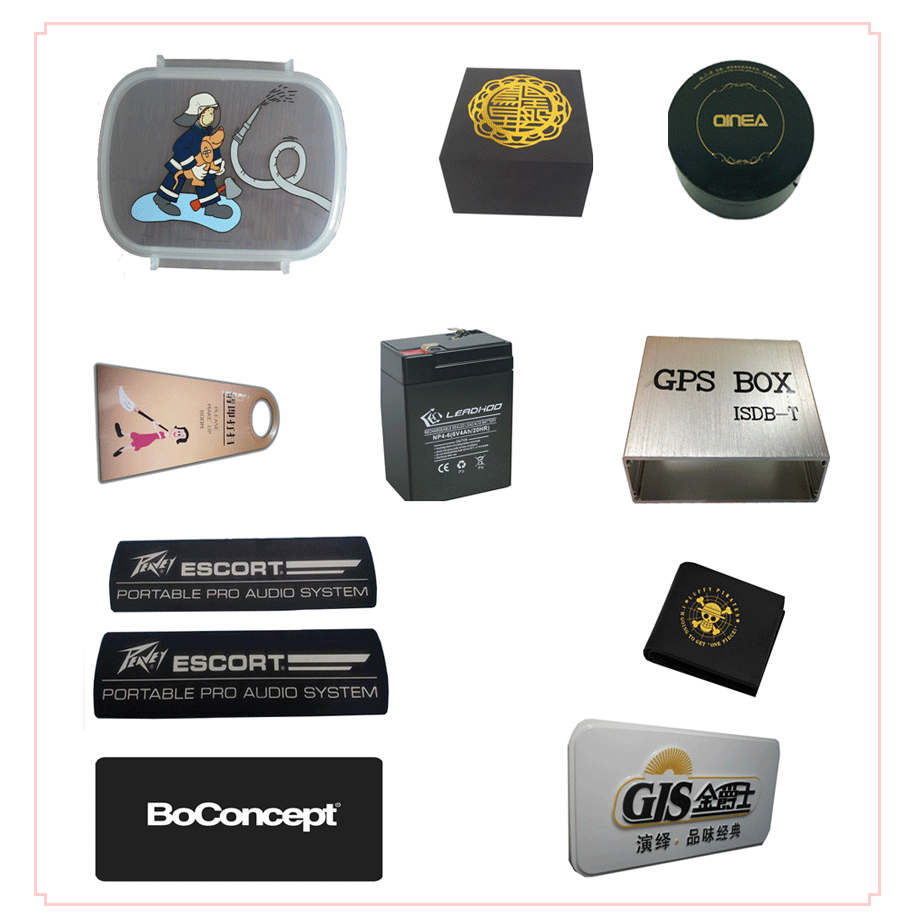

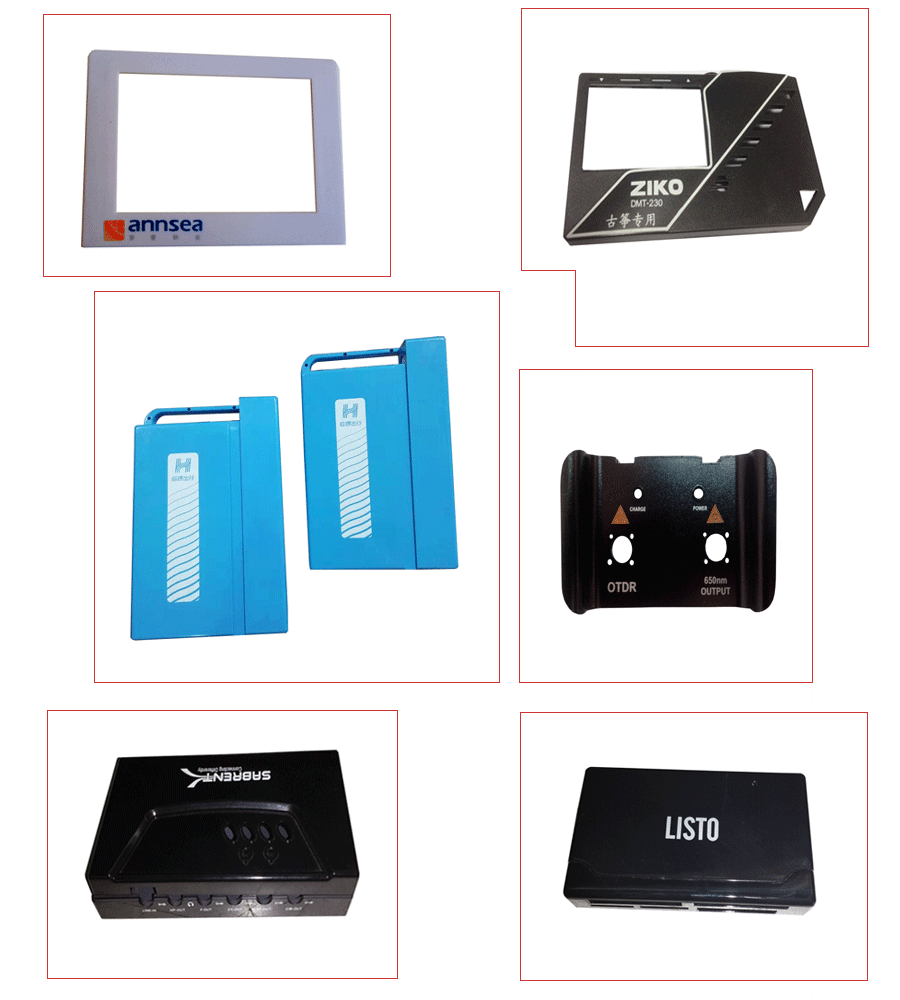

Samples

303

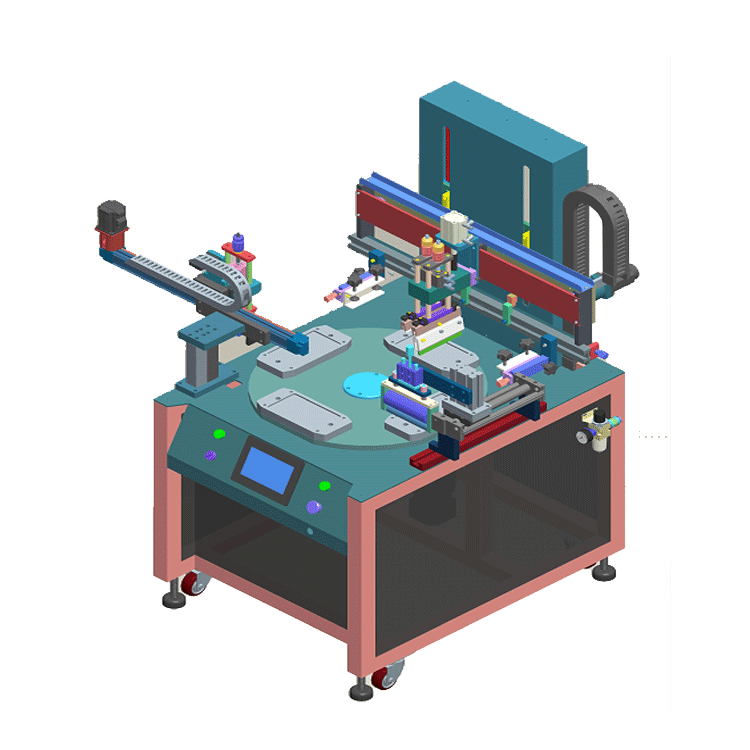

Flat Screen Printing Machine with Conveyor Designed for efficiency, precision, and adaptability, this turntable screen printing machine is ideal for industrial and commercial applications requiring high-quality, consistent output. By integrating a rotating workbench with an alternating conveying system, the device enhances automation levels, allowing for continuous product flow and minimizing idle time during the printing process. The machine can be configured with 4, 6, or 8 stations, ensuring seamless operation and improved productivity. When equipped with a robotic arm, the printed items can be automatically transferred to an infrared drying oven or a conveyor belt, creating a fully integrated production line that aligns with modern manufacturing trends.

The core components of the rotary screen printing machine include screen printing ink, custom jigs, screen printing frames, and squeegees. The choice of ink depends on the material being printed and the desired color scheme, with both international and domestic brands available as long as they meet specific performance standards. Custom jigs are essential for each workstation, ensuring uniformity and ease of replacement. The screen printing frame is tailored to match the user's design specifications, whether produced in-house or by a third party. The squeegee, typically made of polyurethane, features various cross-sectional shapes to ensure optimal contact with the screen and precise ink transfer onto the product surface.

With four workstations, the machine significantly boosts printing speed, This turntable screen printing machine is particularly well-suited for environments where high-volume, repetitive printing tasks are required. It is commonly used in textile printing, signage production, electronics manufacturing, and packaging industries. Its ability to integrate with automated drying systems makes it a valuable asset in streamlined production workflows. The machine’s modular design allows for easy customization and expansion, making it adaptable to evolving business needs. The combination of advanced control systems and durable construction ensures long-term performance and minimal maintenance. Additionally, the machine’s compact footprint and efficient energy use make it a practical choice for businesses looking to optimize space and resources.

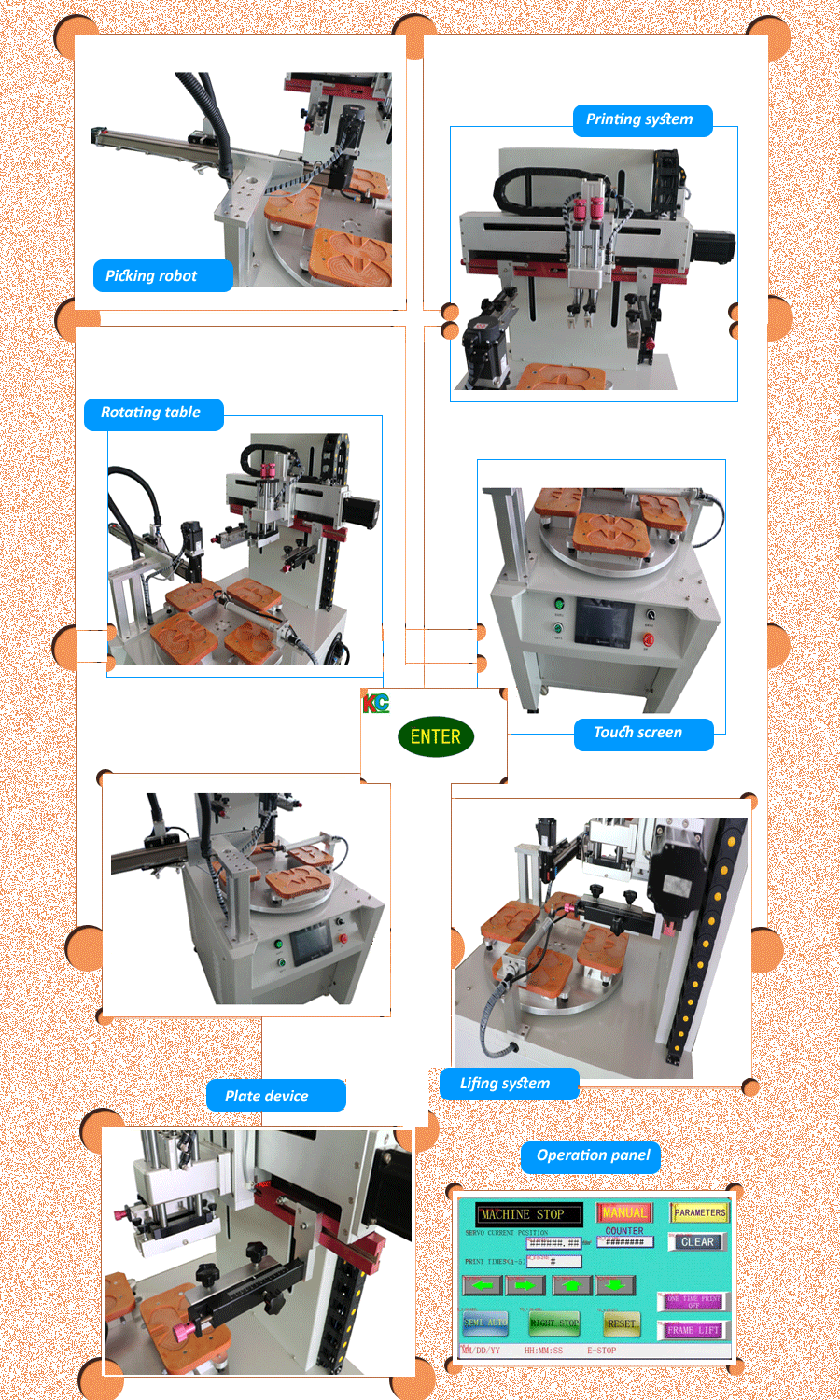

Details-Advantage of rotary screen printers with robot

Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
Screen lift, precision and smooth running.
Automatically the line scraping oil back to the for mimeographed head movements function.
Printing stroke and speed can be flexibly adjusted.
Automatically balance the scraper technology.
Before and after the screen frame and turn the trim function.
Cast aluminum alloy beams, pneumatic lifting mode.
Foot printing function;
Scraper can set as stopping front or Back;
4 Products installed to improve production printing speed.

Flat screen printing Machine with Rotating table //Parameters

The max printing thickness: 200 MM;
Air consumption: 75 Lit/Min;
Outline size: 1970×1450×1650MM;
The max printing area : 180×280MM;
Dimension of working table: 200mm×300mm;
Max printing speed: 1200Pc/H;
Max frame dimension: 550×350mm;
Stroke of Squeegee: 250mm;
Stroke of Table cylinder: 200mm;
Number of working table: 4

How to choose a flat turntable multi-station screen printers:

Workbench

The vacuum workbench is suitable for printing thin products, and the T-slot workbench is suitable for three-dimensional products; the screen printer controlled by the divider has a faster speed, and the screen printer with a servo-driven workbench has a higher positioning accuracy.

Prepress device

Is the appropriate prepress device configured, such as: electrostatic dust removal device, flame treatment device, plasma treatment device.

Printing system

Is the screen lifting controlled by pneumatic control, stepper motor control or servo motor control? Are the pneumatic components and electronic components from well-known brands or unknown brands? Is there a complete supply system?

Robot

Does the machine use a robot unloading device? Is the unloading device controlled by pneumatic control or servo control?

Post-printing curing

Inks all require a drying process to improve efficiency. Is an infrared tunnel furnace or a UVLED or IR drying tunnel furnace used after printing?

Machine proofing

In order to ensure that the machine can print under normal production conditions, it is necessary to conduct actual proofing. The user should provide enough samples. We only make fixtures, screens, and select inks for testing until they meet the requirements.

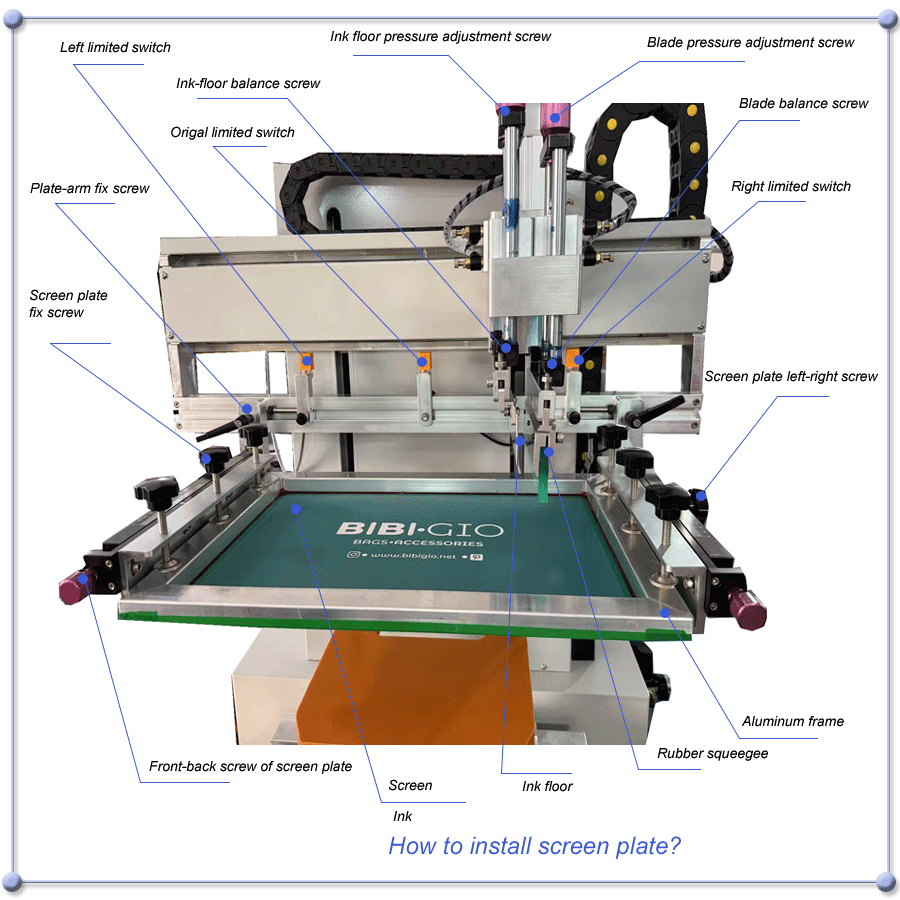

How to install screen plate?

The screen is the symbol of the screen printer and the first factor in whether the screen printer can complete high-quality printing. The most important step of the screen printer is to install the screen on the screen printer for precise alignment.

1) Screen position adjustment

Ensuring that the image and text on the screen are printed at the specified position of the product is the basic requirement of screen printing. On the one hand, it is required to make a fixture to fix the product, and on the other hand, it is necessary to be able to adjust the screen left and right, front and back, and angle.

The adjustment of the screen up and down is done by the hand wheel on the top of the pneumatic screen printer on a large scale, and the parameters of the servo-driven screen printer are set through the touch screen. The distance between the screen and the workbench must be able to accommodate the height of the product, and secondly, the printing process must maintain a suitable screen distance.

It is very important to keep the plane of the screen parallel to the printed surface of the product. During the adjustment process, the screen can be lowered to contact the product first to keep the four corners balanced, and then fix the screen.

2) Use of ink

The screen determines the pattern, the ink determines the color, and the screen printer can only print one color at a time. After the screen is installed, you can add ink and diluent for testing. If there is a deviation in the position, you can correct the position of the fixture and the screen, and then fix the screen and the fixture.

3) Adjustment of the scraper and the ink return knife

The ink on the screen is evenly applied to the image area of the screen by the ink return knife, and the ink is leaked through the screen and printed on the product by the scraper. The scraper is also called a rubber scraper, which is installed on an aluminum rubber scraper clamp. The shape and hardness can be freely selected.

The pressure adjustment of the scraper and the ink return knife is carried out through the adjustment screw of the cylinder; the angle between the scraper and the screen is adjusted by the adjustment screws at both ends of the rubber scraper clamp.

The scraper and the ink return knife must be kept parallel to the printed surface of the product and the screen during the printing process. If there is a deviation of more than 3mm, the screen may be damaged.

The adjustment of the screen printing process is very delicate, and the amplitude cannot be too large. It must be done little by little to avoid damaging the screen.
