Beer crate Motor screen printing Machine with Flip fixture

Beer crates typically have a rectangular shape and require printing on multiple sides, making screen printing an efficient and reliable solution for logo and graphic decoration. This Automatic Screen Printing Machine for Beer Crates is specially designed for printing plastic beer crates and other large rectangular containers. The machine adopts a servo-driven system to precisely control the lifting and lowering of the screen frame as well as the movement of the squeegee, ensuring stable operation and consistent printing quality. It is also equipped with a specially designed automatic flipping fixture. After one side of the beer crate is printed, the fixture automatically rotates the crate 180 degrees, allowing the opposite side to be printed in the same printing cycle. This design enables one screen printing unit to efficiently complete printing on two opposite sides, reducing equipment requirements and saving production space. Because the machine uses a single screen printing unit, the graphics and colors printed on the two opposite sides are identical. For beer crates requiring multi-color printing or different graphics on multiple sides, we can also design and manufacture customized multi-head automatic screen printing machines with more advanced printing and flipping mechanisms. Compared with more complex multi-station printing systems, the clamp-type screen printing machine offers a simpler printing process and reliable product handling. It is particularly suitable for applications where consistent printing on two opposite sides is required. Although the simplified structure does not significantly increase the overall printing speed, it provides a practical and cost-effective solution for plastic beer crate printing. As a professional manufacturer of automatic screen printing equipment, we can provide customized Rotary Screen Printing Machines, Automatic Beer Crate Printing Machines, and Multi-Color Screen Printing Solutions according to different product sizes, printing requirements, production capacities, and automation levels. Screen printing beer crates

S-3050PTRC Beer crate screen printing Machine //Parameters

Max printing Height: 500 mm;
Air consumption: 80Litre/Min;
Dimension of working table: 300×600mm;
Max printing areas: 300×500mm;
Max printing speed: 1000Pcs/H;

Max frame dimension: 450×750mm;
Compress air: 5-7 bar;
Stroke of cylinder up and down:200mm;
Stroke of Squeegee: 300mm

Machine details-advantage

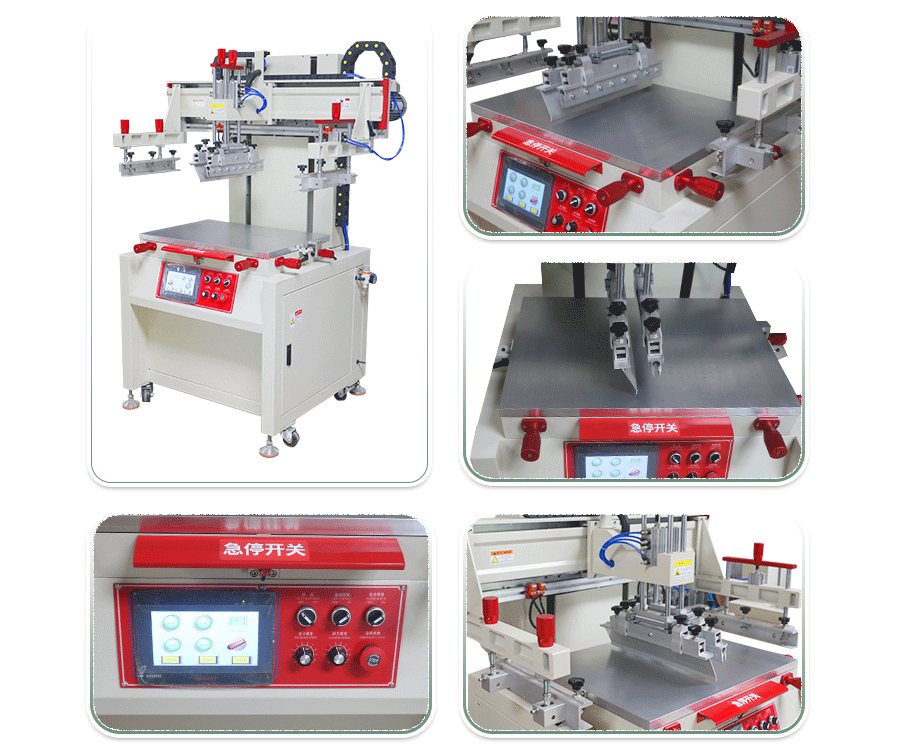

Details of Crate-screen-printing-machine

Dedicated servo-driven beer crate rotary table automatically rotates the product 180 degrees for efficient double-side printing;
Servo motors precisely control both the vertical movement of the screen frame and the squeegee stroke;
PLC and touchscreen control system provide convenient operation, parameter setting, and adjustment;
High-quality electronic and pneumatic components from well-known brands ensure reliable and stable machine performance;
The screen frame can be adjusted vertically, horizontally, and angularly to accommodate different product sizes and printing requirements.

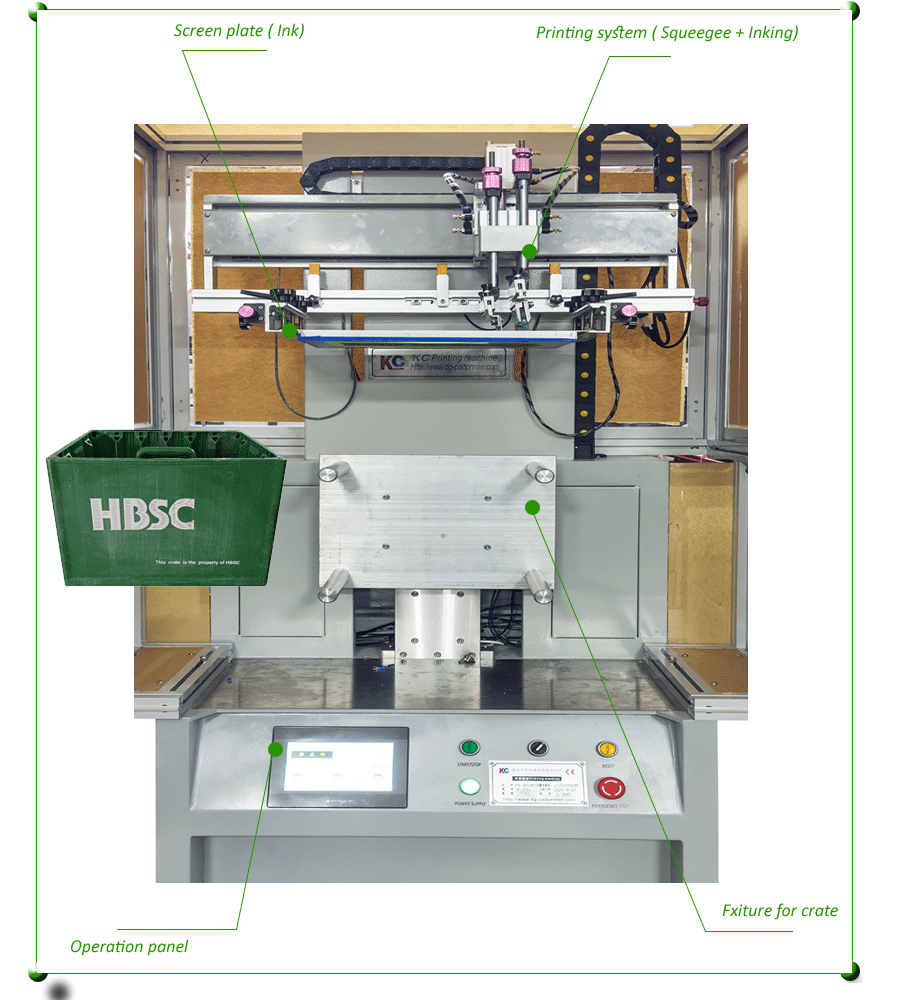

Structure

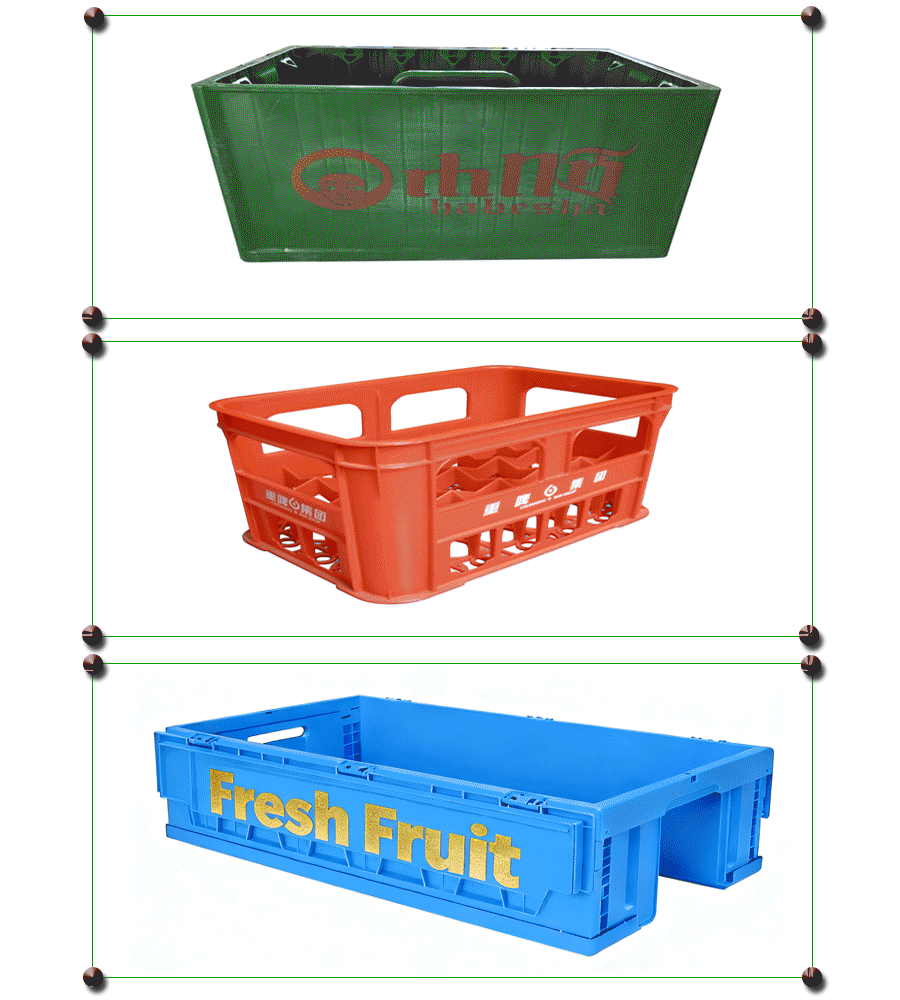

What is plastic crates?

Plastic crates are commonly used packaging containers for loose or fragile items, typically made of reinforced plastic materials such as polypropylene (PP) or high-density polyethylene (HDPE). Some designs combine foldable side panels with standard pallets, with the side panels tightly interlocking via slots, and a reinforced top cover forming a stable, three-dimensional protective space. Plastic crates possess excellent impact resistance and weather resistance, maintaining stable performance within a temperature range of -25℃ to 60℃. The anti-slip textured surface and reinforcing strips enhance stacking stability, allowing them to withstand the pressure of multiple stacks.

Plastic crates are widely used in the loading and transportation of electronic products, pharmaceutical products, alcoholic beverages, the catering industry, and the logistics industry. They are also widely used in factories and enterprises for the conveying, distribution, and storage of parts and semi-finished products, as well as in the transfer of materials in warehousing management.
