Electric circuit screen printing machine

There are two types of large-sized flat screen printing machines, pneumatic screen printing machines and electric screen printing machines. Due to the instability of pneumatic screen printing machines, the market share of electric screen printing machines is constantly expanding. The so-called electric screen printing machine means that the up and down movement of the screen and the left and right movements of the scraper are controlled by the motor instead of the cylinder. Relatively speaking, the electric control screen printing machine is powerful and can maintain a relatively stable pressure throughout the printing process. . In order to further improve the accuracy, these two actions are increasingly controlled by servo motors. Servo motor control is more convenient to operate and adjust, and has higher precision, but the price is also more expensive.

Machine details of motor mesh printing machine

The electric flat screen printer is mainly composed of mechanical, printing, transmission, electrical control and other systems:

Mechanical structure system

• Frame: It is the basic support part of the screen printer. It is usually made of high-strength metal materials such as steel plates and cast iron. It is required to have sufficient strength and stability to ensure that the machine will not shake or deform during operation.

• Workbench: It is used to place the items to be printed. There are usually air suction holes on the table. The printing material is fixed on the table through a vacuum adsorption device to ensure that the material will not move during the printing process.

Printing system

Screen lifting system, used to control the lifting of the screen.

Ink scraper and ink return knife: used for ink coating and printing

Electrical control system

• PLC controller: It is the control core of the screen printer, used to coordinate and control the movement of each component to realize the automation of the printing process. It can control the moving speed of the printing head, the lifting height of the screen, the pressure of the ink scraper and other parameters according to the preset program.

• Touch screen or operation panel: As a human-machine interaction interface, operators can input printing parameters, select printing modes, monitor the operating status of the machine, etc. through the touch screen or operation panel.

• Sensors: including photoelectric sensors, limit sensors, etc., used to detect various signals in the printing process, such as the position of the print head, the lifting position of the screen, the arrival of the printing material, etc., to provide feedback signals for the PLC controller to achieve precise control.

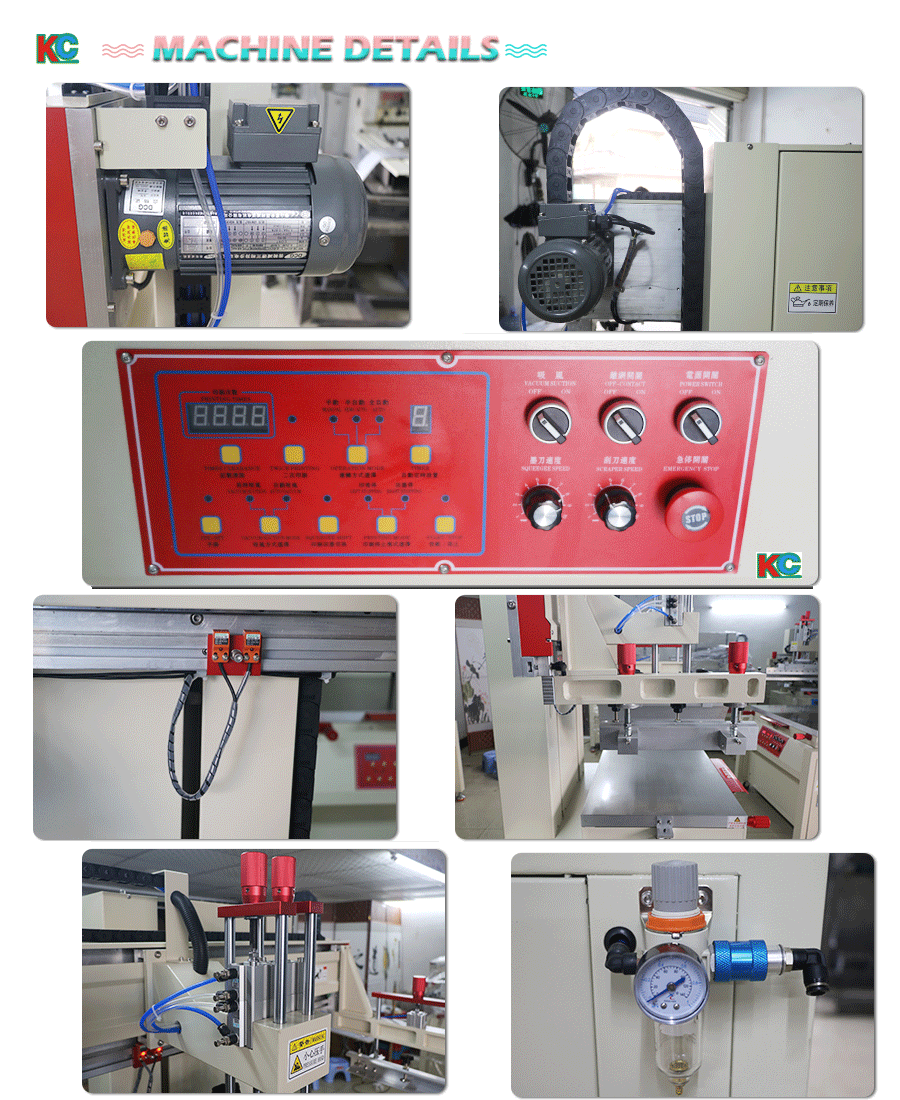

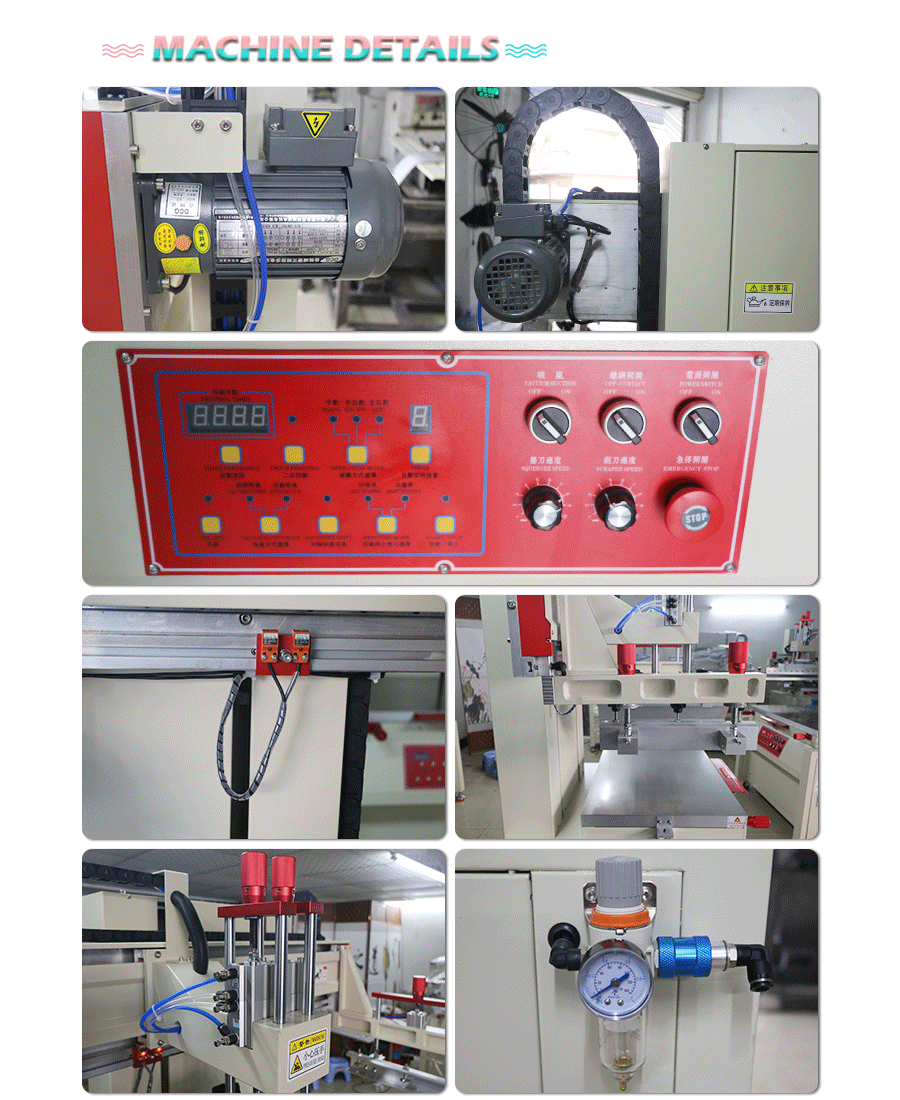

Machine details of plain mesh printing machine

This screen Printer is big enough for circuit board.

Strong automatic vortex - type vacuum pump, close adsorption, to ensure multi - color chromatography precision.

Unique design of the off-grid device to ensure that the printing pressure balance and stability, to prevent large-scale products printing sticky version and race network.

This series plain screen printer uses motor-driven system. Vacuum worktable could fix some thin plain products.

Technical Parameters of Electric screen printing machine

Item	PS-6080PV	PS-70100Pv	PS-80120Pv	PS-90140PV
Printing height(mm)	50	50	50	50
Air(liter/min)	55	55	55	55
Worktable dimension(mm)	700×900	800×1100	900×1300	1000×1500
Max. frame size(mm)	850×1050	950×1250	1050×1450	1150×1650
Max. printing area(mm)	600×800	700×1000	800×1200	900×1400
Max. printing speed(pcs/h)	800	700	700	600
Max Stroke of up-and-down frame(mm)	200	200	200	200
Max stroke of Squeegee(mm)	800	1000	1200	1400
Squeegee motor wattage(w)	200	200	200	200
Table Precision(mm)	+-0.03	+-0.03	+-0.03	+-0.03
Package dimension(mm)	1.51×1.26×1.83	1.51×1.36×1.83	1460×1690×1820	2070×1790×1820
G.W.(kg)	541	570	600	630
Works supply	110 V-220 V Power supply; 5-7 Bar compress air

Advantage of Electric Precision screen printing machine

High-precision linear guide-way control lifting and dropping of screen plate and rubber squeegee;
Vacuum table to facilitate the production of Soft and thin , suitable for Printing Paper, film and UV Coating Process;
Screen form up and down movement of contact with the table, suitable for hand-placed and remove the product;
Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
Screen form Clamping device free to adjust to fit different sizes of screen;
Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
Microcomputer program control operations;
4-Digit auto counter; to facilitate the measurement of production efficiency.
