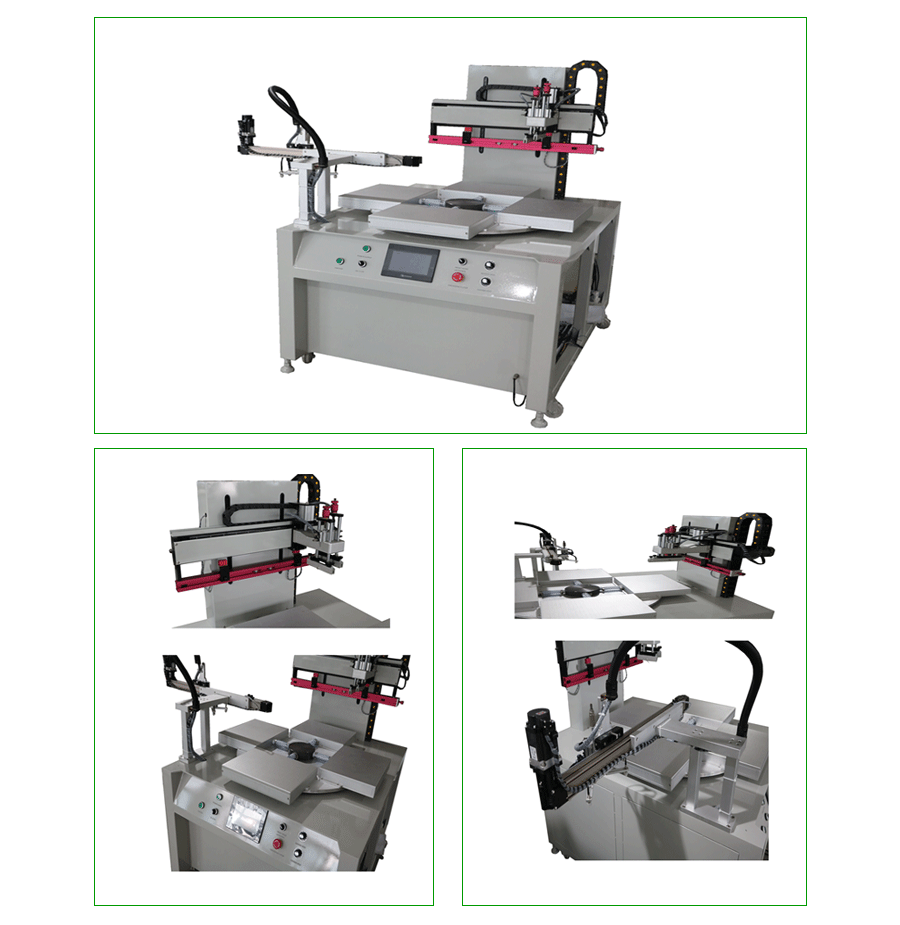

PS-2030PV4 Flat screen printing machine with conveyor //

Usage and characters

Turntable screen printing machine is an important type of transition from semi-automatic flat screen printing machine to automatic flat screen printing machine. By upgrading the workbench to a structure that can be rotated and alternately conveyed, the degree of automation of the flat screen printing machine has been improved. The turntable table can be set to 4, 6, 8 or more stations ensure the continuous delivery of products and reduce the waste of time during product printing. After the turntable screen printing machine is equipped with a manipulator, the printed product can be grabbed to the IR drying oven or the conveyor belt of the drying oven to realize a relatively automated production line, which is also a trend of today's screen printing machines. The elements of the rotary screen printing machine include:
Screen printing ink, the type of ink is selected according to the material of the product, and the color is selected according to the color required by the design. Whether it is an ink of a famous foreign brand or a domestic brand, as long as it meets the customer's requirements after testing, it can be delivered.
Screen printing jigs: Turntable screen printing machines usually need to make the same number of jigs as the number of workstations, and the uniformity and interchangeability of the jigs are better.
Screen printing screen: The screen printing screen should be made according to the printing pattern provided by the user. You can hand it over to a third party or make it yourself.
Screen printing squeegee: Screen printing squeegee is usually a rubber tool made of polyurethane material with a rectangular or triangular or even more complex cross-sectional shape. It is in close contact with the screen and squeezes the ink onto the product surface through angle and pressure.

207

PS-2030PV4 Flat screen printing Machine with Rotating table //Parameters

The max printing thickness: 200 MM;
Air consumption: 75 Lit/Min;
Outline size: 1080×850×1280MM;
The max printing area : 180×250MM;
Dimension of working table:200mm×300mm;
Max printing speed: 1800Pc/H;
Max frame dimension: 550×350mm;
Stroke of Squeegee: 250mm;
Stroke of Table cylinder: 200mm;
Number of working table: 4

Details photo-advantage

The PS-2030PV4 flat screen printing machine with rotating table represents a significant advancement in the evolution from semi-automatic to fully automated printing systems. Designed for industrial use, this turntable screen printing machine enhances production efficiency by incorporating a rotating workbench that allows for multiple stations, ensuring continuous product flow and minimizing downtime during the printing process. This model is ideal for businesses seeking to optimize their screen printing workflow while maintaining high-quality output.

Key Features of the PS-2030PV4 include a microcomputer-controlled system that ensures precise and smooth operation. The machine is equipped with brand-name electrical components, offering reliability and durability. It features automatic oil return functionality, adjustable printing stroke and speed, and an automatic balancing system for the squeegee. Additionally, the rotating table can be set up with 4, 6, or 8 stations, depending on production needs, making it highly versatile for different printing tasks. The machine also supports the integration of a manipulator, allowing for seamless transfer of printed items to an infrared drying oven or conveyor system, thus enabling a fully automated production line.

Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
Screen lift, precision and smooth running.
Automatically the line scraping oil back to the for mimeographed head movements function.
Printing stroke and speed can be flexibly adjusted.
Automatically balance the scraper technology.
Before and after the screen frame and turn the trim function.
Cast aluminum alloy beams, pneumatic lifting mode.
Foot printing function;
Scraper can set as stopping front or Back;

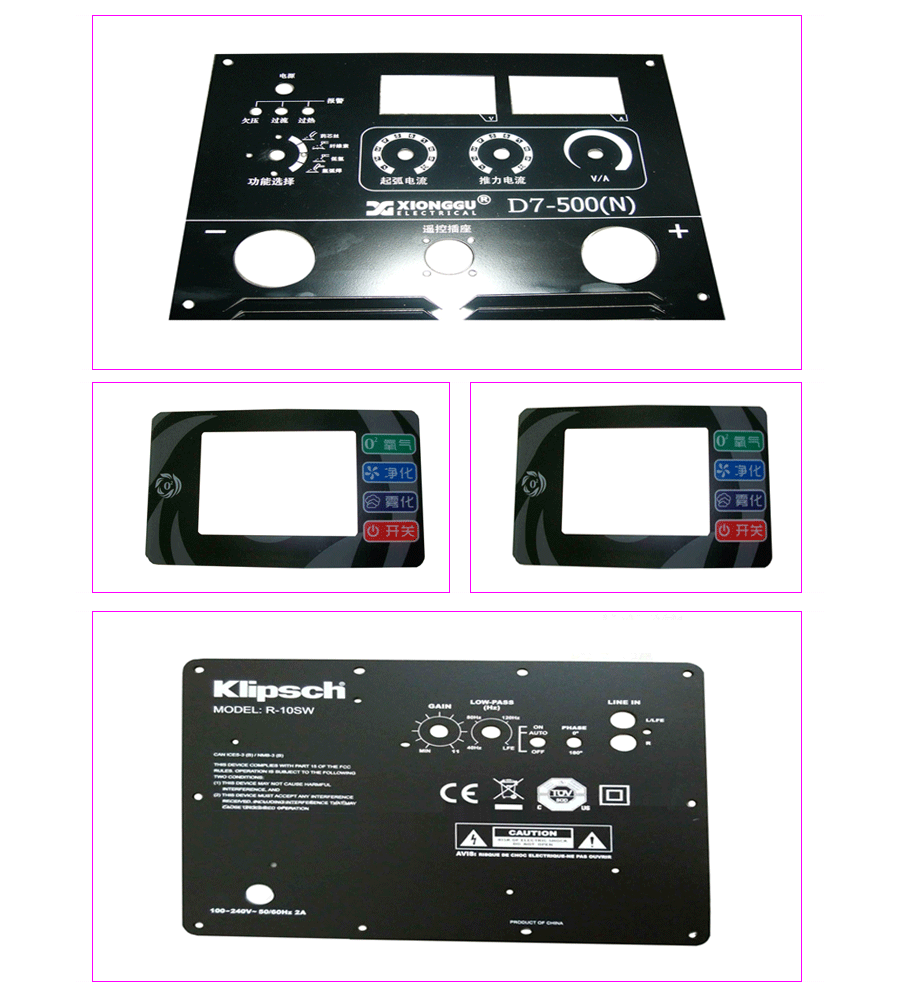

4 Products installed to improve production printing speed.

Worktable of plain screen printing machine

The structure of the screen printing machine is constantly changing with the changes in the market. The main change is the change in the movement form of the workbench. The change in the movement form of the workbench makes the printing from intermittent to continuous, realizing the relative automation of the printing process.

Rotary screen printing machine

The workbench of the rotary screen printing machine has multiple even-numbered stations forming a disc, which are arranged and rotated along the central axis and enter the printing device in turn. Pre-press devices such as flame treatment devices, plasma treatment devices, electrostatic dust removal devices, and post-press devices such as tunnel drying devices and UV curing devices can be set between the stations to make the printing process more perfect.

Sliding table screen printing machine

The sliding table screen printing machine refers to a workbench that can move along the guide rail, or move left and right, or move forward and backward. When moving out, the product can be removed and placed, and when moving into the printing position, printing can be performed. The sliding table screen printing machine avoids contact between the operator and the printing device and improves safety.

Conveyor belt screen printer

A conveyor belt screen printer is a screen printer that is equipped with a conveyor belt. The conveyor belt can run continuously. The operator can place the products on the conveyor belt at certain intervals, and the products will be transported to the printing position in sequence.

Why is a robot installed on a screen printing machine?

The screen printing machine equipped with a robot is an automated auxiliary equipment designed for printing scenarios. It replaces some manual operations, realizes partial automation, and reduces the labor intensity of the operator: At present, the more mature cases of installing robots are: installing robots on oblique arm screen printing machines, installing robots on vertical screen printing machines, and installing robots on turntable flat screen printing machines.

Structure of the robot

Actuator:

For common flat parts (paper, glass, metal plates) in screen printing, vacuum suction cups are often used to suck the products; for products with specific shapes and certain quality, pneumatic grippers may be used to grab the products

Motion arm:

The end effector needs to be moved to the specified position by the motion arm to place the product. The moving distance, such as up and down lifting, horizontal translation, rotation fine-tuning, etc., can be adjusted. The structure is mostly a multi-dimensional action of linear module + joint arm.

Drive system:

The driving robot can be a servo motor or a cylinder, which is matched with a reducer, solenoid valve, etc. to control the movement amplitude and strength.

Control system:

Through PLC linkage with the screen printer host, receiving the signal of the printer, triggering the robot to move, and ensuring the accuracy of grabbing and placing through the position sensor (the error is usually controlled within 0.1-1mm).

Robot Program

The core of the screen printer robot is "automatic loading and unloading according to the preset program, synchronized with the printing process":

1. Loading stage: The robot grabs the workpiece to be printed from the silo or conveyor belt, places it accurately on the workbench of the screen printer through the moving arm, and triggers the positioning sensor to confirm.

2. Printing coordination: After the workpiece is positioned, the robot returns to the waiting area to avoid interfering with the work of the screen printing head; after printing is completed, the receiving signal starts again.

3. Unloading stage: The robot moves to the workbench, grabs the printed workpiece, and transfers it to the IR drying area or UV drying area to complete a cycle.

The oblique-arm screen printer + robot + UV curing machine production line in the local UV process; the vertical screen printer + robot + IR tunnel drying line in the thermal transfer film production process; the turntable flat screen printer + robot + UVLED curing machine production line in the UV process of household appliance panels are very mature examples of adding robots.
