Tabletop rotary screen pinting machine

Tabletop rotary screen pinting machine

10 month ago

24 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Tabletop Flat screen printing machine with robot and rotating table //

Usage and characters

Desktop screen printers are the most cost-effective type of screen printing equipment . They are usually placed on the countertop of the workshop for operation and occupy a small area. turntable Desktop screen printer are desktop screen printers equipped with a four-station turntable. There are generally two structures, one is the suction type and the other is the T-slot type. The T-slot workbench occupies a large market share in desktop screen printing machine. It is easy to make fixtures to fix different products.

The actions of the desktop screen printer include the rotation of the turntable, the lifting of the screen, the movement of the scraper and the ink return knife. Some desktop turntable screen printing machine are equipped with a manipulator, which can automatically remove the product.

There are two types of operation panels for desktop screen printer: the operation panel of the single-chip microcomputer and the operation panel of the touch screen. Desktop turntable screen printer are widely used in the printing of small products in industries such as gifts, toys, electronics, crafts, stationery, office supplies, tools, daily necessities, and hotel supplies.

242

Desktop Flat screen printing machine with 4 stations rotating table //Application

Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.

Installed in the flat screen printing machine on the basis of a 10-station conveyors, one can fixture 10 products for printing,;
Saving makeready times, improved work efficiency, suitable for flat small monochrome printing area less than 80mm × 110mmscreen printing;
The structural design using the up and down movement of the screen plate type, conducive removed and placed;
Horizontal cylinder design a stable, uniform squeegee pressure back to Mexico and flat, good print quality;
Semi-automatic operation, the operator interface can be used;

Tabletop Flat screen printing Machine with Rotating table //Parameters

The max printing thickness: 200 MM;
Air consumption: 75 Lit/Min;
Outline size: 1080×850×1280MM;
The max printing area : 130×170MM;
Dimension of working table: 150mm×200mm;
Max printing speed: 1800Pc/H;
Max frame dimension: 300×200mm;
Stroke of Squeegee: 250mm;
Stroke of Table cylinder: 200mm;
Number of working table: 10

Advantage of tabletop rotary screen printing machine

Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
Screen lift, precision and smooth running.
Automatically the line scraping oil back to the for mimeographed head movements function.
Printing stroke and speed can be flexibly adjusted.
Automatically balance the scraper technology.
Before and after the screen frame and turn the trim function.
Cast aluminum alloy beams, pneumatic lifting mode.
Foot printing function;
Scraper can set as stopping front or Back;
10 Products installed to improve production printing speed.

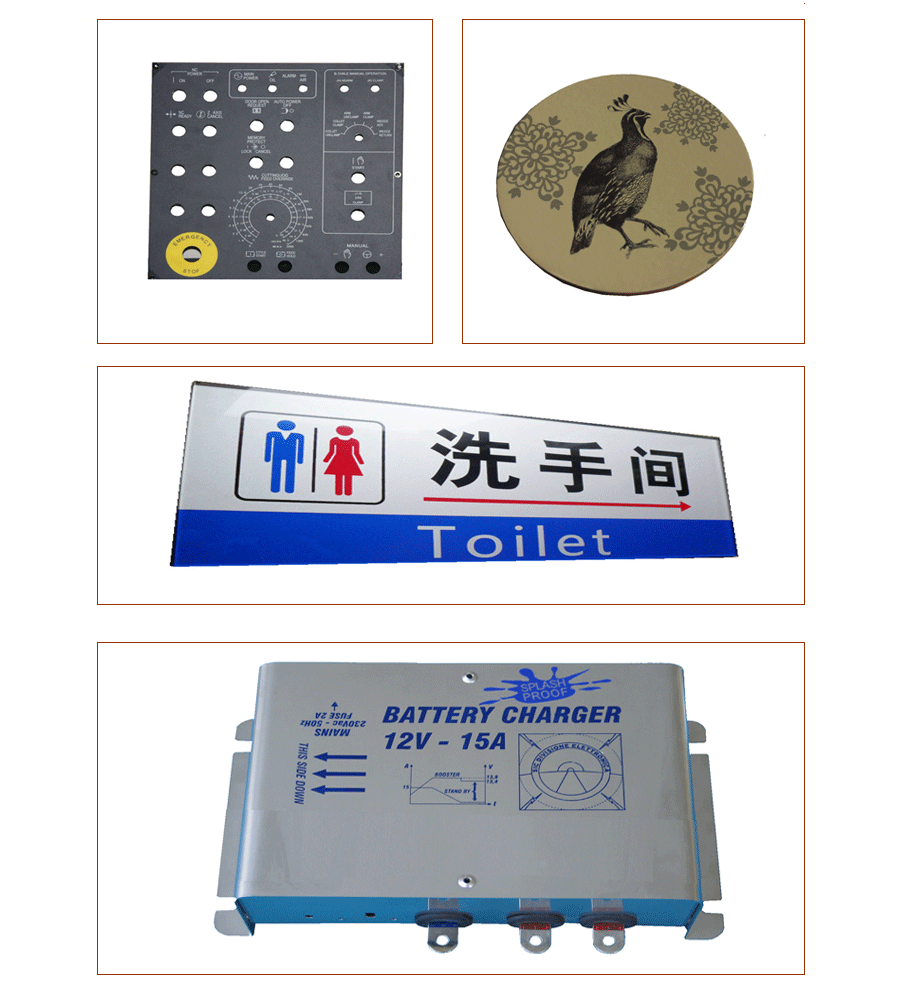

Which products can be Stencil printed in the desktop turntable screen printer?

Desktop turntable screen printers have mature applications in a variety of small and medium-sized, regular or slightly irregular products due to their compact structure:

Electronic appliances

Surface marking of electronic components such as resistors, capacitors, and inductors, logo printing of USB interfaces and headphone plugs, and character and symbol printing of small circuit boards. Mobile phones and accessories: brand logos and decorative patterns on mobile phone shells, text or simple graphics on mobile phone protective cases, and parameter descriptions of charger shells.

Stationery and daily necessities

Rulers, triangles, protractors in stationery, simple text or logos on notebook covers. Remote controls, mouse pads, square cosmetic bottles, decorative patterns on perfume bottle caps, and advertising text or patterns on lighter shells in daily necessities.

Panels of communication equipment and small appliances

Small appliances such as soybean milk machines, coffee machines, juicers, sweeping robots, and operating panels of electronic scales, communication equipment such as switches, router shells, signal amplifier shells, etc.

Medical equipment

Blood pressure monitors, ventilators, small medical equipment brackets: scales and labels on thermometer shells, text instructions on stethoscope accessories, surgery & shells, etc.
