SZD-1031 vertical turntable screen printing machine

2 year ago

51 0

KC Printing Machine (Group) Limited

 10 year year

Product details

Automatical cylinder screen printing machine

This cost-effective automatic screen printing machine is designed for efficient and reliable screen printing on cosmetic jars and other cylindrical packaging containers. Featuring a vertical rotary turntable worktable, the machine provides stable product indexing and continuous transportation, making it particularly suitable for single-color screen printing of cosmetic packaging with simple cylindrical structures. For cylindrical containers with an opening that is relatively close in diameter to the main body, a specially designed fixture can securely hold the product by inserting into the container opening. This straightforward clamping method provides reliable positioning without requiring a dedicated blowing device, helping simplify the machine configuration while maintaining stable printing accuracy and efficient operation. Constructed with a durable cast aluminum machine frame, this economical automatic screen printer offers a practical balance of stability, durability, and investment cost. It is especially suitable for niche cosmetic brands, packaging manufacturers, and small to medium-sized businesses requiring reliable monochrome printing on cosmetic jars and cylindrical containers without the cost of a more complex high-end system. Despite its economical configuration, the machine incorporates the essential functions of a fully automatic cylinder screen printing machine, including an automatic loading system, pre-pressing mechanism, screen printing unit, UV curing system, unloading manipulator, and discharge conveyor. With a production capacity of approximately 1,000–1,200 pieces per hour, this automatic screen printing machine for cosmetic jars provides an efficient and cost-effective solution for continuous single-color printing applications.

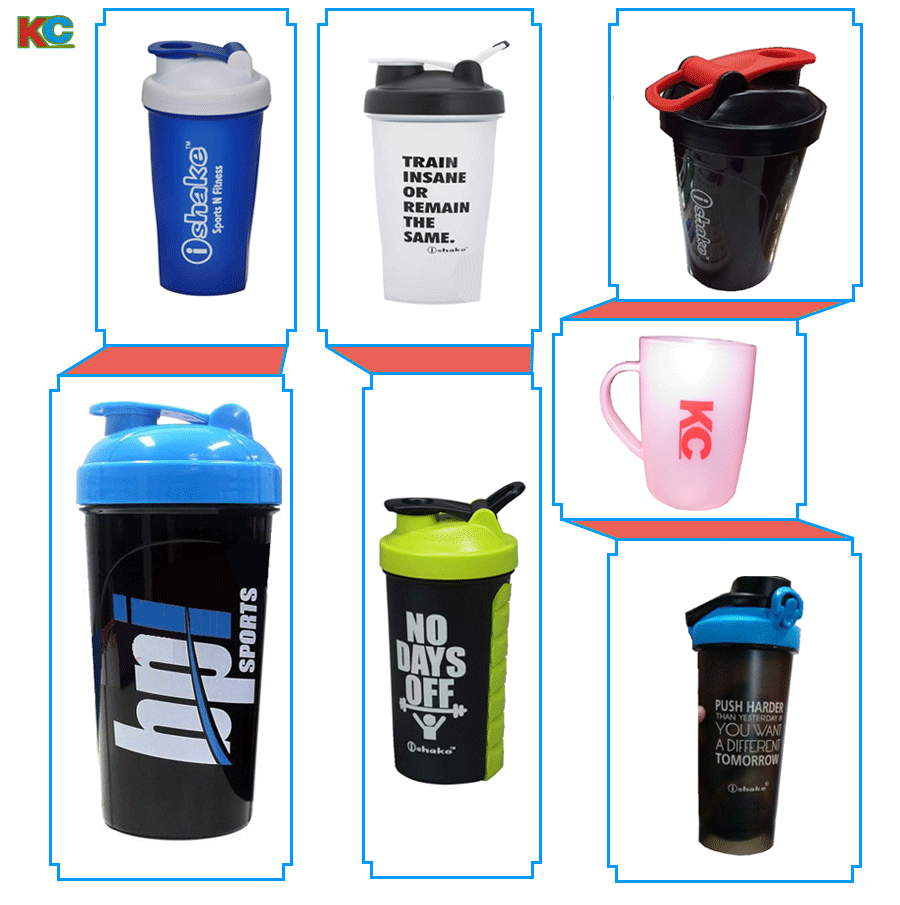

Printed samples of automatic screen printing machine

Technical parameter

Printing Max. Diameter ￠20-￠50mm;
Printing Max Length 20-200mm;
Printing station 10;
Printing Speed 3600Pcs/H;
Power supply 380V 50 MHz;
Air pressure 0.6-0.8Mpa;
Total power 4.5KW
UV lamp wattage: 4KW

Power: 3 phase 380V;
5-7Bar Compress air ;
Liquefied petroleum Gas, Natural gas

Features of fully automatic screen printing machine

High degree of automation: The entire printing process can be completed without manual intervention, from transmission, positioning (mechanical positioning, CCD positioning), pre-press treatment (flame treatment, plasma treatment), silk screen printing, post-printing treatment (hot air drying) , UV drying, product arrangement, and other links are all automated, which greatly reduces the labor intensity of workers and truly realizes full automation of the printing process.
Fast printing speed: Compared with traditional screen printing equipment, the printing speed of fully automatic screen printing machines has been significantly improved, enabling efficient production and meeting the needs of mass printing. For example, some fully automatic curved screen printing machines can achieve 3,600 prints per hour, greatly improving production efficiency.
High printing accuracy: Through advanced servo control system and precise mechanical structure, printing accuracy can be guaranteed, which can reach an accuracy of less than 0.05mm.
Wide range of applications: It can print products of a variety of materials and shapes, such as flat, curved, cylindrical or irregular-shaped products, etc., with strong adaptability. Whether it is plastic, metal, glass, ceramics, etc., all materials can be printed using a fully automatic screen printing machine.

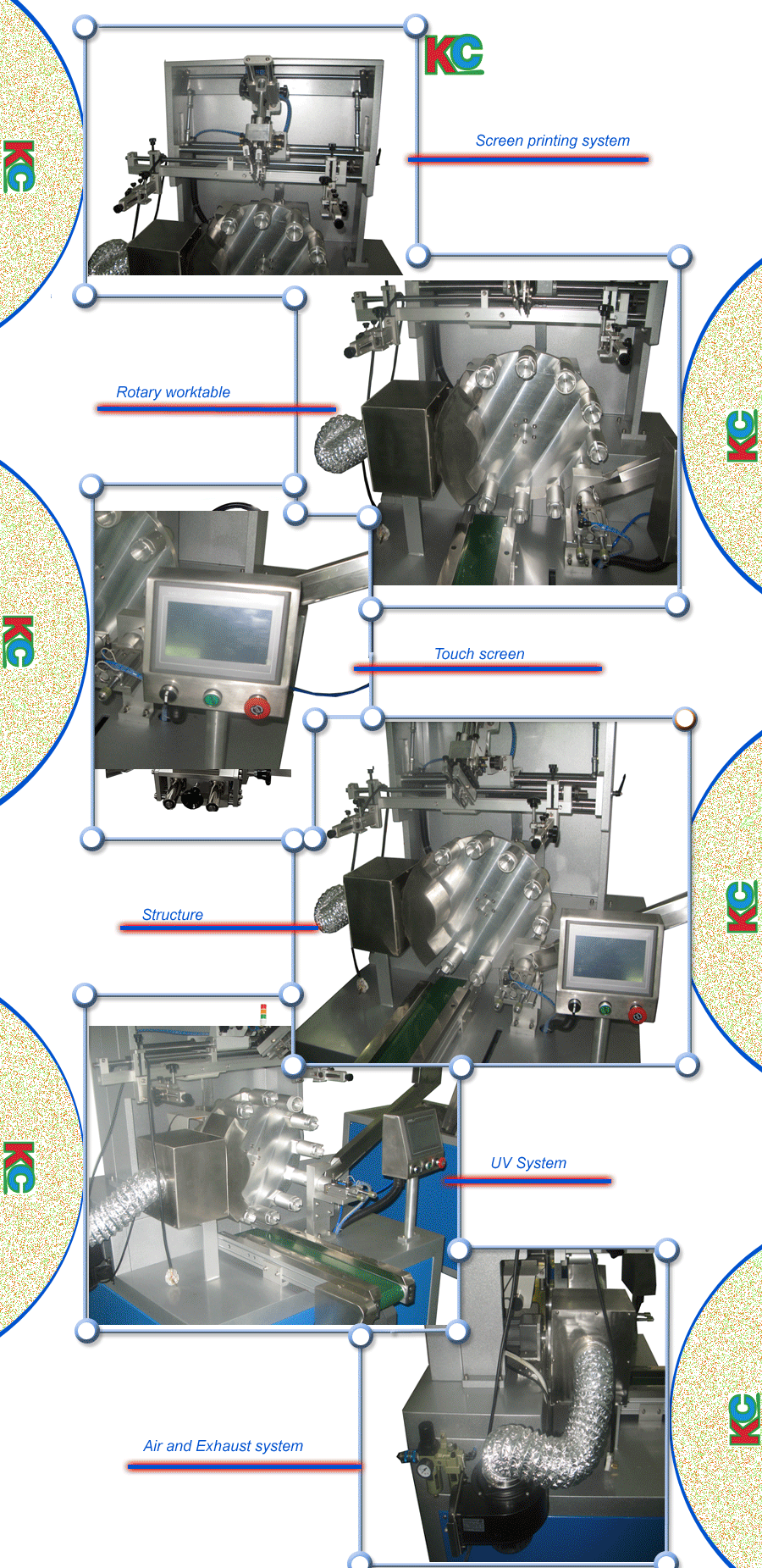

Structure

Flexible Feeding System: The synchronized feeding device is fully adjustable to accommodate different hose sizes, with stepless speed control for perfect coordination between transport and printing.
Surface Treatment: Equipped with an online flame treatment device to increase the surface tension of PE and PP materials, enhancing ink adhesion.
Patented Hose Disc Transmission: Ensures smooth operation and high positioning accuracy.
Customizable Fixtures: The printing fixtures can be adjusted according to hose size, with electronic sensors for precise printing and automatic error prevention.
High-Performance UV Curing: Uses a top-quality UK UV curing system for instantaneous ink drying. Lamps are easily replaceable via the pull-out design.
User-Friendly Operation: Full mechanical drive with touch screen interface for simple human-machine interaction.
Precision Engineering: Eight main parts are CNC-machined for high accuracy and stable high-speed operation, achieving printing speeds up to 4,000 pcs/hour.
Safety & Monitoring: Includes automatic low-air-pressure alarm function.
Reliable Components: Electrical and control systems use high-quality components from Germany and Japan, ensuring consistent printing quality.
