Pneumatic hot foil stamping machine with rotating table //
Usage and characters
The turntable pneumatic hot stamping machine is a hot foil stamping machine with a multi-station turntable installed on the workbench of the flat hot stamping machine. The operator will place the product on the workbench. The turntable workbench will rotate into the hot stamping position and the unloading position in turn under the control of the divider, so that the hot stamping process reduces manual intervention. At the same time, the hot stamping time of the product and the placement and unloading time of the product do not overlap, which improves the efficiency of hot stamping.
Pneumatic system: mainly includes air compressor, solenoid valve, cylinder, etc., which provides power for the equipment and controls the movement of each component.
Heating system: composed of heating tube, temperature controller, etc., which can accurately control the temperature of the hot stamping head to ensure the hot stamping effect.
Turntable mechanism: usually driven by an electric motor or pneumatic motor, it can achieve 360-degree rotation, facilitate multi-station hot stamping operations, and improve production efficiency.
Hot stamping head: It is a component that directly contacts the hot stamping paper and materials. It is generally made of high-quality metal materials with good thermal conductivity and wear resistance
Control system: It is composed of buttons, touch screens, relays, etc., which can control the start, stop, temperature adjustment, pressure adjustment, turntable speed adjustment and other functions of the equipment.

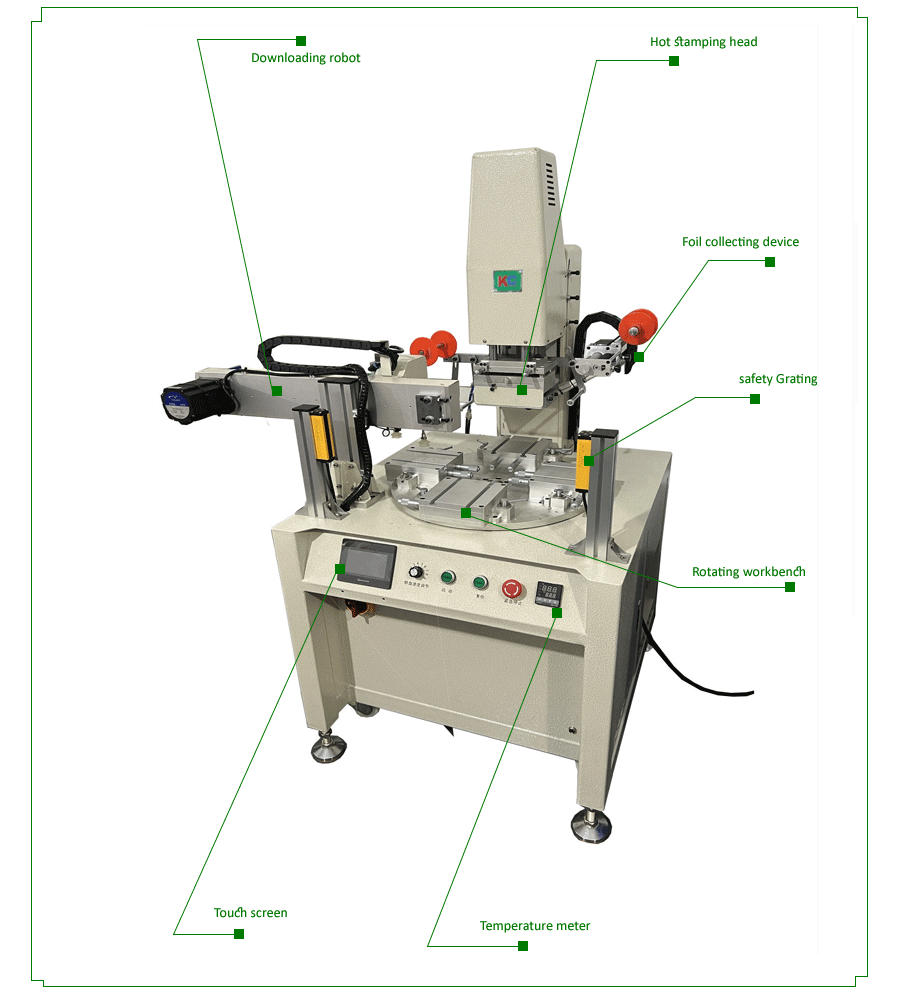

Machine structure-Advantage of rotary automatic hot foil stamping machine
1) Turntable hot stamping requires the production of multiple sets of fixtures. Generally, a turntable hot stamping machine will have more than 4 workstations. Each workstation must produce fixtures, and all fixtures must be interchangeable. The fixtures of the hot stamping machine need to withstand great pressure and must be made of metal materials;
2) Generally, the turntable automatic hot stamping machine is suitable for products with small sizes. Hot stamping paper can be cut into a narrower width. Hot stamping paper must be tested before formal production. Hot stamping paper is not like ink. Ink cannot be mixed. It can only be selected based on the supplier's samples;
3) The turntable hot stamping machine is safer. When operating the machine, the human body is generally far away from the hot plate, but misoperation will still cause unnecessary safety accidents. A further safety measure is to install a grating device to ensure that once the human body enters the moving parts, the machine can stop immediately.
4) The robot arm of the turntable automatic hot stamping machine can quickly remove the product and perfectly connect it with the next process.
Machine description of rotating hot foil stamping machine
Pneumatic hot stamping Machine with rotary worktable//Parameter |
|
|
H-TC1015R4R
|
H-TC1927R4R
|
|
Works supply:110V-220VPower supply;5-7Bar compress air Package size: . 0.770×0.820×1.550mm Gross weight: 220kg CBM: 1.0145 H.S.Code: 8443198000 Certificate: CE |
|
If you are interested in the product, contact 2bvideo.com for more information for more information
