Slant-arm silk screen printing machine with UV curing system

The Oblique Arm Screen Printer with Robotic Transfer System is designed for continuous UV screen printing and automated post-print curing. By integrating a robotic handling unit with a UV curing machine, the system provides an efficient upgrade path from semi-automatic screen printing to automated UV production.

During operation, the substrate is positioned on the vacuum worktable, where it is securely held for precise printing. After UV ink or UV varnish is applied, the screen frame lifts automatically, and the robotic arm transfers the printed substrate to the conveyor of the UV curing machine for immediate curing. This integrated screen printing and curing solution ensures high productivity, consistent print quality, and reliable continuous operation, making it ideal for plastics, glass, metal panels, and various industrial applications.

Application-printed samples

Slant-arm silk screen printing machine//Parameters

Technical parameters	S-JY6090PV	S-JY70100PV
	1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6 kgf/cm2; 3.Net weight: 560 KG; 4.Max printing area:600×900 MM; 5.Max printing speed:1000 Pcs/H. 6.Max screen frame size: 900×1200 mm; 7. Table adjustment Longitude: +-0.1 mm; 8. Working table size: 700×1000 mm	1.Max printing thickness:0-40 MM; 2.Power Pressure:4-6 kgf/cm2; 3.Net weight: 65 0KG; 4.Max printing area:700×1000 MM; 5.Max printing speed:1000 Pcs/H. 6.Max screen frame size: 1000×1300 mm; 7. Table adjustment Longitude: +-0.1 mm; 8. Working table size: 800×1100 mm
Factory	110 V-220 V Power supply; 5-7 Bar compress air;
Package parameters	Gross weight: 592 kg Wooden case dimension:1660×1280×1350 mm CBM: 2.66 CBM
H.S.CODE	8443198000

Flat UV Drying Machine//Parameter
Technical parameters	M-50250UVC	M-80250UVC
	Conveyer width:500mm; Total wattage:9KW; Wind fan wattage:200W/380V; Conveyer motor wattage:1000W/1P/380V; ConveyEr speed:0~10m/min; Speed adjustment:Stepless; Lamp wattage:5.6KW/380V×2pcs; Max height of production: 80mm. Entrance Length: 650mm. Drying length: 1200mm.	Max curing Objects:800×60mm(W×H); Total Wattage:9KW; Fan Motor Wattage:1000W/380V; Transport Motor wattage:1000W/1P/380V; Conveyer speed:0~10m/min; Speed adjustment mode:stepless; Lamp wattage:5.6KW/380V×2pcs.; Max objects height: 80mm
Works supply	Power: 3 phase 380V.
Package list	Outer Dimension: 2.500×0.560×1.370m; Net weight: 296KG
	Package Dimension: 2.58×0.85×1.35m; Gross weight: 379KG; CBM:3.364945	Package Dimension: 2.670×1.10×1.420m; Gross weight: 395KG; CBM:4.17054
H.S.Code	8443198000
Certificate	CE

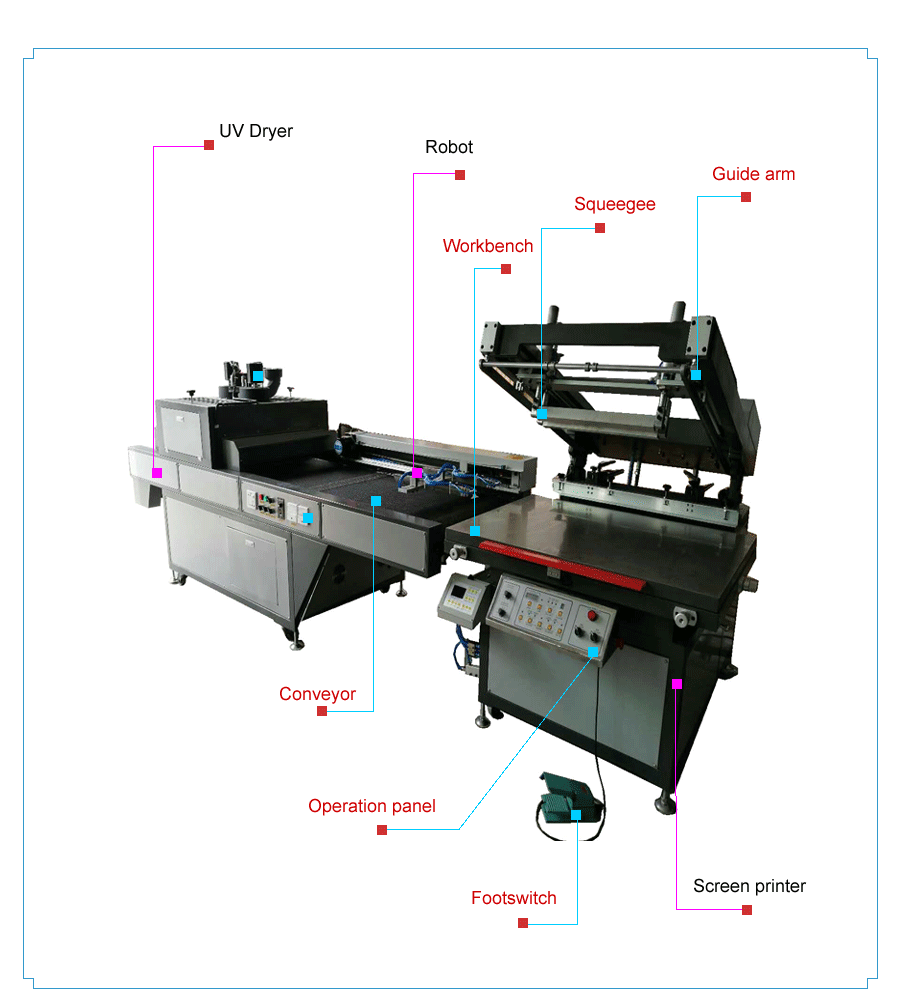

Machine structure

Slant-arm silk screen printing machine//Advantage

Hybrid electric and pneumatic drive system for stable and reliable operation
Imported automatic control system for smooth and consistent printing performance
Aluminum alloy printing table with 2 mm stainless steel surface for maximum rigidity and distortion-free operation
Precision coordinate adjustment system for accurate screen alignment
Automatic vacuum hold-down function for stable substrate positioning
German linear guide rail system for smooth movement and extended service life
Imported timing belt transmission with adjustable speed and precise operation
Independent squeegee and flood bar pressure adjustment with up to 45° angle setting
Safety rebound protection system for enhanced operational safety
Automatic synchronous off-contact function to prevent ink smearing and improve print quality
Premium electrical components with electronic touch keys for convenient operation
Electrostatic powder-coated finish with excellent solvent resistance and durable appearance
Adjustable printing speed for different production requirements
High-rigidity machine structure for improved printing accuracy and repeatability
Designed for high-quality printing on plastics, glass, metal panels, electronics, and industrial products
