Product details

H-TC50SM Full automatic Soft-tube Heat transfer machine //

Usage and characters

The automatic hot stamping machine and the automatic thermal transfer machine are structurally the same. We can think of them as belonging to the same type of printing machine, or we can think of them as two different printing machines. In fact, the two machines are easy to distinguish in the literal sense, but difficult to distinguish in specific process applications.

A printing machine that can only use hot stamping foil can be called an automatic hot stamping machine. The hot head of the automatic hot stamping machine can be a flat hot plate or a silicone roller;

A printing machine that can use thermal transfer film is called an automatic thermal transfer machine. The hot head of the automatic thermal transfer machine can also be a flat hot plate and a silicone roller, but the automatic thermal transfer machine will be installed with a photoelectric control system that controls the delivery of the thermal transfer film. Only after the thermal transfer film enters the designated position will the hot head be pressed down to the product and transferred. Therefore, the main difference between the automatic hot stamping machine and the automatic thermal transfer machine is whether it contains a tracking control system for the thermal transfer film. 379

Introduce

Common type of PE soft-tube gilt; Suitable for all kinds of soft-tube made of plastic material gilt;
With the smooth side of the cap are suitable for this machine gilt;
Also for some of the cosmetic cover a diameter less than 40mm gold foil.
With automatic transmission is fully automatic stamping machine cap, the cap for a top side of the gilt automatic stamping machine;
Structural design of the central compact structure; bottle feeding from the side, facing into the stamping station;
Stable horizontal movement, the frequency motor control, stamping pressure evenly, stamping quality;
Programmable logic controller fine-tuning various parameters, a good user interface;
Set a single machine debugging feature operation is set up can be fully functional operation;
As the bottle with the top and bottom of the points, the machine can automatically identify, saving labor costs and labor intensity.

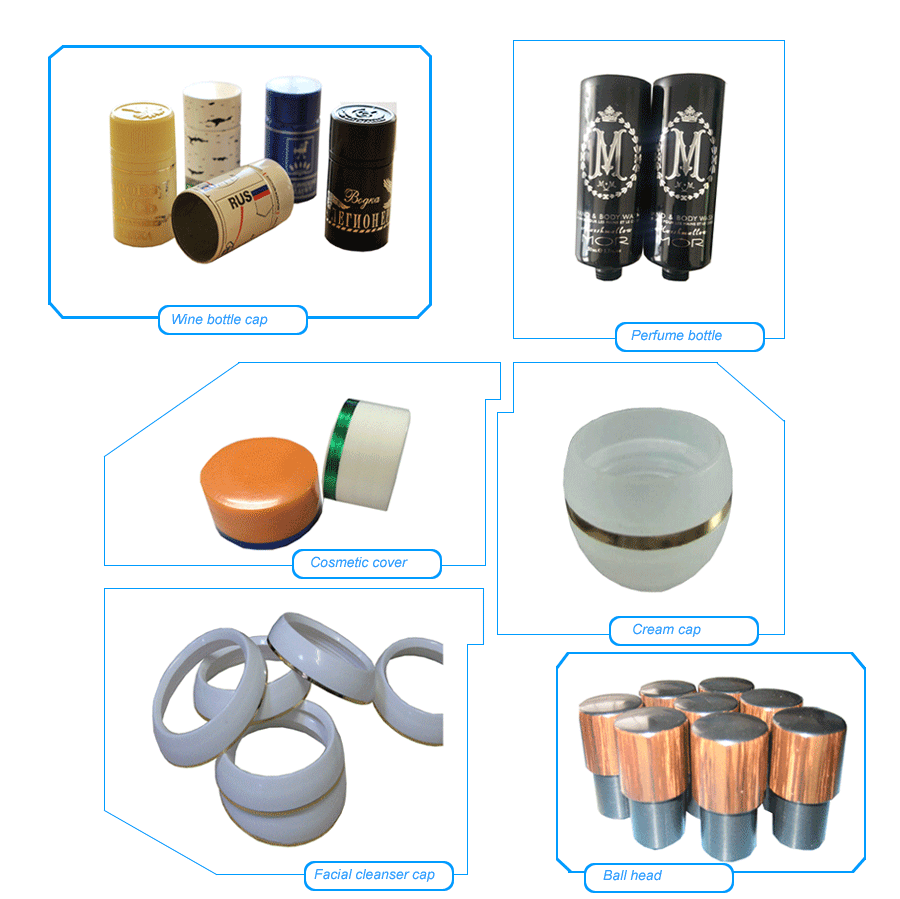

35mm in diameter, about the various sides of the foil cap;
All kinds of plastic material cap bronzing;
Various painted metal surface on the side of the bottle cap gilt;
Liquor industry, plastic containers and packaging industry, cosmetics industry, cap side tipping.

H-TC50SM Full automatic soft tube heat transfer Machine //Parameter

Total consume Wattage: 260W;
Stamping temperature Rnange:20∼300℃;
Compress air Pressure﹕5-8Bbar;
Products Diameter:﹕(φ15~Φ35mm)×(20~60mm)
Max stamping Speed:2000-3000pcs/h
Outer dimension: 2300×2160×1200mm;
Net weight(kg) : 420;
Motor wattage: 1500W;
Power supply: 220V;
Heater wattage: 800W IR.
Works supply: 110V-220VPower supply;5-7Bar Compress air;
Package size: 2770×1680×1790MM;
Gross weight: 745kg
CBM: 8.329
H.S.Code: 8443198000
Certificate:CE

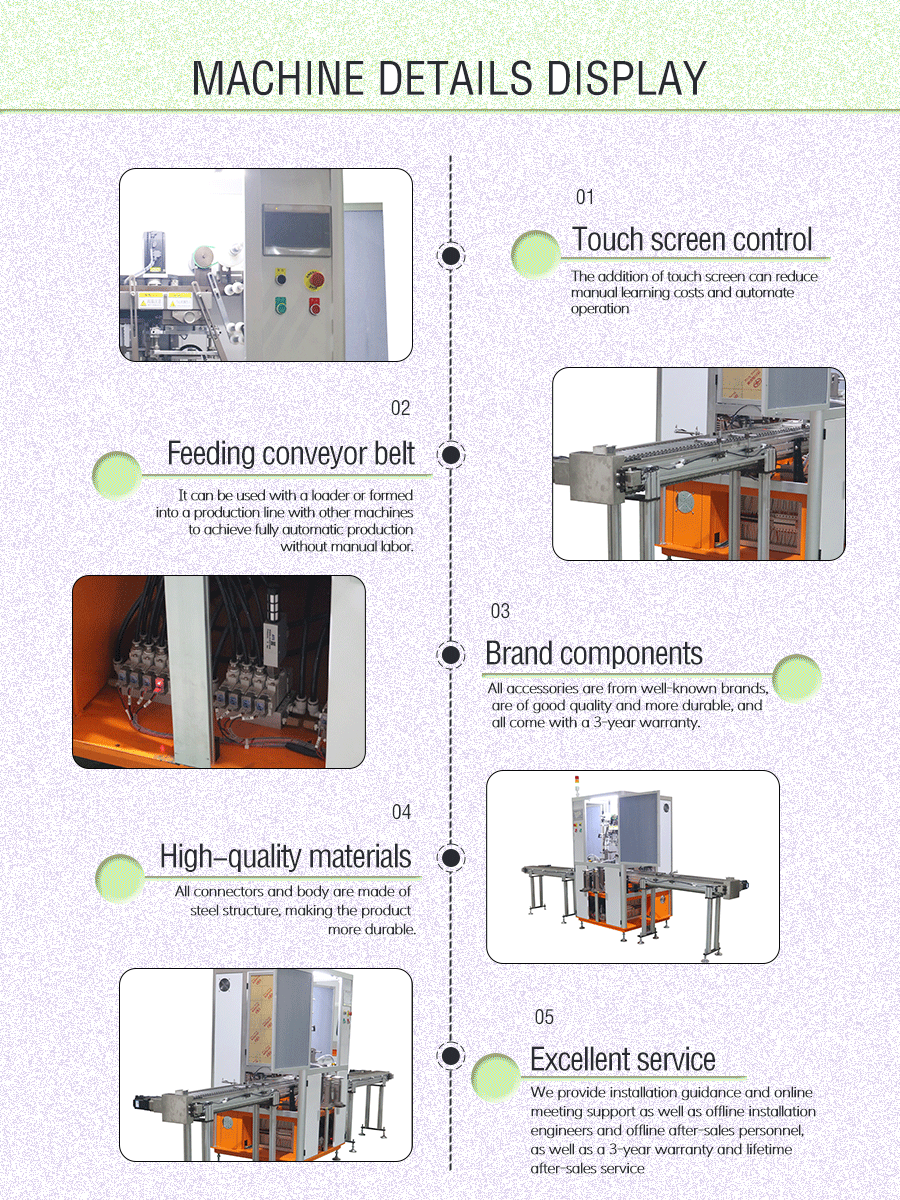

H-TC50SA Full automatic Soft-tube hot stamping machine //Advantage

Vertical cylinder pressure mechanism design, a strong pressure;
Stamping head can be adjusted for back-front, Left-right, Up-down, easy to operate safely and quickly;
Used for 8-bit rotary type feeding mechanism, significant savings in preparation time, improve the stamping speed;
Stamping pressure, temperature, time stamping adjustable;
Automatic foil feeding , Foil collection, and adjustment;
Lift stamping head height adjustable;
Bin storage, automatic Crawler installed for cap feeding;
Automatically distinguish device between top or Bottom of cap to ensure the correct position into the gilt;
Automatic stamping process;
The use of advanced modular program-controlled device, together with touch-screen display control component of the operating system, the action using SMC Corporation pneumatic control;
With a square column design, the machine structure, solid and durable;
Shift the amount of imported high precision sensor control, to ensure that the hot stamping effect more perfect;
Precision linear bearing high-quality, durable, lightweight and flexible to ensure that the machine is running, to extend the mechanical life.
IR heating, heating, high efficiency, stability and ensure stamping quality.
Rotary table design automatic inflatable device for stamping cap sideways
