1200V 10A Intelligent Power Modules(IPM)

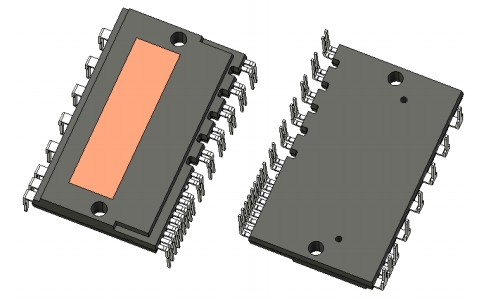

IPM Module -- SAM212M10BF1

Description

The SAM212M10BF1 is a 3-phase brushless motor driver in which output transistors, a pre-drive circuit, bootstrap diodes with current-limiting resistors, and a temperature-sensing thermistor are highly integrated. The IC is suitable for driving 3-phase motor of the units such as industrial equipment.

Features

● Pb-free (RoHS Compliant)

● Isolation Voltage: 2500 V (for 1 min) UL-recognized Component (File No.: E118037)

● Built-in Thermistor

● Built-in Bootstrap Diodes

● CMOS-compatible Input (3.3 V or 5 V)

● Fault Signal Output at Protection Activation

● Shutdown Signal Input

● Adjustable OCP Hold Time

● Protection Functions

Undervoltage Lockout for Power Supply

VBx Pin (UVLO_VBx): Auto-restart

VCCL Pin (UVLO_VCCL): Auto-restart

Overcurrent Protection (OCP): Auto-restart

Specifications

● Breakdown Voltage: 1200 V

● Output Current: 10 A

Applications

For 3-phase motor drivers used in large-sized equipment (e.g., industrial equipment) such as:

● Commercial Air Conditioner Compressor

● General-purpose Inverter

● Servomotor

Package

DIP30

* Intelligent Power Modules(lPM) is a highly integrated power electronics device, a type of semiconductor device. It incorporates high-power switching devices (typically IGBTs or MOSFETs), their corresponding gate driver circuits, various protection circuits (such as overcurrent protection, short-circuit protection, overheating protection, under-voltage lockout protection), and sometimes level-shifting circuitry, all packaged into a single compact module.
