H-TC400KS bucket hot stamping machine

H-TC400KS bucket hot stamping machine

2 week ago

1 0

KC Printing Machine (Group) Limited

 9 year year

Product details

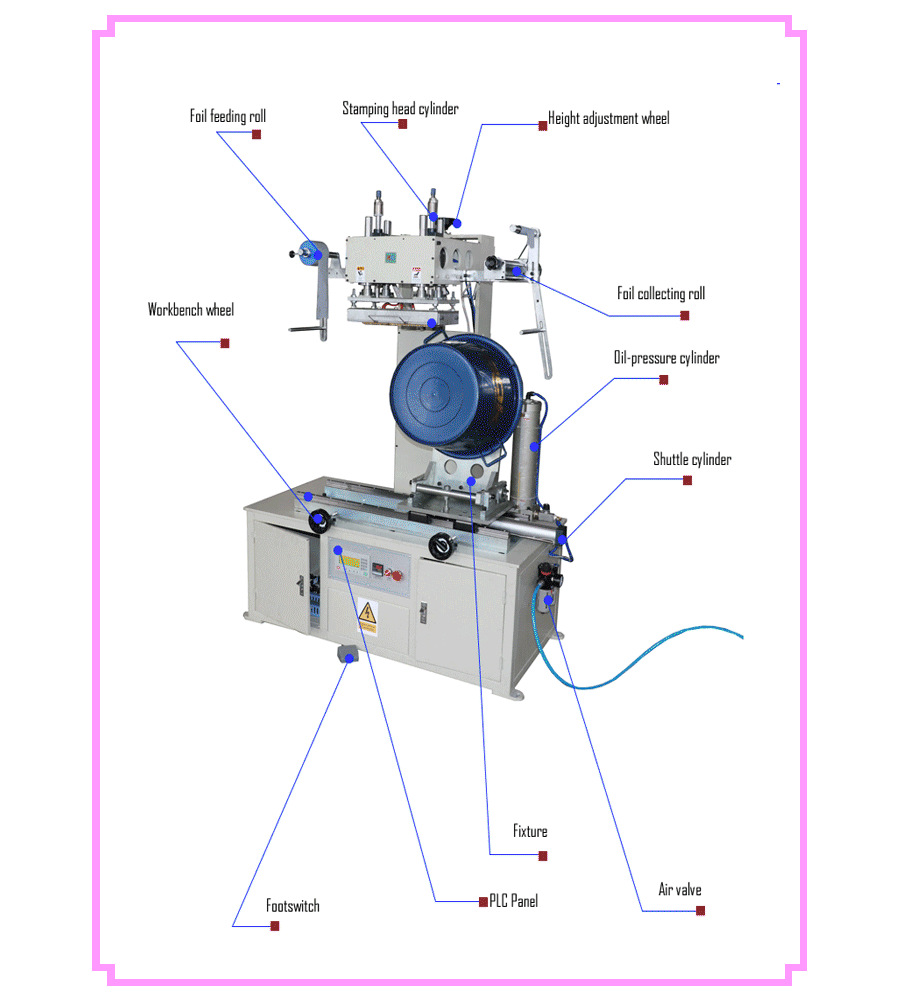

H-TC400K Pneumatic cylinder hot stamping machine //

Usage and characters

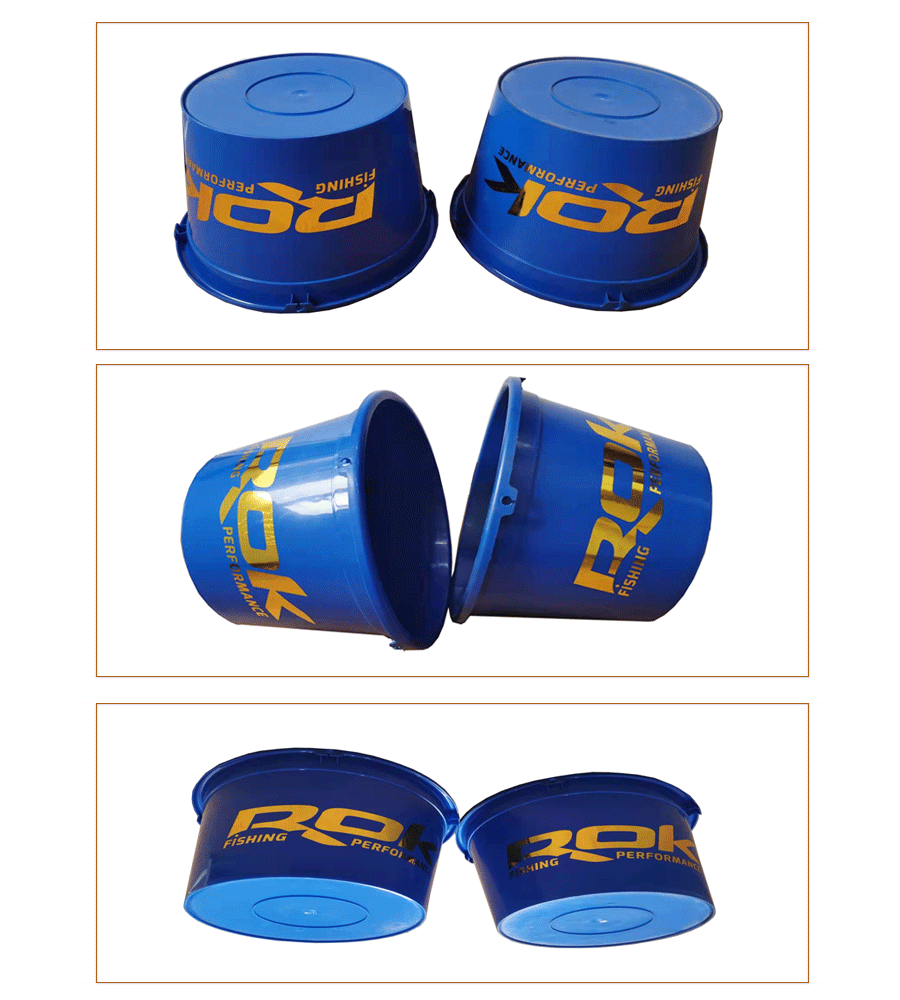

Samples

038

Test

There are mature solutions for silk screen printing and heat transfer printing on plastic barrels with a diameter of more than 300mm, but hot stamping is indeed more difficult, because the long sides of the rectangular or fan-shaped plastic barrels basically exceed 1M. It is very difficult to maintain very uniform pressure during the contact between the ironing plate and the barrel.
In principle, the hot stamping of plastic barrels is an enlarged version of hot stamping for cup products. Just because the size is too large, the deviation in the rotation process will be enlarged. There are two ways to solve this problem. One is to install the plastic barrel on the arc track and follow the fan track along the ironing plate. The other is to install a servo rotation mechanism on the jig of the hot stamping machine. Each time the hot stamping is only finished. pattern, and then rotate to the next position to stamp the next pattern. It's just that the bronzing pattern is the same. If you want to complete the hot stamping on the entire plastic barrel, you still need to use the principle of a silk screen printing machine.
Generally speaking, hot stamping of plastic barrels is more difficult and costly. Unless users have higher requirements for environmental protection, hot stamping should be the last choice.

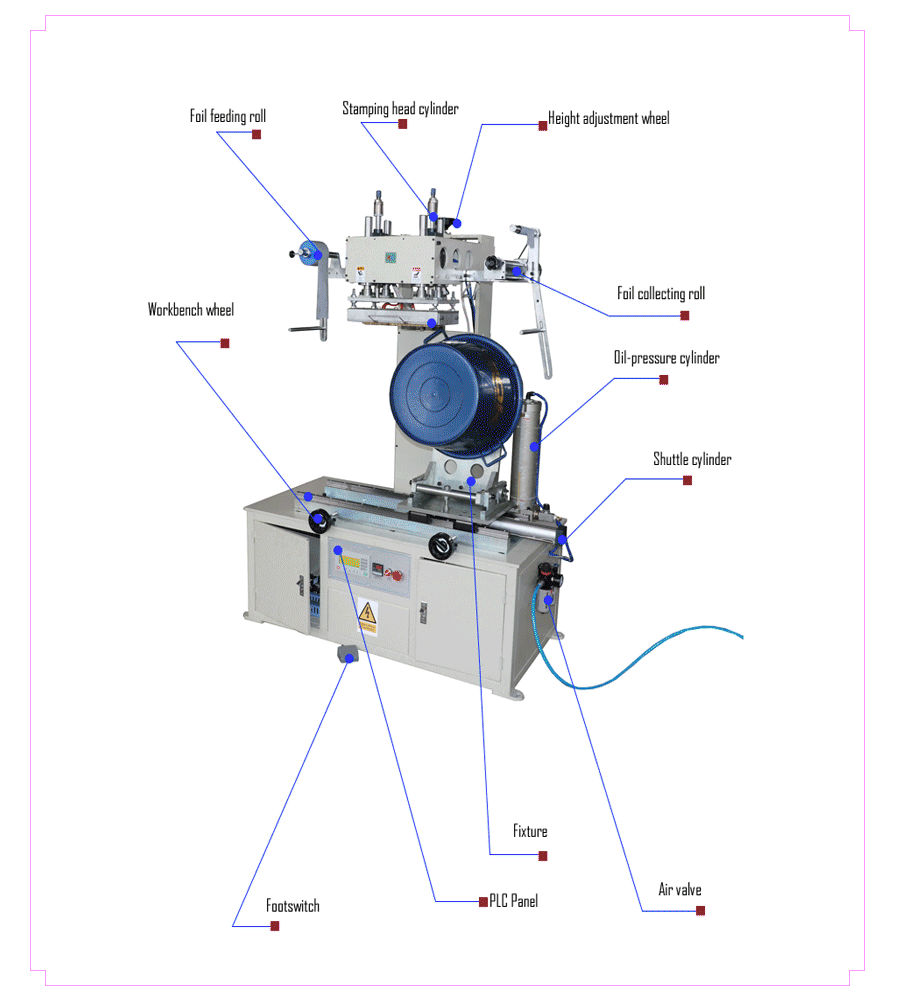

040

Description

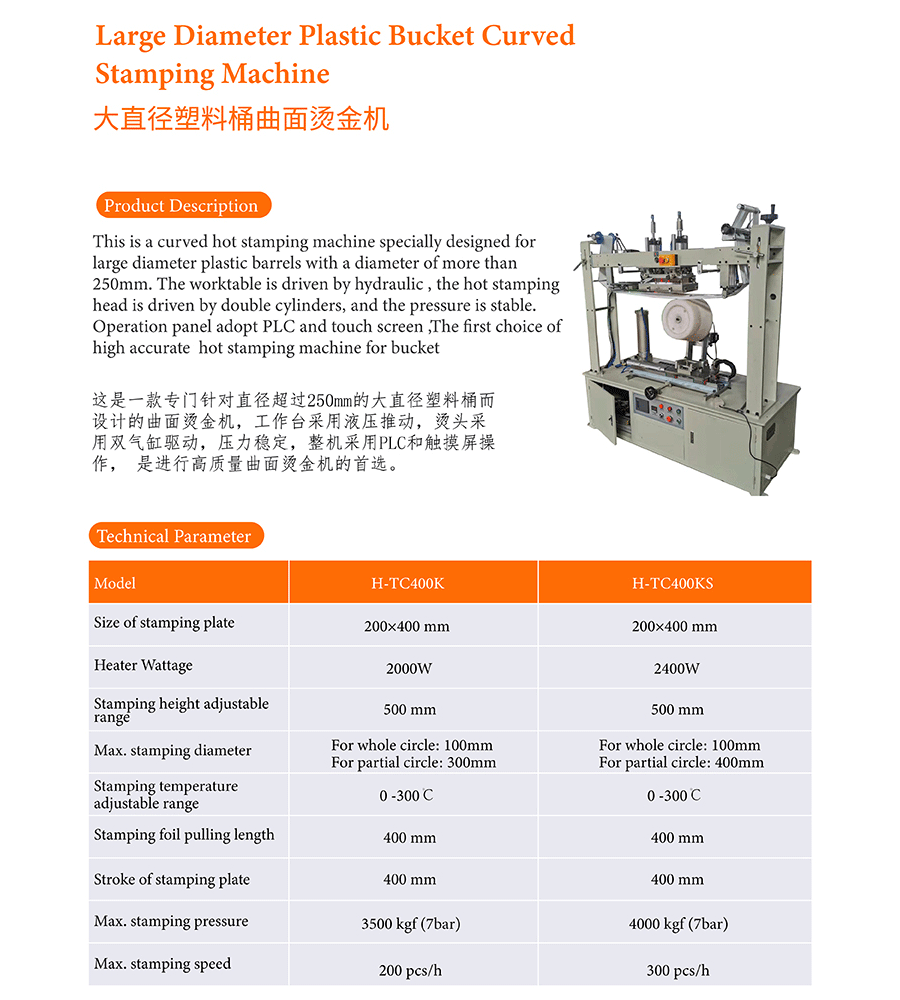

H-TC400K Pneumatic cylinder hot stamping Machine //Parameter

Size of stamping plate: 200×400 mm;
Heater Wattage: 2000W;
Stamping height adjustable range =180 mm;
Max. stamping diameter: For whole circle: 100mm For partial circle: 400mm;
Stamping temperature adjustable range: 0 -300oC;
Stamping foil pulling length: =400 mm;
Stroke of stamping plate: 400 mm;
Max. stamping pressure: 2500 kgf (7bar);
Max. stamping speed: 300 pcs/h;
Power: 110/220V, 60/50Hz;
Air consumption: 186 litre/min.
Works supply: 110V-220V Power supply;5-7 Bar compress air
Package 1.26*0.790*1.830 m;
Gross weight: 565 kg;
CBM : 2.2553
H.S.Code : 8443198000
Certificate : CE

Catalogue-advantage

Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil , resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace;
Safe protection device installed;
The stamping head height adjustable;
Shuttle stable shift ensure stamping cylindrical workpiece;
Stamping flat workpiece while uninstall the shuttle;
With oil - gas shift cylinder, ensuring a more stable pressure bronzing.
