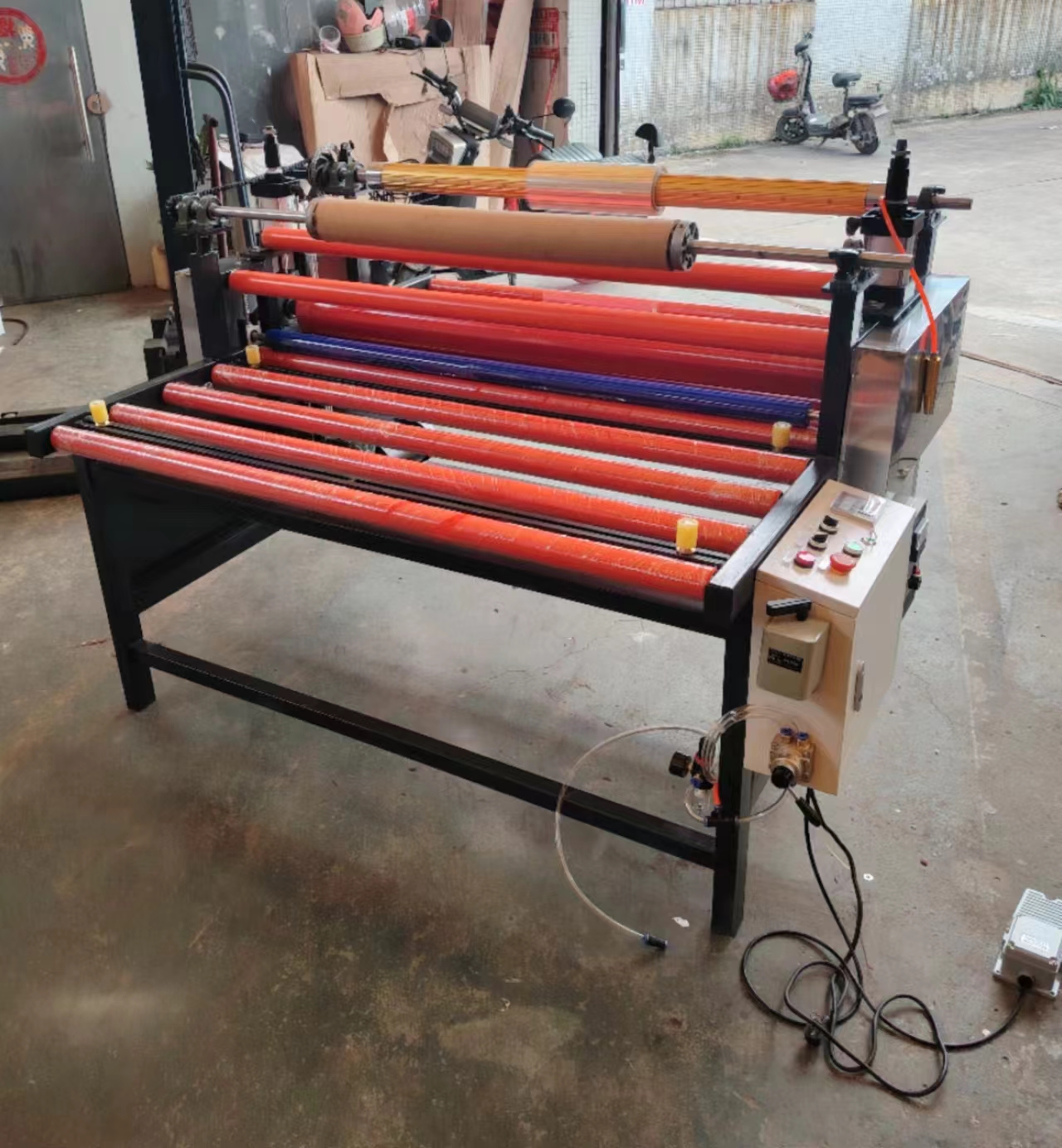

Aluminum Sheet Laminating Machine Aluminum Film Lamination Machine

A laminating machine for aluminum panel is a specializedpiece of equipment designed to apply a protective film or coating onto the surface of aluminum boards, This process is crucial in variousindustries, including construction, automotive, and electronics, wherealuminum boards need to be protected from scratches, dust, and otherforms of damage during transportation, storage, or further processing.

MAIN PERFORMANCE

The rubber roller is manufactured using premium silicone and heat-conductive materials. The temperature gauge controller monitors laminating temperature, ensuring superior heat transfer and reduced machine warm-up time. Suitable for both cold and hot lamination processes.
Moderately hard rollers ensure high-quality lamination with no bubbles.
Equipped with premium drive motors including variable-frequency speed control motors, DC speed control motors, and AC electronic speed control motors. Pure copper coils minimize heat generation during continuous operation.
Features manual/automatic dual-mode selection and forward/reverse functionality for flexible and convenient operation.
Laminator Model Specifications: Lamination width ranges from 250mm to 2000mm.

USE RANGE

Protective film packaging for surfaces such as aluminum plate, acrylic plate, honeycomb plate, windows and doors glass, plate, and other surface-coated packaging

FILM LAMINATION PROCESS

By installing the flat protective film to the aluminum film lamination machine, placing the product on the attaching platform, starting the aluminum film coating machine, the protective film is accurately and automatically pasted on the product surface, and the pressure of the laminating film is adjusted by means of pneumatic lifting cots, so that the laminating film is more balanced, after pasting the product, the material is discharged along with the conveying rack

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Machine Dimensions: 2600×1900×1300(L×W×H mm)

2. Applicable Power Supply: 220V Power: 2KW;

3. Pneumatic film pressing with adjustable cylinder, accommodates width up to 1250mm and thickness from 3-20mm.

4. Film unwinding uses an air-expandable shaft to effectively prevent slippage, featuring automatic retraction.

5. Includes 2 dust-removal rollers to effectively eliminate dust from glass surfaces.

6. 500W DC variable-speed motor with adjustable speed and powerful drive.

7. Heating function ensures optimal adhesion between film and glass.

8. Fully automated: automatic conveying, centering, film application, roll-up, and cutting.

BENEFITS

Protection: Prevents scratches, dents, and other surface damage.
Cost-Effective: Reduces the need for rework and waste.
Efficiency: Automates the process, increasing productivity and reducing labor costs.
Quality: Ensures consistent and high-quality application of the protective film.

CONSIDERATIONS WHEN CHOOSING A MACHINE:

Board Size and Thickness: Ensure the machine can handle the dimensions and thickness of your aluminum boards.
Production Speed: Choose a machine that meets your production requirements.
Film Type: Verify that the machine is compatible with the type of protective film you plan to use.
Maintenance and Support: Consider the availability of spare parts and technical support.

If you have specific requirements or need more detailed information, feel free to ask!
