Product details

Wood Effect Production Line For Aluminum Profiles

Wood Grain Transfer Furnace For Large Panel

MAIN PERFORMANCE

A. Customizable single/double station design, flexible selection of models, greatly improve the cost-effectiveness;
B. Special high-temperature vacuum film design ensures the transfer effect
C. Multi-protection device: vacuum over-voltage protection, vacuum constant voltage control;
D. With a mature touch-screen human-machine interface, parameters are more convenient and intuitive

USE RANGE

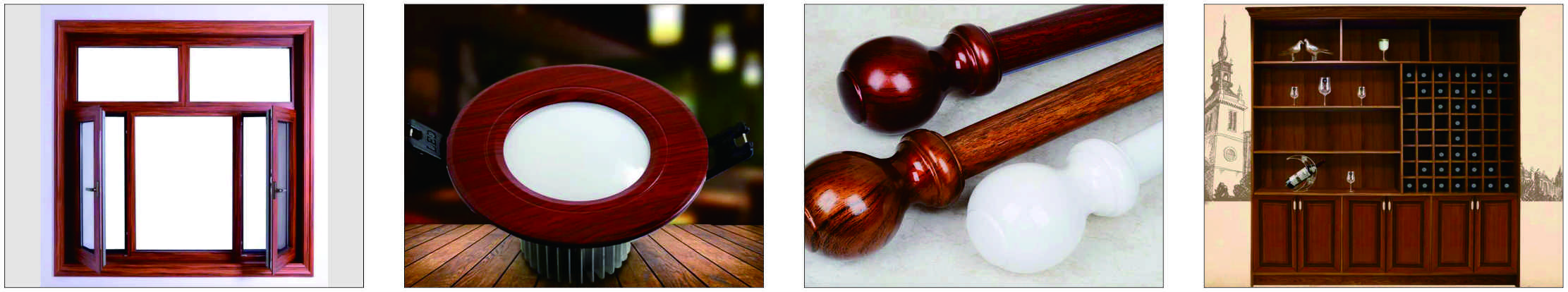

Transfer printing of wood grain to aluminum, aluminum sheet, seamless welding of door and window surfaces,Suitable for aluminum factory, all aluminum furniture factory, seamless welding factory doors and windows, aluminum veneer factory. It is a kind of aluminum surface processing machinery.

WORKING PRINCIPLE OF WOOD GRAIN TRANSFER PRINTING MACHINE

I. This aluminum wood grain transfer furnace employs bag extraction vacuum wood grain transfer printing, producing highly realistic wood grain, marble, and other finishes on the surface of transferred products. It is primarily designed for thermal transfer printing on metal surfaces treated via spraying, baking, electrophoresis, or similar processes.

1. Furnace Body

Serves as the foundational component for assembling other parts and providing thermal insulation. Consists of an outer shell, insulation material, and frame.

2. Heating and Temperature Control System

The electrical control system comprises an electrical cabinet containing PLC, touchscreen, solenoid valves, switches, etc. Power requirements: Three-phase four-wire AC380V, 16.5KW (gas-fired), 130KW (electric-fired). All drag chain cables use high-flex, anti-break cables from major brands.

3. Vacuum Adhesion Device

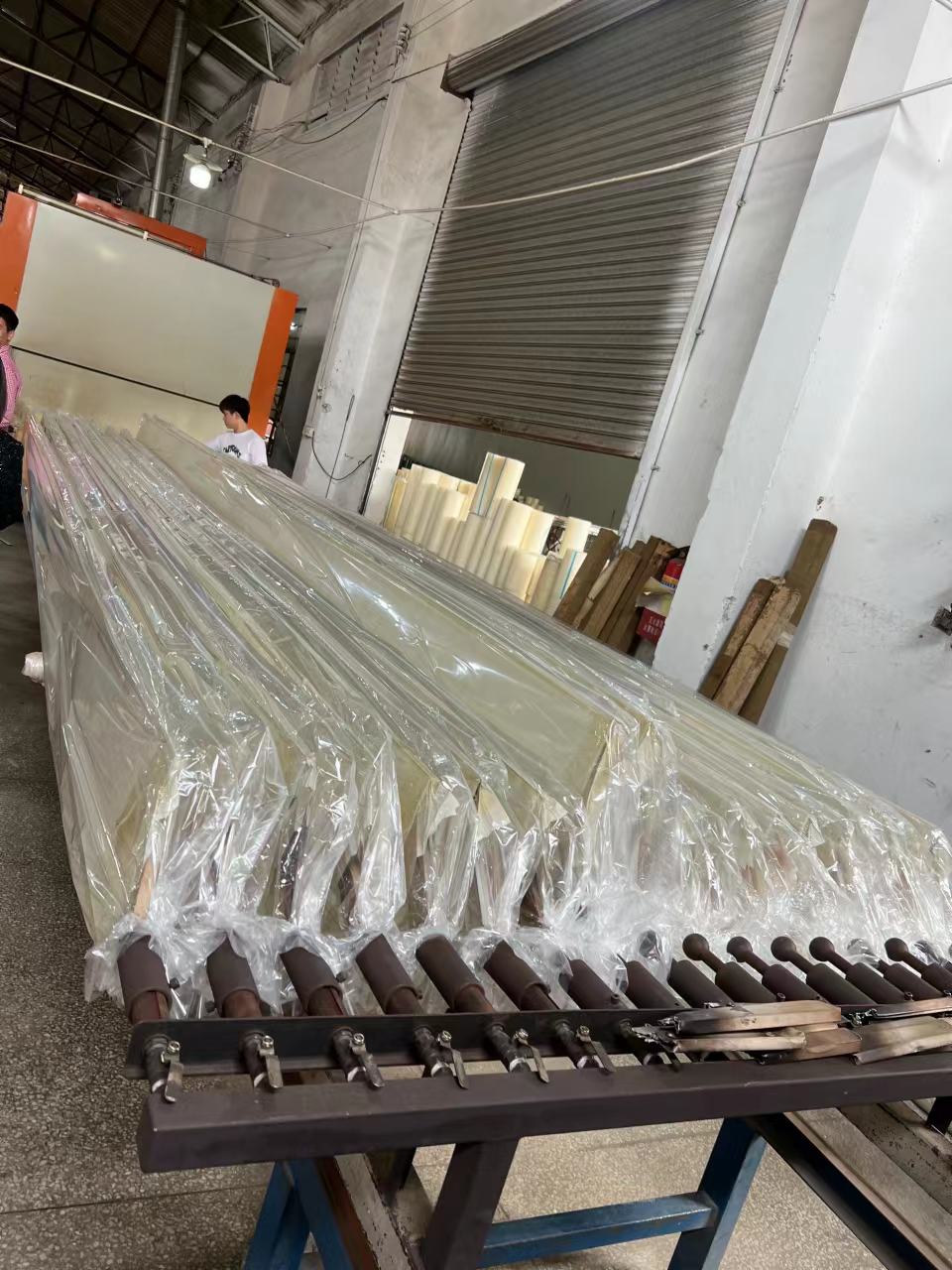

Comprising a water ring vacuum pump, piping, vacuum suction heads, frame, and walking feed mechanism to achieve suction and adhesion of wood or stone-patterned paper films.

4. Film Reverse-Blow Device

Interconnecting a medium-pressure blower with vacuum suction heads to perform reverse film blowing after profiles exit the furnace, facilitating rapid film removal and enhancing production efficiency.

5. Vacuum Auxiliary Frame

Comprising a fixed support, movable vacuum frame, and water tank. Serves as the working platform for profile loading and unloading.

MAIN COMPOSITION

1. Thermosetting transfer furnace (including burner and heat circulation system) 1 set

2. Vacuum and drive device 2 sets

3. Single transfer cart 2 sets

4. Fully automatic electric control system 1 set

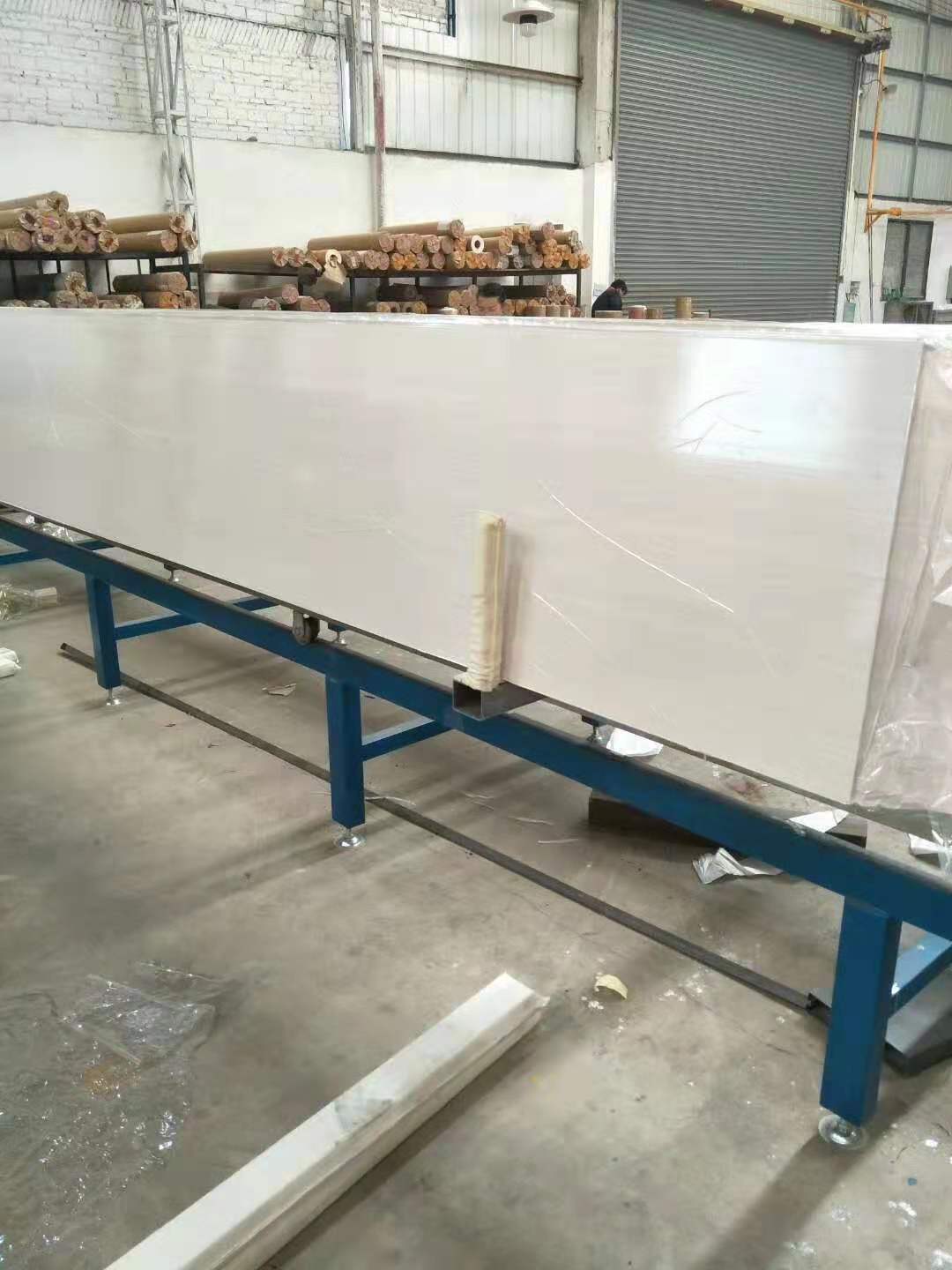

Woodgrain Imitation Production Line for aluminum

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Transfer Printing Aluminum Profile Length ： 600*6000*18
Production Capacity ：26 pieces per oven
Transfer Paper Types：Plastic-based and pure paper wood grain pattern paper（woodgrain transfer parts）
Processing Temperature ：150°C-185°C (using four-zone temperature detection)
Curing Time ：7-15 minutes (depending on material size and paper type)
Heating Method ：Liquefied petroleum gas, natural gas, or electric heating
Comprehensive Energy Consumption ：6.5m³--9.0 m³/ t
Conveying Method ：Automatic/Manual
Site Area Requirements (Reference Furnace Dimensions) ：Length 29100mm × Width 2360mm × Reference Height 3400mm
Reference Furnace Dimensions ：Length 8480mm × Width 2160mm × Height 2800mm (Note: Export version height is 2500mm)
Number of Profiles per Transfer ：13 sticks + 13 sticks (one layer)
Operating Power Consumption ：12KW (96KW when using high-efficiency electric heating tubes as heat source)
Total Motor Power ：16.5KW
Outer Shell Structure：Fully painted; exterior color customizable per user requirements
Outer Shell Material：2.0mm A3 steel plate
Inner Shell Material：1.5mm A3 galvanized steel plat
Insulation Structure & Materials：Aluminosilicate glass fiber wool + high-quality rock wool with density 100Kg/m³, insulation layer thickness approx. 230mm, delivering superior energy-saving insulation performance.
Airflow Method：Bottom-supply, top-return circulation system with adjustable air outlets.
Air Duct Material ：Formed from 1.5mm galvanized steel plate via hydraulic bending.
Furnace Chamber Inlet Reference Dimensions：Width: 1690–2170 mm, Height: ≥720 mm.
