Product details

Aluminum Press Horizontal Hydraulic Press Vertical Hydraulic Press

How Aluminum Chip Briquetter works:

The metal chips are fed into the large bin of the cake press through the feeding device, the feeding cylinder sends the material into the die, then the sub-cylinder drives the piston rod of the main cylinder and the punch to press down rapidly, and when the punch enters the die cavity, the slow pressure is turned to press the material into high-density cakes. Then the main cylinder rises slightly, the pushing block cylinder retreats, the main cylinder descends quickly to press the cake out of the die cavity, the pushing block cylinder pushes out the cake and resets, and finally the sub-cylinder drives the punch to rise to complete an action cycle.

Structure composition of Aluminum Briquette Machine:

1. Main machine: It is composed of frame, main hydraulic cylinder, pushing hydraulic cylinder, bottom plate hydraulic cylinder, supporting mold frame and mold, pressure head, etc. The upper and lower beams of the frame are usually made of integral steel castings, which are connected by columns to bear the working tension.

2. Hydraulic station: It is composed of motor, hydraulic pump, pump protection device, professional control valve block and pipeline system to provide power for the equipment. Some of them are also equipped with cooling system to prevent the oil temperature from overheating.

3. Console: It is composed of electrical system and PLC control system, which can realize the precise control of the action sequence and time of the equipment, and the operation is convenient and fast.

Performance characteristics of Metal Chips Briguetting Machine:

1. High degree of automation: The electrical part is controlled by PC or imported PLC, with strong anti-interference and simple operation.

2. Stable structure: The machine body adopts integral steel structure with high strength and good stability. Some frames adopt integral steel castings, which can improve the reliability, stability and service life of the equipment.

3. The hydraulic system is advanced: the integral professional valve block and the large through valve are adopted, the system pressure loss is less, the leakage disadvantage is eliminated, and the pre-relief device is equipped to eliminate the hydraulic impact.

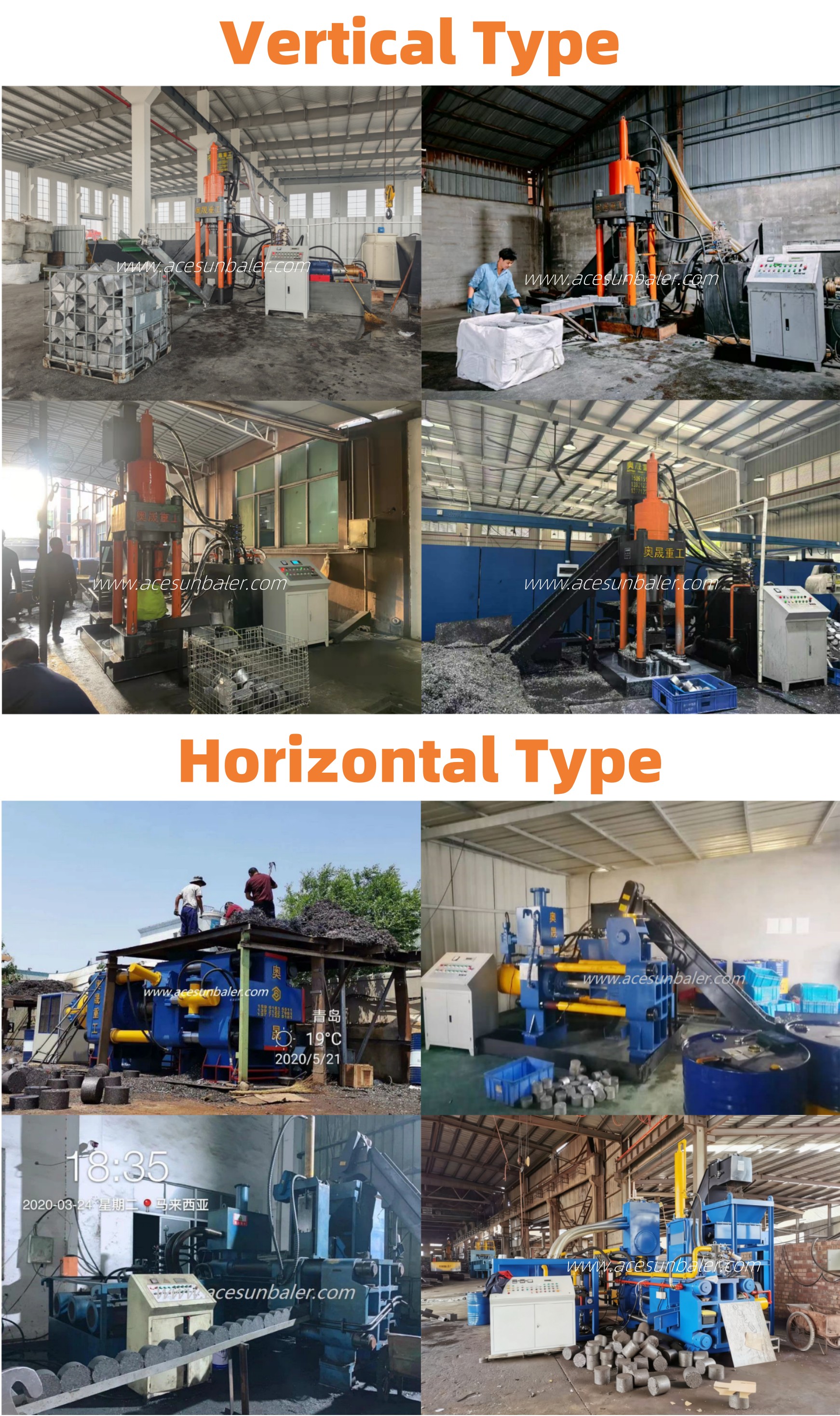

Model classification of Metal Briquetting Press:

Metal crumb cake machine is mainly divided into vertical and horizontal models. Vertical models have a compact structure and occupy a small area, while horizontal models may have more advantages in feeding and discharging, which can be selected according to the production site and process requirements.

Scope of application:

It is applicable to various metal scraps such as pig iron scraps, nodular cast iron scraps, aluminum scraps, copper scraps, alloy scraps, etc., and can be used for cold-pressing the metal scraps into high-density cakes, and also can be used for pressing and molding metal powder, coke powder, coal powder, silicon powder and other non-metal powders.
