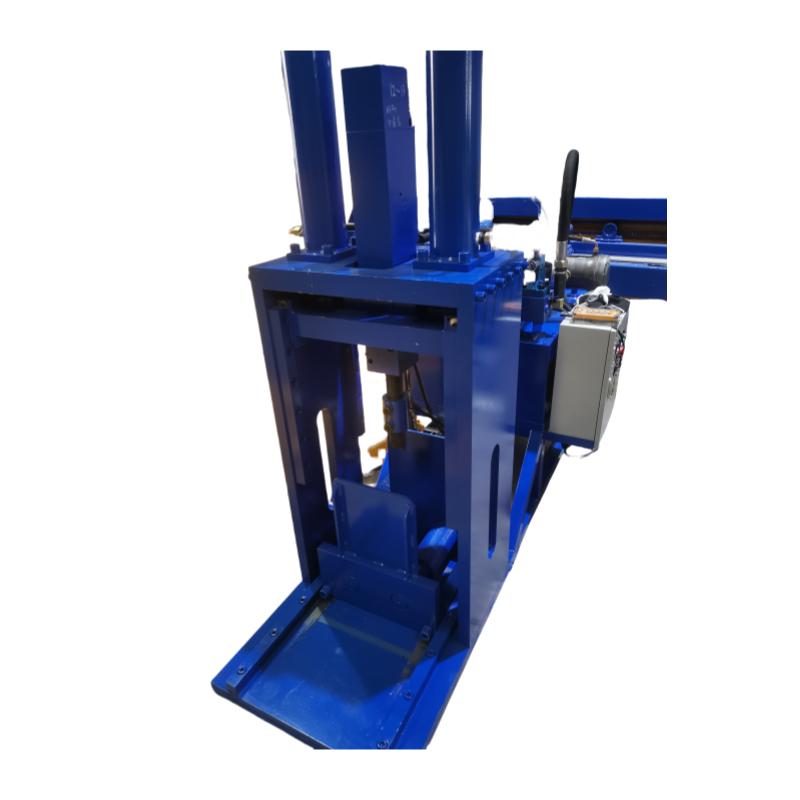

Die Opening Machine Aluminum Mold Processing Machine

MAIN PERFORMANCE

The upper and lower dies of the aluminum profile extrusion die are separated by hydraulic machinery.
It adopts the method of imitating artificial hammer to open the mould, which does not hurt the mould and can open the mould quickly.

USE RANGE

The mould opening machine is a mechanical device which opens the mould after the mould is processed. It is a mold auxiliary equipment which has the machinery to shape the article; It is suitable for the separation of upper and lower dies of aluminum extrusion die in aluminum profile manufacturing industry.It is a kind of mold processing equipment.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Overall Dimensions: Length 2500 x Width 2300 x Height 1600 mm
2. Mold Opening Cylinders: Φ200 x 300 stroke
3. Moving Cylinders: Φ80 x 700 stroke
4. Motor: 4-B35-15KW
5. Oil Tank: Length 1000 x Width 800 x Height 500 mm
6. Oil Pump: PV2R2-53-FA Maximum Pressure: 21MPa
7. Mold Processing Range: Φ250—Φ700
8. Mold Thickness: 200-400mm
9. Mold Material: H13 tool steel
10. Electrical Control: Chint brand, with leakage and overload protection.
