Product details

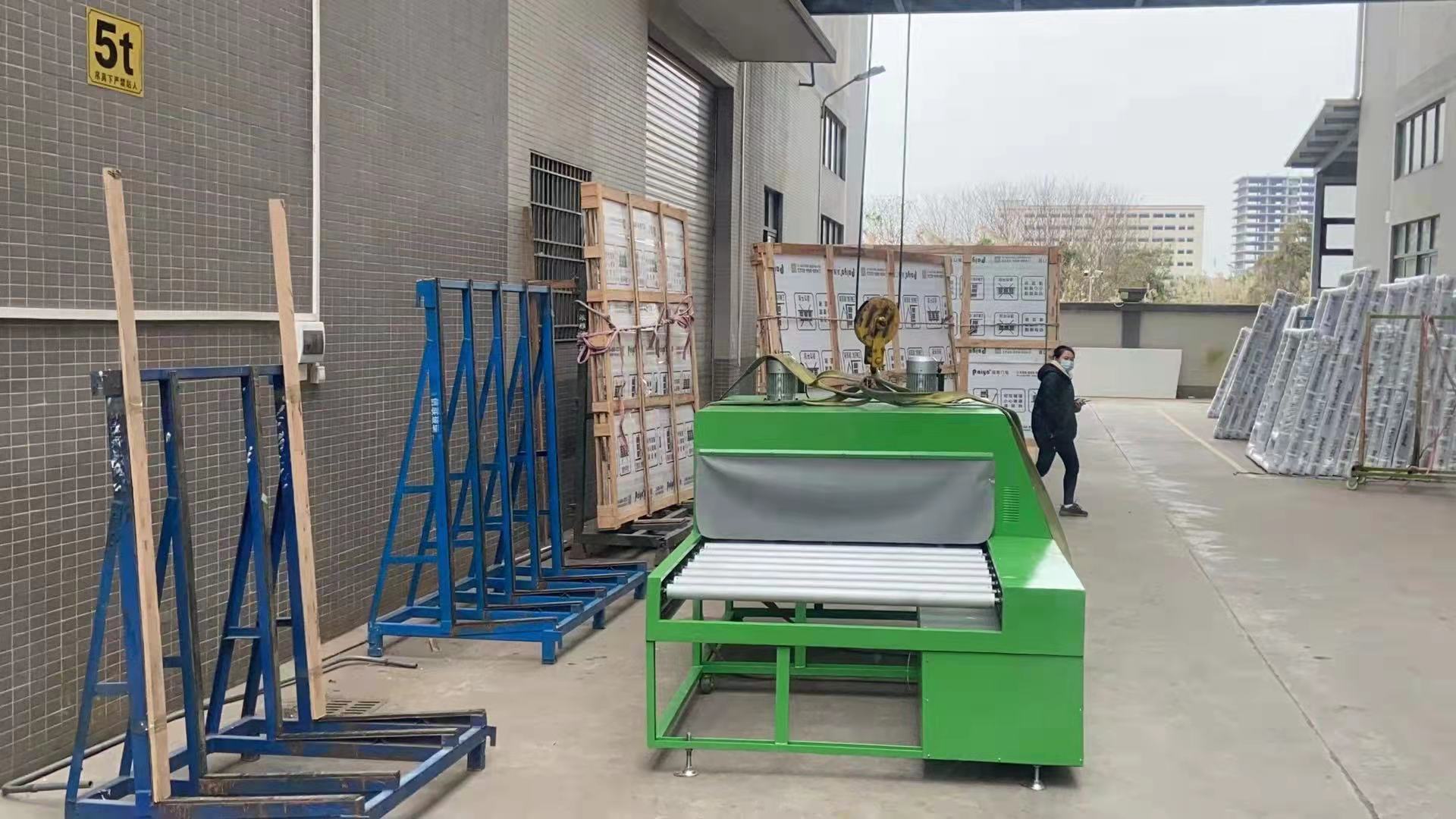

Shrink Packing Machine For Windoor

Process：

The door and window are packaged by the heat-shrinkable film, and the heat-shrinkable film is reduced by heating, thus the door and window are packaged in the film by heat shrink machine.

MAIN PERFORMANCE

1. Features high-power branded fans
2. Adjustable speed from 0 to 20 m/min
3. Customizable material inlet/outlet ends
4. The shrink film machine's packaging material uses PVC/PE film

USE RANGE

The doors and windows and other large items for packaging, improve packaging efficiency；
It is suitable for heat shrink packing of window factory, aluminum door, wooden door, steel door, PVC, POF, etc.

CORE FEATURES

1. Air Circulation Fans: Two imported high-speed, high-temperature-resistant fans from the “General” brand are installed above the heat exchanger. (Note: New model, superior to domestic YE3 series—ultra-efficient, high-quality, high-temperature resistant, high-speed stability, high-speed motor (rated: 220V-240V/50-60Hz/750W, 3450 RPM, no-load current approx. 0.5A, operating current 1.5A, temperature resistance 200°C).
2. Electric Heating Elements and Automatic Temperature Control: Features our factory-produced high-efficiency, long-life elliptical U-shaped side-insert metal far-infrared heating tubes. The automatic temperature control circuit incorporates AC contactors from Japanese brands like “Mitsubishi” or “Fuji” and KKK temperature controllers. Powered by 380V three-phase four-wire supply, maximum temperature ≤200°C, power approximately 18KW.
3. Drive Motor and Variable Frequency Drive: Equipped with a premium brand motor ≥0.37kW, paired with a high-performance variable frequency drive for stepless speed regulation. Speed adjustable from 0-20m/min, with a conveying capacity ≤80kg.
4. Drive Conveyor Roller Shaft: Heavy-duty design using precision steel pipe (diameter 60mm, wall thickness 5mm) machined from hydraulic/pneumatic cylinder-grade material. Features high-temperature resistance, load-bearing capacity without deformation, and rust resistance. Roller center distance approximately 200mm. Conveying load capacity ≥100kg.
5. Conveying Direction Control: Equipped with a “Forward/Reverse” switch for flexible operation direction selection.
6. Quality and Performance: Superior machine performance delivers rapid packaging without film breakage. Capable of low-temperature, energy-efficient, and high-quality shrink wrapping.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

1. Machine external dimensions (mm): 2000 × 1500 × 1450 (L × W × H);
2. Heating chamber channel dimensions (mm): 1500 × 1200 × 300 (L × W × H);
3. Machine inlet/outlet ends extend 250mm each; conveyor surface height approx. 730mm above ground.
4. Diameter 60 rollers, spaced 200mm apart on each conveyor.
