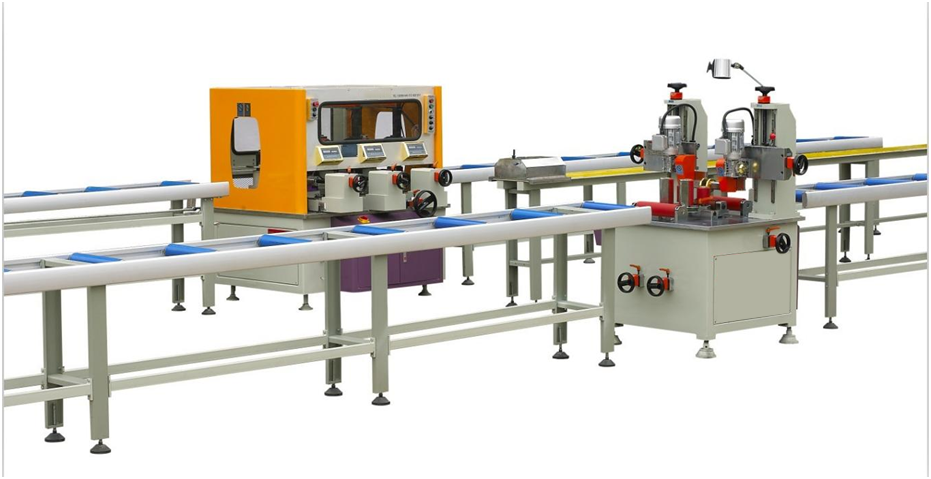

Thermal Break Assembly Machine System For Aluminum Windoors（2 Steps）

I. Knurling Machine With Feeding Function

WORKING PRINCIPLE

Notching Process: A precision hob rolls a standard tooth pattern onto the inner surface of the aluminum profile's spacer insertion groove. This increases the contact area and friction between the profile and thermal break, enhancing lateral shear force.

Insertion Process: Utilizing two or more sets of hard feed rollers, the thermal break strip is accurately and smoothly inserted into the grooves of the toothed aluminum alloy profile.

Synchronized Control: Advanced models employ a CNC system to achieve precise synchronized control of tooth depth, insertion speed, and feed position, ensuring zero-offset insertion of the thermal break strip.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Voltage: 380V
Frequency:50HZ
Motor total power:1.1KW (380V～0.55KW×2)
Knurling adjust range: width:0～260mm ； Height:0～220mm
Knurling blade diameter:φ80
Overall size:1040mm×1350mm×1550mm
External air pressure:0.6～1.0Mpa
Profile processing speed:0～70m/min
Profile size:W 260mm× H 220mm
Weight:1000kg

APPLICATION

1. Construction Sector:

Production of thermal break aluminum profiles for various doors and windows
High-end architectural profiles for curtain walls, sunrooms, partition systems, etc.

2. Industrial Sector:

Body structural components for new energy vehicles
Rail transit vehicle profiles
Cold chain logistics equipment profiles

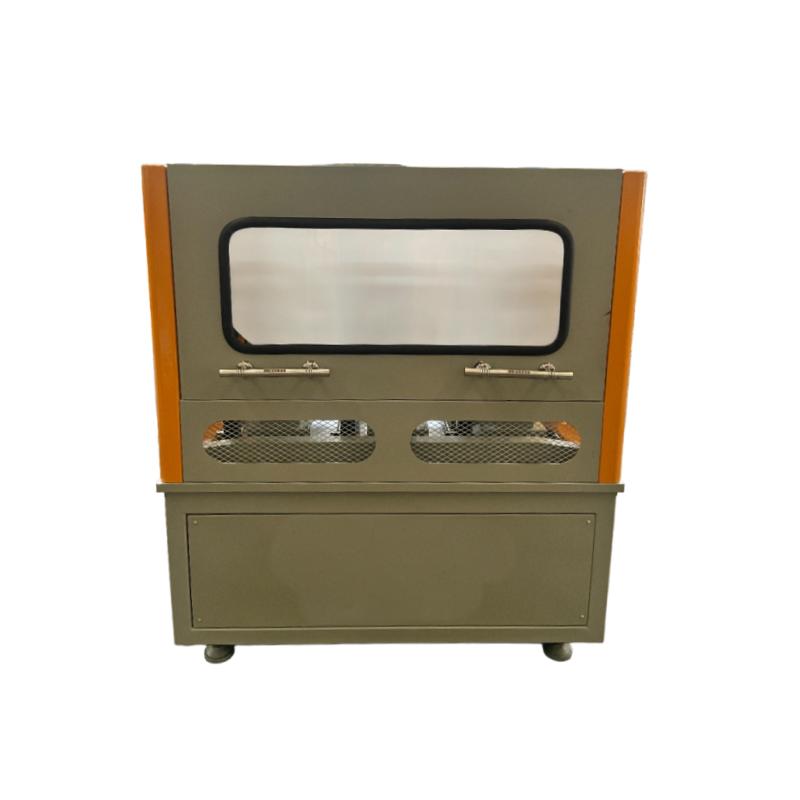

II.Rolling Press Machine

WORKING PRINCIPLE

Roll Compounding: Three sets (or more) of specially hardened rollers (each set comprising upper and lower rollers) apply uniform pressure to aluminum profiles with thermal breaks already inserted.

Interlocking Connection: The serrations within the aluminum profile grooves tightly engage with the thermal breaks, forming a mechanical locking structure that ensures compliance with lateral shear force requirements.

Straightening Function: The third set of rollers simultaneously straightens the profile during the rolling process, ensuring the finished profile's straightness and flatness deviation is ≤0.5mm/m.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS

Voltage:380V
Frequency:50HZ
Profile size:W260mm×H 300 mm
Roller diameter:φ238
Total power: Master motor power:3KW(380V),lifting motor:0.55KW
Overall size:1460mm×1400mm×1460mm
Processing speed: 0～70m/min
Rolling plate adjust range:Height 0～100mm
External air pressure:0.6~0.8Mpa
Weight:1800kg

APPLICATION

1. Construction Sector:

Energy-efficient window and door profiles for various civil and industrial buildings
High-end curtain wall systems, sunroom, and partition wall profiles
Special structural profiles including aluminum-wood composite and aluminum-plastic composite

2. Industrial Sector:

Lightweight structural components for new energy vehicle bodies
Aluminium thermal insulation for rail transit vehicles
Cold chain logistics equipment and refrigeration unit housing profiles
