knurling machine With feeding

2 month ago
5 0
Product details
Thermal Break Assembly Machine (Two Steps)

PROCESSING TECHNOLOGY
Profiles teeth making → Double-sided tape wear → Profiles rolling and compositing → Finished products of bridge- cut-off thermal barrier profiles
Thermal profiles required to bridge, according to the market continuously improve the quality, in order to Meet the production requirements of different enterprises, we successfully developed the All- new two-step aluminum alloy bridge- cut-off thermal barrier profiles production line. This production line is energy-saving and of low consumption, and it can solve the problem of imperfect processing techniques of products of products of the same kind at the market.
It is the Preferred products for thermal barrier profiles processing. (for aluminum, aluminum wood, curtain wall profiles compound).
Equipped with: imported motor, transducer, reduction box, electric control and touch screen control…

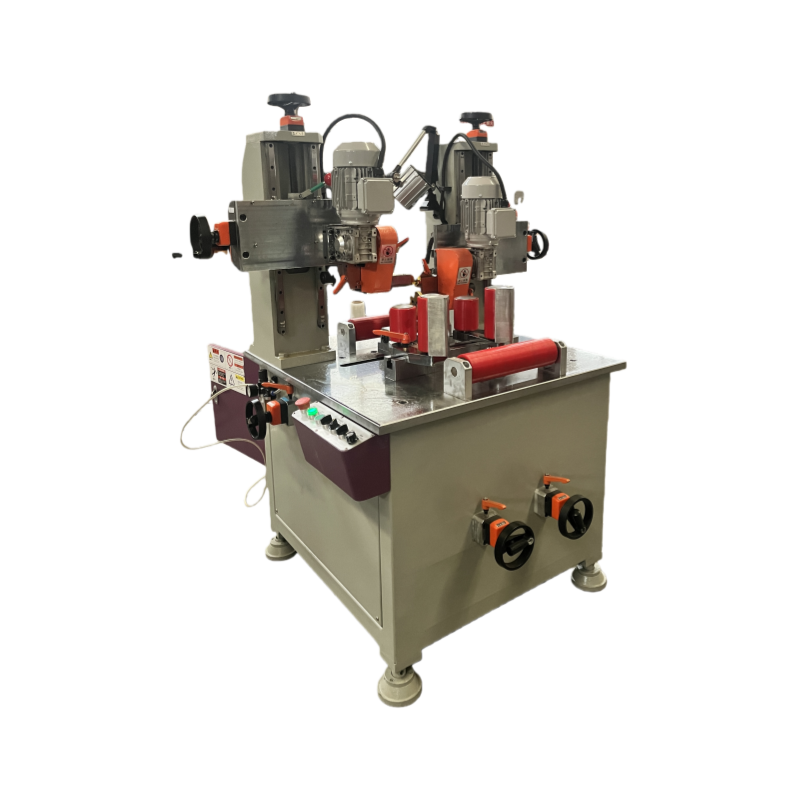

Kurling Machine2
I. Knurling Machine With Feeding Function

The Aluminum Profile Thermal Processing Equipment is the core specialized equipment for producing thermal break aluminum profiles with inserted thermal strips. It is primarily used to precisely insert thermal strips (typically PA66 nylon strips or PVC strips) into the grooves of two aluminum alloy profiles. Simultaneously, it can incorporate a notching function to enhance the bonding strength between the profiles and thermal strips, ultimately forming thermal break aluminum profiles with excellent thermal insulation properties.

MAIN TECHNICAL PARAMETERS AND REQUIREMENTS
  • Voltage: 380V
  • Frequency:50HZ
  • Motor total power:1.1KW (380V~0.55KW×2)
  • Knurling adjust range: width:0~260mm ; Height:0~220mm
  • Knurling blade diameter:φ80
  • Overall size:1040mm×1350mm×1550mm
  • External air pressure:0.6~1.0Mpa
  • Profile processing speed:0~70m/min
  • Profile size:W 260mm× H 220mm
  • Weight:1000kg

APPLICATION
1. Construction Sector:
  • Production of thermal break aluminum profiles for various doors and windows
  • High-end architectural profiles for curtain walls, sunrooms, partition systems, etc.
2. Industrial Sector:
  • Body structural components for new energy vehicles
  • Rail transit vehicle profiles
  • Cold chain logistics equipment profiles

rolling machine1
II.Rolling Press Machine

WORKING PRINCIPLE
Roll Compounding: Three sets (or more) of specially hardened rollers (each set comprising upper and lower rollers) apply uniform pressure to aluminum profiles with thermal breaks already inserted.
Interlocking Connection: The serrations within the aluminum profile grooves tightly engage with the thermal breaks, forming a mechanical locking structure that ensures compliance with lateral shear force requirements.
Straightening Function: The third set of rollers simultaneously straightens the profile during the rolling process, ensuring the finished profile's straightness and flatness deviation is ≤0.5mm/m.


MAIN TECHNICAL PARAMETERS AND REQUIREMENTS
  • Voltage:380V
  • Frequency:50HZ
  • Profile size:W260mm×H 300 mm
  • Roller diameter:φ238
  • Total power: Master motor power:3KW(380V),lifting motor:0.55KW
  • Overall size:1460mm×1400mm×1460mm
  • Processing speed: 0~70m/min
  • Rolling plate adjust range:Height 0~100mm
  • External air pressure:0.6~0.8Mpa
  • Weight:1800kg

APPLICATION
1. Construction Sector:
  • Energy-efficient window and door profiles for various civil and industrial buildings
  • High-end curtain wall systems, sunroom, and partition wall profiles
  • Special structural profiles including aluminum-wood composite and aluminum-plastic composite
2. Industrial Sector:
  • Lightweight structural components for new energy vehicle bodies
  • Thermal insulation profiles for rail transit vehicles
  • Cold chain logistics equipment and refrigeration unit housing profiles
