Z-axis Long-stroke Dovetail Groove Stage 25

2 month ago
2 0
Product details

Manual Z-Axis Stages - Dovetail, Rack & Pinion, Long Stroke

Mobile unit which employs a dovetail groove as a travel guide.[Features]· Mobile unit that uses dovetail groove (D-T type) as a travel guide.· Rack and pinion feeding method allows large distance movements.· Can be widely used for applications requiring the positioning of cameras, sensors, etc.· Can be secured with a high holding power lever clamp at any position

Model Number Table Size(mm) L(mm) Travel(mm) Load capacity Weight(kg)
SLWZ25-L50 25*42 50 30 29.4N(3kgf) 0.13
SLWZ25-L70 70 50 0.14
SLWZ25-L100 100 80 0.17
SLWZ25-L150 150 130 0.22
SLWZ25-L200 200 180 0.27

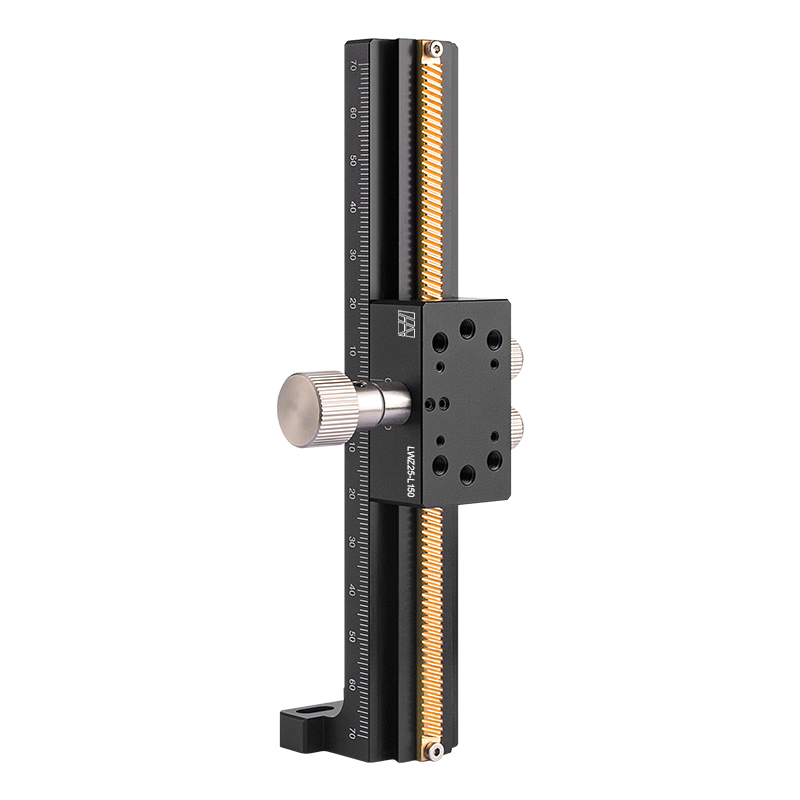

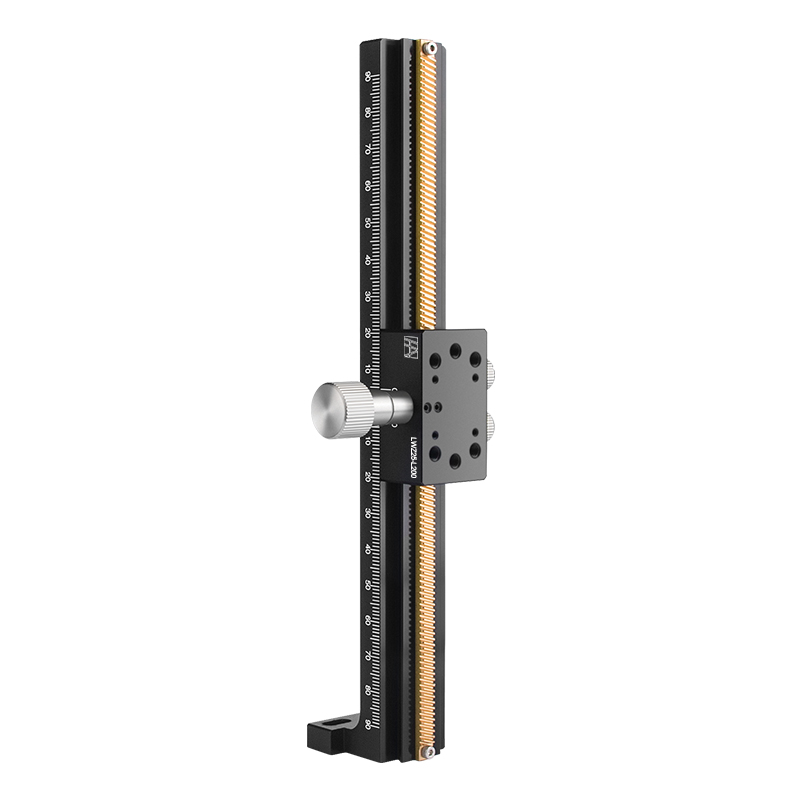

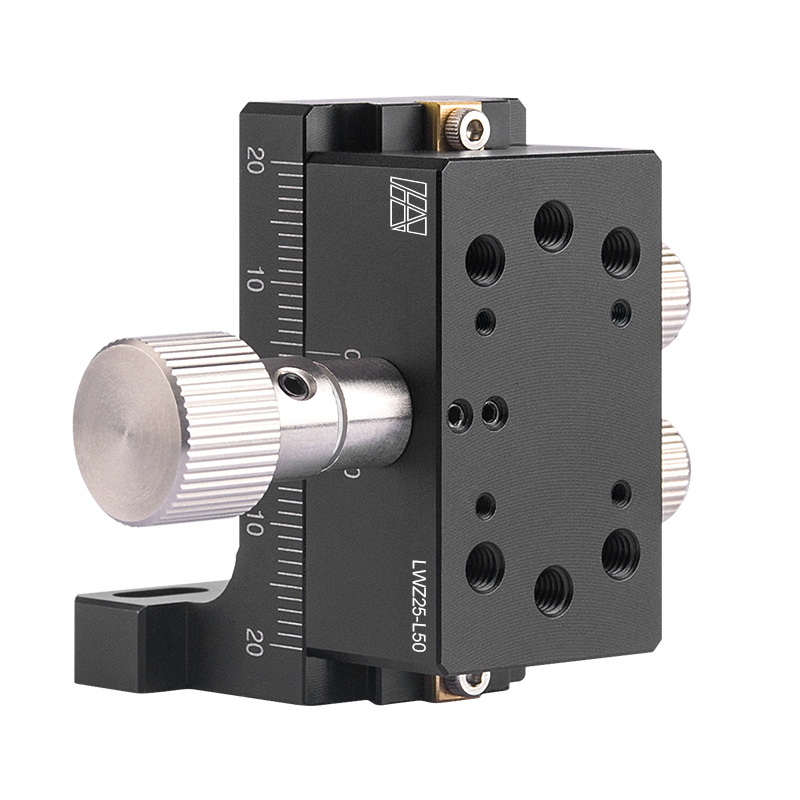

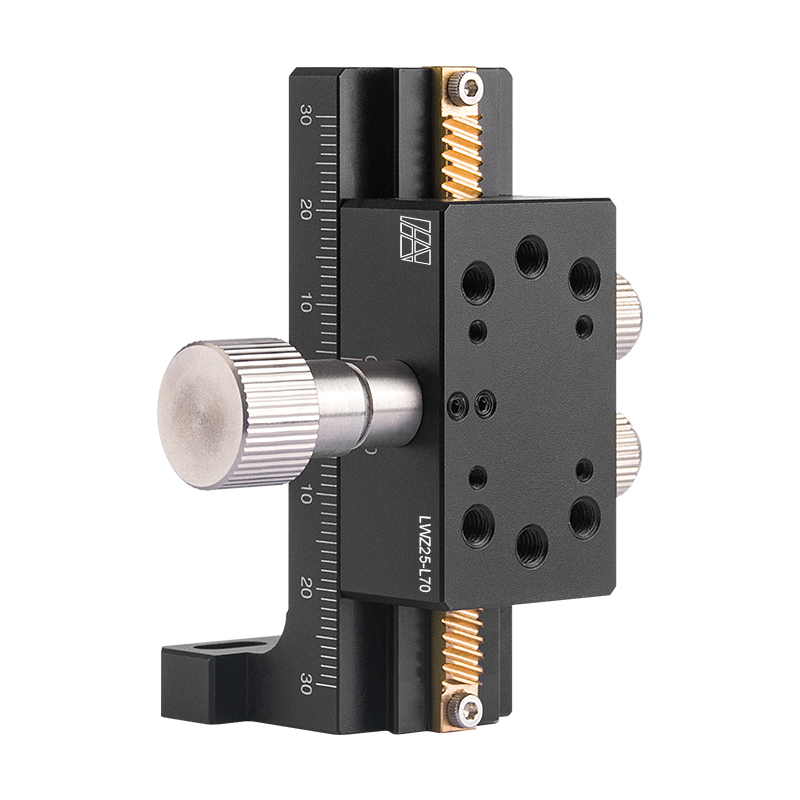

Z-axis Dovetail Groove Slide Table 50Z-axis Dovetail Groove Slide Table 70Z-axis Dovetail Groove Slide Table 100Z-axis Dovetail Groove Slide Table 150Z-axis Dovetail Groove Slide Table 200
