X-axis Long-stroke Dovetail Groove Stage 60

3 week ago

2 0

Shenzhen Misi Precision Machinery Co., Ltd.

 4 month year

Product details

Manual X-Axis Stages - Dovetail, Rack & Pinion, Long Stroke

Crafted from high-quality aluminum alloy, it combines light weight with high rigidity, making it ideal for precision machining scenarios. Boasting a stage surface size of 60*60 mm, it provides ample operating space and can stably bear a load of 58.8 N, meeting the installation requirements of small tooling, inspection jigs and the like.

Featuring a precisely designed dovetail groove structure and paired with manual adjustment components, it enables smooth, jitter-free sliding and high positioning accuracy. The long-stroke characteristic expands the machining range, and it is widely applied in scenarios such as automation equipment debugging, laboratory sample testing and small part machining, providing reliable hardware support for high-precision manual operations.

Model Number	Table Size(mm)	L(mm)	G(mm)	nxF	N	Travel(mm)	Load capacity	Parallelism(mm)	Weight(kg)

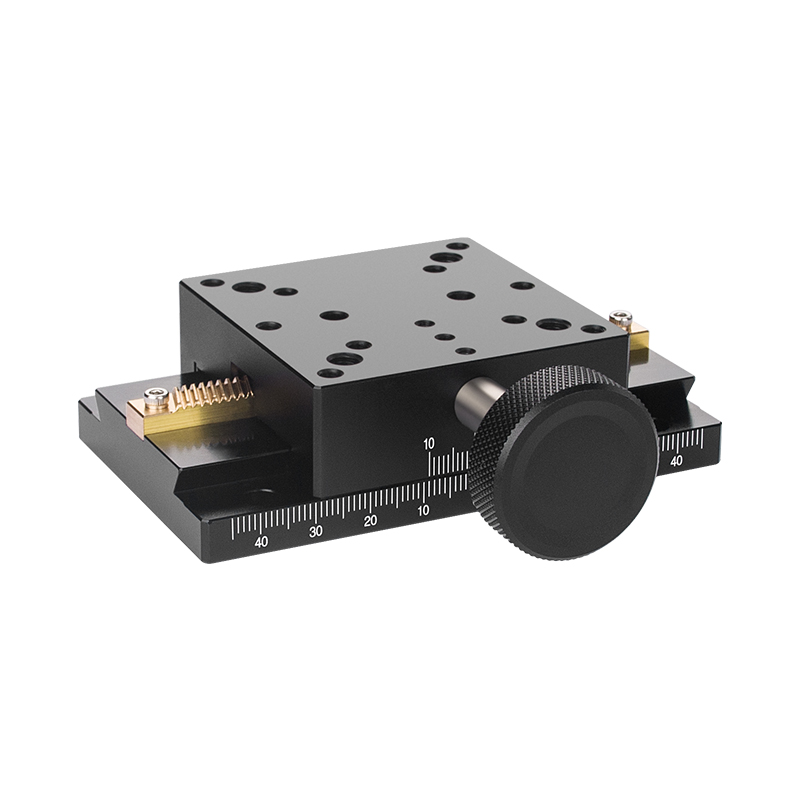

SLWX60-L100	60*60	100	12.5	1x75	4	80	58.8N(6kgf)	0.05	0.35
SLWX60-L150		150	25	1x100	4	130		0.05	0.45

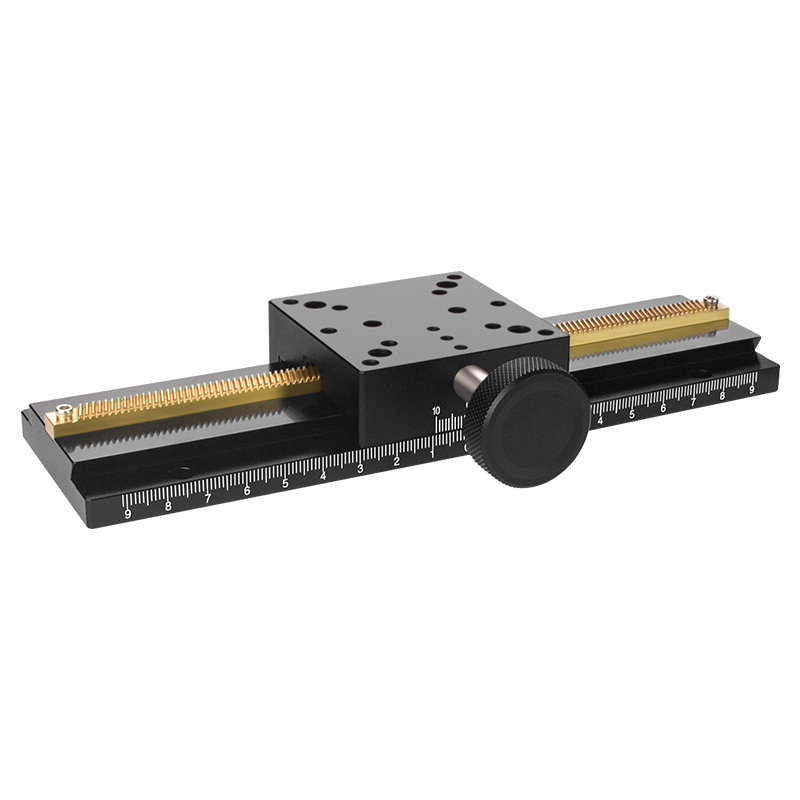

SLWX60-L200		200	25	2x75	6	180		0.05	0.53

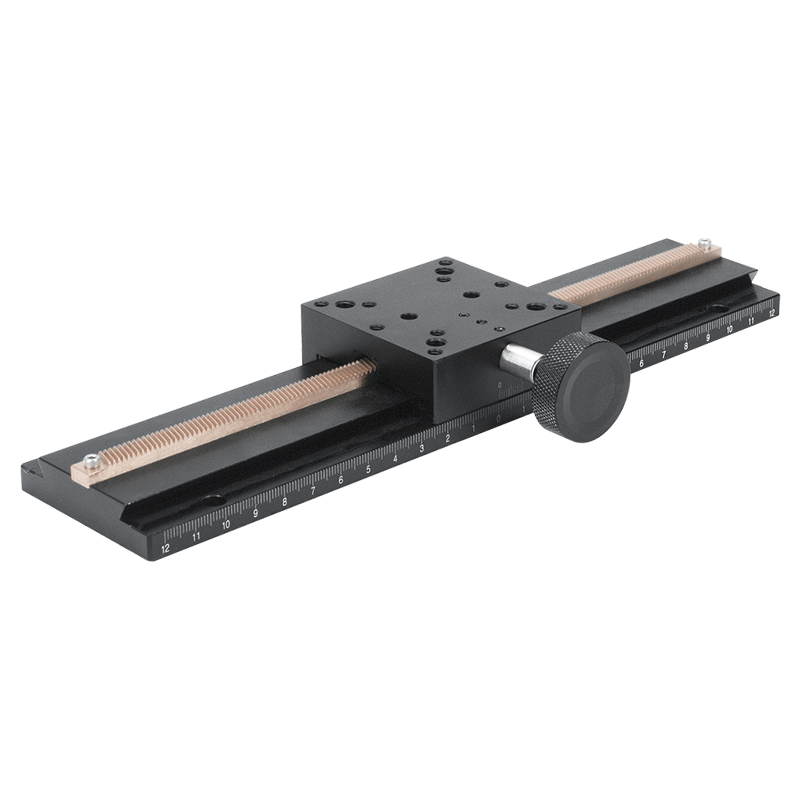

SLWX60-L250		250	25	2x100	6	230		0.05	0.61
SLWX60-L300		300	50	2x100	6	280		0.05	0.69

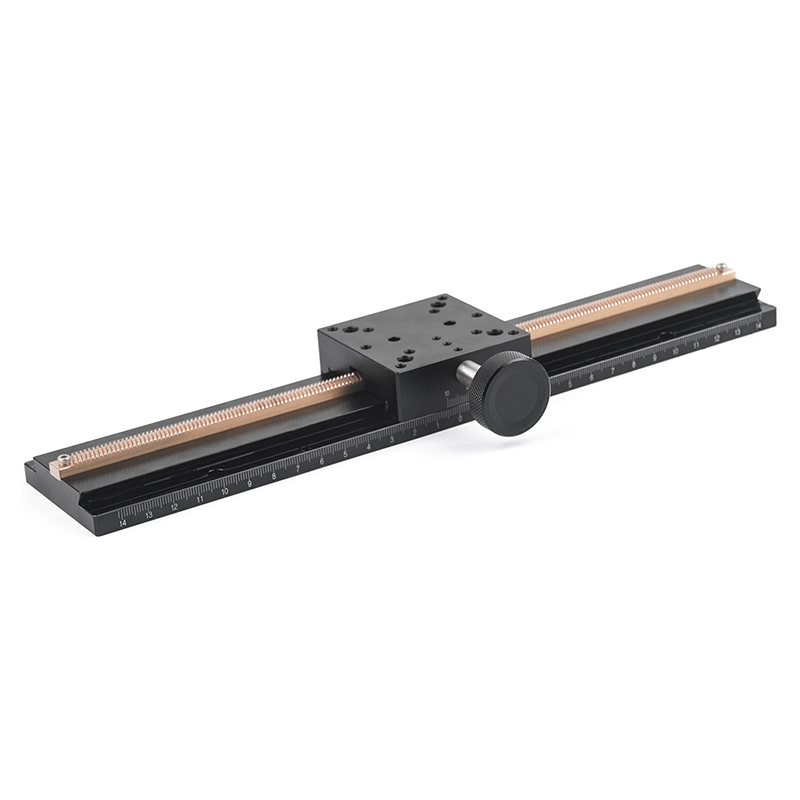

SLWX60-L350		350	25	3x100	8	330		0.05	0.75

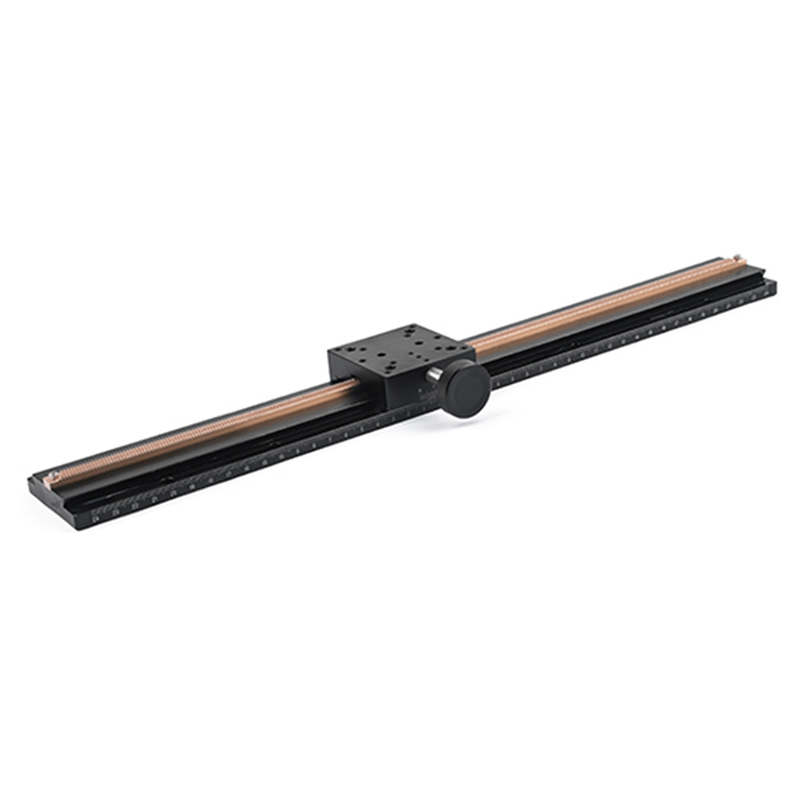

SLWX60-L400		400	50	3x100	8	380		0.05	0.81
SLWX60-L500		500	50	4x100	10	480		0.05	0.93
SLWX60-L600		600	50	5x100	12	580		0.05	1.48
SLWX60-L700		700	50	6x100	14	680		0.1	1.73
SLWX60-L800		800	50	7x100	16	780		0.1	1.94
SLWX60-L900		900	50	8x100	18	880		0.1	2.14
SLWX60-L1000		1000	50	9x100	20	980		0.1	2.34
