Z-axis Long-stroke Dovetail Groove Stage 40

4 week ago

1 0

Shenzhen Misi Precision Machinery Co., Ltd.

 4 month year

Product details

Manual Z-Axis Stages - Dovetail, Rack & Pinion, Long Stroke

Made of aluminum alloy and treated with anodization, it offers excellent wear resistance, corrosion resistance, as well as light weight and high stability. Boasting a 40×40 mm stage surface and driven by a rack-and-pinion mechanism, it enables smooth manual adjustment and has a rated load capacity of 29.4 N.

Its core function is to achieve stable long-distance lifting and precise positioning along the Z-axis. It is applicable to lens height calibration in optical inspection, component positioning in electronic assembly, and lifting operations of small samples in laboratories, providing reliable support for precision manual adjustment scenarios in the vertical direction.

Model Number	Table Size(mm)	L(mm)	L1(mm)	Travel(mm)	Load capacity	Weight(kg)

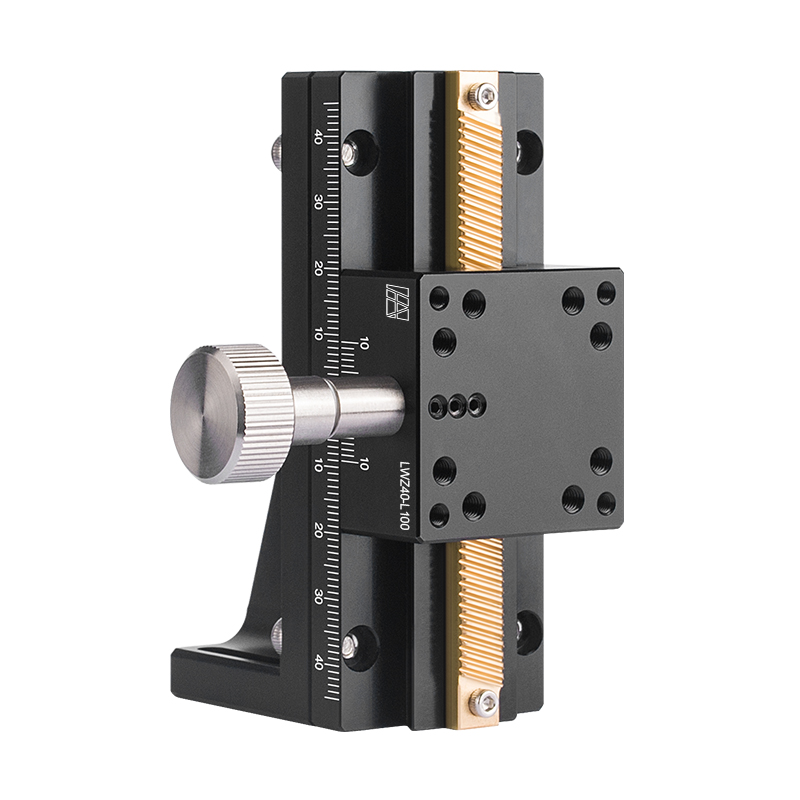

SLWZ40-L100	40*40	100	100	70	29.4N(3kgf)	0.41

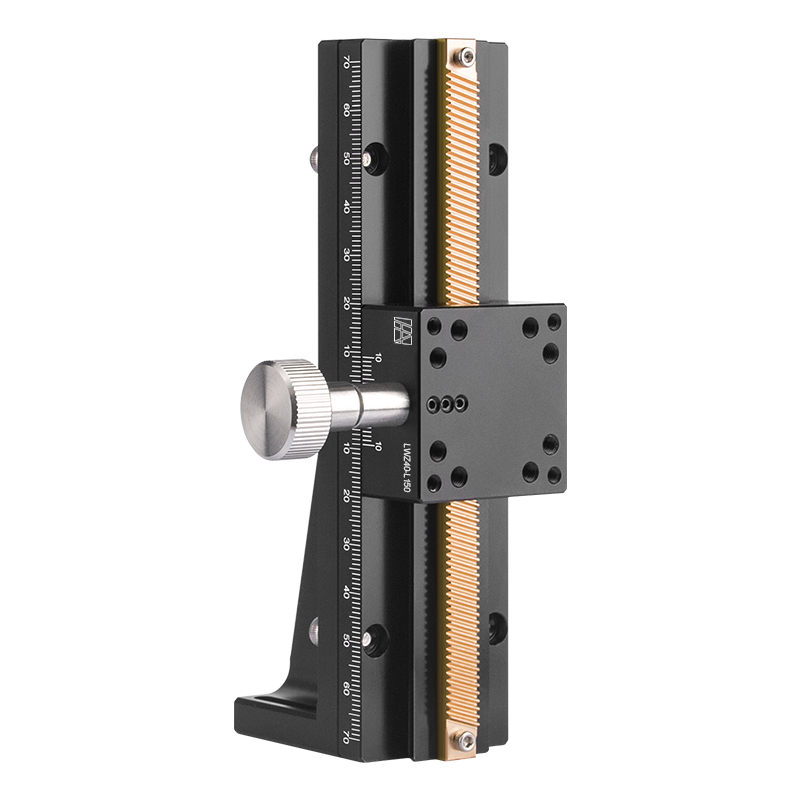

SLWZ40-L150		150	150	120		0.54

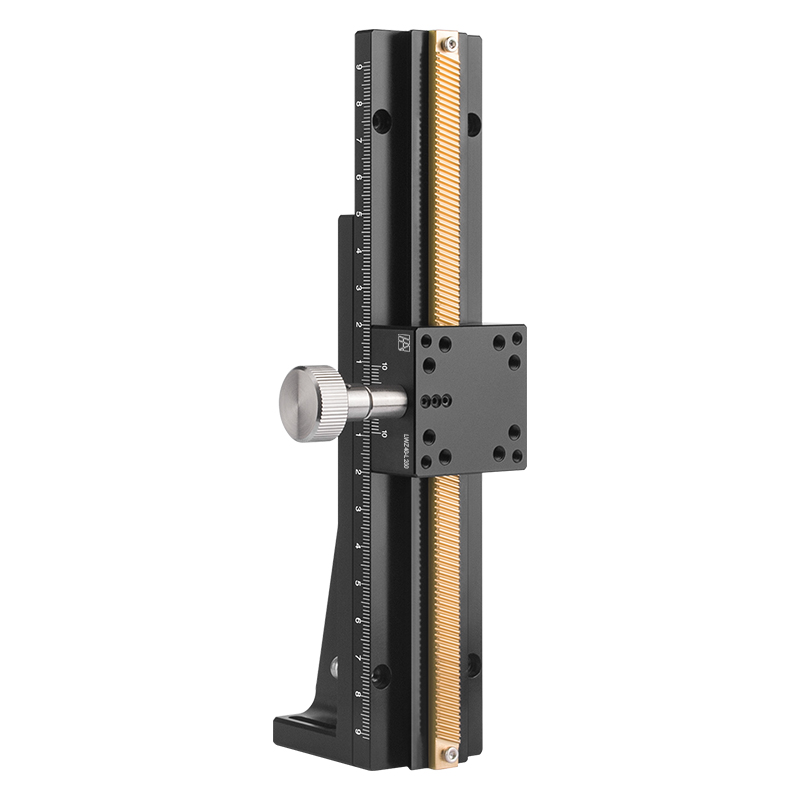

SLWZ40-L200		200	150	170		0.6

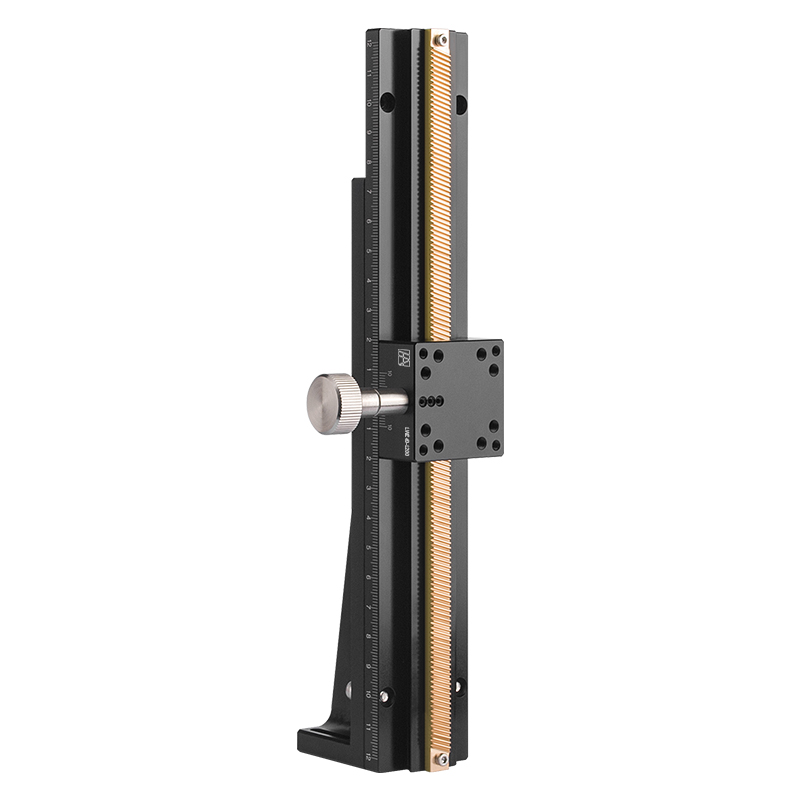

SLWZ40-L250		250	200	220		0.7

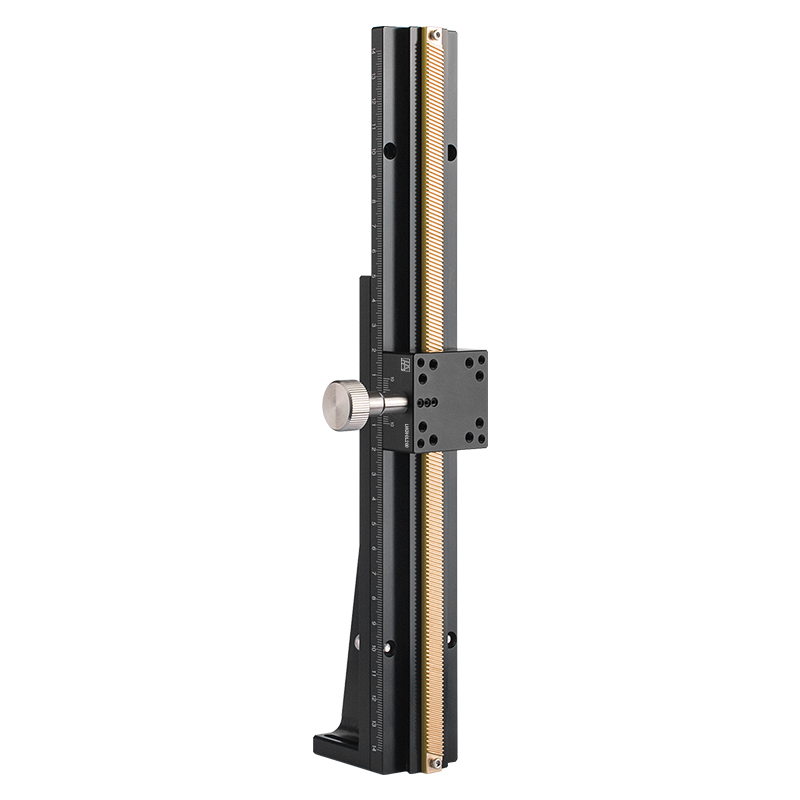

SLWZ40-L300		300	200	270		0.74

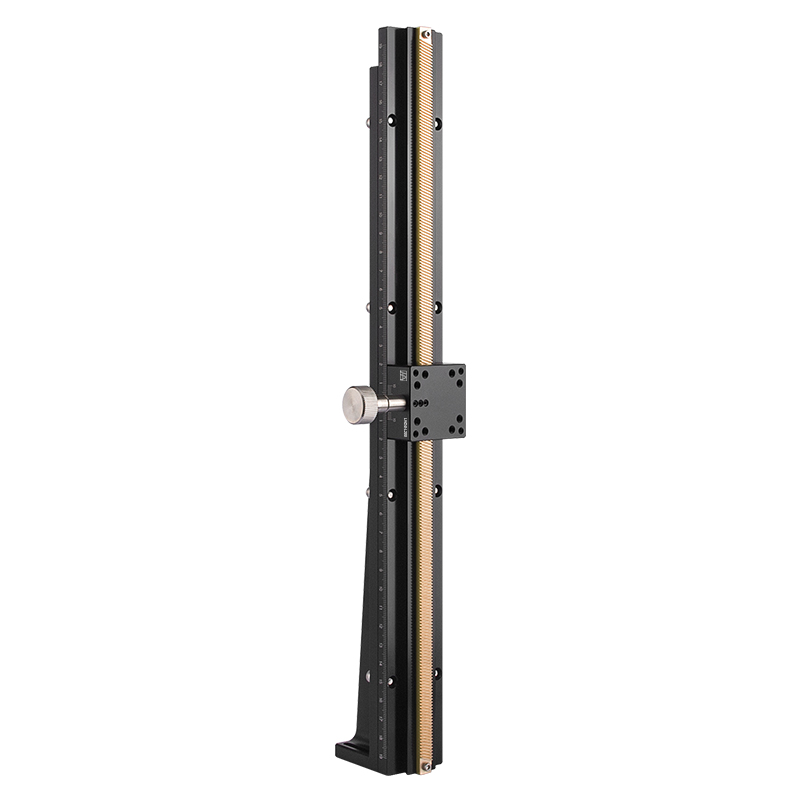

SLWZ40-L400		400	380	370		0.95

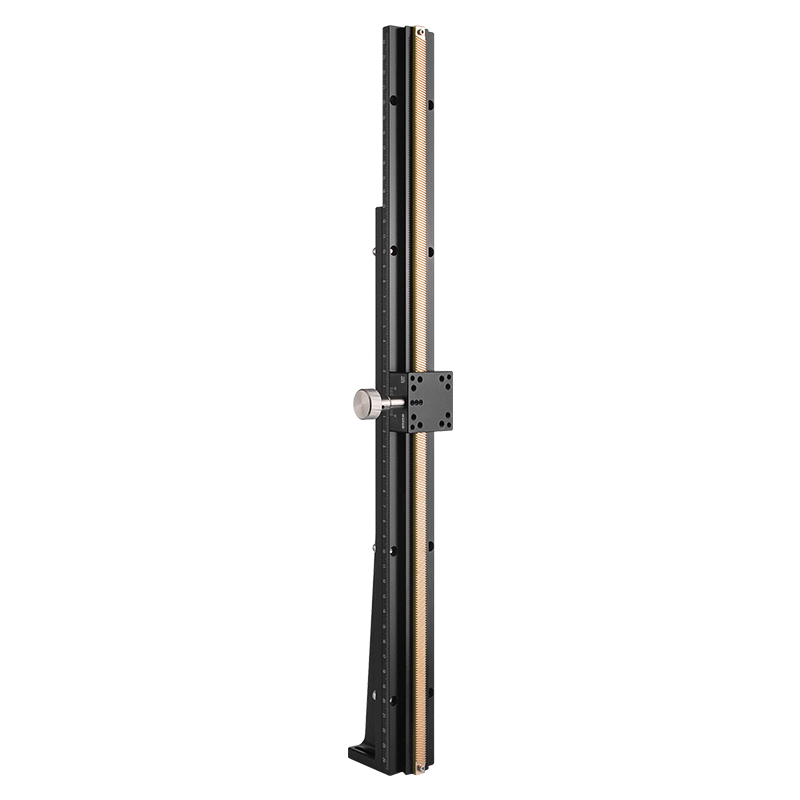

SLWZ40-L500		500	380	470		1.03
