Manual X-Axis Stages - Dovetail, Rack & Pinion, Long Stroke

Constructed from high-quality aluminum alloy, it combines light weight with excellent rigidity and features a rated load capacity of 29.4 N. Its core function is to achieve stable long-distance displacement along the X-axis, with precise positioning enabled by the dovetail groove structure, which ensures no deviation of the carried objects and meets the requirements of precision operations.

Its application scenarios focus on unidirectional precision tasks, including lens translation in optical inspection, component positioning in electronic assembly, as well as sample transfer in small-scale laboratory equipment. It provides reliable load-bearing support for precision scenarios requiring directional long-distance displacement along the X-axis.

Model Number	Table Size(mm)	L(mm)	G(mm)	nxF	N	Travel(mm)	Load capacity	Parallelism(mm)	Weight(kg)

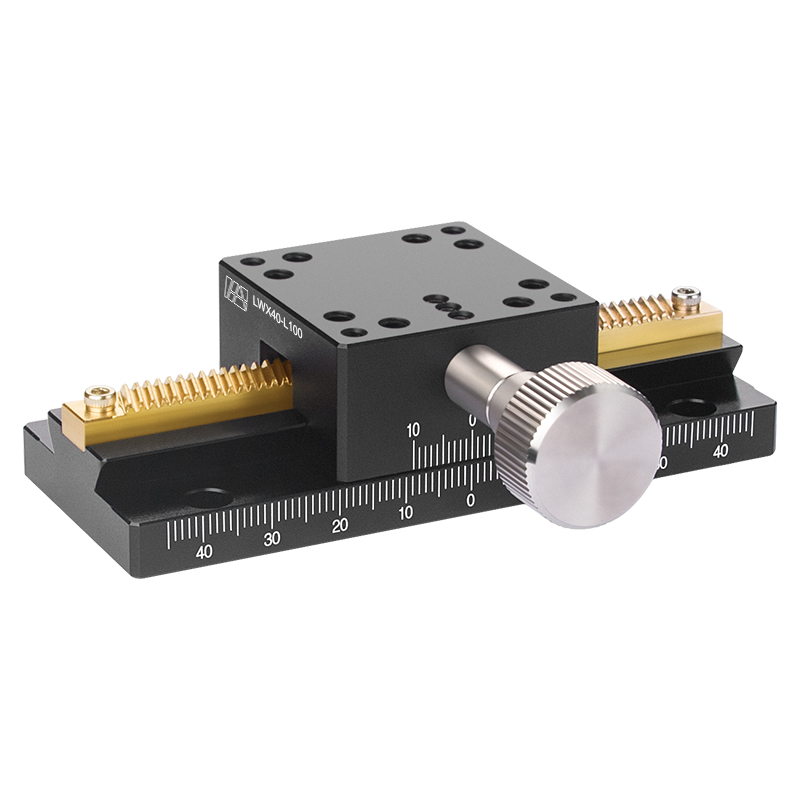

SLWX40-L100	40*40	100	12.5	1x75	4	78	29.4N(3kgf)	0.05	0.25

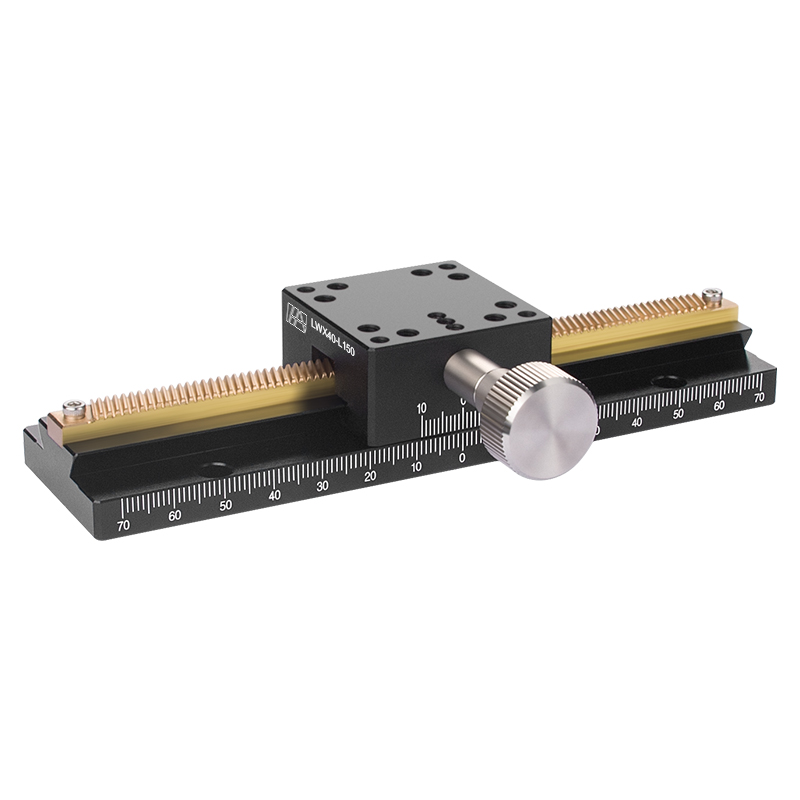

SLWX40-L150		150	25	1x100	4	128		0.05	0.33

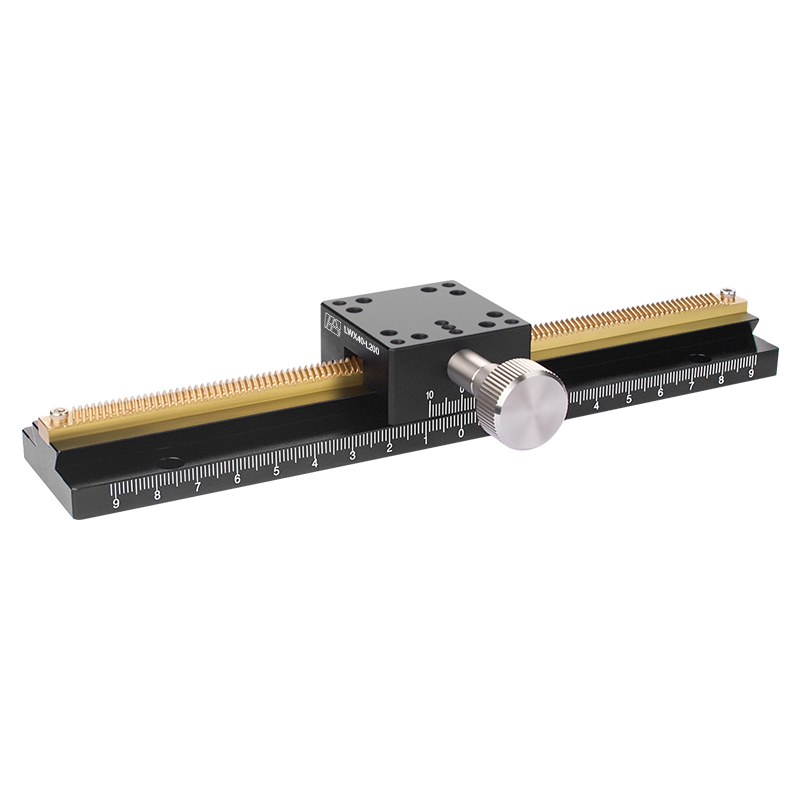

SLWX40-L200		200	25	2x75	6	178		0.05	0.39

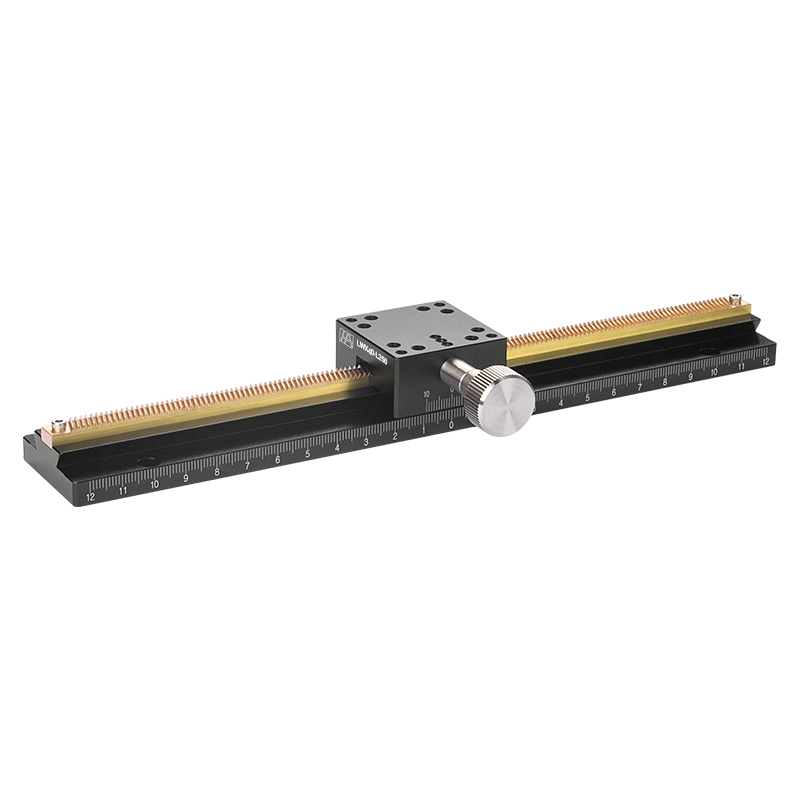

SLWX40-L250		250	25	2x100	6	228		0.1	0.46

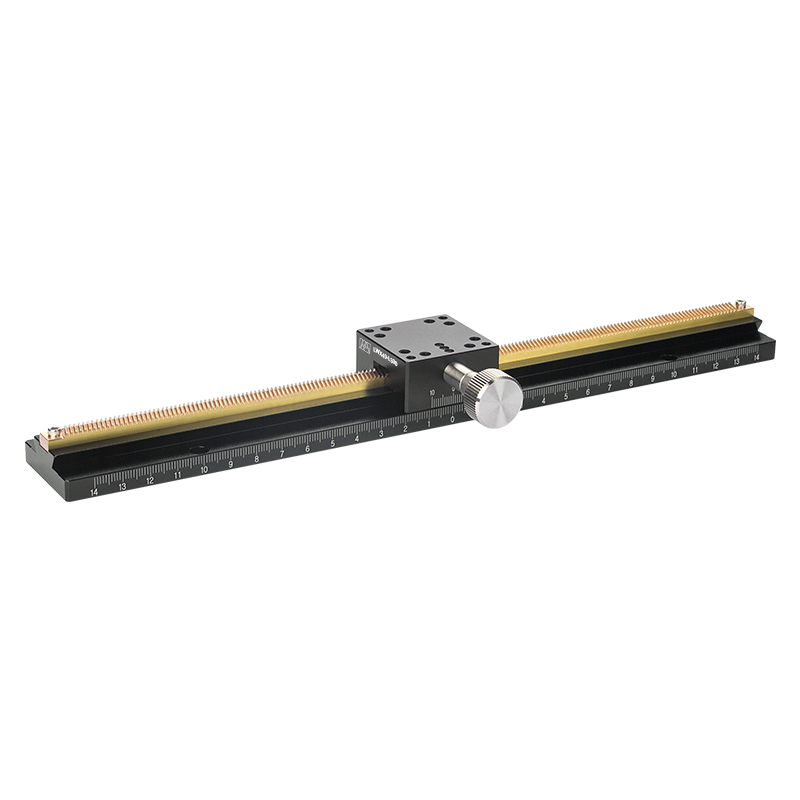

SLWX40-L300		300	50	2x100	6	278		0.15	0.53

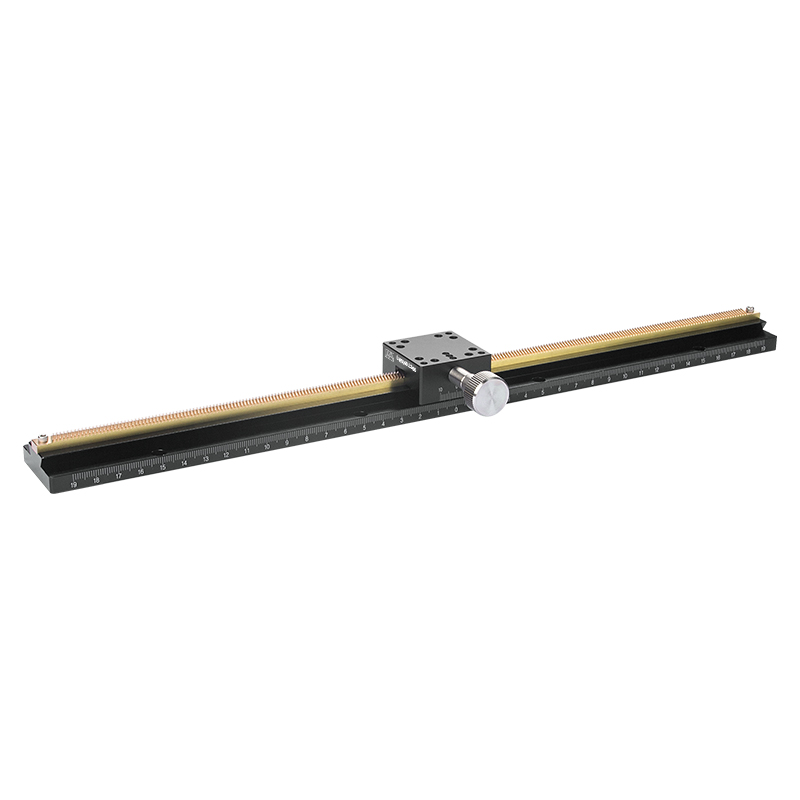

SLWX40-L400		400	50	3x100	8	378		0.2	0.67

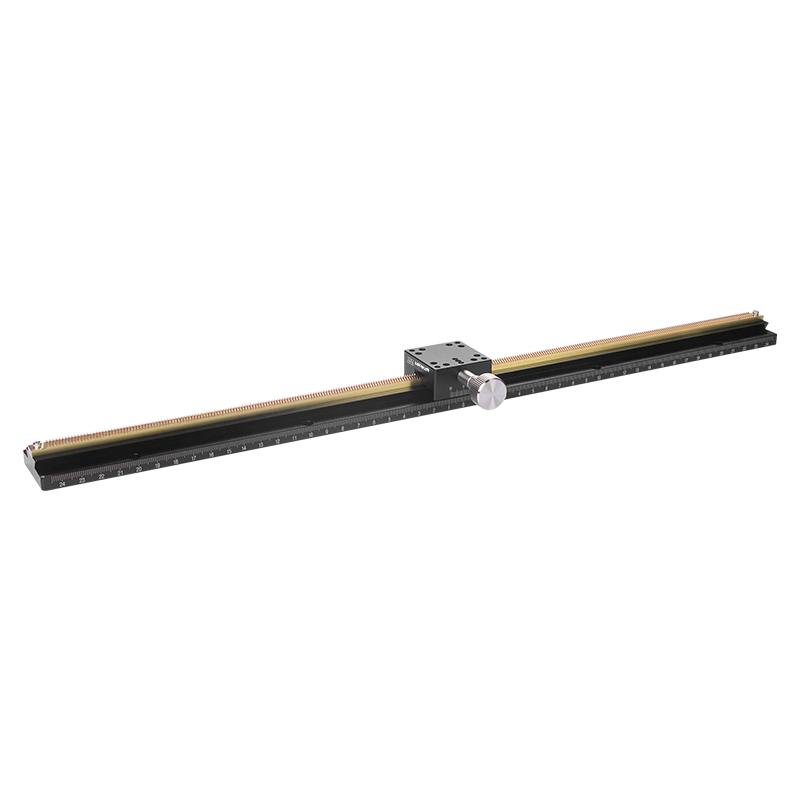

SLWX40-L500		500	50	4x100	10	478		0.2	0.82
