Manual Z-Axis Stages - Dovetail, Rack & Pinion, Long Stroke

Made of high-quality aluminum alloy base material with anodizing treatment, it combines the advantages of corrosion resistance, wear resistance and light weight, featuring a sturdy and durable structure. With a stable load capacity of 58.8 N, coupled with a precise dovetail groove guiding structure, it enables smooth and accurate manual adjustment with minimal positioning error, meeting the requirements of high-precision operations.

Boasting excellent stability and adaptability, this stage is widely applied in high-end fields such as aviation component inspection, medical device debugging and automotive precision component machining. It provides reliable support for vertical manual control, maintains superior performance even under harsh working conditions, and serves as an ideal auxiliary device for high-end manufacturing and precision operations.

Model Number	Table Size(mm)	L(mm)	L1(mm)	Travel(mm)	Load capacity	Weight(kg)

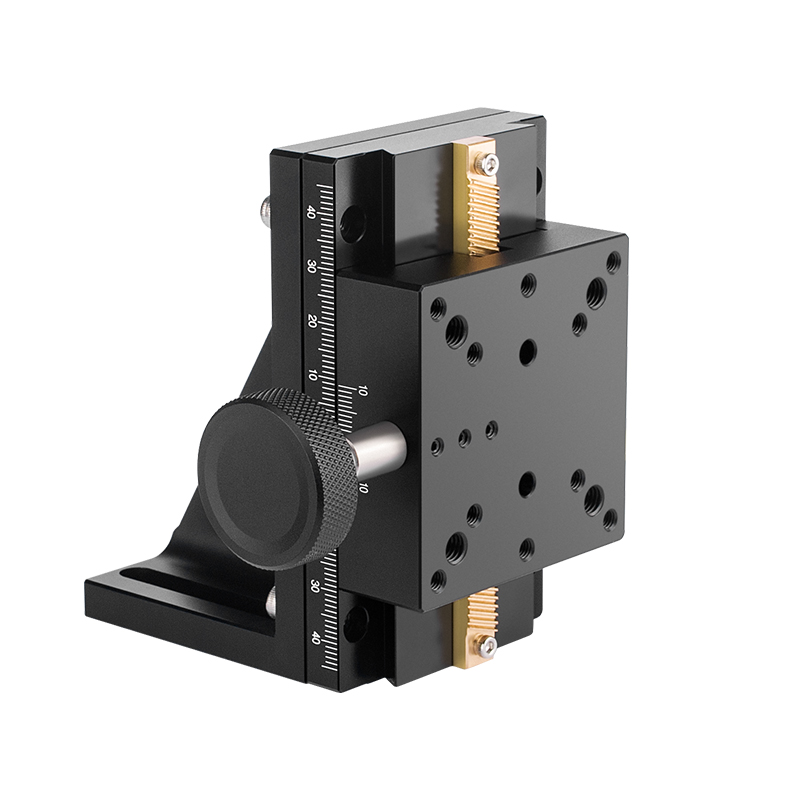

SLWZ60-L100	60*60	100	100	60	39.2N(4kgf)	0.58

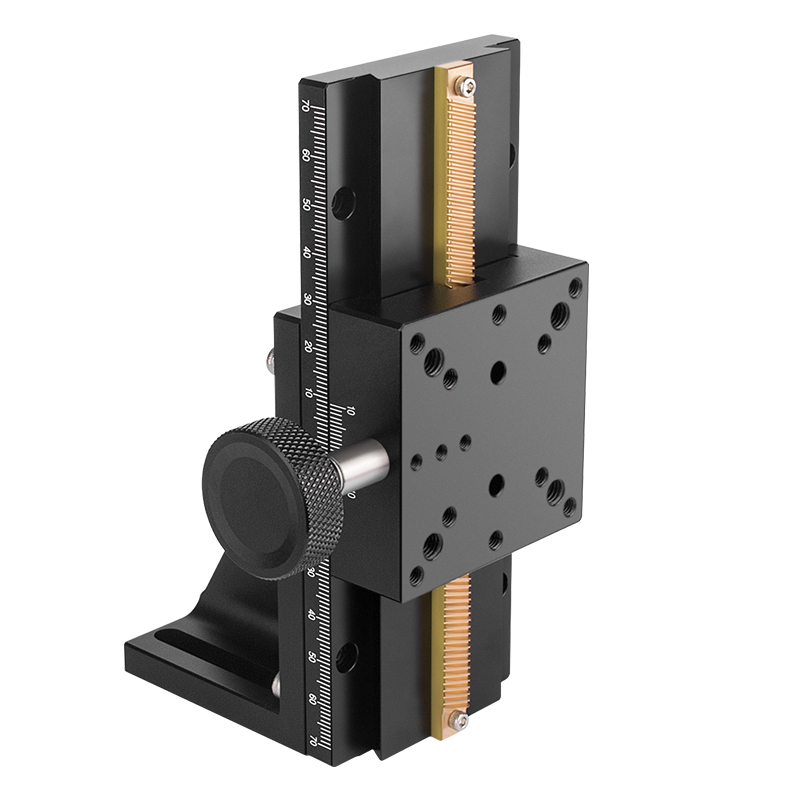

SLWZ60-L150		150	100	110		0.67

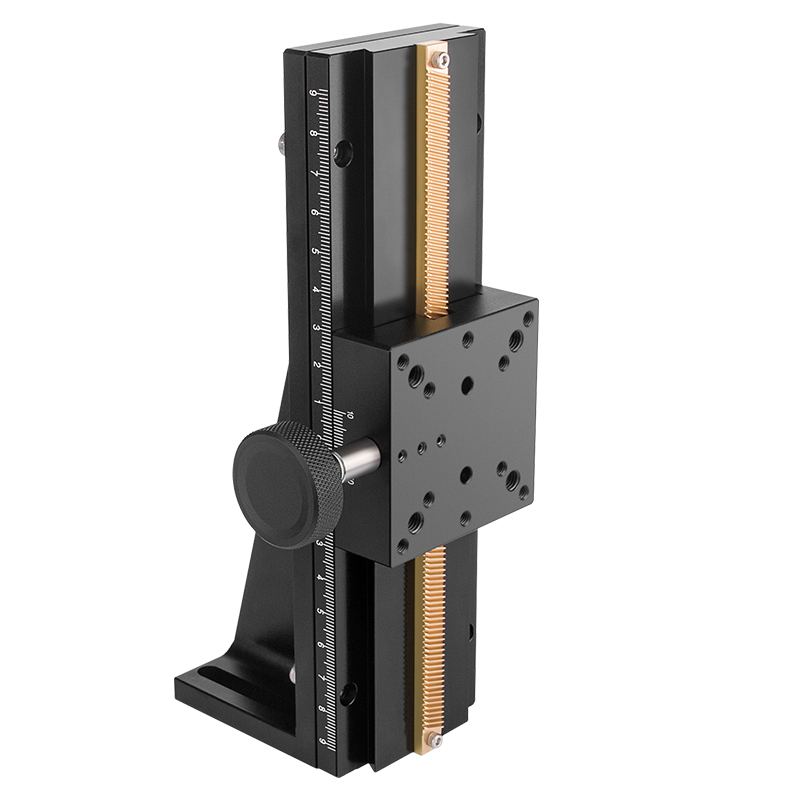

SLWZ60-L200		200	200	160		0.72

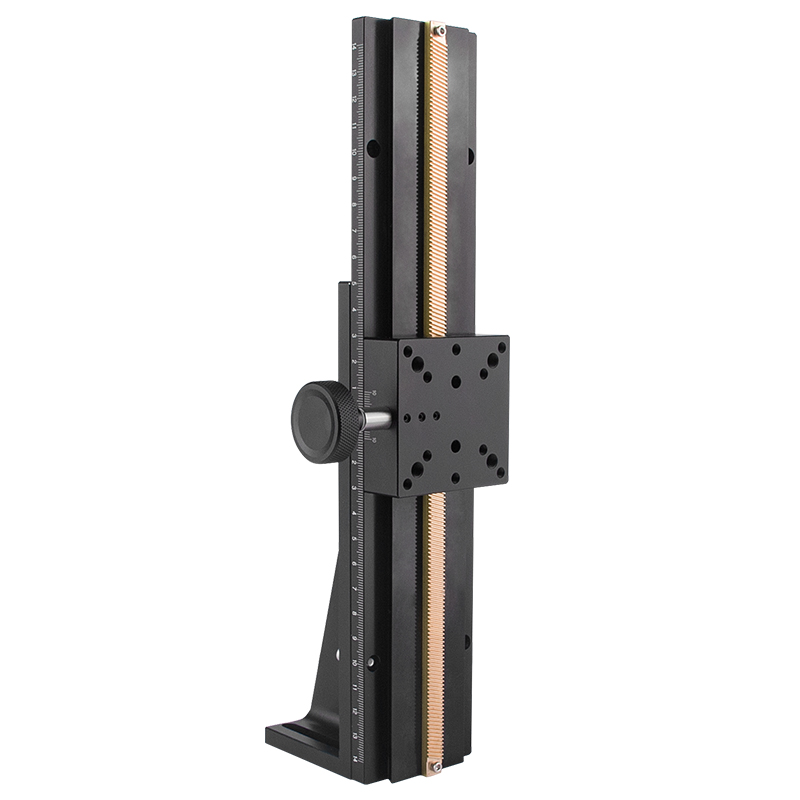

SLWZ60-L250		250	200	210		0.78

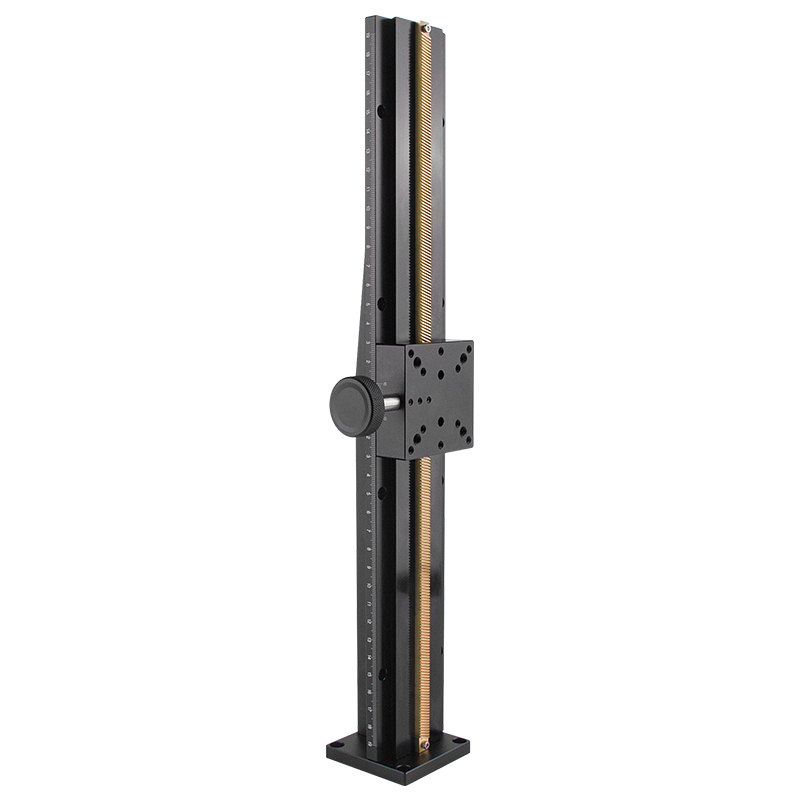

SLWZ60-L300		300	200	260		0.92

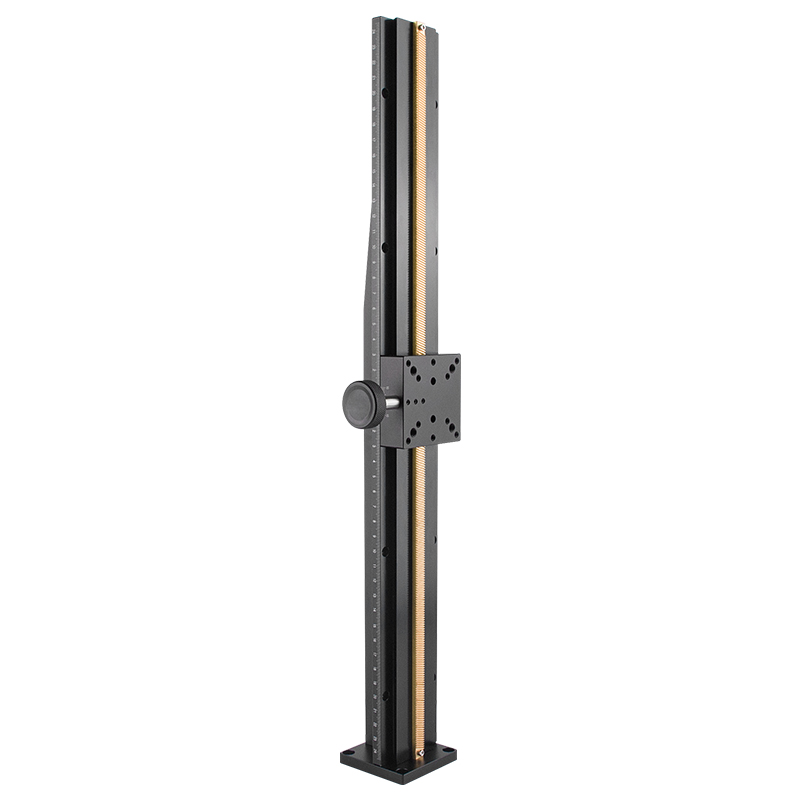

SLWZ60-L400		400	400	360		1.49

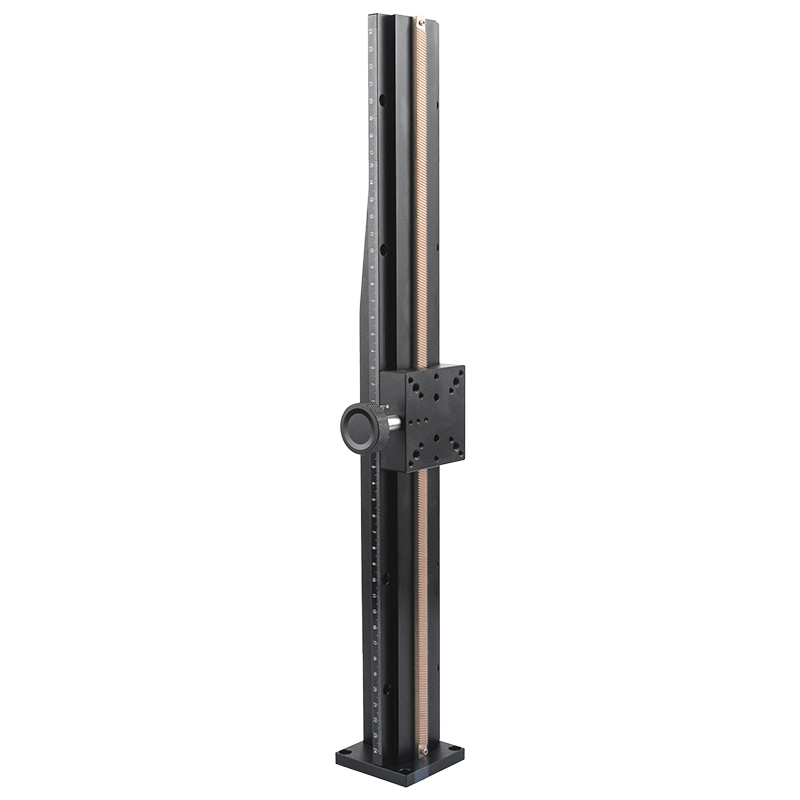

SLWZ60-L500		500	500	460		1.69
SLWZ60-L600		600	600	560		1.91
SLWZ60-L700		700	600	660		2.31
SLWZ60-L800		800	800	760		2.61
SLWZ60-L900		900	800	860		2.81
SLWZ60-L1000		1000	800	960		3.01
