X-axis Long-stroke Dovetail Groove Stage 80

2 week ago

1 0

Shenzhen Misi Precision Machinery Co., Ltd.

 4 month year

Product details

Manual X-Axis Stages - Dovetail, Rack & Pinion, Long Stroke

This stage is made of high-quality aluminum alloy and treated with anodization, which enhances the surface hardness, improves wear and corrosion resistance, and makes it suitable for various complex working conditions.

With a tabletop size of 80×80 mm, it has a moderate supporting area that meets the placement requirements of small tooling and test pieces. Adopting a rack-and-pinion drive as the core and paired with a dovetail groove guiding structure, it features smooth and unimpeded manual adjustment as well as high positioning accuracy. Boasting a rated load capacity of up to 147 N, it is widely used in fields such as experimental testing and equipment fine-tuning.

Model Number	Table Size(mm)	L(mm)	G(mm)	nxF	N	Travel(mm)	Load capacity	Parallelism(mm)	Weight(kg)
SLWX80-L120	80*80	120	10	1x100	4	98	147N(15kgf)	0.05	0.68

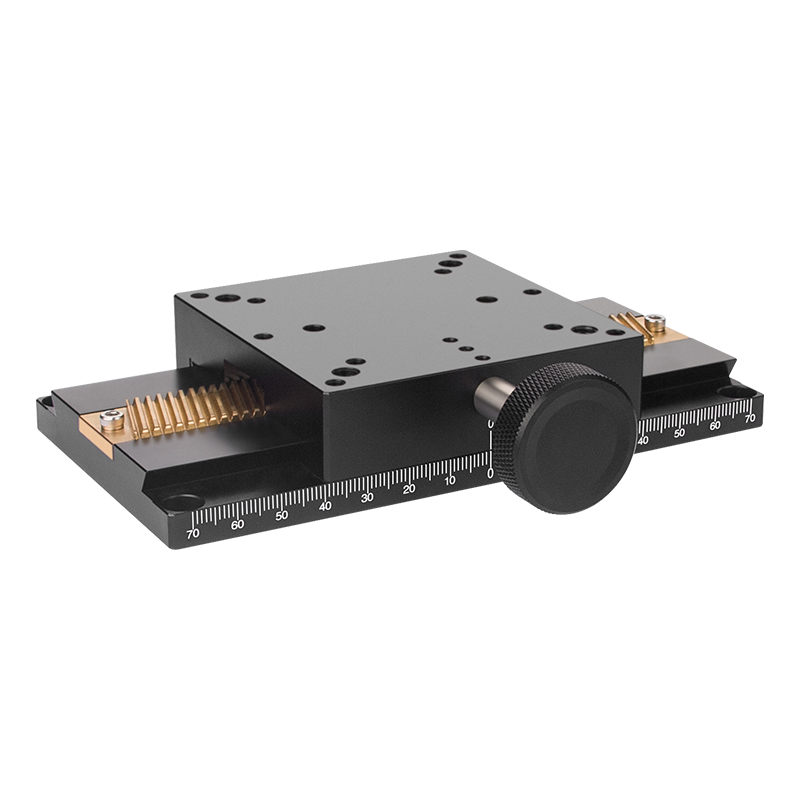

SLWX80-L150		150	5	2x70	6	128			0.75

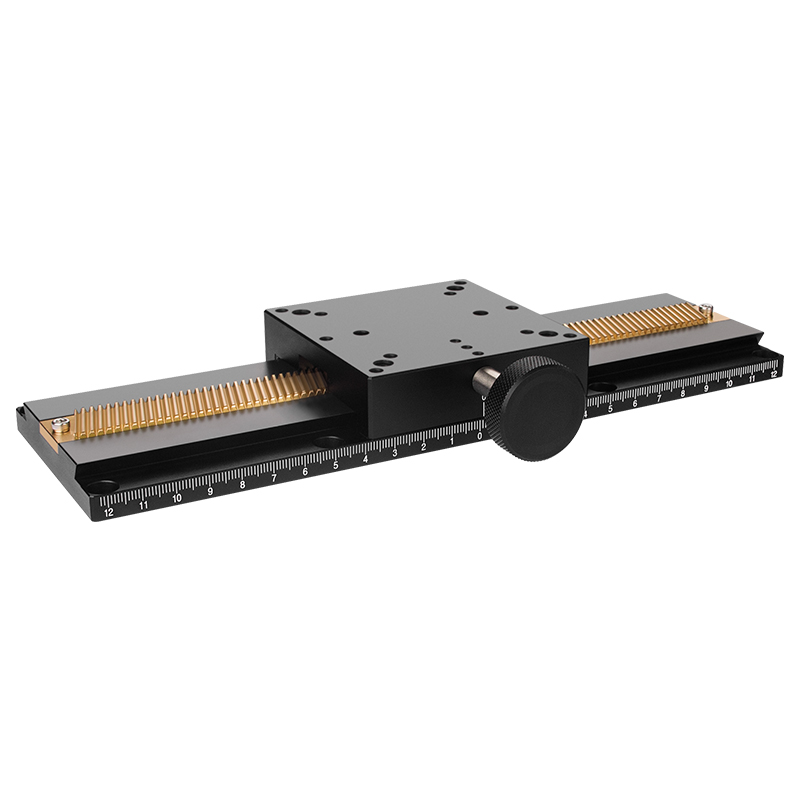

SLWX80-L250		250		2x70	8	228			1.08

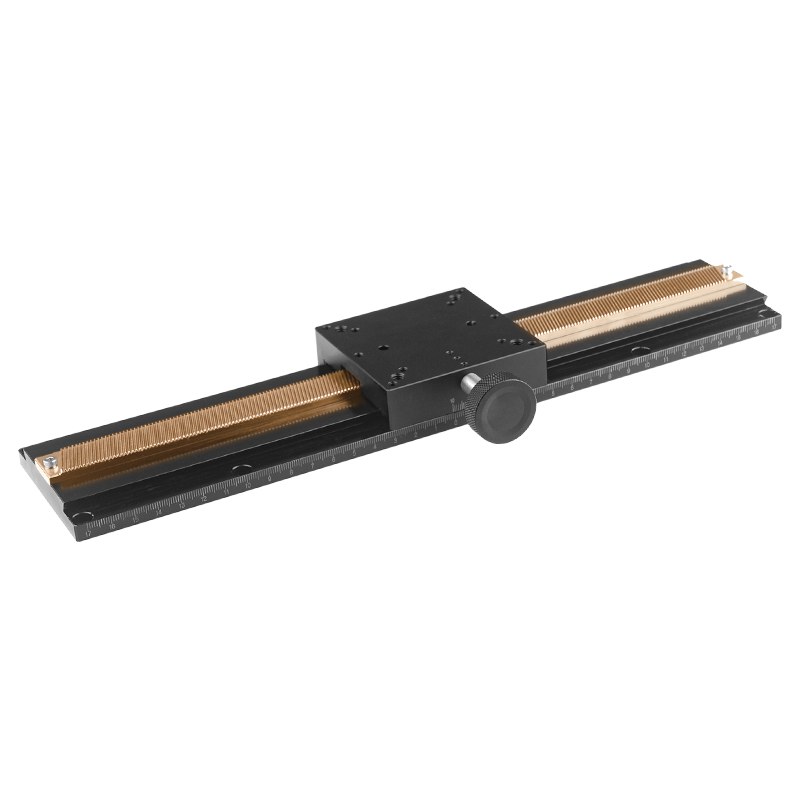

SLWX80-L350		350		4x70	12	328			1.38

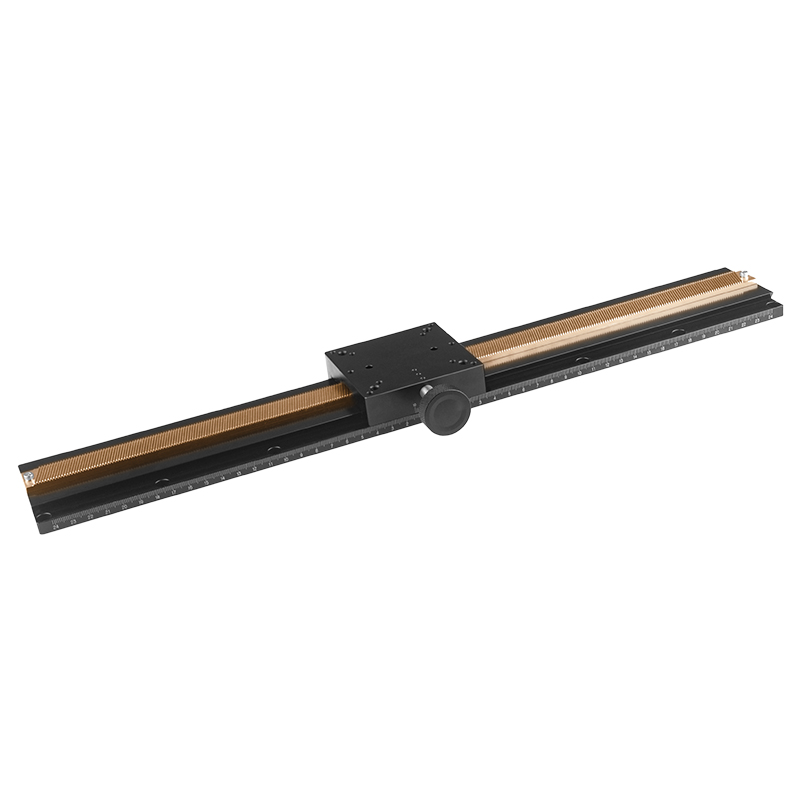

SLWX80-L500		500		7x70	16	478			1.88
