Product details

FEATURES AT A GLANCE

Fully automatic sanitary napkin machine(with glue)

Key features include:

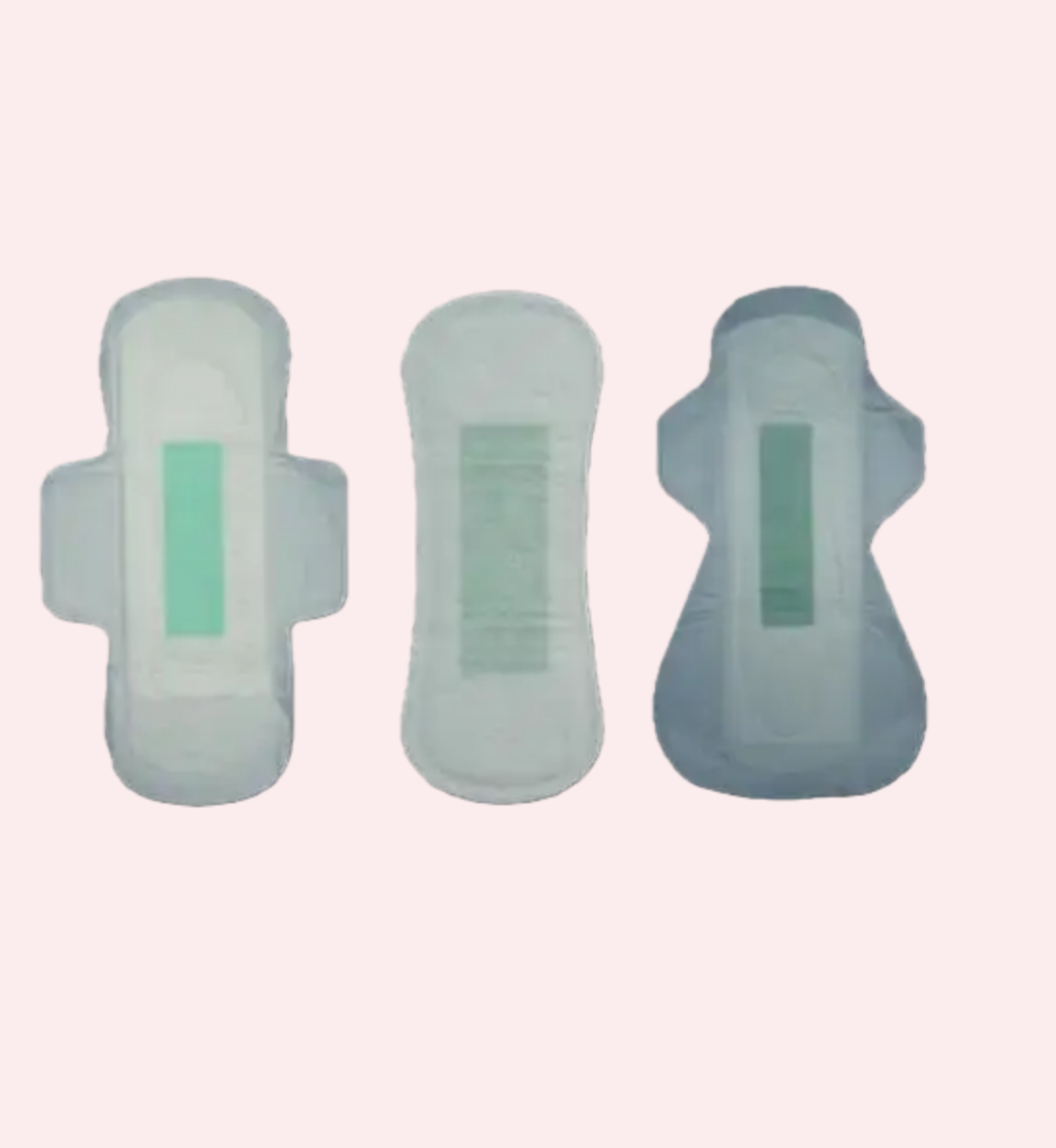

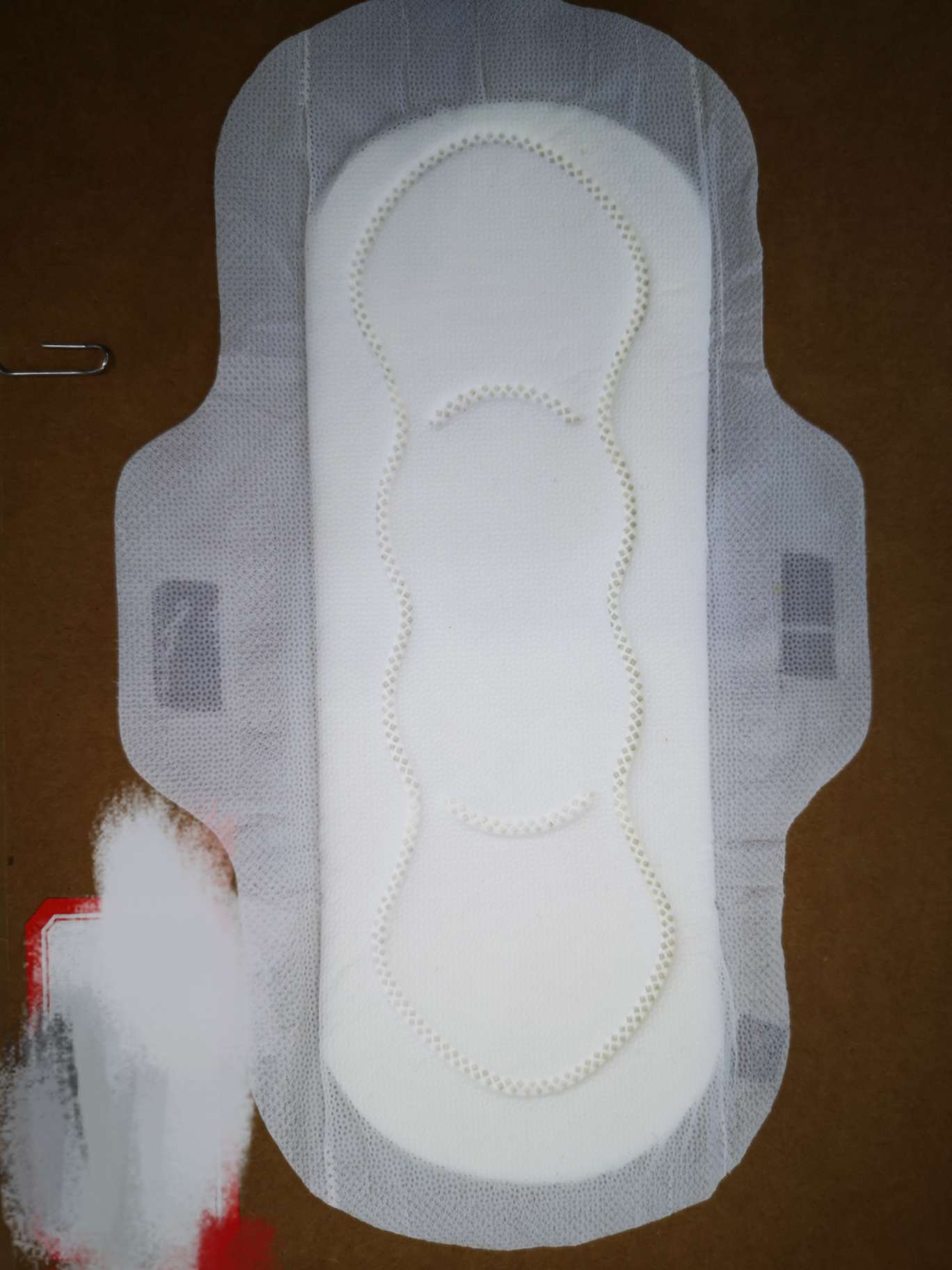

①The standard processing size is 260mm x 160mm sanitary napkins, while custom specifications are supported according to client requirements.

②An automatic counting function is built-in, enabling the machine to automatically halt production upon reaching the preset output.

③To precisely control material feeding, the machine is configured with six cloth feeding rollers, each with independently adjustable tension, allowing it to excellently handle various materials including PP non-woven fabric, air-through non-woven fabric, PE film, and SAP paper.

Product Overview

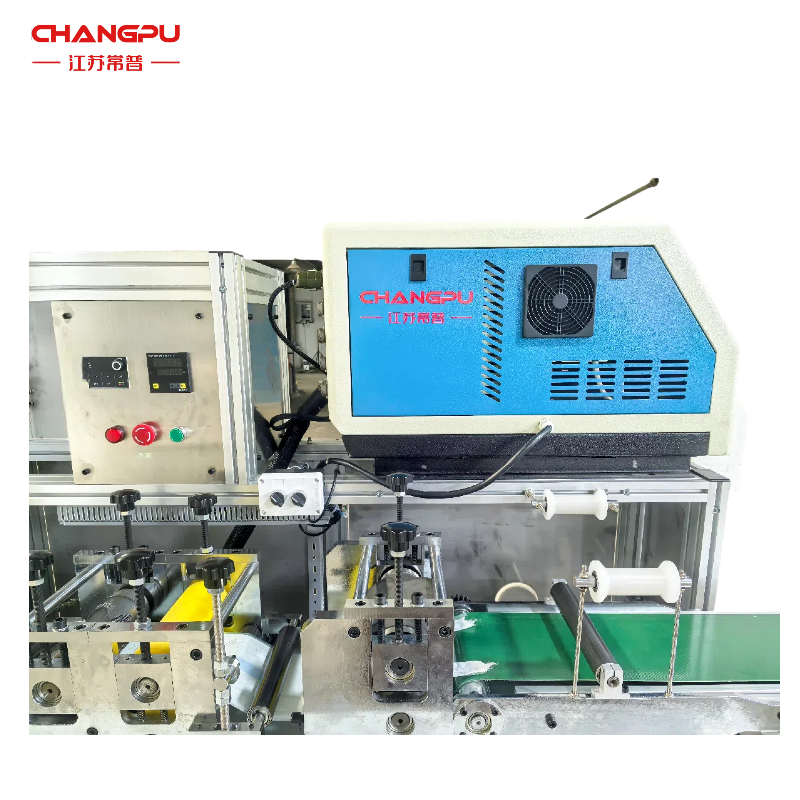

Fully automatic sanitary napkin machine(with glue)

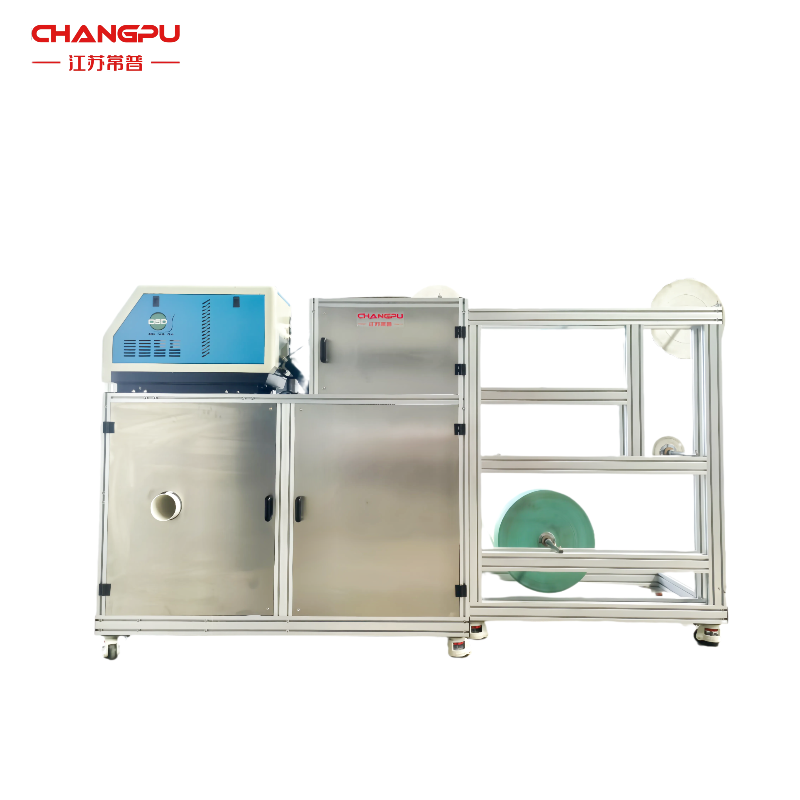

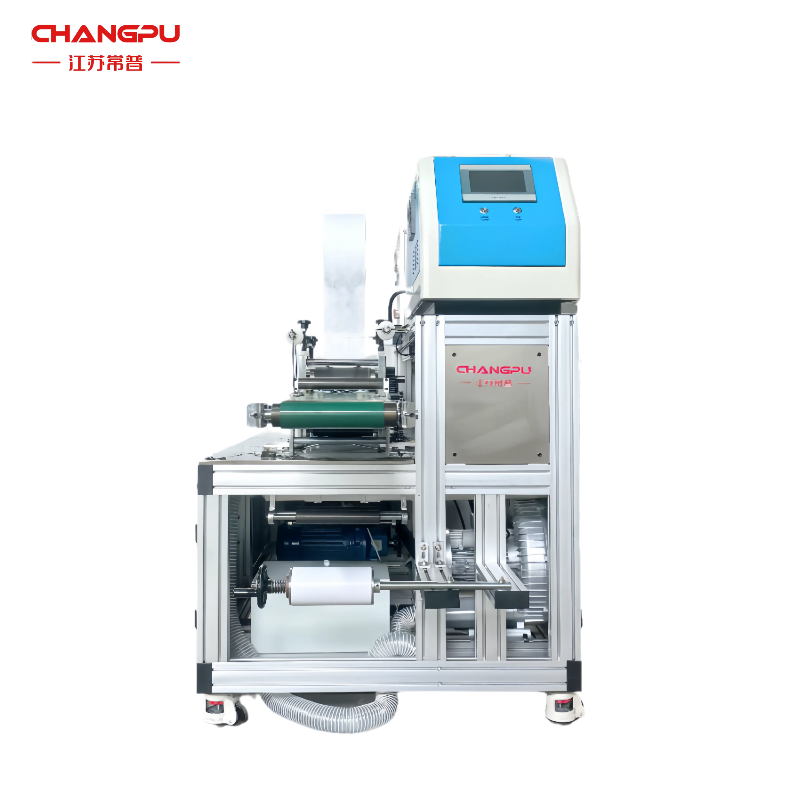

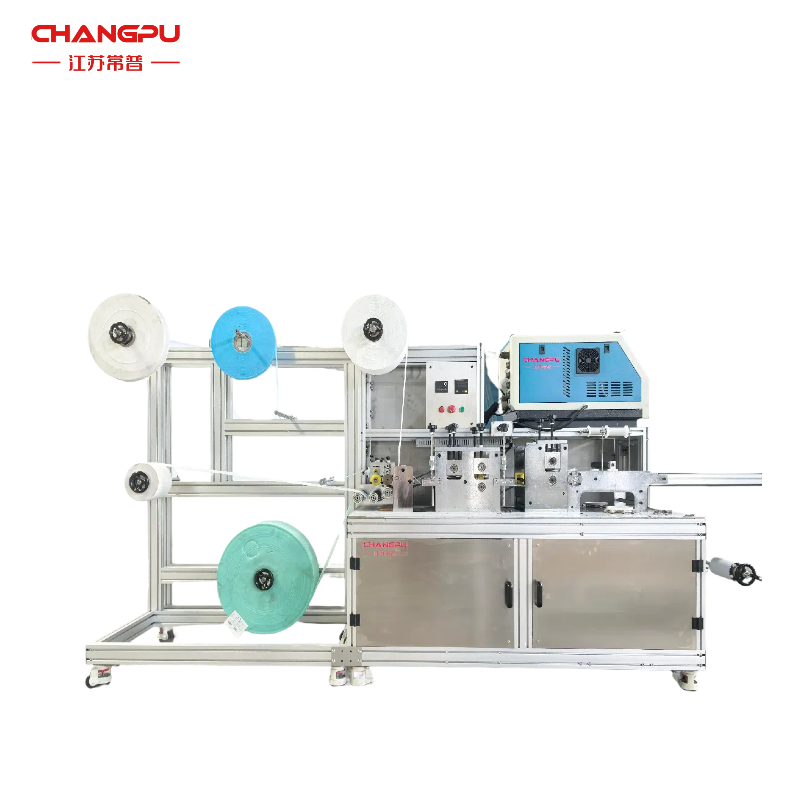

The Changpu Brand Fully Automatic Sanitary Napkin Machine is a high-speed, high-efficiency production equipment specifically designed for the hygiene products industry, integrating multiple advanced technologies to deliver exceptional performance.

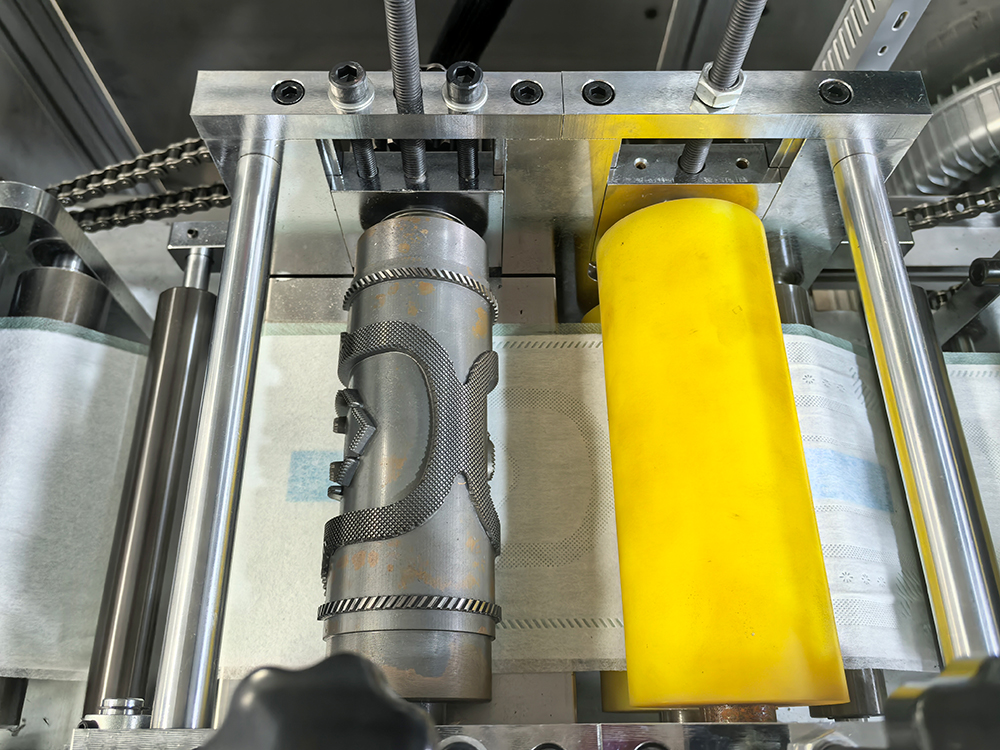

Its core process utilizes ultrasonic technology combined with special steel rollers, achieving a stitch-free and heating-free manufacturing method that is not only energy-efficient and environmentally friendly but also ensures product hygiene and aesthetic quality.

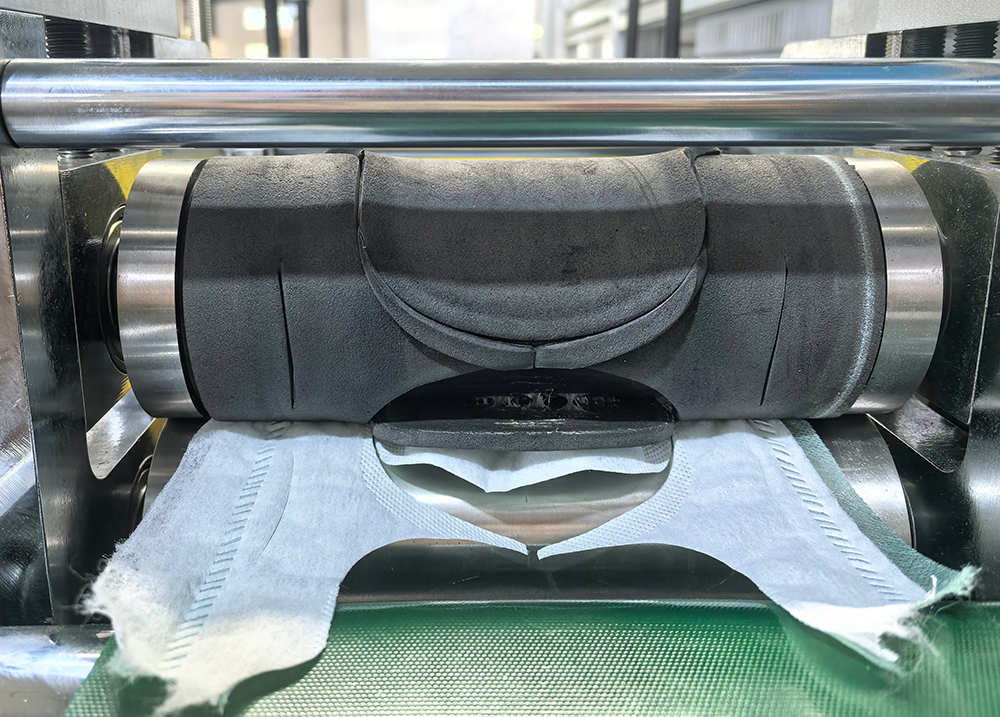

For the cutting stage, the machine is equipped with independent steel molds whose service life is several times longer than that of conventional molds, guaranteeing smooth, wrinkle-free cuts.

The system incorporates an automatic anion patch applicator (standard size: 80*30mm) and features automatic back adhesive and release paper attachment functions, significantly enhancing operational convenience and overall production efficiency.

The powerful ultrasonic system features adjustable power to flexibly adapt to different material thicknesses and welding requirements. Coupled with an advanced high-speed motor and a multi-channel protection system with built-in computer chips, it ensures robust, safe, stable, and reliable host operation.

PRODUCT CONFIGURATION

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power Supply	220V/380V
2	Input Power	7KW
3	Output Frequency	20KHZ
4	Operating Speed	100-120PC/MIN
5	Product Size	26CM*16CM(Other sizes are also customizable）
6	Machine Dimensions (LWH)	420011001600mm
7	Net Weight	1000KG
