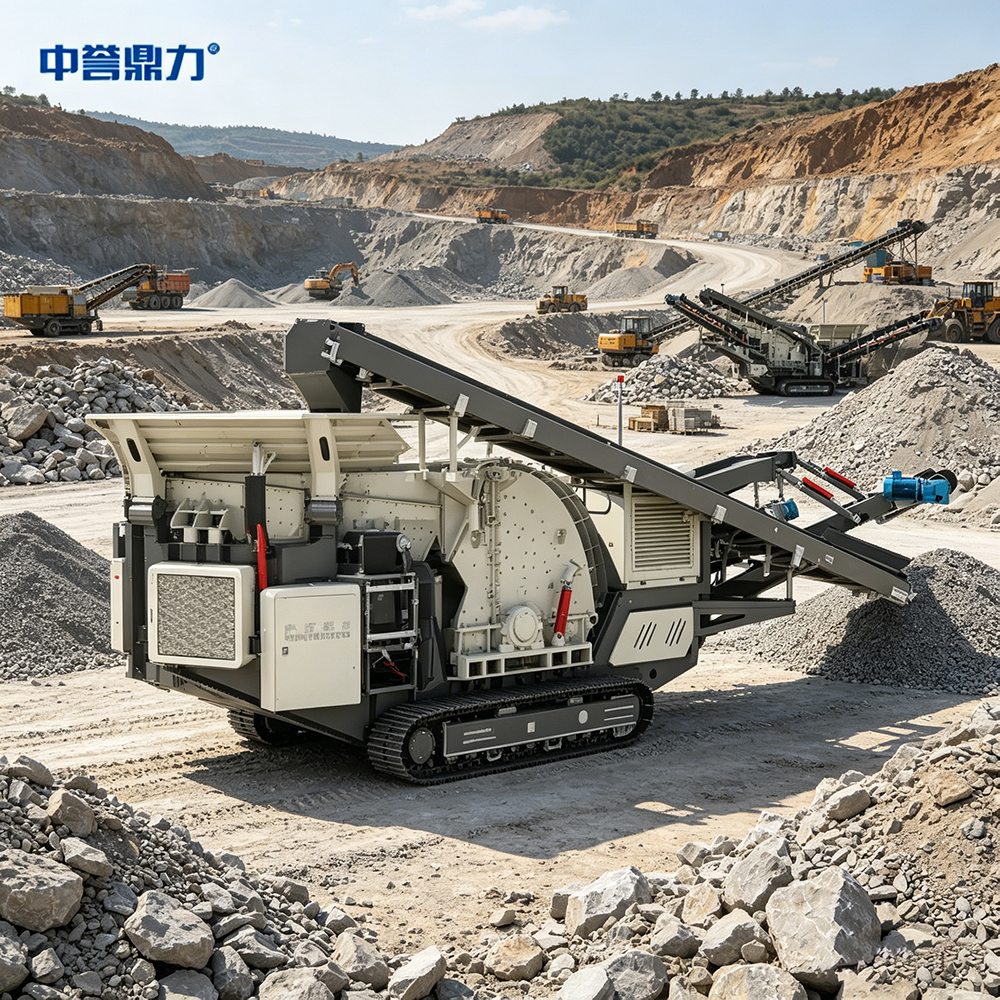

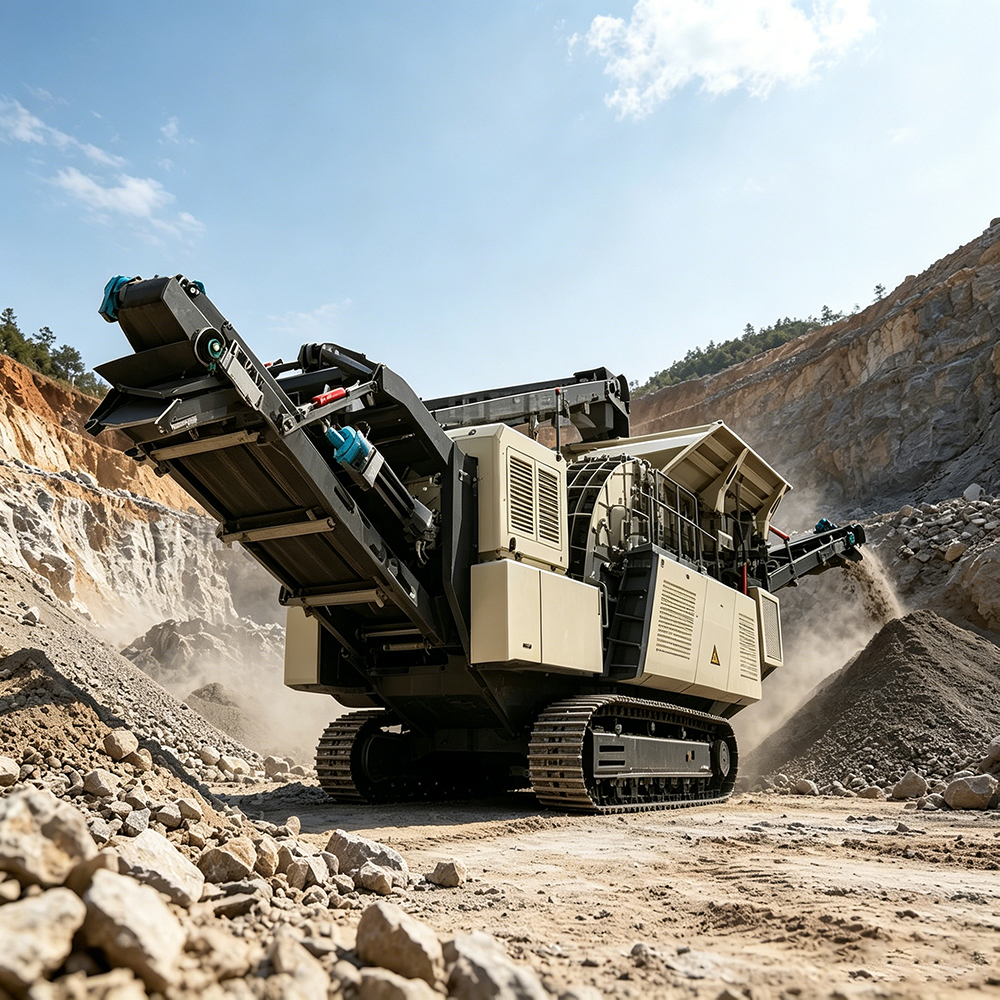

ZYDL DL22 Series Mobile Screener For Mining is a crawler-mounted mobile crushing and screening solution built for mining, quarry, and construction waste recycling. The station integrates feeding, crushing, screening, and conveying into one movable unit — no civil foundation required, on-site setup under 30 minutes.
With diesel-electric dual power drive, the Screening Mobile Station Equipment runs reliably in off-grid remote areas while keeping fuel costs low. The Portable Screening Unit supports both crushing configuration (jaw or impact crusher) and standalone screening configuration, covering capacities from 50–350 t/h.
Best suited for: highway/railway ballast production, mineral ore processing, urban demolition waste recycling, and temporary aggregate supply for infrastructure projects across Africa, Southeast Asia, and South America.
Each unit operates independently or combines with other DL22 modules to form a complete mobile production line.
Our Service
| Stage | Content |
|---|---|
| Solution Design | Configuration selection based on material type, hardness, capacity needs, and finished product grading |
| Manufacturing | Frame stress-tested, branded components (diesel engine / motor / screen mesh), 100% factory test run |
| Installation | On-site guidance and commissioning within 3–5 days |
| After-Sales | Operation training, spare parts inventory, remote troubleshooting support |
Product Parameters
DL22 Mobile Crushing Station (Crusher Module)
| Model | Crusher Type | Max Feed Size | Power | Capacity |
|---|---|---|---|---|
| DL22.9MC1512 | C96 Jaw Crusher | ≤500 mm | 110 kW | 80–180 t/h |
| DL22.9MC1110 | C110 Jaw Crusher | ≤660 mm | 160 kW | 150–350 t/h |
DL22 Mobile Screening Station (Screening Module)
| Model | Screen Size | Power | Screening Layers | Capacity |
|---|---|---|---|---|
| DL22.9MAY2410 | 2400×1000 mm | 30 kW | 2 or 3 layers | 150–300 t/h |
| DL22.9MAY1845 | 1800×4500 mm | 22 kW | 3 layers | 80–150 t/h |
Other configurations available: cone crusher module, impact crusher module, heavy-duty feeder extension. Contact ZYDL for full catalog.
Ethiopia — Highway Construction ABR-90 mobile crushing station supplied graded gravel for the Addis Ababa–Djibouti highway reconstruction project. Output: 120 t/h of 0–20mm aggregate.
"Plug-and-play operation, no foundation needed — saved us two months of site preparation." — Project Manager, Ethiopian Highway Authority
South Africa — Iron Ore Mine DL22.9MAY2410 screening unit deployed at a Northern Cape iron mine, separating lump ore (+20mm) and fine ore (–20mm) streams simultaneously. Daily output: 2,200 tonnes of classified ore.
Chile — Construction Waste Recycling Mobile station processing demolition concrete waste in Santiago, converting debris into recycled base material at 100 t/h. Zero landfill disposal achieved.
Q: Can the Mobile Screener For Mining handle hard rock like granite? A: Yes. The jaw crusher module handles compressive strength up to 320 MPa. For harder abrasive materials like granite and basalt, ZYDL recommends pairing it with the cone crusher module option.
Q: What is the delivery time for a Screening Mobile Station Equipment order? A: Standard models ship in 20–25 days. Custom configurations (special crusher type, extended conveyor, dust suppression) require 35–45 days. Common wear parts are stocked for immediate dispatch.
Q: Does the Portable Screening Unit work as a standalone without a crusher? A: Absolutely. The DL22.9MAY model is a pure screening station — ideal for applications where material only needs classification: ore pre-sizing, compost screening, or aggregate re-screening after stockpile storage.
