Product details

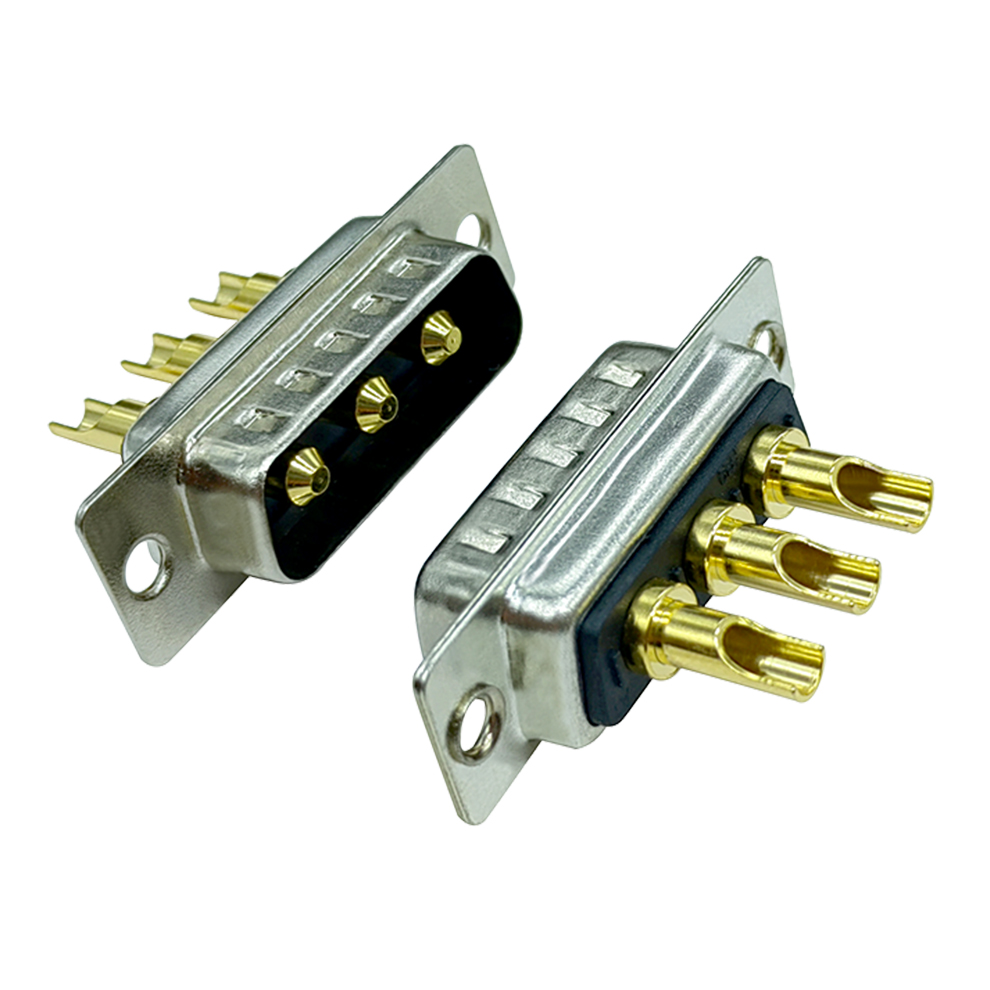

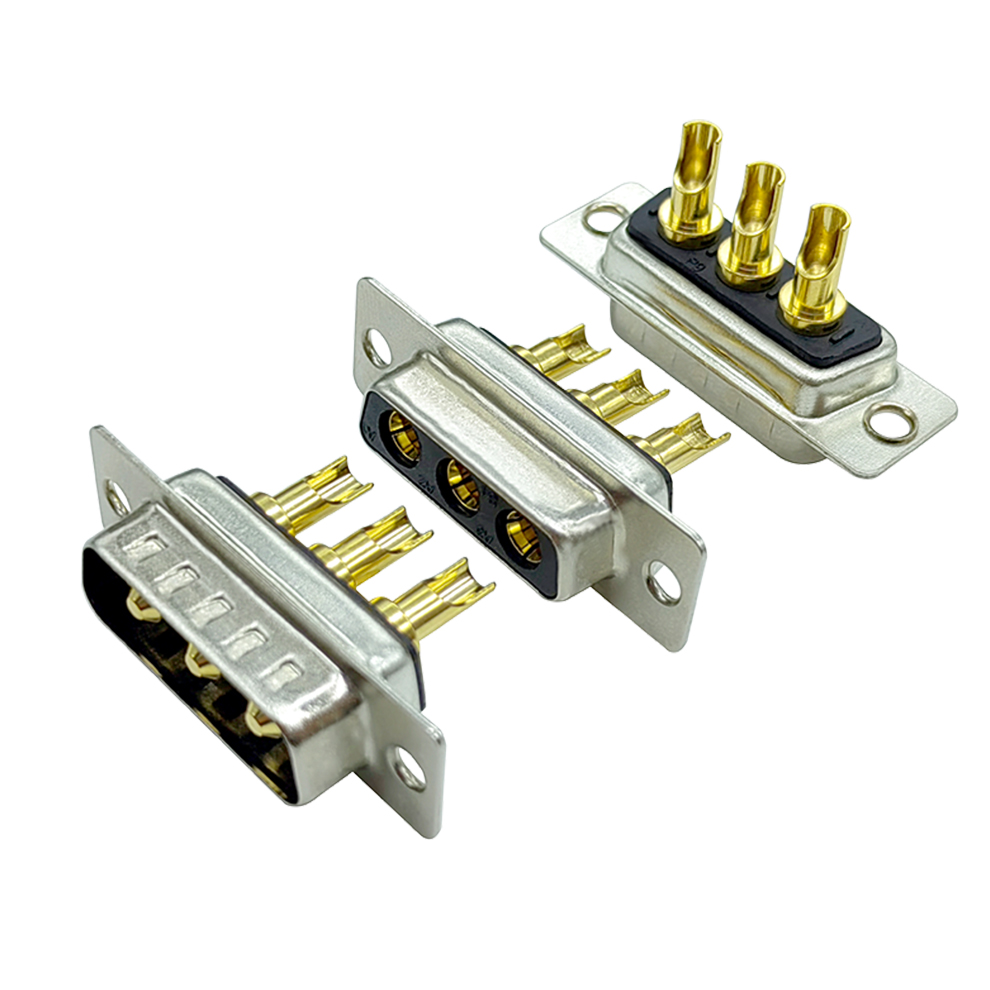

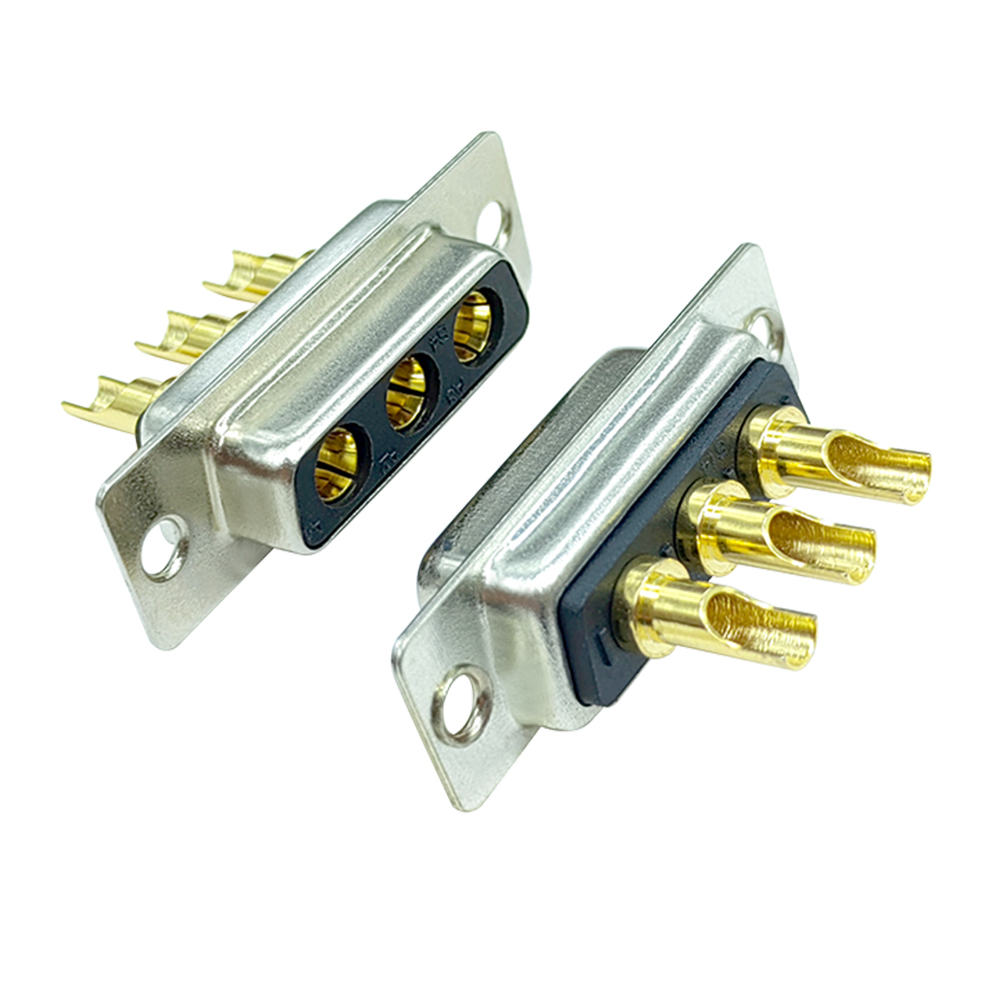

High Current dsub connector for 3W3 Solder Wire:

I. Infrastructure

3W3: 3 needle full high-current d sub connector , wire bonding connection, pure power supply, no signal needle;

D sub male head = pin end, D sub female head = jack end, industrial general match: equipment end fixed female head, wire / active end male head.

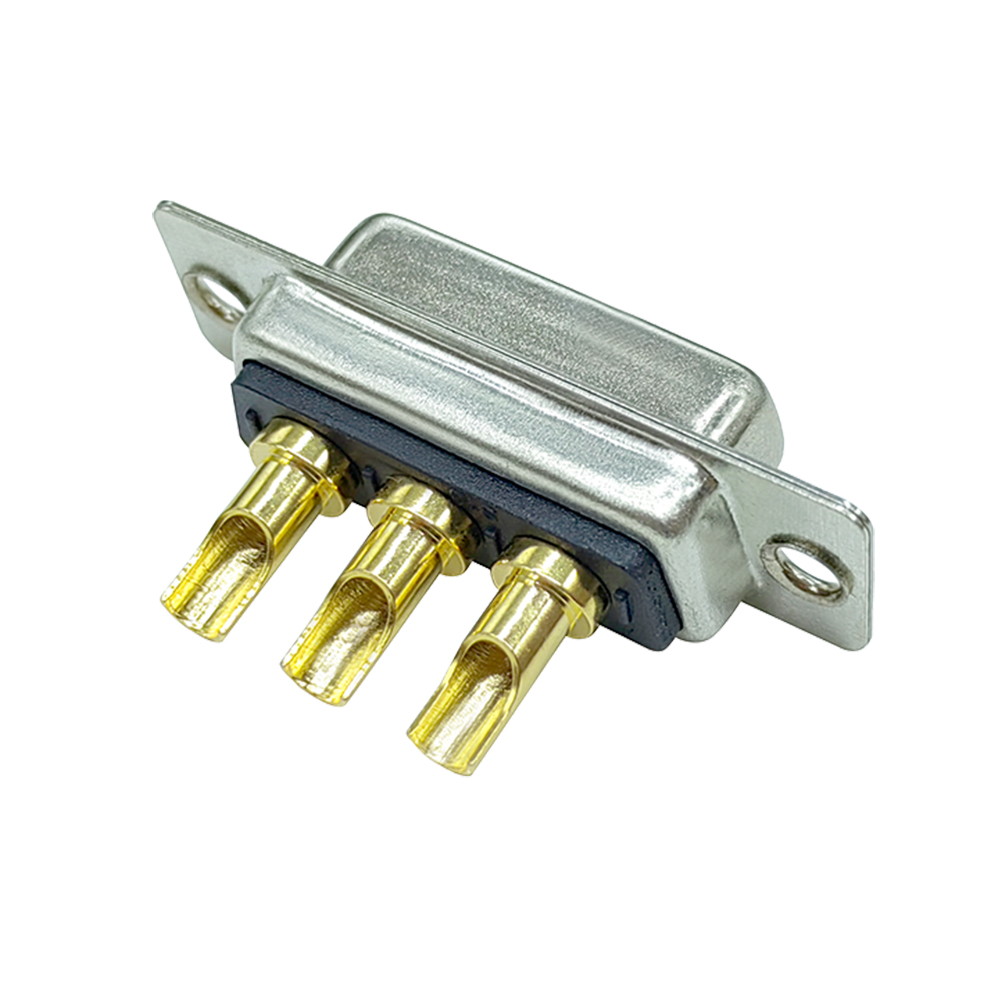

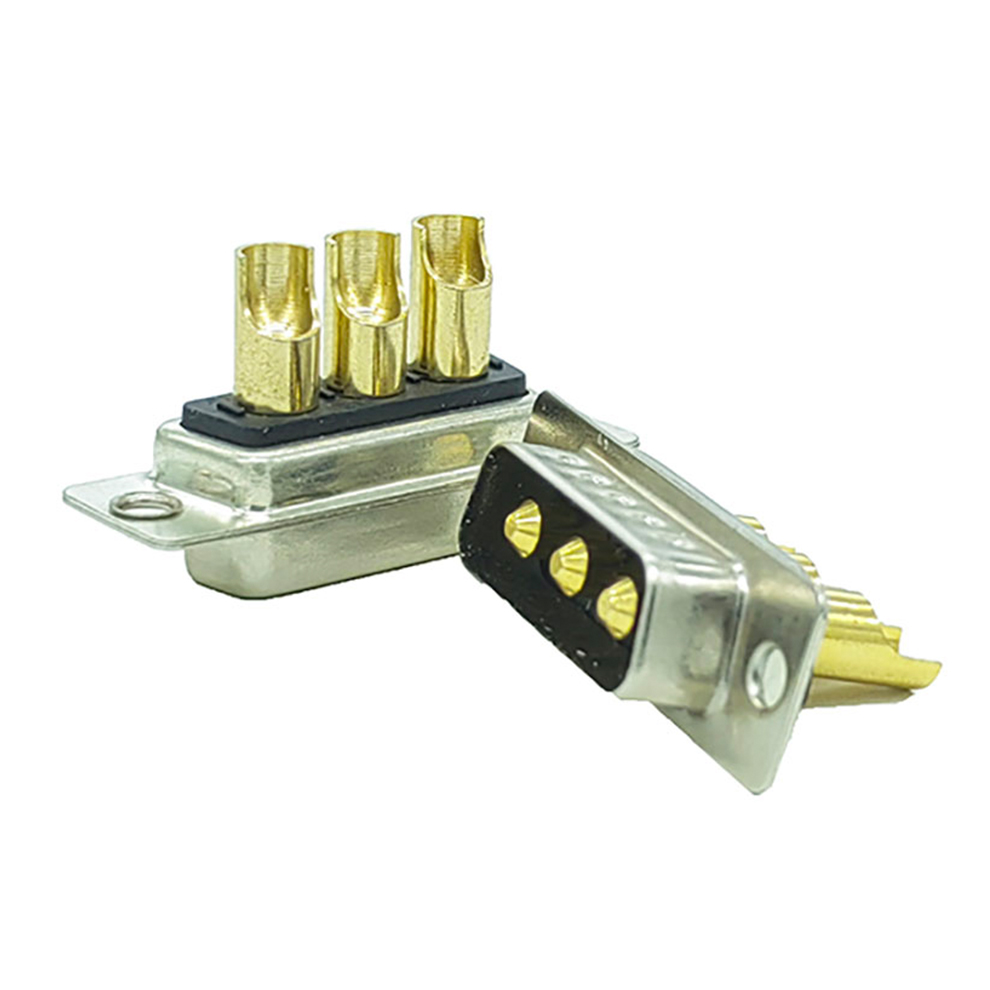

II. D sub male head (3W3 male wire welding type) Applicable equipment / scene

The primary head generally acts as a beam end, an active connection, an external junction, and an insertable moving side

1. Device external power supply beams, extended connectors, custom power beams

2. Laser equipment external power supply module, cooling unit connector

3. Industrial robotics, mobile work pieces, power lines for mobile automation equipment

4. Small energy storage modules, lithium battery modules external cable end

5. External power supply beams for medical equipment and testing instruments

6. External power control lines for construction machinery and vehicle modification equipment

(Summary: walking, pulling, activating, and using the primary head at the end of the cable is a priority.)）

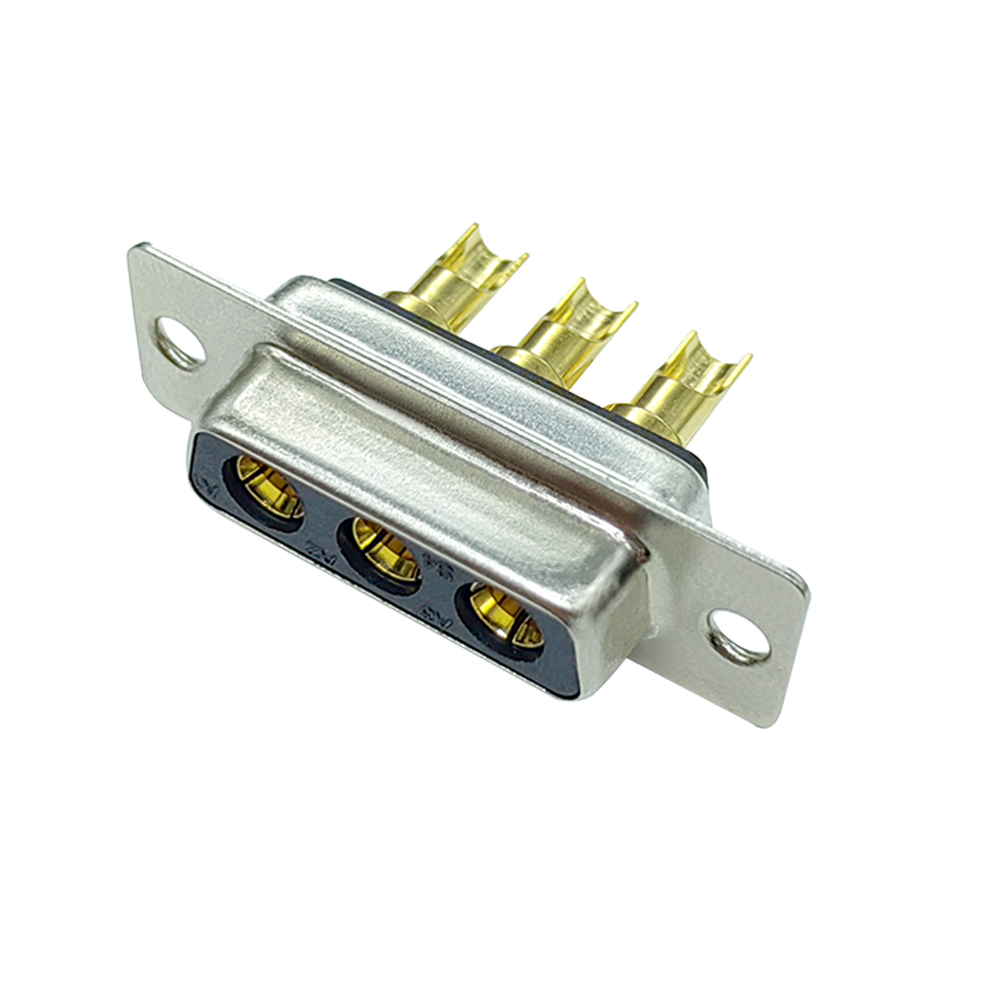

III. D sub female head (3W3 female head wire type) Applicable equipment / scene

The mother head is generally used as the fixed end of the device body, panel installation, internal placement of the machine, and fixed interface.

1. Fixed input interfaces for industrial control cabinets, control cabinets and power chassis panels

2. Variable frequency converters, servo drives, high power power equipment body power station

3. Laser welding / cutting equipment, fixed power supply interface for large industrial machinery

4. Charging station module, power control box, body port for energy storage unit

5. CNC machine tool, packaging machinery, textile machinery body fixed power docking

6. Test instruments, aging equipment, fixed ends of industrial power load bodies

(Summary: The machine body, the panel installation, the stationary motion, and the input end of the equipment prefer the mother head.)）

IV. Industry-wide matching rules

1.Machine and equipment casing → mount mother (anti-touch, anti-short circuit, safety)

2.Wires, bundles, plug lines → Make the head (easy to plug and replace)

3. Standard for high-current industrial parts: mother-stand assembly, head to wire

V. Complementary advantages

3W3 welding wire, strong wiring, vibration resistance, carrying current, suitable for

Industrial high-power power supply, DC equipment, industrial control power, small new energy storage, laser equipment and other harsh working conditions

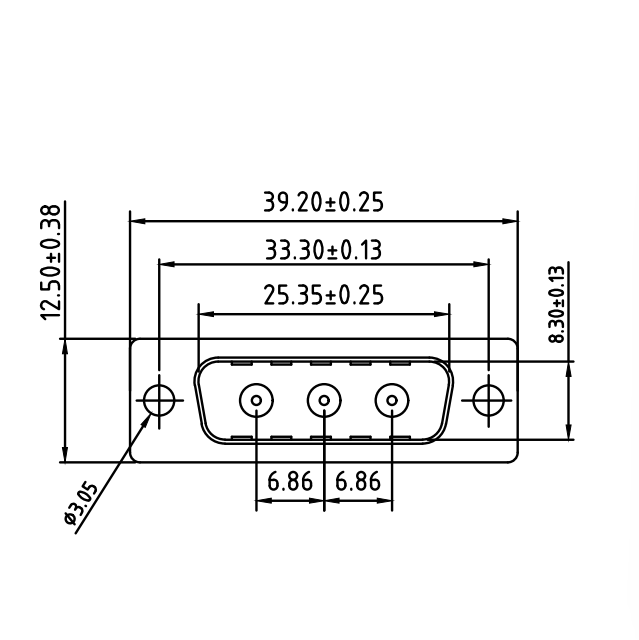

3 pin d connector technical parameters:

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
