Wire Bond 7W2 High Current dsub connector are the best in the D-Sub Hybrid Power D-Sub Connectors series. The integrated layout of 2 high-current power pins + 5 signal pins is smaller than other mixed D-Sub connectors, saving space and ensuring stable signal output. This d connector will be chosen in many areas. The needles are all solid-core gilt and support customization.

The solder wire design is the core highlight of this product, with a 180 ° solder installation.Built for cable end docking, outdoor work conditions, mobile devices and high-power electrical connectivity scenarios, it can simultaneously achieve high current power supply and control signal synchronous transmission, and is a cost-effective choice for power + signal integration connectivity. The whole uses a solder wire structure, the terminal supports direct peeling solder wire processing, and is suitable for mass wire beams customization, long wire docking, and mobile end plug production. Unlike the flat-ended, bent and welding models, the welding model is more suitable for the use of finished cables, mobile plugs, and external connectors, and is flexible in assembly, and convenient in later maintenance and replacement.

The enclosure uses a high-strength metal shielded shell, which is resistant to electromagnetic interference, pull and knock. The insulation body uses high-temperature flame retardant material, which is good insulation and resistant to aging; The contact terminal is gilded with high-quality copper alloy, with low conductivity loss, antioxidant resistance and wear resistance, and can maintain stable contact for long-term insertion and high-frequency use.

Core performance advantages

1. Large current carrying

The 2 lines of special power pins are designed for high power loads, with strong carrying capacity, and can meet the high power supply needs of automotive, mobility equipment, industrial power supplies, small servo equipment and other high power supplies. The power supply is stable and does not generate heat.

2. Signal power sharing

There are 5 independent signal pins, strong and weak power transmissions, and the power current and control signal do not interfere with each other, ensuring the accurate transmission of equipment instructions, and eliminating signal disturbances and disconnections.

3. The welding line process is highly adaptable

Pure solder wire terminal structure, easy to welding and easy to process, is suitable for mass production processing of wire carriers, can be customized for different wire diameter cables, and is satisfied with high-current coaxial wire pressing and welding, resistant to pulling and breaking.

4. Industrial-grade durable protection

It has excellent earthquake resistance, shock resistance, and high temperature resistance, is suitable for complex work conditions such as workshop production, mobile equipment, outdoor cabinets, and repeated insertion and uninstallation is not easy to loose, and the connection security is high.

Main application scenarios

1 Electric scooter, scooter, and scooter charging interface and power connection cable

2 Industrial small servo drives, step motor power control lines

3 Switching power supply, energy storage module, external power supply interface for industrial voltage stabilization equipment

4 external signal for communication terminals, industrial control equipment + comprehensive power supply cable

5 High-power external wire beam connections for medical equipment and testing instruments

6 Automate small equipment mobile cable docking, mobile end plug support

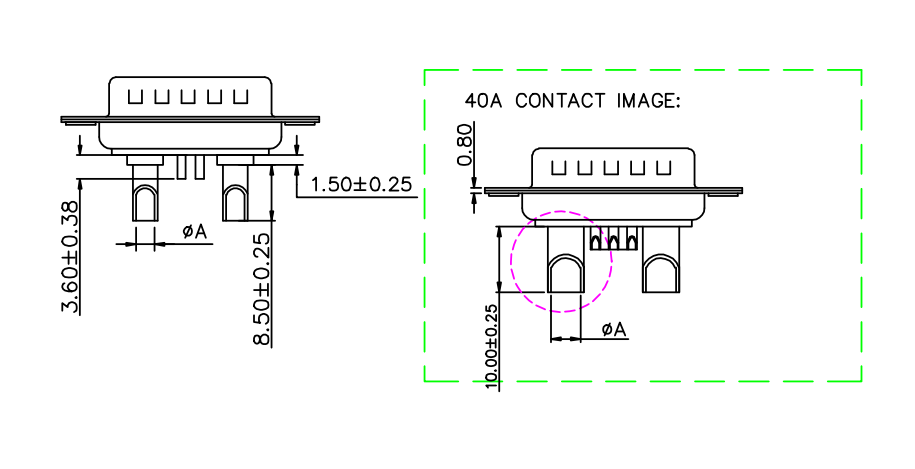

Technical Parameters:

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
