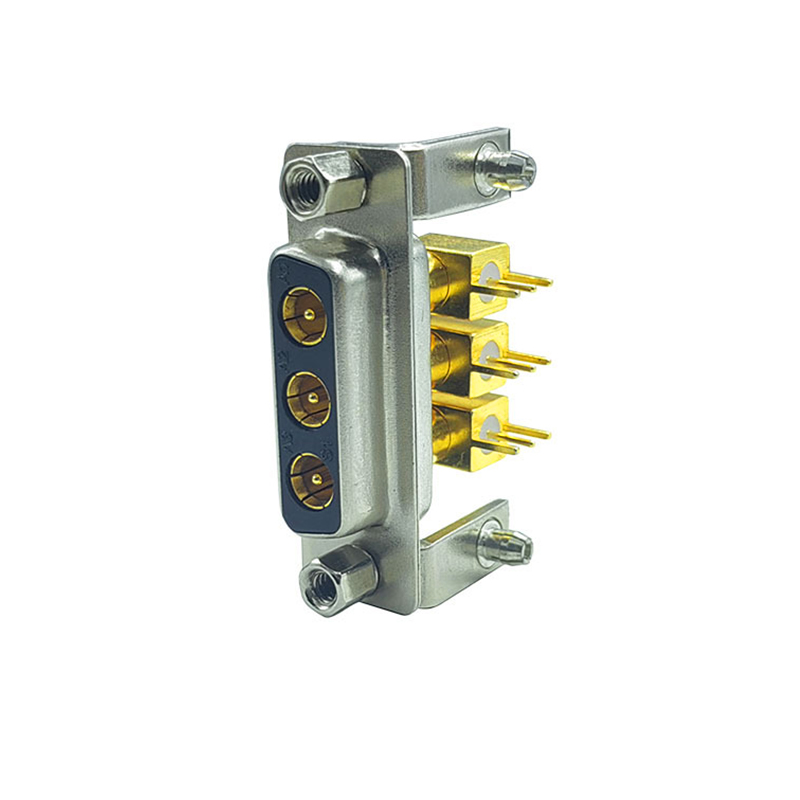

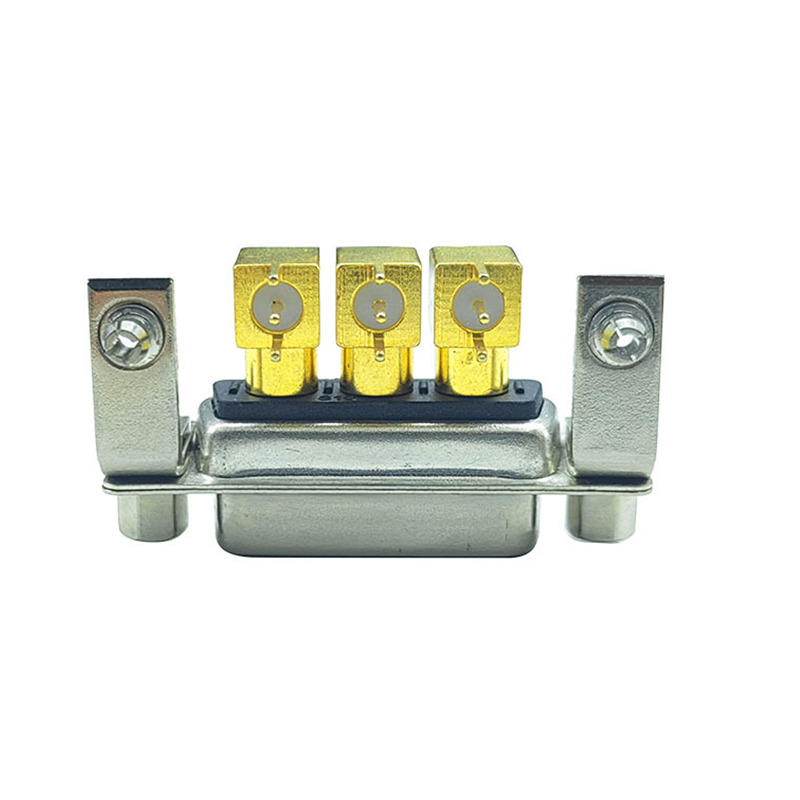

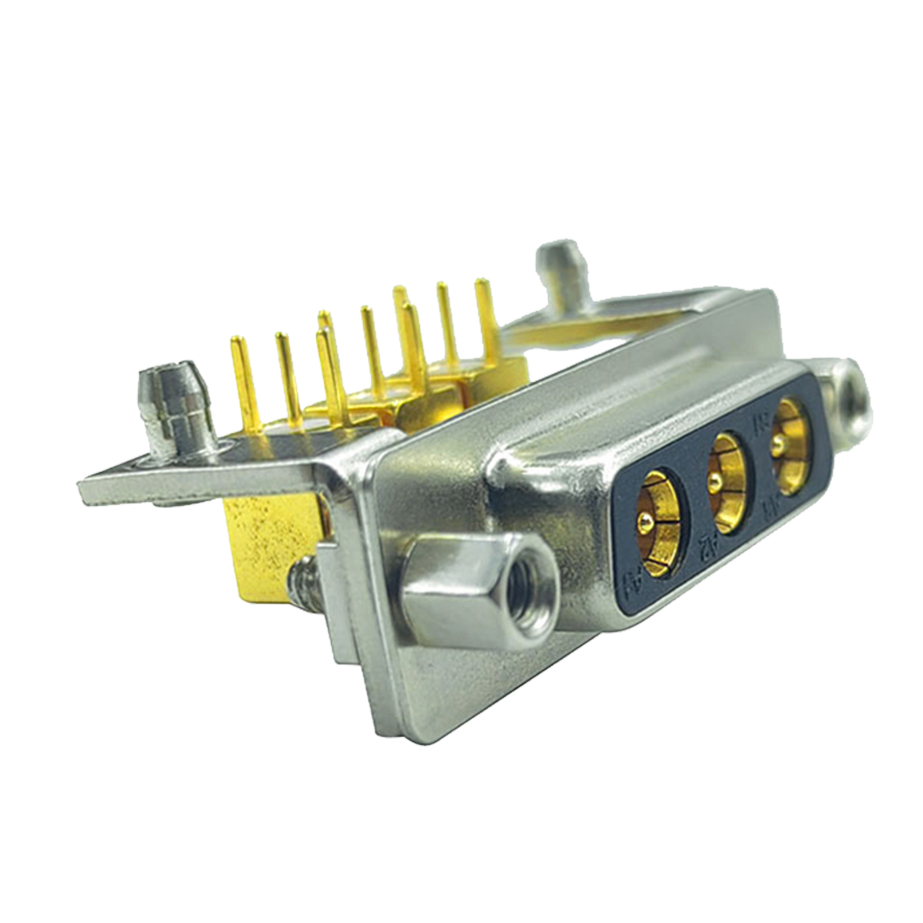

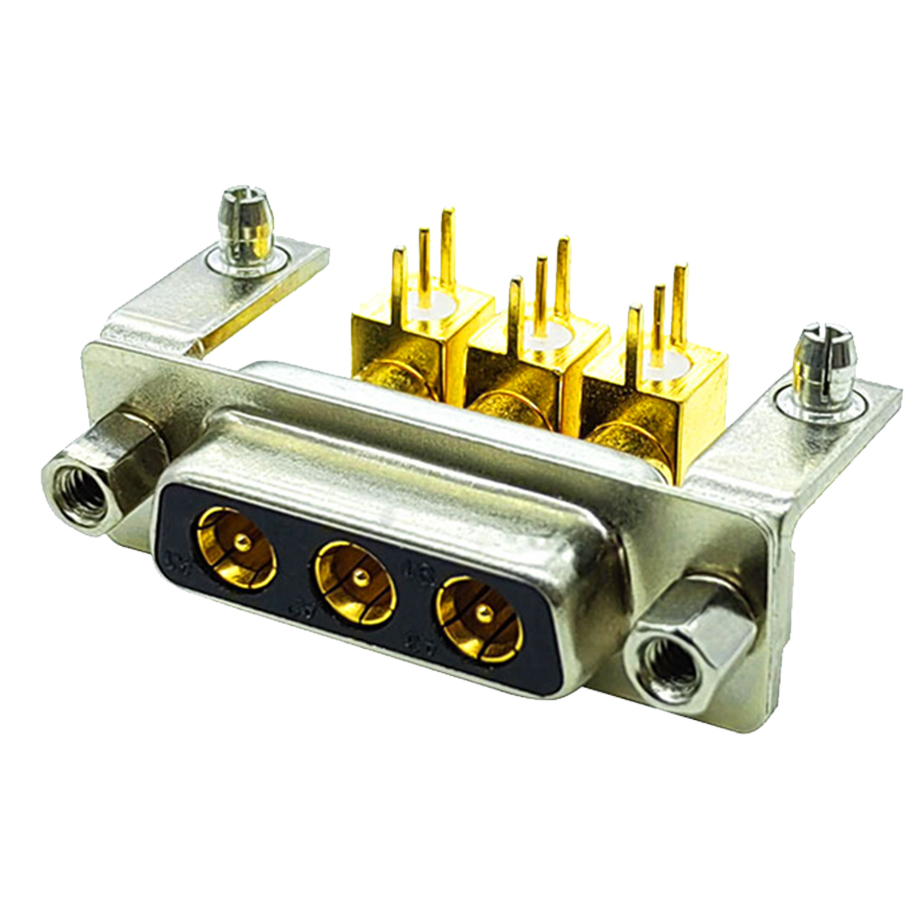

The All-in-One Compact Interface Specialist: An Introduction to the 3W3 RF d sub connector
Against the trend of modern electronic devices growing increasingly miniaturized yet functionally complex, engineers are frequently confronted with a critical challenge: how to process RF signals, high-current power and general signals simultaneously on a limited circuit board. The d connector 3W3 female and male is a highly integrated connection solution engineered to address such mixed-signal transmission requirements. It retains the classic D-Sub housing while featuring disruptive internal innovations that integrate contacts of multiple distinct signal types within a single unit.
The seemingly cryptic designation "3W3" directly indicates its core layout. It signifies that the d connector housing contains a total of three contact positions. These three positions can be fully fitted with coaxial contacts for RF signal transmission, or flexibly mixed with high-power power contacts and standard signal contacts according to design specifications. Thanks to this modular design, one single interface can perform multiple tasks including RF signal transmission, power supply connection and control signal routing.
Core Features and Performance Advantages
Widely adopted across communications, industrial, medical, aerospace and other sectors, the 3W3 RF D-Sub connector stands out with the following key performance attributes:
Flexible Mixed Layout for 3W3 RF D-Sub Connector
Built on the 3W3 contact layout, users may freely combine three types of contacts — RF coaxial, power and signal — within one interface to suit specific application scenarios. This multi-functional single interface effectively reduces the number of ports on equipment and improves overall system integration.
Superior RF Transmission Performance
To accommodate high-frequency signal transmission, its RF coaxial contacts are typically designed with a 50 Ω characteristic impedance. The operating frequency range generally spans 0–2 GHz, while certain variants support 0–1 GHz. The robust metal housing delivers effective EMI/RFI shielding to guarantee pure signal transmission.
High Current Carrying Capacity
When deployed for power delivery, the connector boasts remarkable power performance. Depending on the model, each individual power contact supports rated current ranging from 1 A up to an impressive 40 A, fully meeting the power supply demands of most equipment.
Rugged Mechanical and Electrical Design
Versatile Termination Options: Supports 90° right-angle PCB mount, 180° straight PCB solder and solder cup termination for cable assembly.
Secure Mating: Equipped with screw-locking or latching mechanisms on both sides to maintain stable connectivity under high-vibration environments.
Wide Operating Temperature Range: Operates reliably from -55°C to +12
If you are interested in the product, contact 2bvideo.com for more information for more information
