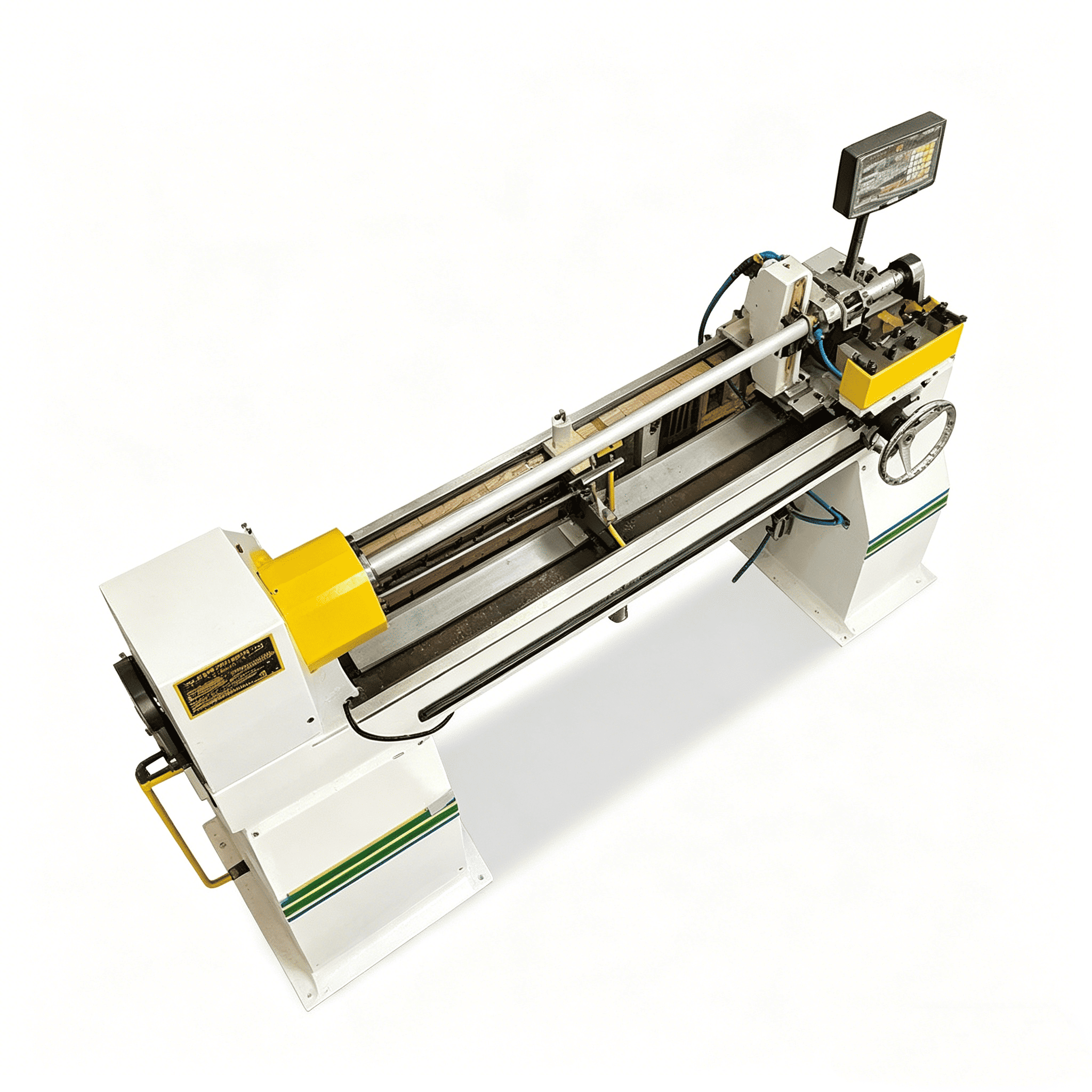

This high-performance paper and film cutting machine is engineered for precision slitting of protective films, paper, tapes, wallpapers and other flexible materials. Designed with industrial-grade structure and user-friendly operation, it supports full cutting, half cutting and slicing in one feeding, greatly improving production efficiency for packaging and material processing workshops.
MAIN PERFORMANCE
1. Equipped with a 10-inch sharp circular steel blade, delivering clean, smooth and burr-free cutting surfaces.
2. Pneumatically driven automatic blade feeding ensures stable blade travel and consistent high-quality slitting.
3. The dwell time after blade penetration is adjustable to match different material characteristics and thicknesses.
4. Precise control over the circular blade’s cutting depth effectively extends service life and reduces maintenance cost.
5. Pneumatic chuck clamping system enables faster, easier and more reliable material fixing.
APPLICATION RANGE
Ideal for slitting protective film, wood grain paper, adhesive tape, wallpaper and similar flexible materials.Supports full cutting, half cutting and slicing operations.One-time feeding design significantly boosts productivity.Widely used in profile packaging, printing, packaging materials, decoration materials and other industries.
TECHNICAL PARAMETERS
1. Machine Dimensions (L×W×H): 2500 × 1300 × 1300 mm
2. Power Supply: Three-phase four-wire 380V
3. Max. Cutting Length: 1300 mm
4. Net Weight: 500 KG
5. Max. Cutting Diameter: 192 mm
6. Min. Cutting Width: 3–1300 mm
7. Rated Power: 2 KW
8. Recommended Power Cable: 4×1.5mm² copper wire
