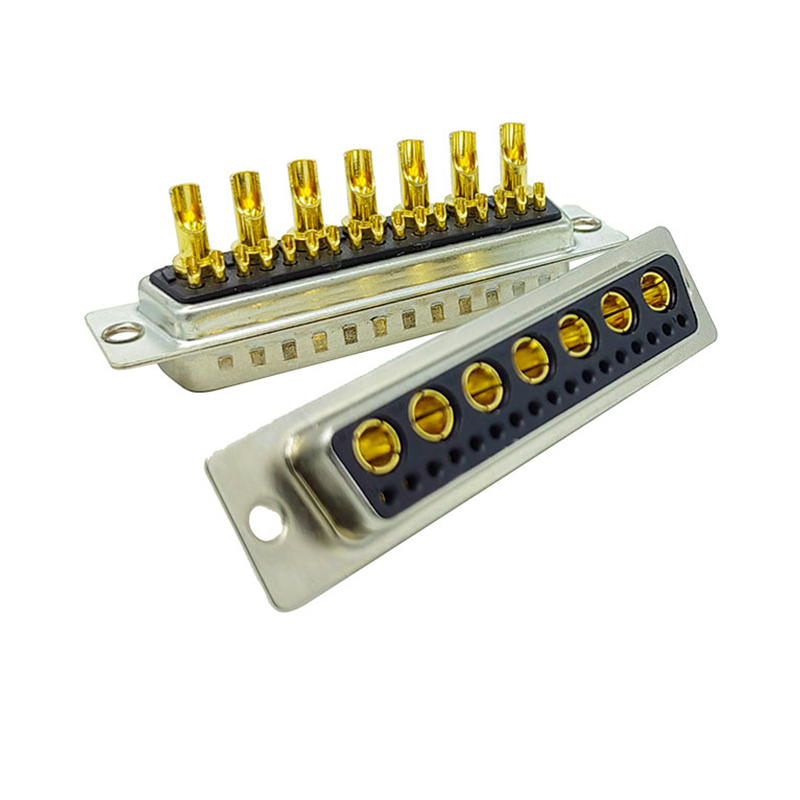

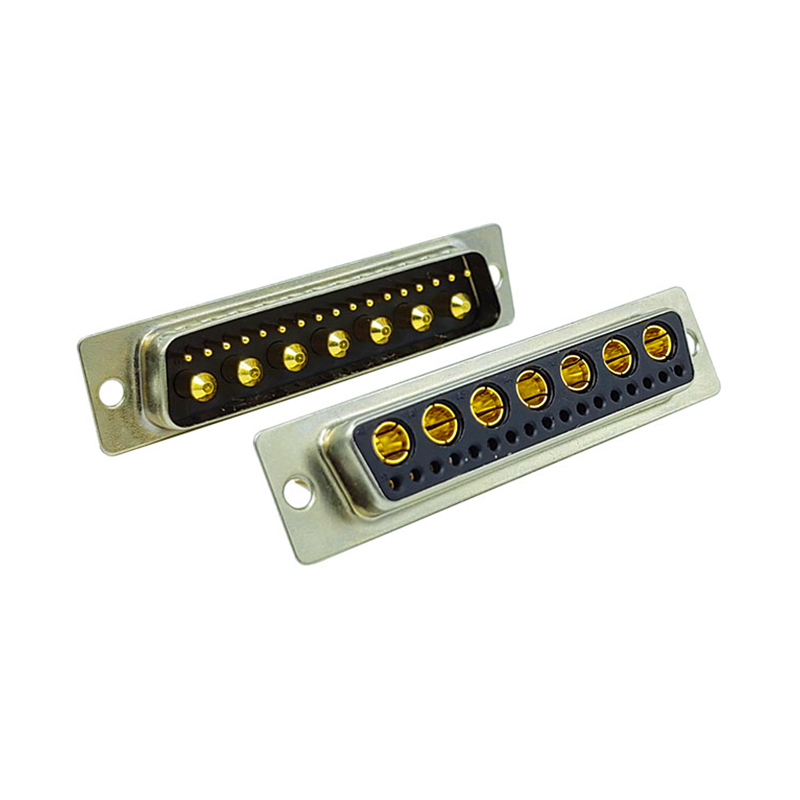

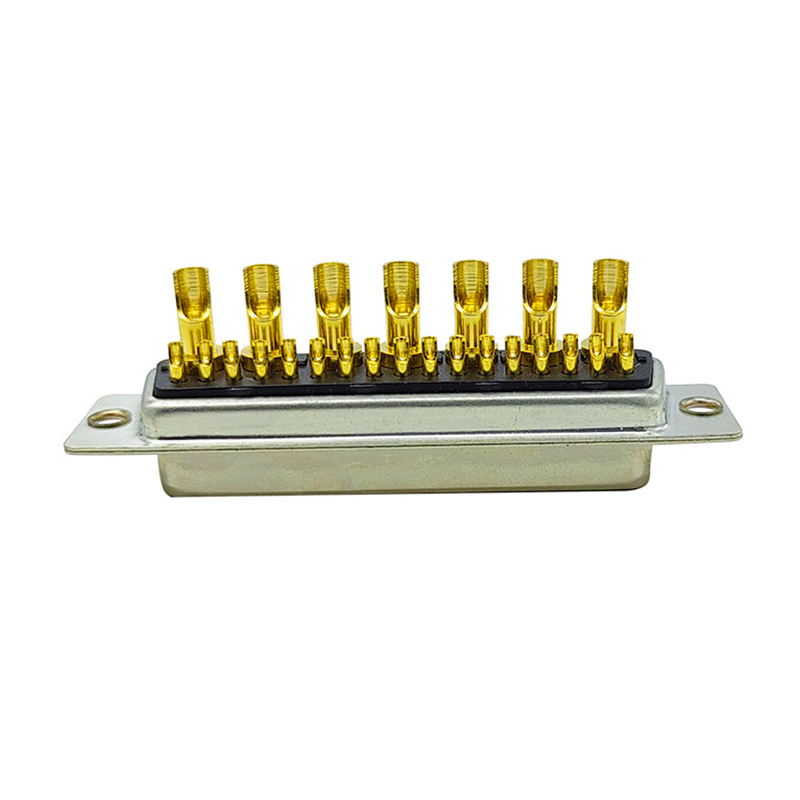

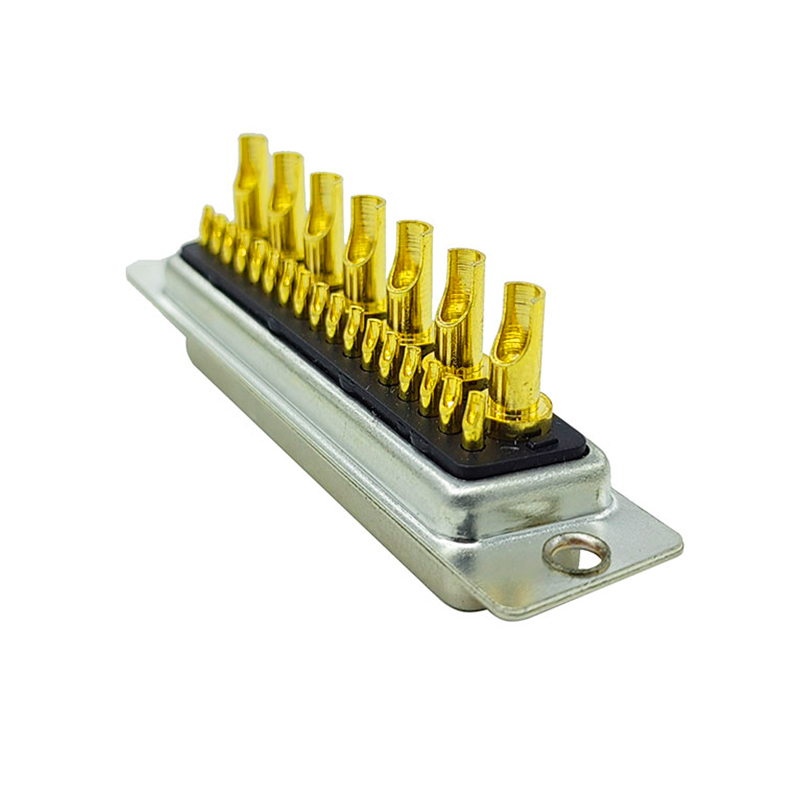

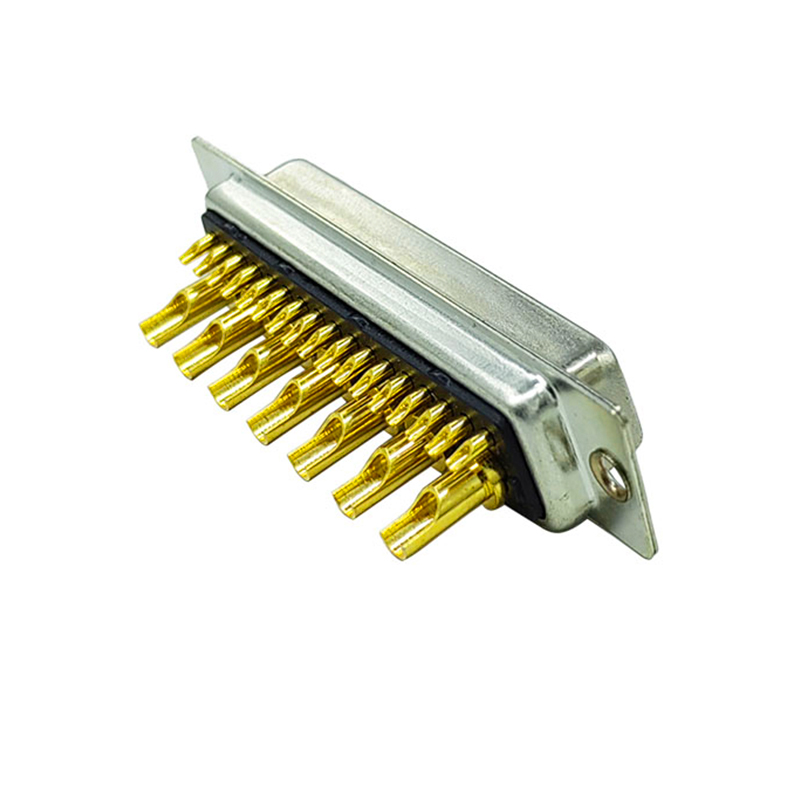

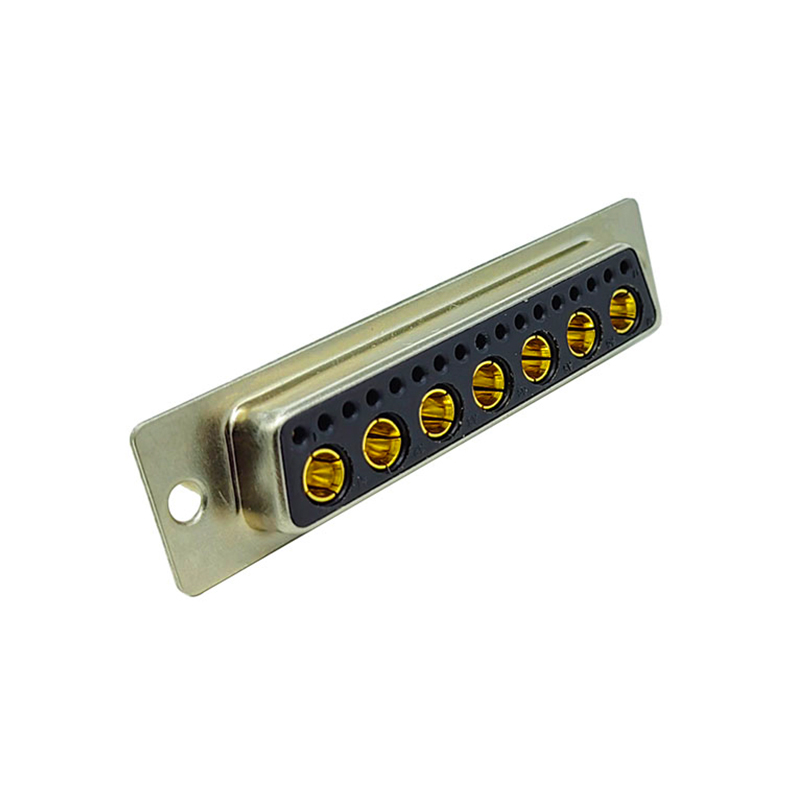

Power D-Sub Connectors 24 pin：

24W7 solder wire high current DSub connector is a highly tight hybrid needle-type industrial-grade connector, which combines high current power transmission + multichannel signal control in one, and uses solder wire type outline structure, which is designed for beam end, mobile docking, and high power multisignal integration equipment. Needle configuration is reasonable, load is strong, and wiring is simple.

Product structure and design highlights

24W7 high density d sub connector is a classic hybrid power type D specification, with an overall needle layout: 7 large current power needle + 17 signal needle, a high density integrated design, which replaces multiple separate interfaces, greatly simplifies device opening and internal wiring, and makes the device structure more compact.

The body uses a solder wire structure, the bare end of the terminal is directly soldered, and it is suitable for the production of various custom wires, long wires, mobile plugs, and external cables. Compared with plate-inserted and curved connectors, solder lines are more suitable for finished cable, mobile docking ends, on-site wiring modifications, welding operation is simple, production processing is convenient, and later maintenance and wire replacement is easy and efficient. The shell adopts thick nickel-plated metal shell, with electromagnetic shielding performance, effectively resist the industrial field EMI electromagnetic interference. This is a high-quality high-power D-type connector.

Core performance advantages

1. Large current heavy load capacity

The 7-way large terminal exclusive power needle carries large current loads, which can steadily meet the power supply demand of medium and large power equipment. Long-term load is not easily heated, pressure reduction is small, and power transmission is safe and reliable.

2. Multi-signal integrated transmission

Seventeen channels of small terminals have high density signal pins, centrally transmit control signals, data signals, switching instructions, strong and weak power are separated, power and signal do not interfere with each other, ensuring the accurate and stable operation of the equipment.

3. Welding line process adapted to volume production

Pure solder wire terminal design, compatible with multi-specification line diameter welding, is suitable for batch processing of beams plants, custom long lines, bending mobile beams, resistance to pulling, resistance against swinging, and suitable to the frequent bending use of mobile equipment.

4. Industrial Grade Environmental Adaptation

It has excellent earthquake resistance, shock resistance, high temperature and humidity resistance, and can cope with harsh industrial environments such as workshop dust, temperature difference change, and continuous vibration. The machinery has a long service life, and it is not easy to loose after repeated insertion.

Extensive application scenarios

Industrial automation equipment, large servo system, robot power + signal comprehensive beams

New energy equipment, energy storage power, high-power industrial control power external connectors

Industrial control cabinet, signal equipment, automatic control host I / O external interface

Medical testing equipment, intelligent storage AGV, large intelligent equipment integrated connection

Outdoor electrical equipment, vehicle electric control system, control wires for large mechanical equipment

Technical Parameters

Rated Current Male: 10AMP~40AMP

Rated Current Female: 10AMP~40AMP

Contact Resistance: 25mohms MAX

Insulation Resistance: 1000Mohms MIN

Withstanding Voltage: 1000VRMS

Operating Temperature: -55°~125°

Mechanical Life: 500 Cycles

Applicable Wire Gauge: AWG 8/10/12

Mounting Method: Cable Plug-In

Packaging Method: Blister/Outer Carton

Environmental Requirements: Meets EU Environmental Requirements

Brand: pandi

Application Scope: Mechanical Equipment, CNC Systems, Instruments & Meters, etc.
