DR25 Bending d sub female

DR25 Bending d sub female

3 month ago

2 0

Dongguan Pandi Electronic Technology Co., Ltd.

 4 month year

Product details

Pan Di Electronic Technology Co., Ltd. in Dongguan has a history of 18 years and specializes in the development and manufacturing of d sub connectors and related products. Waterproof connectors, high-current connectors, and car pin connectors are the main categories of Pan Di’s offerings. D Sub 25 Connector Male is one of our flagship products, with a wide range of applications.

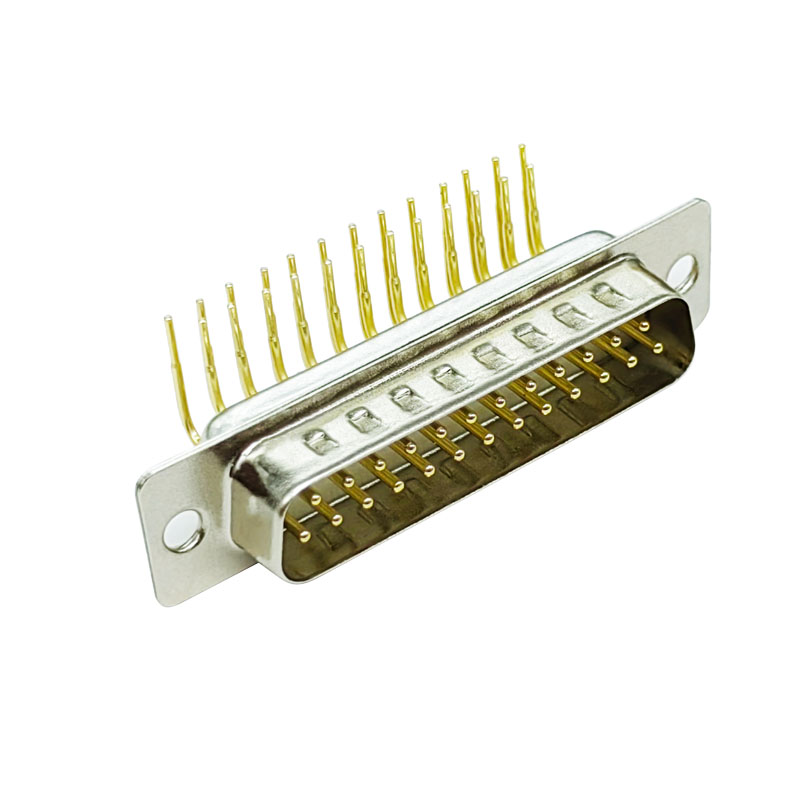

DR25 is DB25 90 ° bend (right angle) PCB version, commonly known as bend d sub connector 25 pin, mostly used for the side of the board end, space limited scene.

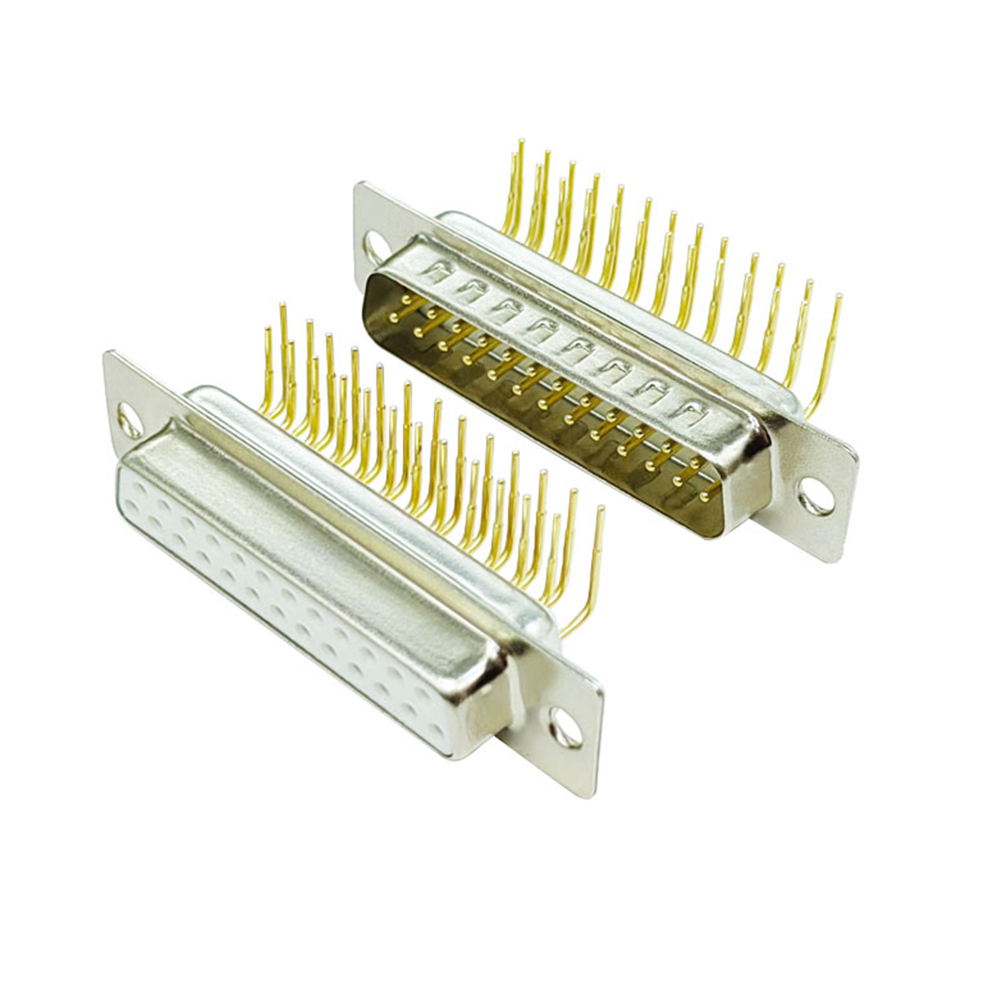

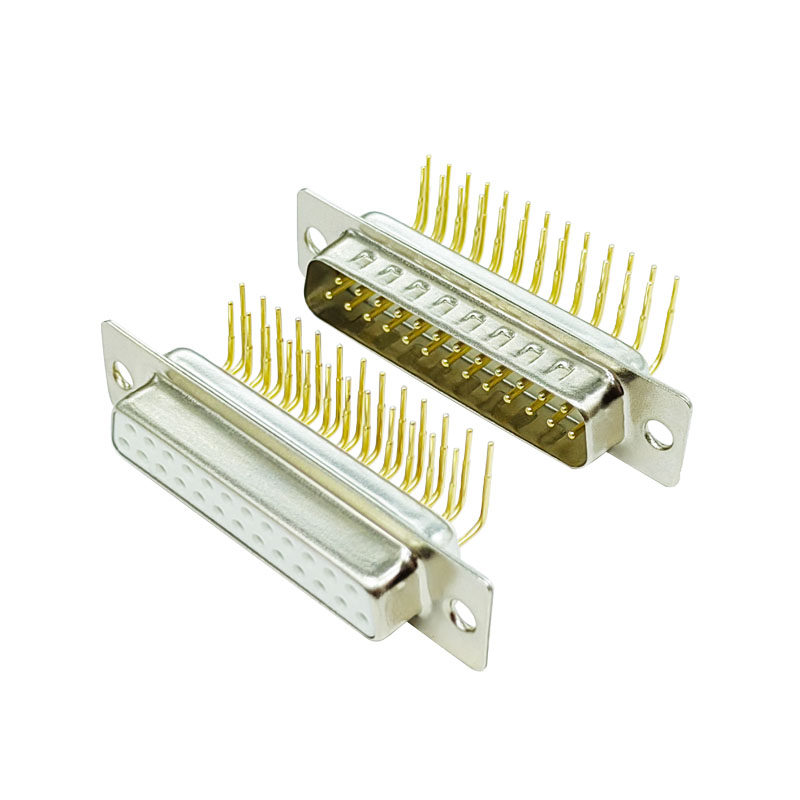

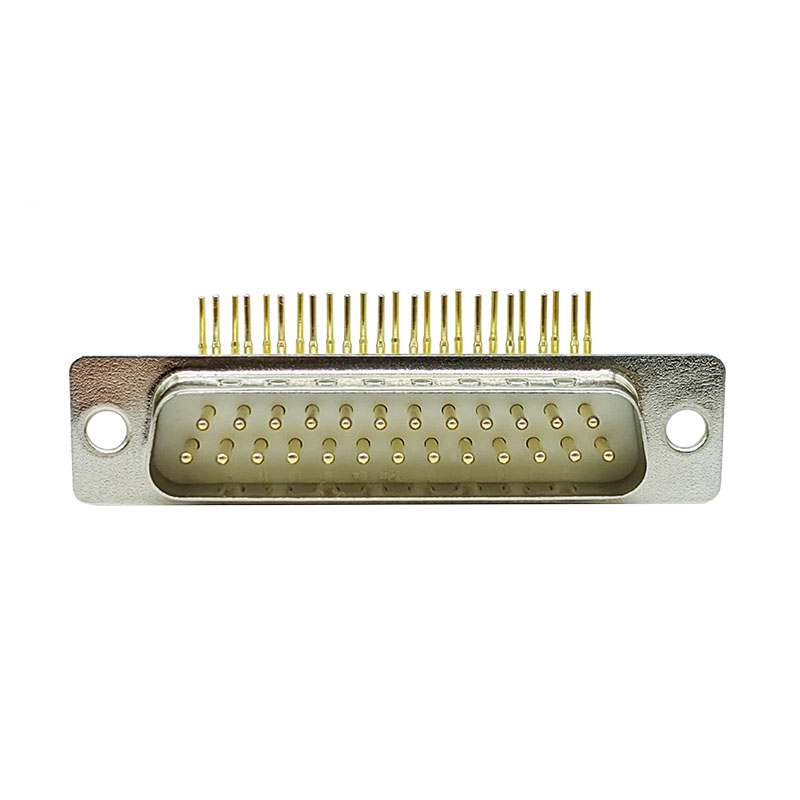

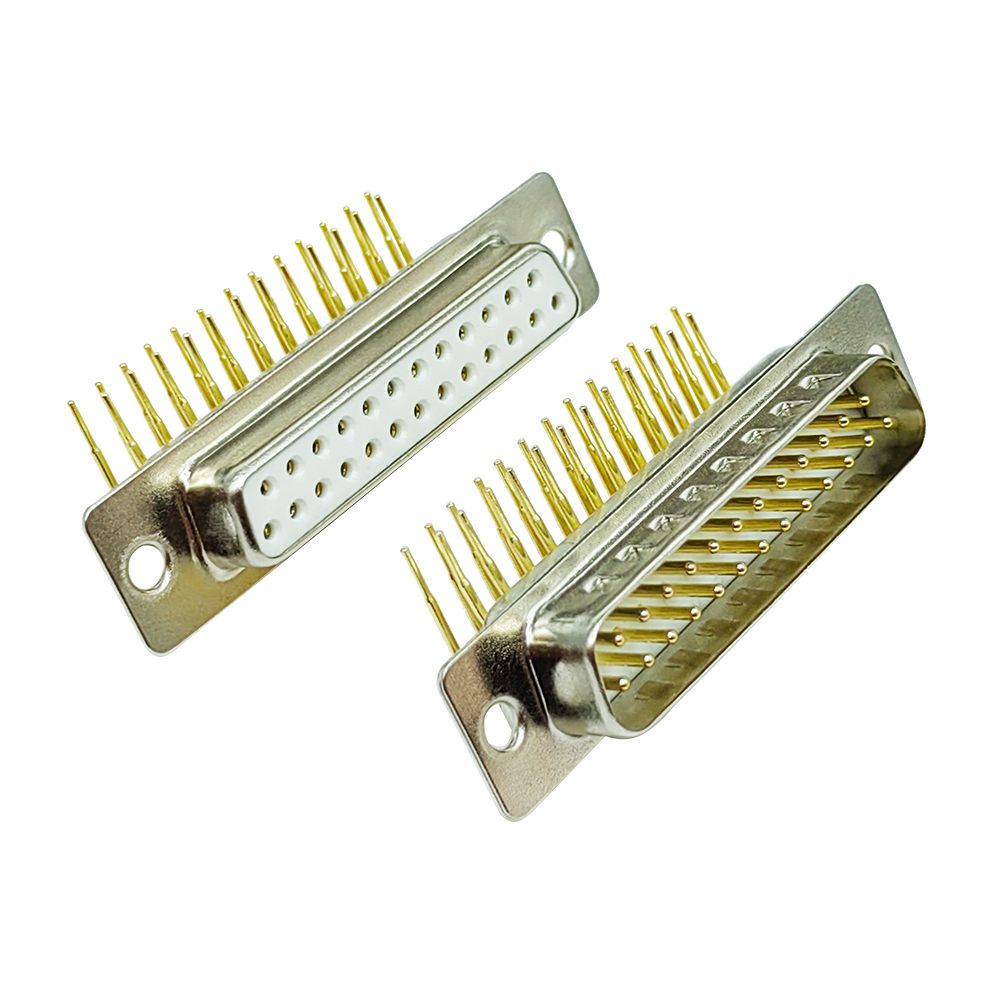

DR25 = D-Settacle 25: The 25 pin, curved female seat (hole) is most common, also have curved male seat.

Pin: 25 Pin double row (13 + 12), spacing 2.74 mm, row spacing 2.84 mm.

Installation: 90 ° Cylindrical (right angle), end foot down, interface side to side, solder plate on the edge of the plate.

Installation of this d connector

Installation: 90 ° straight, interface side out

Suitable: narrow space, board-side wiring (embedded, dense wiring)

Common: Multiple parent seats (holes)

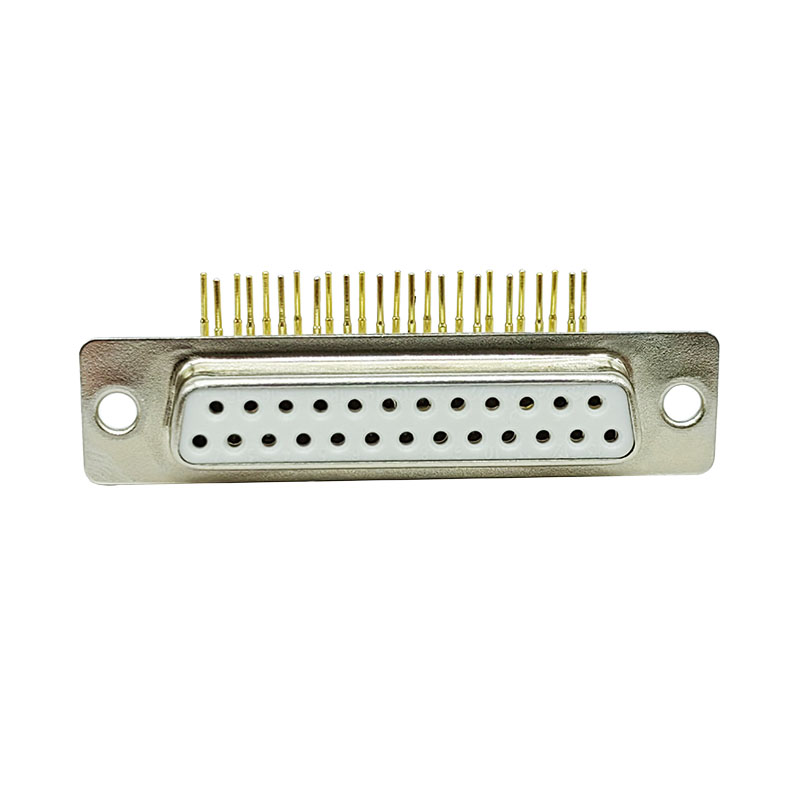

25 Pin D Sub Female Vga core parameters (industrial grade)

Stitch: 25 P (13 + 12), Phosphorus Copper Gold / Tin Plating

Current / Voltage: 3 A 30VDC, 1000 VAC / 1min

Insulation: ≥ 100MΩ @ 500V;Contact resistance ≤ 0.03 Ω

Housing: Metal shield (EMI resistant), flame retardant PBT (UL94 V0)

Fixed: spear + screw, earthquake proof and pine

Temperature: -55 ° C ~ + 70 ° C, plug life ≥ 5000 times

25 pin d sub connector Typical applications

Industrial control: small PLC, IO module, embedded industrial control machine (save space on board edge)

Communication equipment: routers, switches, serial port servers (high density side interfaces)

CNC / Instrumentation: machine tool controllers, test equipment (multi-signal mixing, anti-interference)

Railway transportation: onboard control units (strong vibration, wide temperature, high reliability)

Electrical Performance

Rated Current (Pin): 5A

Rated Current (Socket): 5A

Contact Resistance: 25 mΩ MAX

Insulation Resistance: 1000 MΩ MIN

Dielectric Withstanding Voltage: 1000 VRMS

Operating Temperature: -55°C ~ 125°C
