Product details

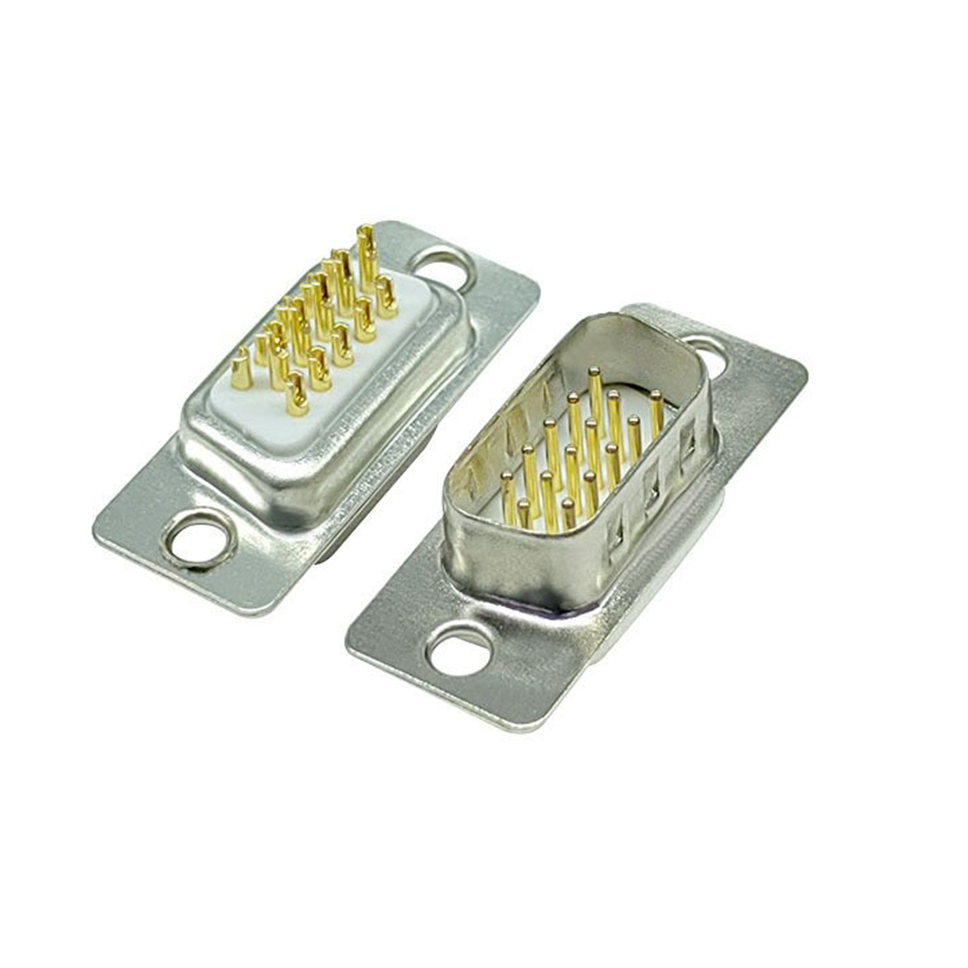

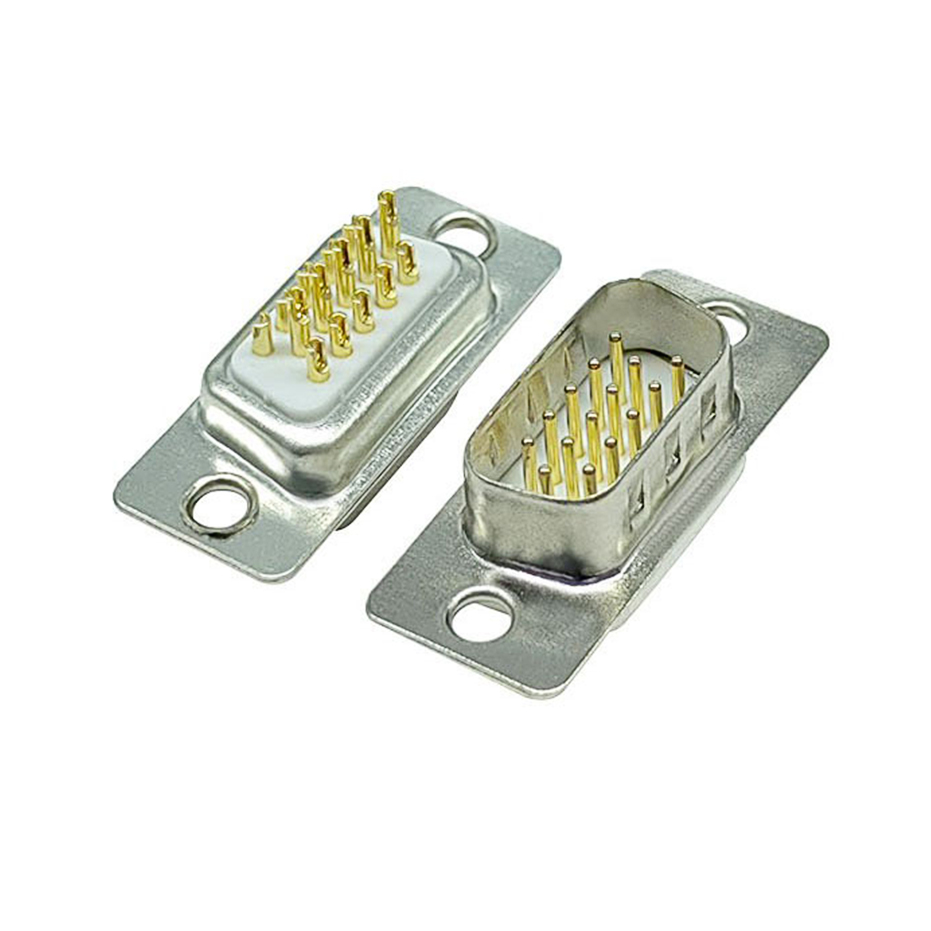

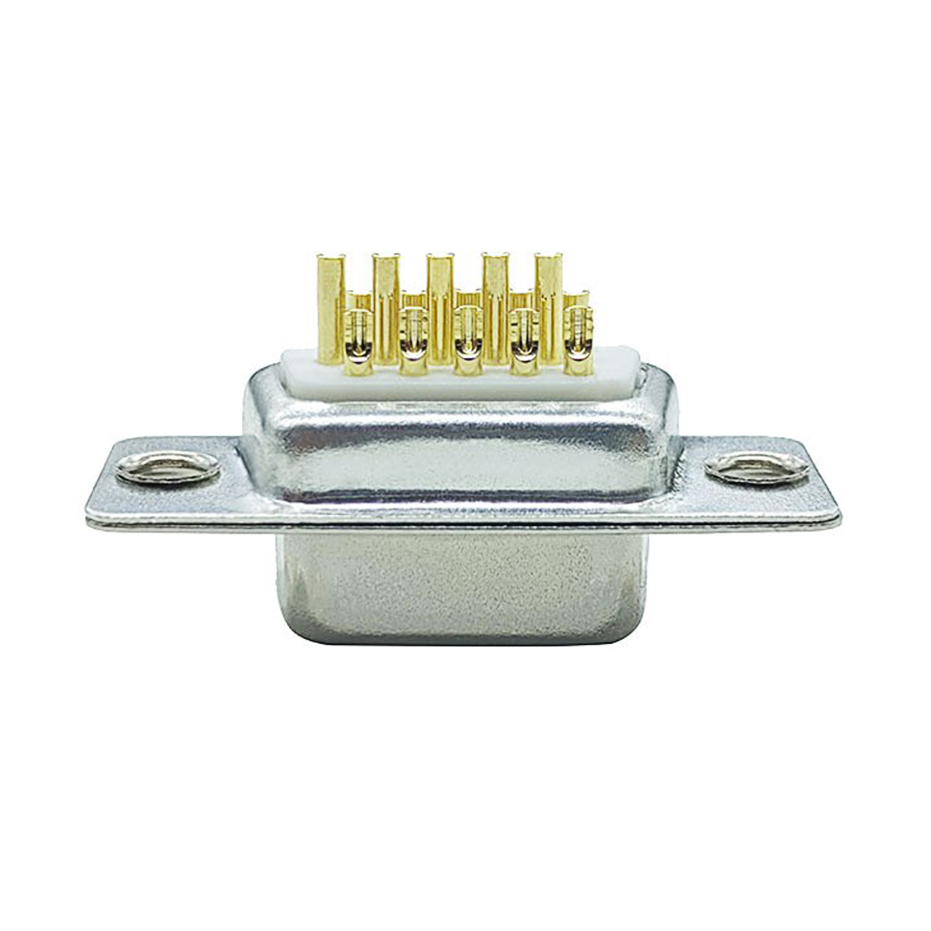

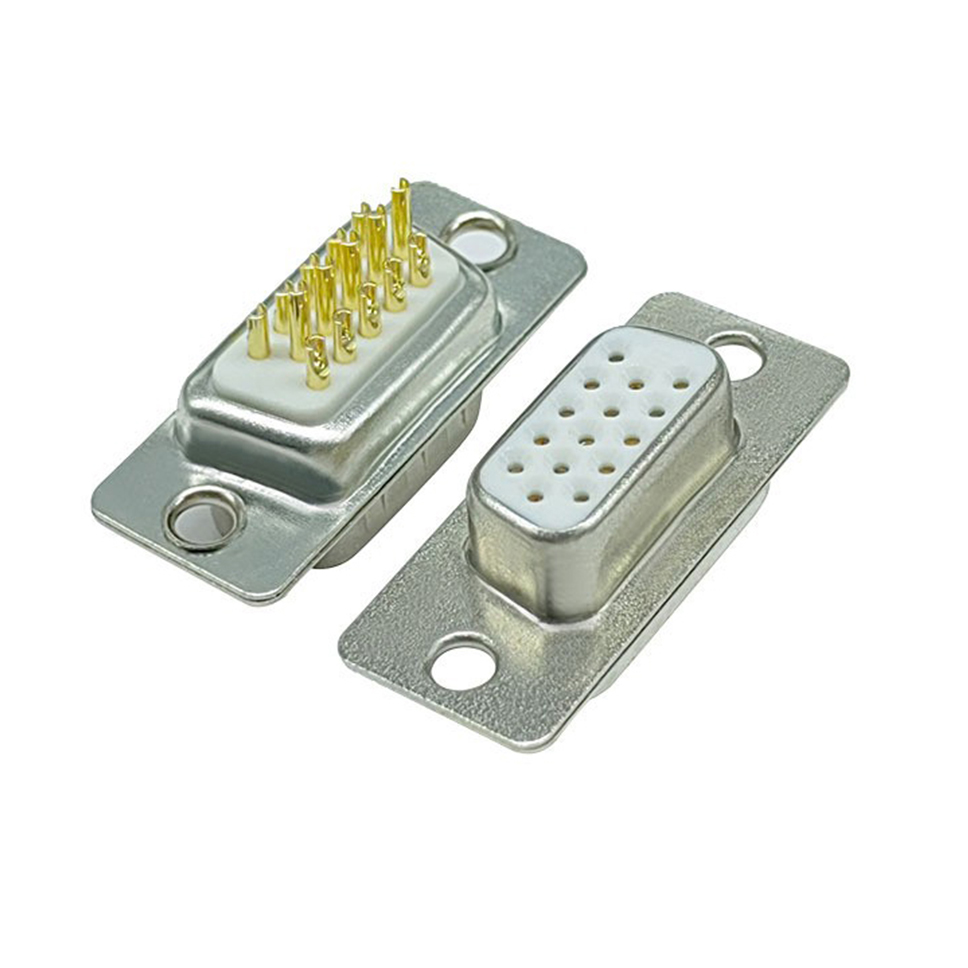

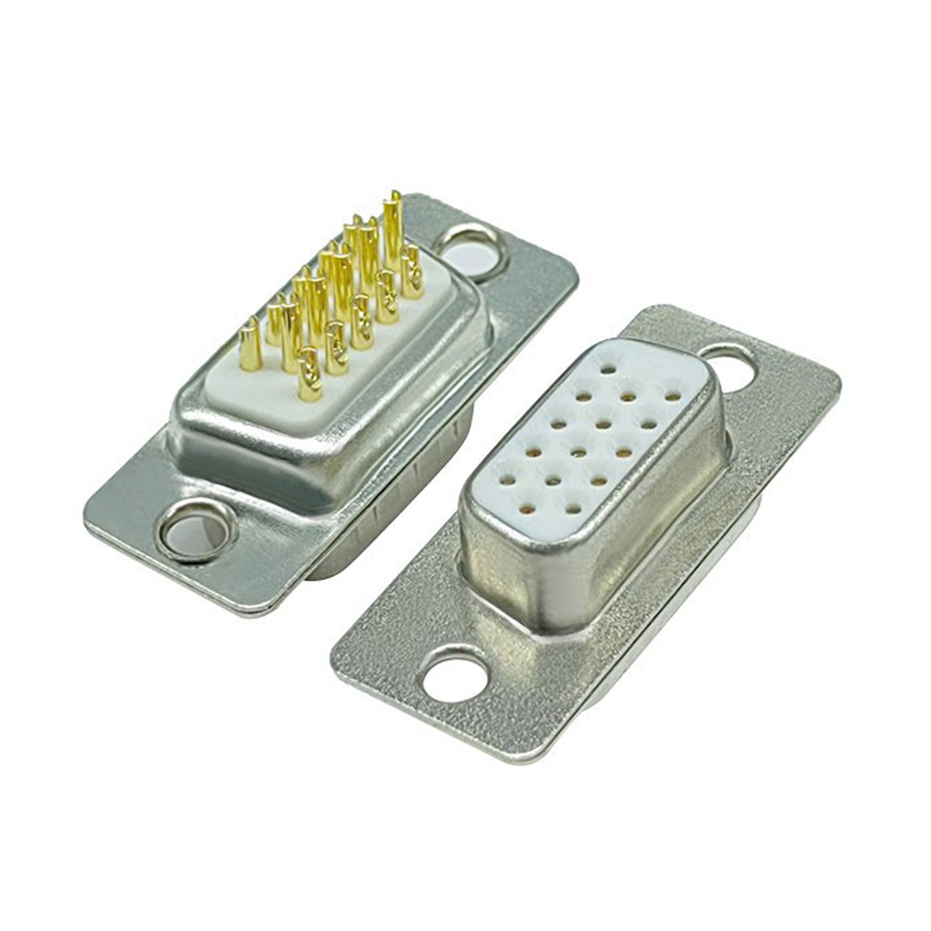

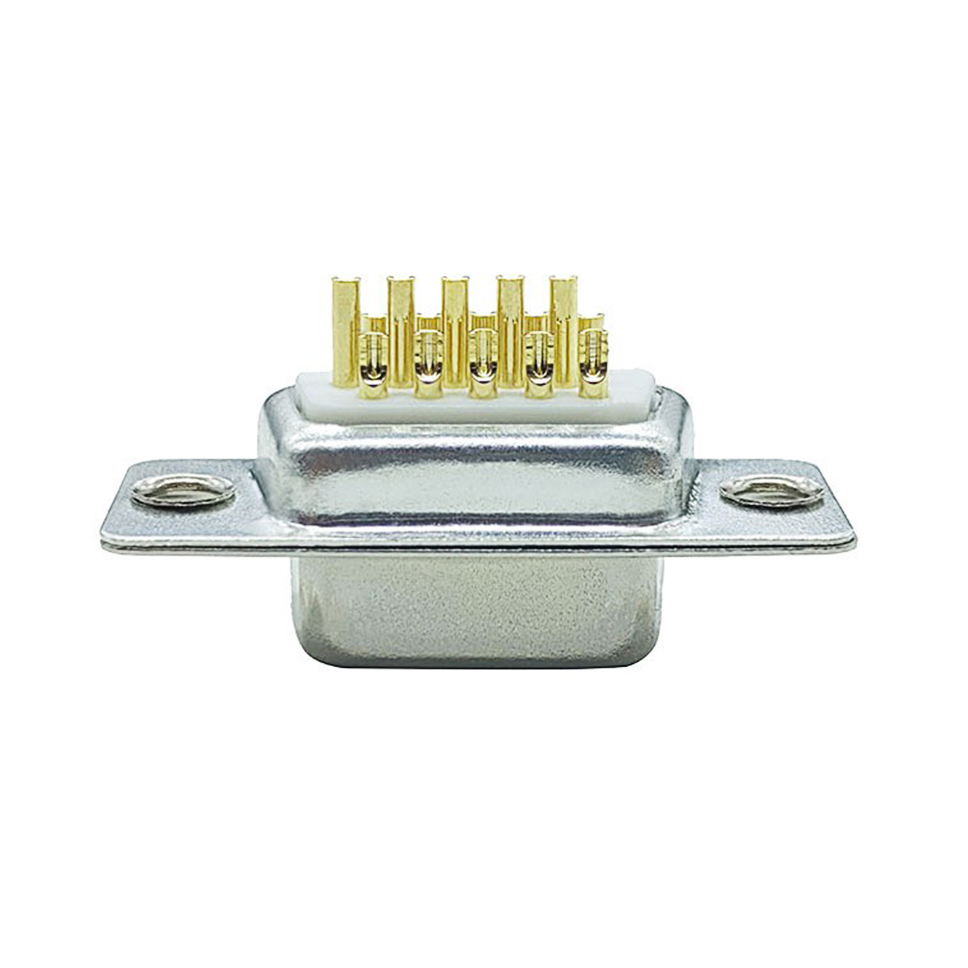

Pan Di is a professional Chinese manufacturer of d connector, capable of producing large quantities of d sub 15 connector male . This dsub connector features a 3-row pin layout and a wire-bonded mounting method. The current rating is 5A, ensuring stable signal output.

HDB15 is three rows of 15-pin high-density D-type interface, which is often said that the VGA standard interface, wire bonding is mainly used for their own wiring, connecting, equipment internal wiring, adaptation of these devices:

I. Display the video class (most commonly used)

Industrial displays, industrial touch screens

Industrial control unit, embedded display

Projector, LED display control card

Old desktop, notebook VGA external port

Billboards, cash register displays

II. Industrial control automation equipment

PLC programmable controller

Industrial robots, robotic hands control ports

Servo drive, frequency converter communication ports

Industrial control cabinets, machine tool numerical control system (CNC)

Serial port server, industrial switch

III. Medical instruments and equipment

Medical monitors, electrocardiogram machines

Medical testing equipment, medical imaging peripherals

Rehabilitation medical control terminal

d sub 15 pin male connector Electrical Performance：

Rated Current (Pin): 5A

Rated Current (Socket): 5A

Contact Resistance: 25 mΩ MAX

Insulation Resistance: 1000 MΩ MIN

Dielectric Withstanding Voltage: 1000 VRMS

Operating Temperature: -55°C ~ 125°C
