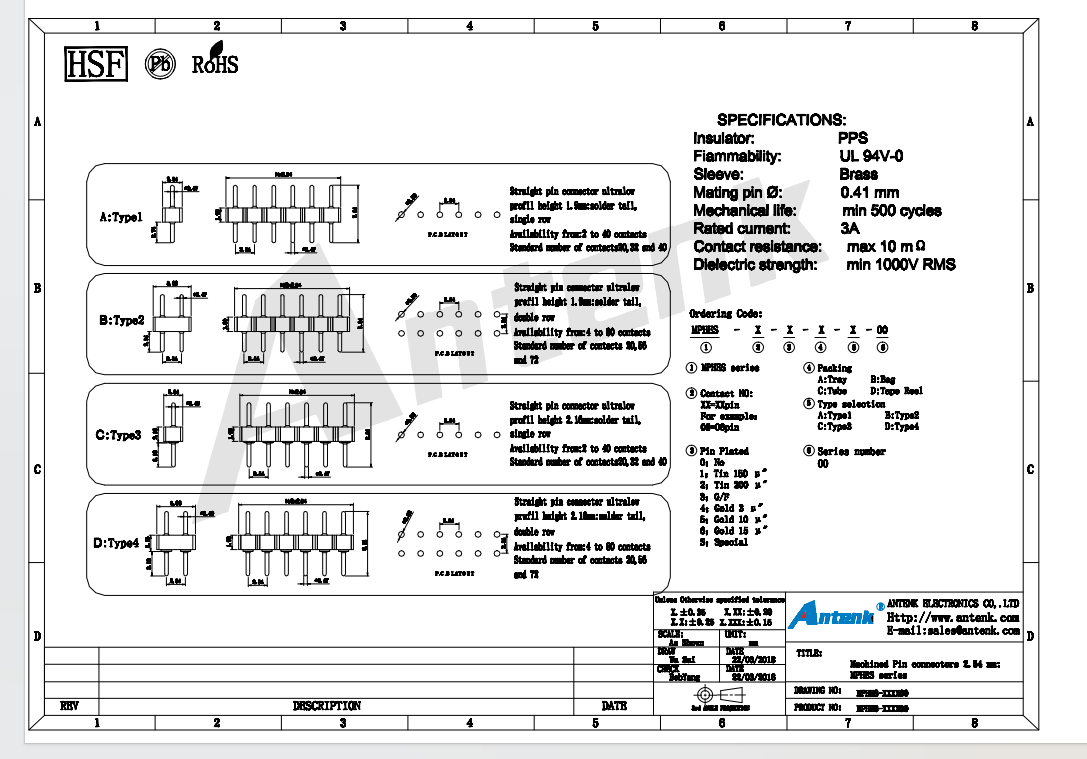

1、Product Drawing
Huizhou Antenk Electronics Co., Ltd. independently develops and manufactures the MPHES series 2.54mm machined pin connectors, premium straight pin headers designed for stable board-to-board signal and power transmission across consumer, industrial and automotive electronic devices. The insulator is molded from high-performance PPS material rated UL94 V0 flame retardant, delivering outstanding heat resistance and dimensional stability under fluctuating temperatures. Conductive sleeves are made of solid brass with 0.41mm mating pin diameter, supporting diversified surface plating options including tin, gold in various thicknesses to satisfy different conductivity and anti-corrosion demands. This series offers four distinct structural types with varied overall heights, available in single row and double row layouts, covering contact counts ranging from 2 pins up to 80 pins to meet diverse layout needs. Standard electrical specifications include 3A rated current, maximum 10 milliohm contact resistance, minimum 1000V RMS dielectric strength and over 500 times plugging mechanical lifespan. All products comply with RoHS and REACH environmental standards, and most items pass UL safety certification to fulfill global export requirements.
The pin header boasts simple assembly steps for both manual operation and automatic PCB assembly production lines. Users solder the through-hole pins onto printed circuit boards firmly, then mate with corresponding female sockets to complete reliable electrical connection between circuit boards. Its ultra-low profile design effectively saves internal space inside compact electronic equipment. Widely applied in liquid crystal displays, digital cameras, communication equipment, industrial control devices, digital home appliances, computers, automotive electronic modules and precision measuring instruments. During application, users must strictly abide by the rated current and voltage parameters to avoid overload burnout. Excessive repeated plugging and violent pulling are forbidden to prevent pin bending, terminal loosening or insulation damage. Products should be stored in dry indoor environments away from moisture, dust and corrosive gas to maintain stable electrical performance long term.
Compared with peer manufacturers, Antenk holds prominent competitive advantages relying on complete standardized quality management systems. Most suppliers only provide limited pin types and fewer pin count selections, while our MPHES series integrates four structural styles and abundant pin quantity specifications with customizable pin plating and packaging modes. Our factory has acquired ISO9001, ISO14001 and IATF16949 automotive quality system certifications, equipped with complete precision testing labs to implement 100% inspection on dimensional accuracy, electrical performance and plugging durability for each batch. Customized development is supported with low minimum order quantity and no extra expensive mold charges, unlike overseas competitors with long delivery cycles and high tooling costs. Independent mold development ensures consistent precision and stable mass production quality for machined pins and plastic housings.
Antenk implements full vertical integrated production procedures for these machined pin connectors at its over 10,000 square meters production bases with 250 professional staff members. The whole process starts with in-house mold design and fabrication using more than 250 sets of plastic connector molds and 180 sets of hardware terminal molds. Brass raw materials undergo precision stamping via imported high-speed punching machines to form finished pins; PPS pellets are injection molded into insulating housings through Taiwan and Japanese injection equipment. Subsequent assembly, trimming and surface plating processes are finished in dedicated workshops. All finished products pass comprehensive electrical, mechanical and environmental aging tests with 20+ professional testing devices before delivery, and each batch is assigned unique batch numbers for full traceability. We provide free samples, detailed dimensional drawings and round-the-clock overseas technical support. Over 70% of our connectors are exported worldwide, earning consistent trust from global electronic purchasers.
PPS Insulated Pin Header features high temperature resistance and stable insulation performance for long term electronic connection scenarios.
Brass Machined Pin delivers excellent electrical conductivity and precise dimensional tolerance to guarantee reliable plug and unplug performance repeatedly.
UL94 V0 Connector effectively blocks flame spread and avoids fire hazards when electronic devices encounter abnormal heating conditions.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
