Plastic hollow containers are widely used in product packaging such as: medicine, cosmetics, detergents, lubricating oil, beverages, daily necessities, and chemical containers. They are generally made of PP, PE PET, PC and other materials by blow molding. More and more large-scale factories use automatic screen printing machine to print their products. Since this kind of screen printing machine is connected like a long queue, it is vividly called a silk screen printing dragon.

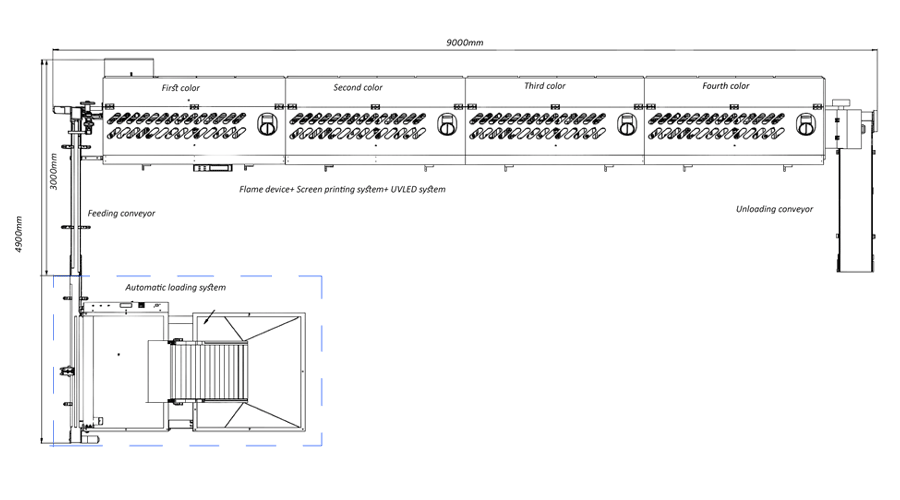

Screen printing dragon is the first automatic screen printing machine to enter the market, and it also occupies the largest share in the market. Now it is also the most standardized automatic screen printing machine. Its main structure is:
1) Feeding conveyor belt: It is a conveyor belt. The operator can place the product to be printed on the conveyor belt. The conveyor belt can automatically transfer the plastic bottle to the feeding position, and the feeding nozzle of the machine will suck the bottle To the transfer table of the screen printing machine. Some users will request to customize the automatic feeding chute, and the bottles can be put into the feeding chute, and the bottles will be automatically arranged into the feeding conveyor belt.
2) Pre-press device: The pre-press device includes orientation adjustment of plastic bottles and product surface treatment, such as flame treatment, plasma treatment, coating of PP oxidant, etc.
3) Stencil Printing system: The printing system of the automatic screen printing machine is similar to the printing device of the semi-automatic screen printing machine, but it has more functions. In order to improve the printing efficiency and precision, more and more movements of the screen printing device are controlled by servo motors, pneumatic components More and more international famous brands are used for electronic and electronic components, and the main parts of the machine are also processed with high-strength steel instead of aluminum profiles. The wear resistance and service life of steel materials are much better than aluminum profiles.
4) UV drying unit and UVLED drying unit: For continuous high-speed screen printing, an important option to ensure that the screen is not blocked is to use UV ink, which will basically not dry to the screen surface and affect printing unless it is irradiated by ultraviolet rays.
5) Unloading system: If you do not arrange the printed products, you only need one unloading conveyor belt, but if you need to arrange the printed products, the machine will be equipped with a manipulator and placed regularly on the conveyor belt.
Now more and more users choose multi-color container automatic screen printing machine, which actually integrates three processes of flame treatment, silk screen printing and UV curing, which not only greatly reduces the labor intensity of the operator, but also greatly improves the printing quality of the product. Factories that are accustomed to semi-automatic screen printers have also begun to upgrade and purchase brand new screen printing machines to expand production capacity.
Usage-Stencil Printed Samples
This automatic screen printing system is optimized for round and oval plastic containers, delivering stable performance, easy adjustment, and high production efficiency.
The feeding conveyor utilizes a synchronous motor with stepless speed regulation, ensuring smooth transport and flexible speed control. Its adjustable design allows quick adaptation to different bottle dimensions.
A dual suction loading mechanism automatically transfers containers to the printing station, while an automatic orientation system aligns bottles uniformly for consistent printing results.
To improve print adhesion on PP and PE surfaces, the machine is equipped with a flame treatment unit featuring adjustable flame intensity. A high-precision positioning system ensures accurate multi-color registration, with overprint accuracy reaching 0.08 mm.
By changing the bottle fixtures, the machine can seamlessly switch between round and oval container printing, maximizing equipment utilization. The screen and squeegee system supports multi-directional adjustment, allowing precise control over printing position and angle.
The integration of mechanical drive, pneumatic components, and a Japanese frequency inverter ensures smooth and stable operation. The touchscreen control panel provides an intuitive interface for easy operation and monitoring.
An advanced UV curing system delivers fast drying and superior print quality, enabling high-speed production up to 3600 pcs/hour.
Equipped with intelligent sensors, the machine supports features such as no product, no printing, pressure monitoring, and automatic alarms. Premium electrical and control components from Germany and Japan ensure durability, reliability, and consistent output quality.
If you are interested in the product, contact 2bvideo.com for more information for more information
