1.27mm Straight Dual Row Multi Height Pin Header

1.27mm Straight Dual Row Multi Height Pin Header

2 month ago

6 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures PHCS07 series 1.27mm dual row straight pin headers with three optional insulator heights H1 0.85mm H2 1.0mm H3 1.5mm to deliver stable through-hole board-to-board power and signal transmission for miniature PCB layouts, supporting contact quantities ranging from 02P to 80P with standard 1.27mm pin pitch and adjustable pin lengths 0.30mm and 1.80mm, unified dimensional tolerances guarantee precise DIP soldering matching standard PCB layout designs. This straight dual row pin header insulator adopts UL94V0 flame retardant black PA6T as standard material, high temperature resistant alternative materials LCP and PA9T are available, 0.4SQ square brass pins feature full nickel base plating with diverse surface finish selections including tin, gold flash, 3u",5u",10u",15u",30u" full or selective gold plating, electrically rated at maximum 1A current, 500V AC dielectric withstand voltage, below 20 milliohm contact resistance and over 1000 megohm insulation resistance, operating steadily from minus 65 degree Celsius to plus 125 degree Celsius and fully complying with HSF lead-free and RoHS environmental standards, six packaging modes tray bag tube tube with cap tape reel tape reel with cap fit both manual and automatic through-hole assembly production lines. This multi-height dual row straight pin header is widely deployed in liquid crystal display modules, digital cameras, communication equipment, industrial control panels, portable storage devices, digital household appliances, electronic toys, computer peripherals, automotive electronic assemblies and precision measuring instruments requiring compact PCB interconnection space. Operators need to select suitable pin count insulator height pin length and plating thickness according to circuit layout requirements, implement standard through-hole soldering strictly following official PCB pad drawings, avoid forced bending to prevent brass pin fracture and PA6T housing deformation, and store finished pin headers in dry sealed packaging to stop plating layer oxidation. Unlike competitors outsourcing mold manufacturing and plastic injection molding Antenk runs a complete self-contained production workflow including independent plastic and metal precision mold design, high-speed brass terminal stamping, high temperature PA6T injection molding, multi-layer nickel gold electroplating and full high-low temperature cycle reliability laboratory testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while complying with REACH global environmental standards. We own more than two hundred fifty proprietary plastic connector molds and one hundred eighty metal terminal molds, provide customizable insulator material pin dimension plating thickness and packaging schemes, offer round-the-clock professional engineering technical support, and over seventy percent of our pin header products are exported globally backed by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

Variable Height PA6T Straight Housing supplies multiple housing height options to satisfy different vertical space limits of miniature PCB assembly.

0.4SQ Square Brass Straight Pin retains stable conductive performance and uniform solderability for reliable through hole PCB connection.

Dual Row 02P-80P Pin Header covers a full range of pin quantities to match various dual line circuit interconnection requirements.

1. Electrical Specifications

1.1 Rated Current: 1 Amp

1.2 Dielectric Withstanding Voltage: AC 500V

1.3 Max Contact Resistance: 20 milliohms

1.4 Min Insulation Resistance: 1000 Megohms

2. Environmental Parameters

2.1 Operating Temperature Range: -65°C ~ +125°C

2.2 Compliance Certifications: HSF, RoHS Lead-free

3. Material Composition

3.1 Standard Insulator: Black PA6T, UL94V-0 flame retardant

3.2 Optional High-temperature Insulator: LCP, PA9T

3.3 Contact Material: 0.4SQ square brass pin

4. Contact Plating Selections

4.1 Full plating: Tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold

4.2 Selective plating: Selective gold flash, 3μ",5μ",10μ",15μ",30μ" gold

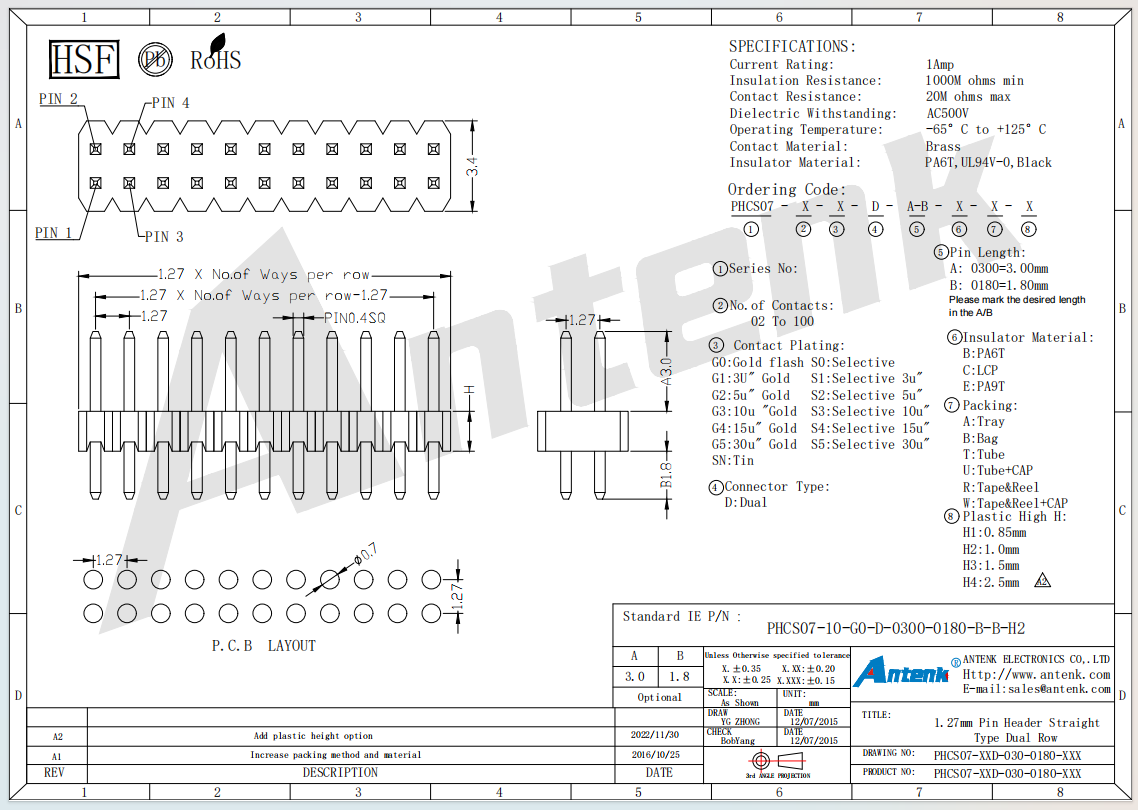

5. Dimension & Structural Details (Unit: mm)

5.1 Standard Pin Pitch: 1.27

5.2 Contact Range: Dual row 02P to 80P

5.3 Optional Pin Length: 0.30, 1.80

5.4 Optional Insulator Heights: H1=0.85, H2=1.0, H3=1.5

5.5 Connector Type: D=Dual row straight through-hole type

6. Packaging Modes

6.1 A: Tray packing

6.2 B: Bag packing

6.3 T: Tube packing

6.4 U: Tube with CAP packing

6.5 R: Tape & reel packing

6.6 W: Tape & reel with CAP packing

7. Application Scenarios

7.1 LCD modules, digital cameras

7.2 Communication equipment, industrial control panels

7.3 Portable storage devices, digital home appliances

7.4 Electronic toys, computer peripheral products

7.5 Automotive electronics, precision measuring instruments

8. Operation & Storage Precautions

8.1 Select pin count, insulator height, pin length and plating specification matching PCB layout

8.2 Complete through-hole DIP soldering strictly follow the official PCB layout drawing

8.3 Avoid excessive external force to prevent PA6T insulator deformation and brass pin bending

8.4 Select thicker gold plating for connectors with frequent plugging cycles

8.5 Store finished headers in dry sealed packages to avoid oxidation of nickel-gold plating layer

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

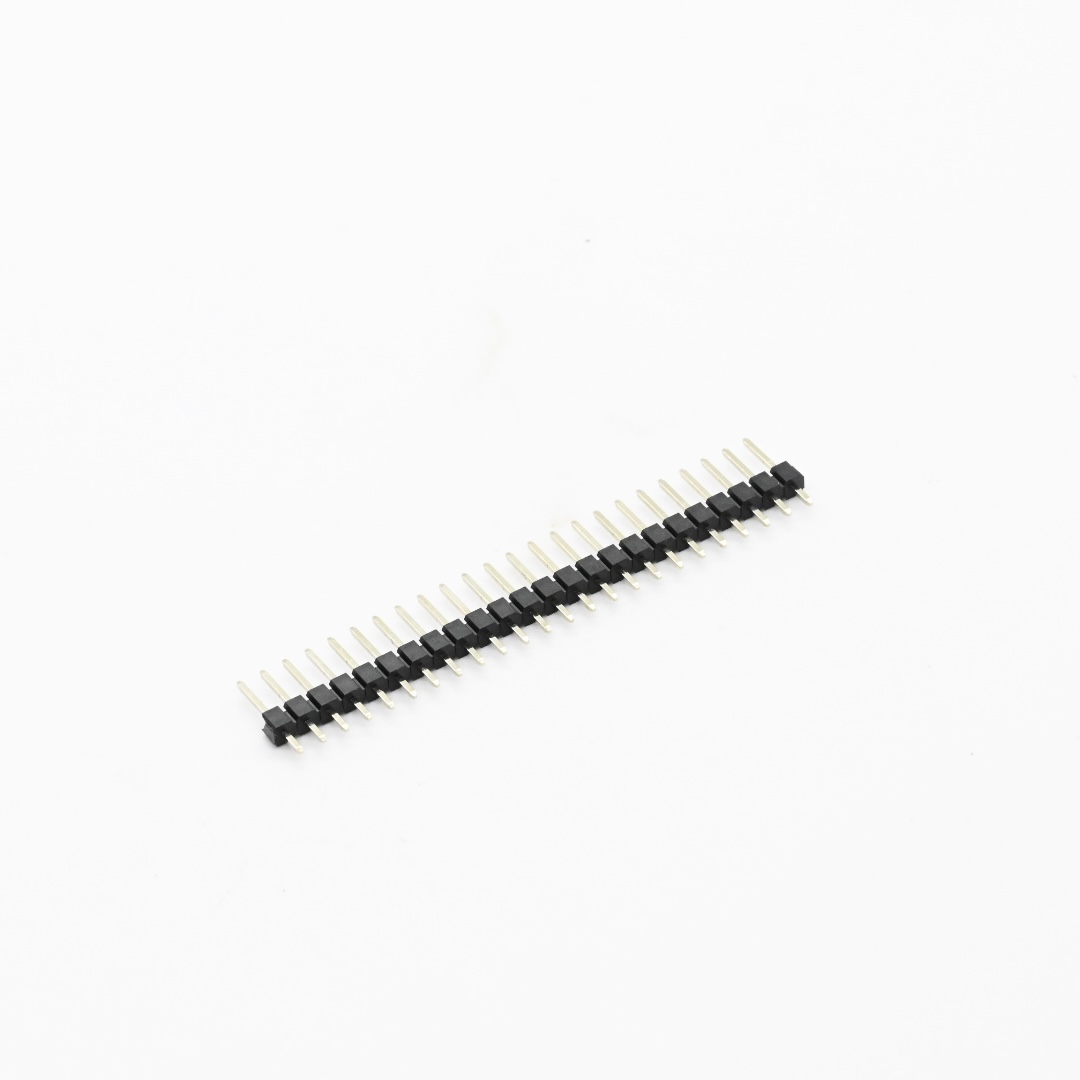

PHCS07-XXD-030-0180-XXX+1.27mm Pin Header Straight Type Dual Row（2）

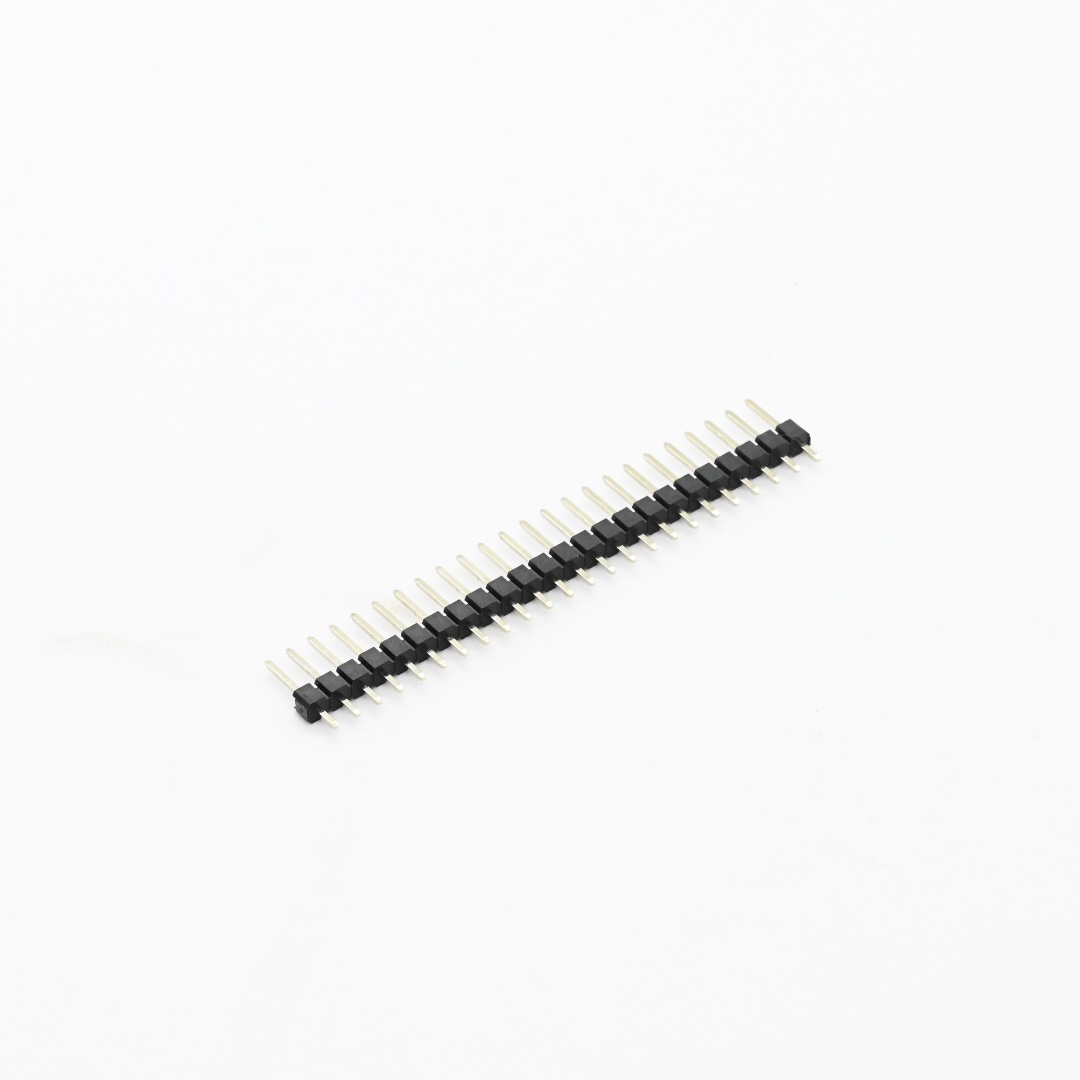

PHCS07-XXD-030-0180-XXX+1.27mm Pin Header Straight Type Dual Row（5）

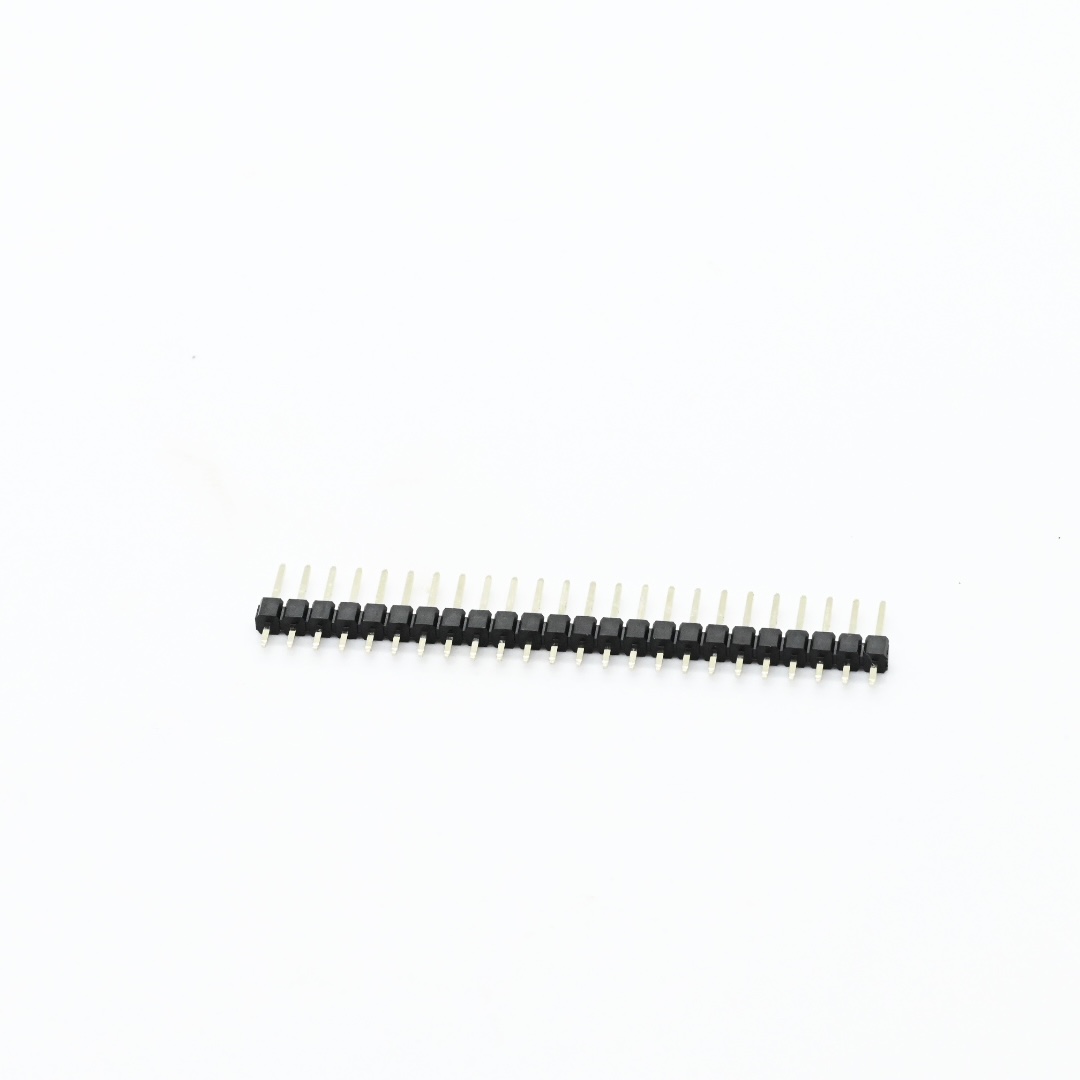

PHCS07-XXD-030-0180-XXX+1.27mm Pin Header Straight Type Dual Row（4）

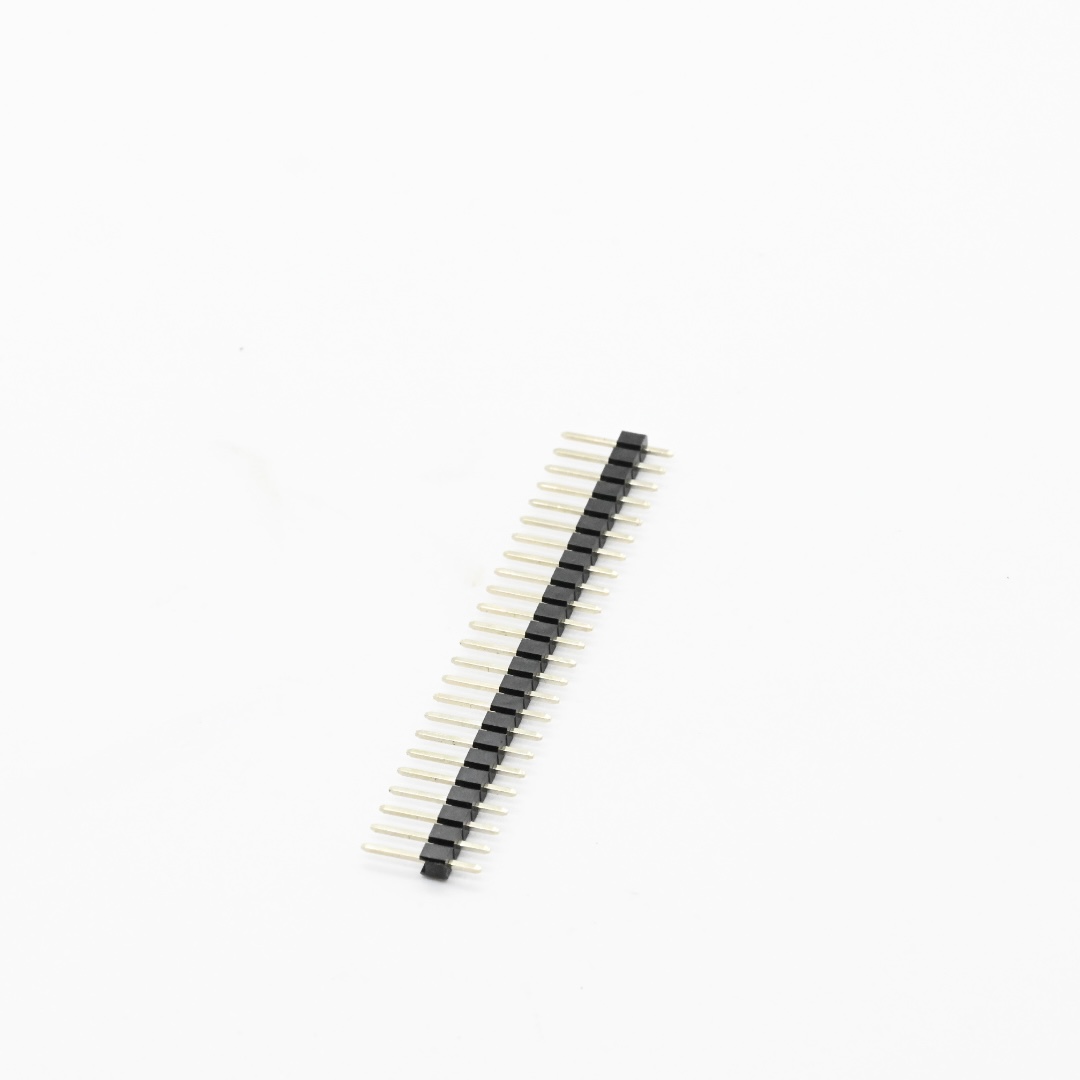

PHCS07-XXD-030-0180-XXX+1.27mm Pin Header Straight Type Dual Row（3）

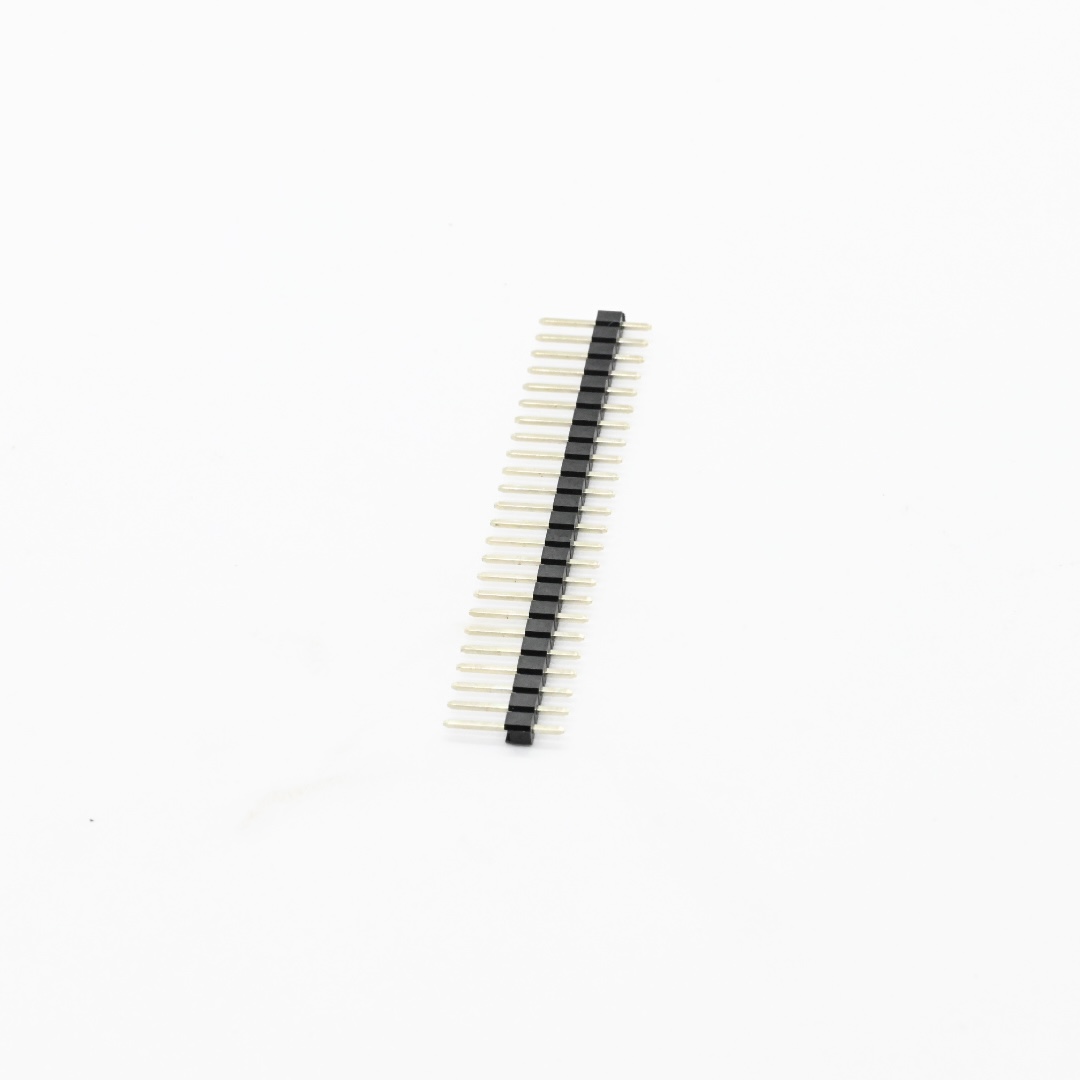

PHCS07-XXD-030-0180-XXX+1.27mm Pin Header Straight Type Dual Row（6）

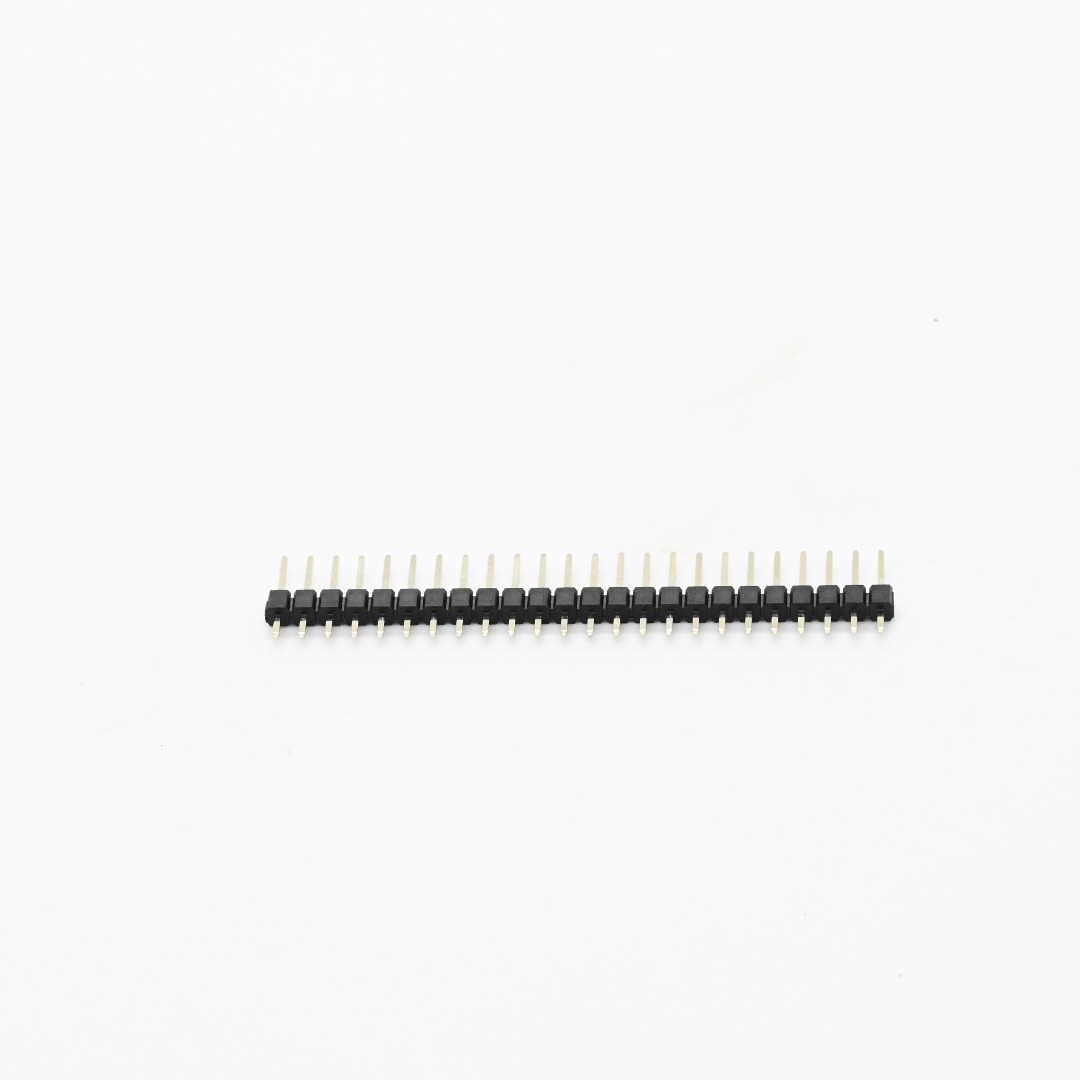

PHCS07-XXD-030-0180-XXX+1.27mm Pin Header Straight Type Dual Row（1）
